KIC Wave Surfer Profiling Fixture from Manncorp

Accurate, repeatable thermal profiling for wave soldering processes.

The KIC® Wave Surfer™ is a self-contained profiling fixture designed to optimize wave solder machine setup and performance. Used with KIC profilers and software, it captures critical process data for precise thermal profiling.

KIC’s intuitive software guides users through each step, generating detailed reports with key parameters such as Process Window Index (PWI), ramp rates, peak temperatures, conveyor speed, and dwell time—enabling fast setup and process optimization.

Complete kit: fixture, sample PCBs, thermocouples, software, and manual
Compatible: designed for use with KIC thermal profilers (not included)
Durable design: built to withstand repeated passes through wave systems

or for pricing

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

KIC Wave Surfer Profiling Fixture Specifications/th>

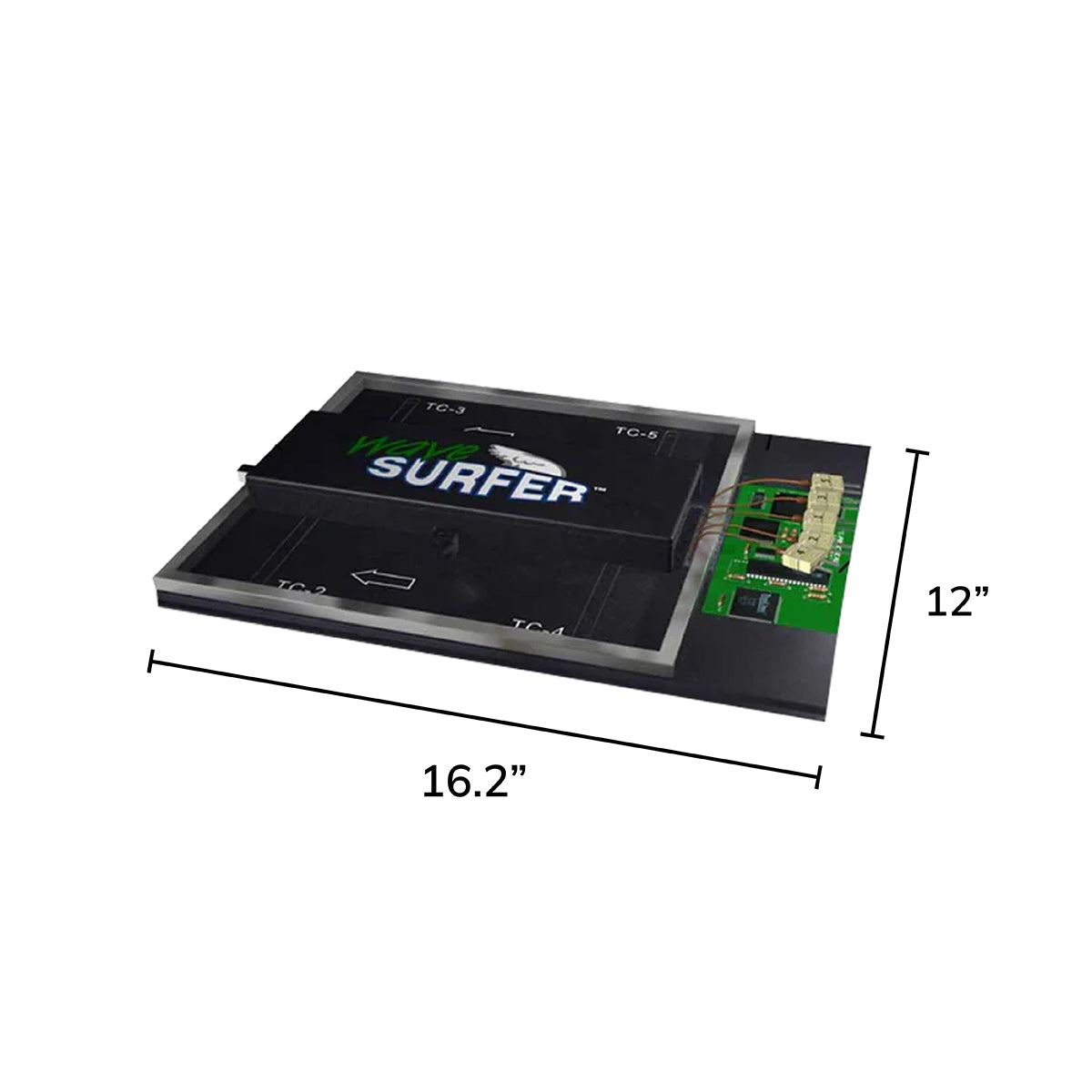

Dimensions	16.2" x 12" x 1.46" (411 x 305 x 37 mm)
Weight	4.5 lbs. without profiler and sample PCB
Max. Temp	350°C
Thermocouples: Wave Surfer Fixture	5 Type K, sheathed, 1 mm (0.4")
Profile Board	5 Type K, Teflon insulated, .25 mm (.01")
Palette Material	Durastone, Black, Anti-Static
Metal Cover	Stainless Steel
Hardware	Aluminum, Titanium, and Stainless Steel
