AOI Machines

4 products

    Our “Sherlock” line of Automated Optical Inspection (AOI) systems provides powerful, high-precision defect detection for both pre- and post-reflow PCB inspection. Designed to enhance production quality and streamline processes, Sherlock systems identify a wide range of issues including missing or misaligned components, incorrect polarity, foreign objects, tombstoning, billboard parts, and inversions. They also perform detailed solder inspections—detecting excess, insufficient, and unsoldered joints, bridges, and solder balls—as well as optical character recognition (OCR) errors. Available in various models to accommodate different PCB sizes, Sherlock AOI systems deliver reliable 2D inspection across every stage of your SMT line.

    4 products

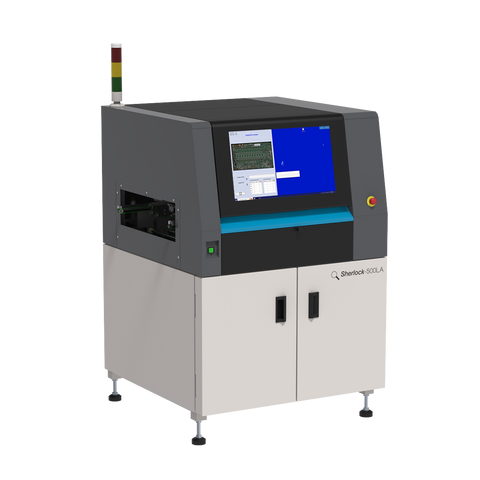

    Sherlock 500LA Inline AOI Machine
    • PCBs to 510 x 460 mm
    • Integrate Pre- or Post-Reflow
    • Automatic Good/Bad Board Sorting
    Sherlock 300B Batch AOI System from Manncorp
    Sherlock 300B Batch AOI Machine
    • PCBs to 330 x 250 mm
    • Post-Reflow Only
    • For Offline Use
    Sherlock 300I Inline AOI System from Manncorp
    Sherlock 300I Inline AOI Machine
    • PCBs to 330 x 250 mm
    • Integrate Pre- or Post-Reflow
    • Automatic Good/Bad Board Sorting

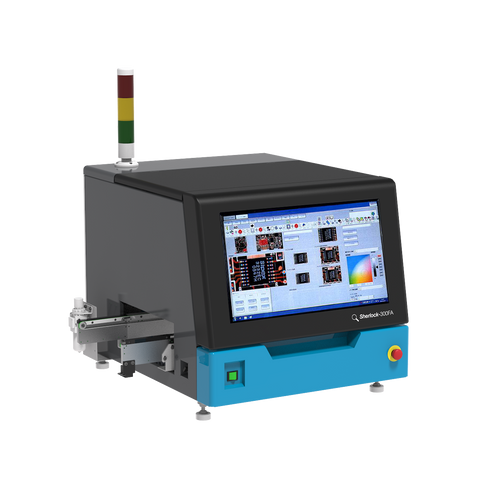

    Sherlock 300F Benchtop AOI Machine
    • PCBs to 330 x 250 mm
    • Integrate Pre- or Post-Reflow
    • For Offline Use

    Each of our Automated Optical Inspection (AOI) systems comes with the easy-to-use Sherlock PCB inspection software featuring a touch-screen interface, “Navigation Mode” to step the operator through the process, and both a rich component library and CAD import capability.

    Check out our PCB inspection conveyors, including an AOI-compatible conveyor that lifts NG (rejected) boards out of the line after inspection.
