KIC Wave Surfer Profiling Fixture

KIC Wave Surfer Profiling Fixture from Manncorp

KIC Wave Surfer Profiling Fixture

Fine-tune your wave solder machine for optimum performance & reliability. Use the KIC® Wave Surfer fixture with any 6, 7, or 9-channel KIC profiler to ensure your wave machine is set up and performing properly.

Regular price $3,975.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

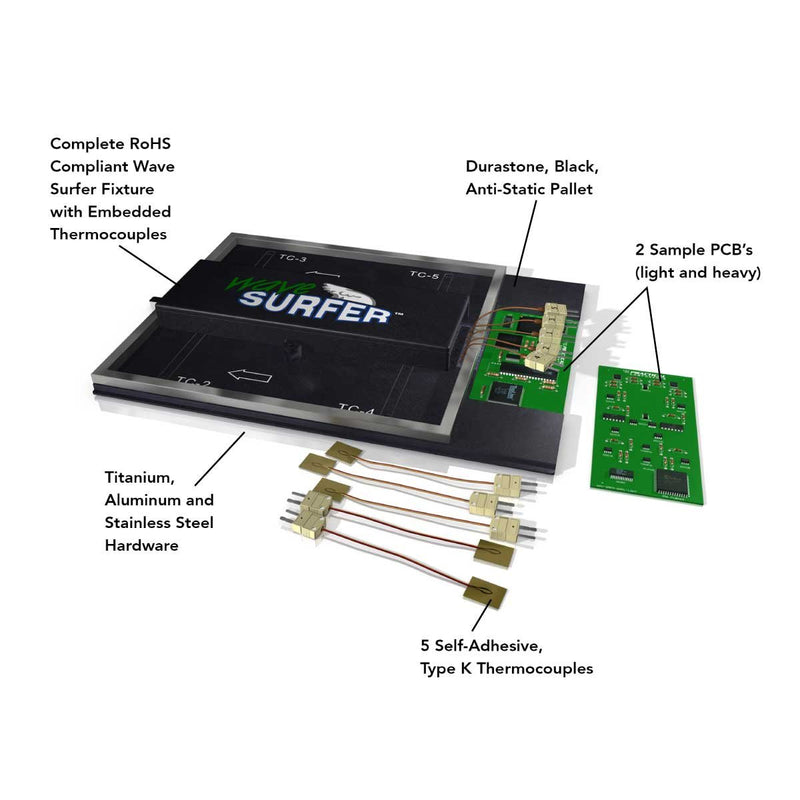

The KIC® Wave Surfer includes the KIC Wave Surfer fixture with embedded thermocouples, 2 sample PCBs (light and heavy), five self-adhesive type K thermocouples, KIC software, and a user manual with a section on using the KIC Wave Surfer with your KIC thermal profiler. Thermal profiler not included. Manncorp recommends the KIC K2 7- or 9- channel thermal profiler.

The Wave Surfer fixture is built of similar material to wave solder pallets, ensuring it will withstand thousands of passes through your wave soldering machine.

KIC WAVE SURFER SPECIFICATIONS
Dimensions (L x W x H) 411 mm x 305 mm x 37 mm (16.2" x 12" x 1.5")
Weight 2.509 kg (5.531 lbs) without profiler and sample PCB
Max Temperature 350°C
Thermocouples Wave Surfer Fixture: 5 Type K, sheathed, 1 mm (0.4")
Profile Board: 5 Type K, Teflon insulated, 0.25 mm (0.01")
Palette Material Durastone, Black, Anti-Static
Metal Cover Stainless Steel
Hardware Aluminum, Titanium and Stainless Steel
