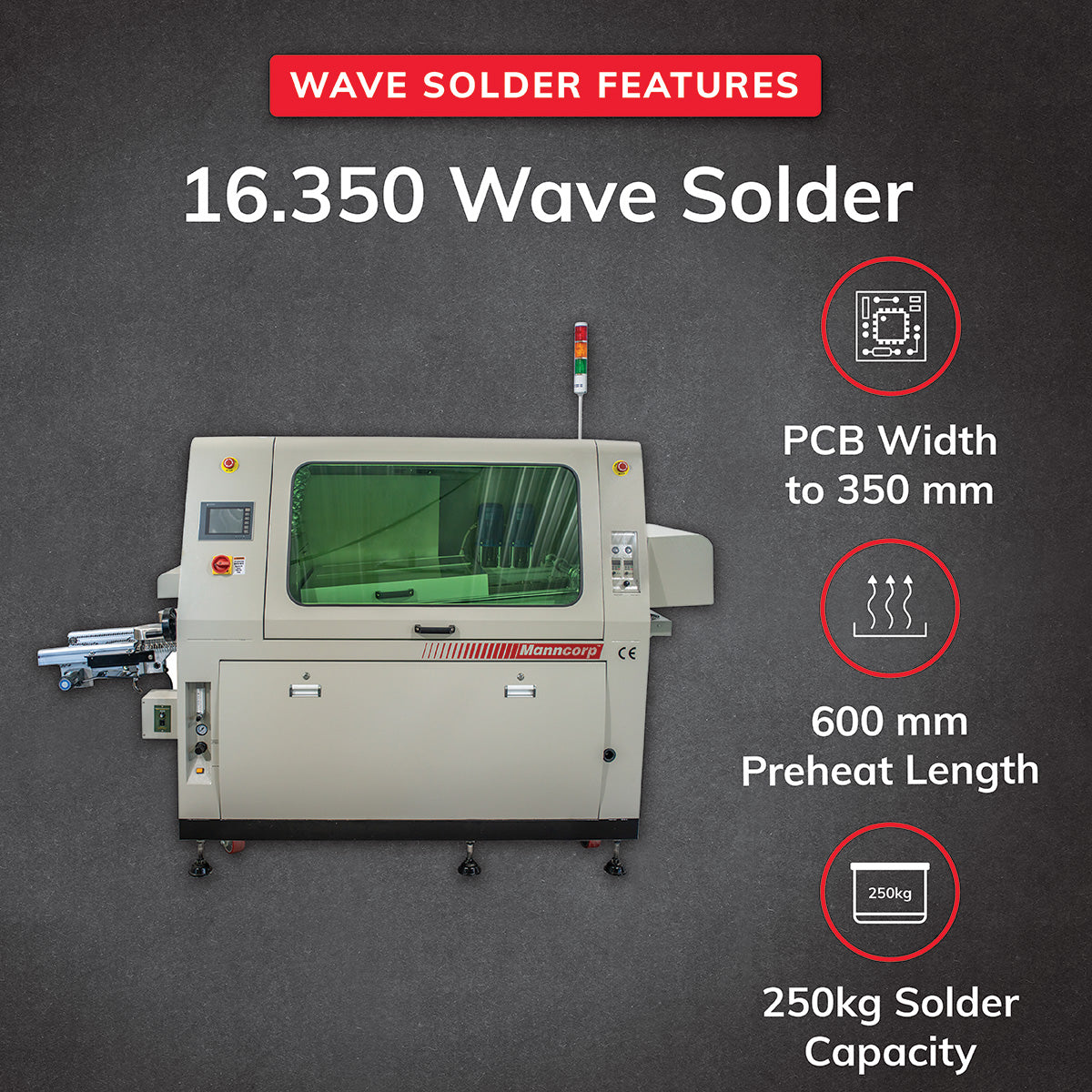

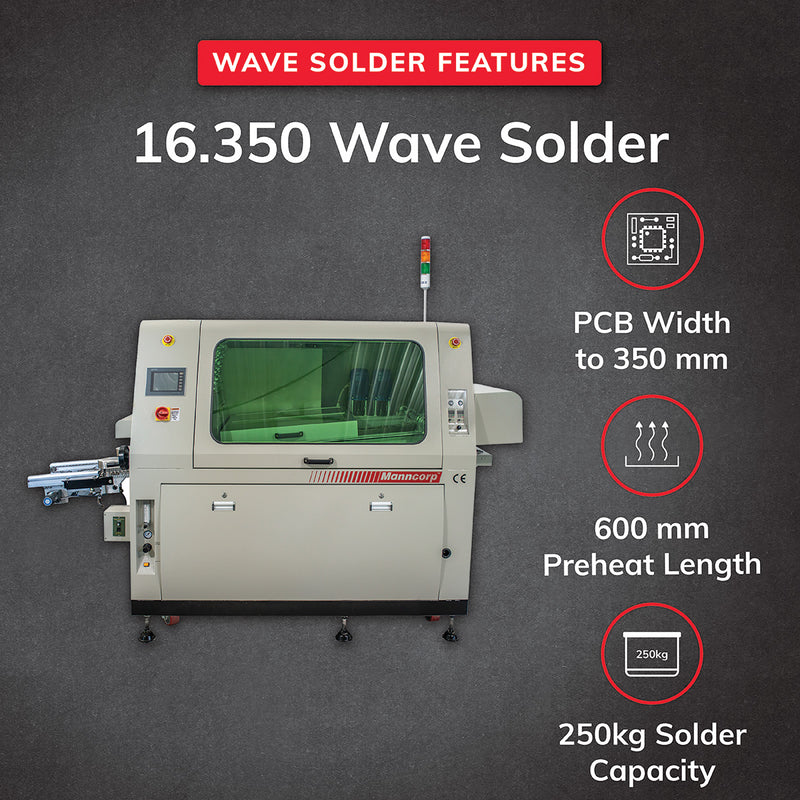

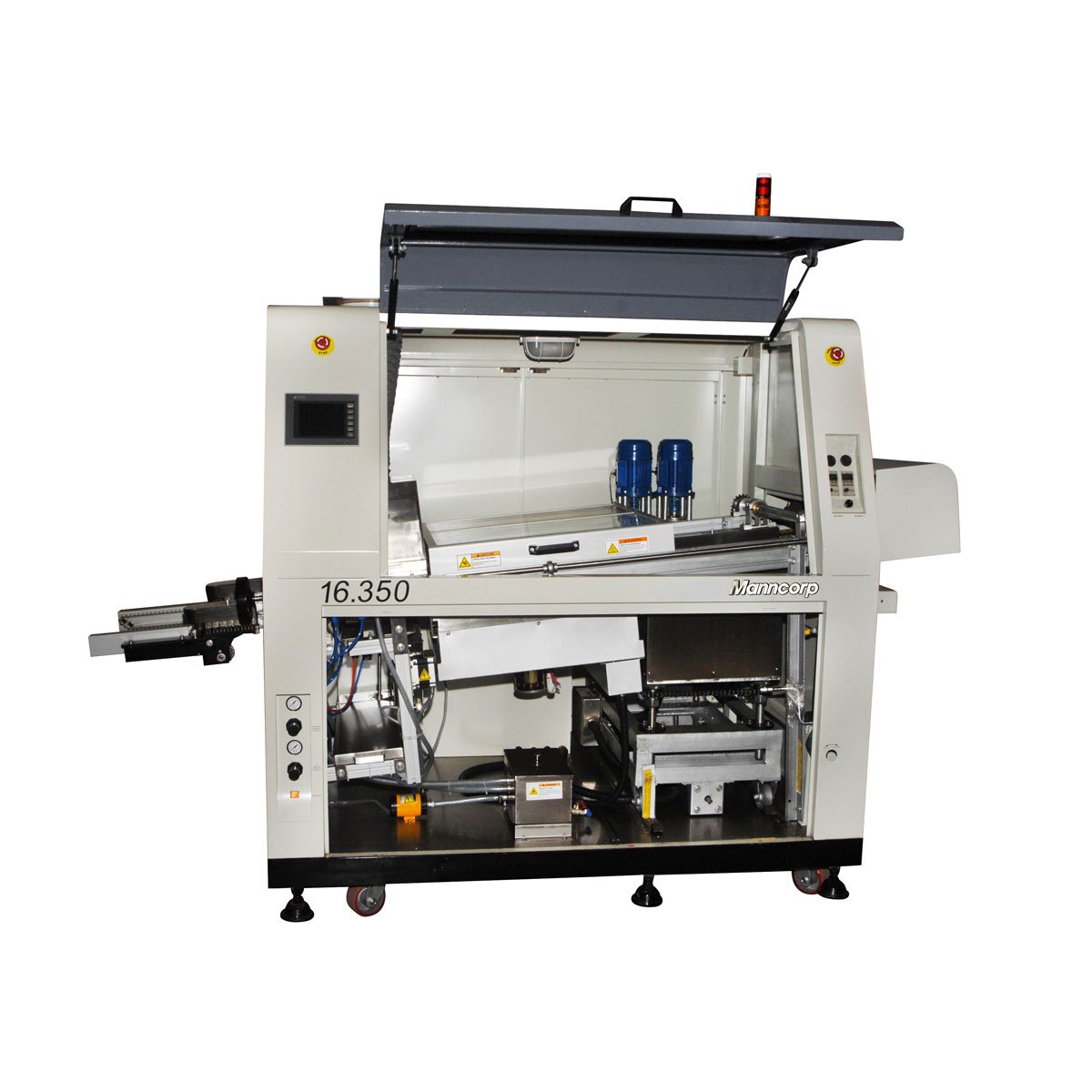

Efficient Preheating, Fluxing & Conveying

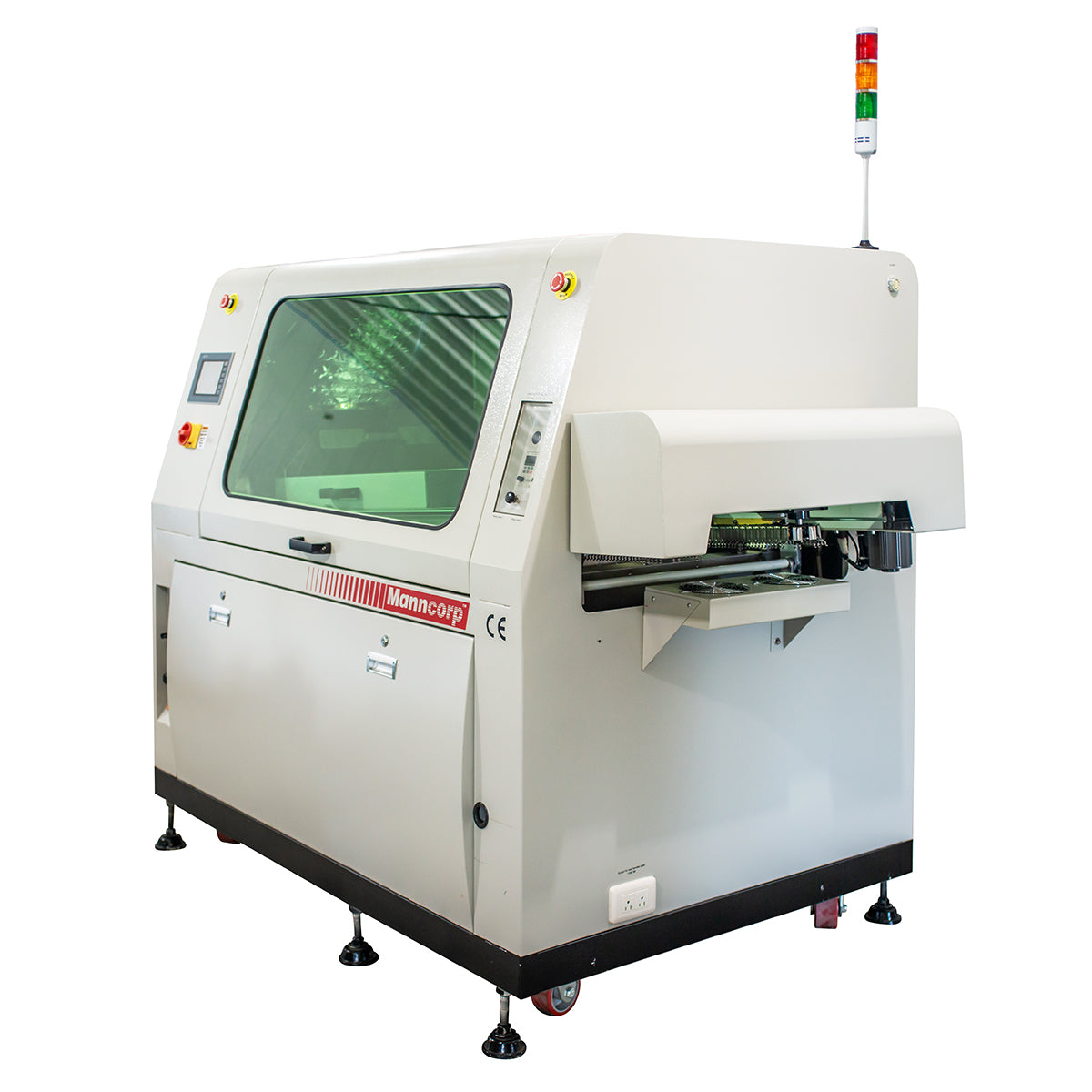

The 16.350 ensures consistent soldering with convection preheating, precision fluxing, and reliable board handling.
- Forced hot air convection: uniform preheating without IR drawbacks
- 23.6" (600 mm) preheat zone: consistent thermal conditioning
- Pauseable conveyor: added process flexibility

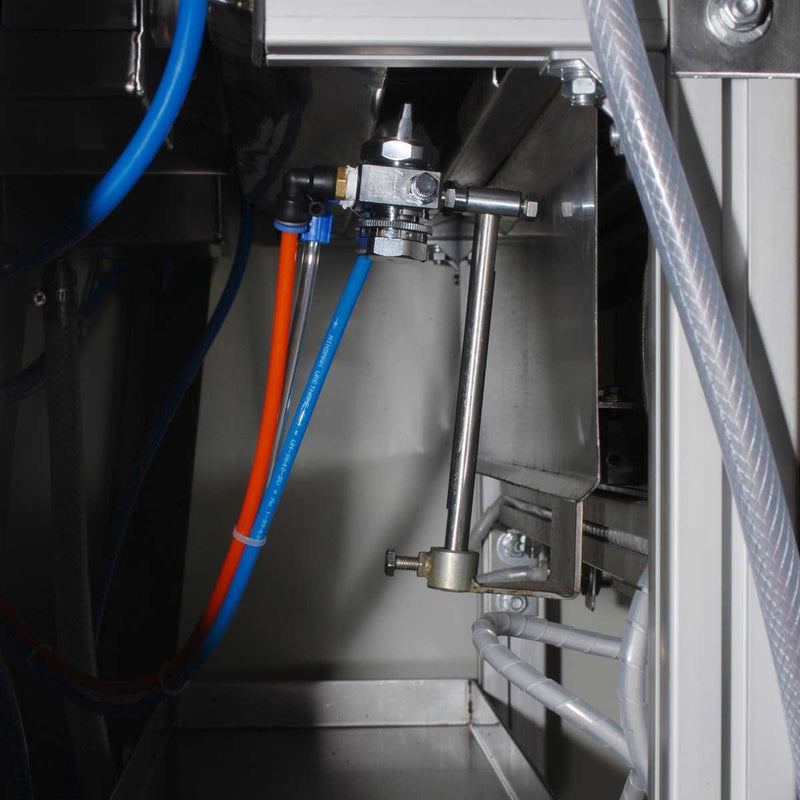

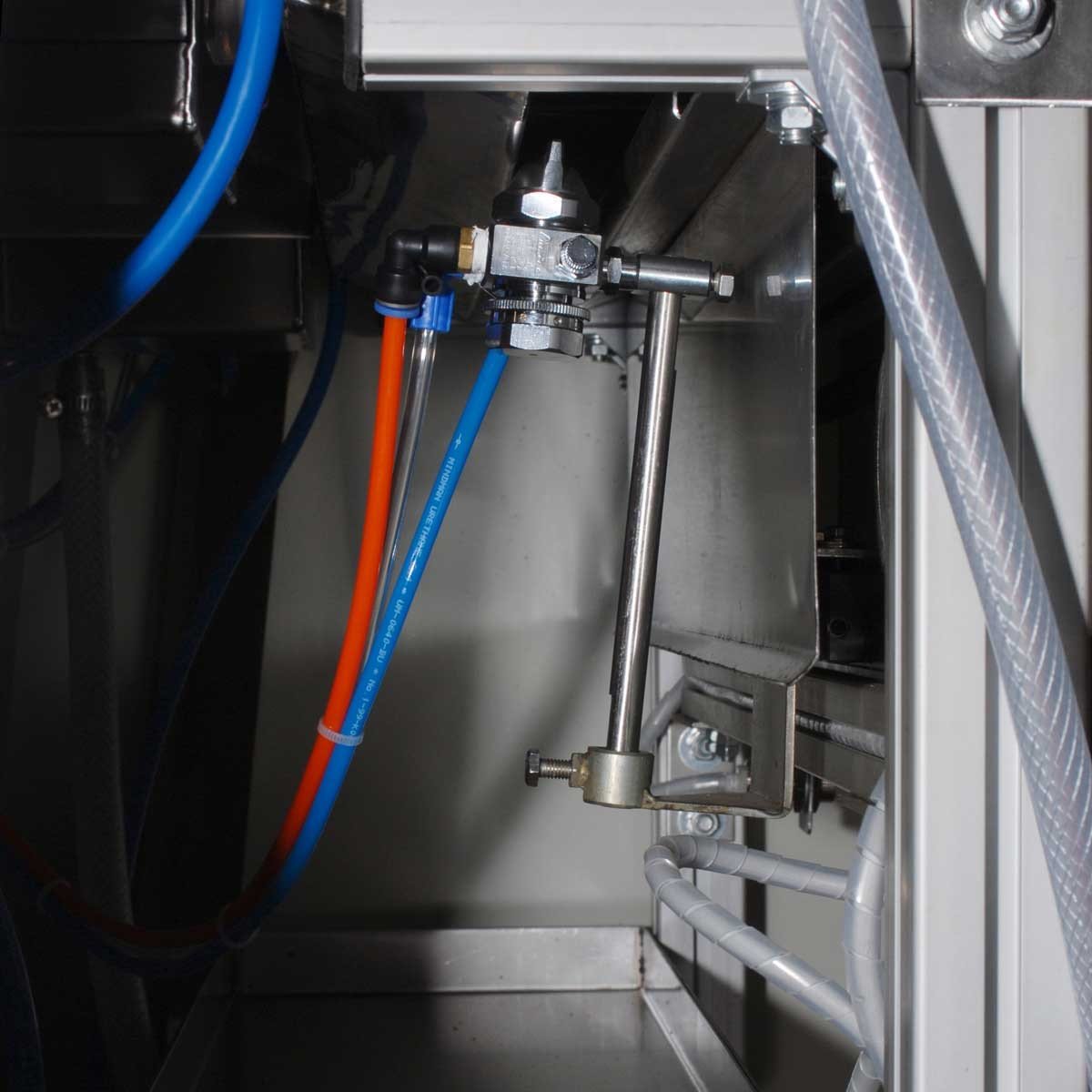

- Spray fluxer (Y-axis): even, controlled flux application

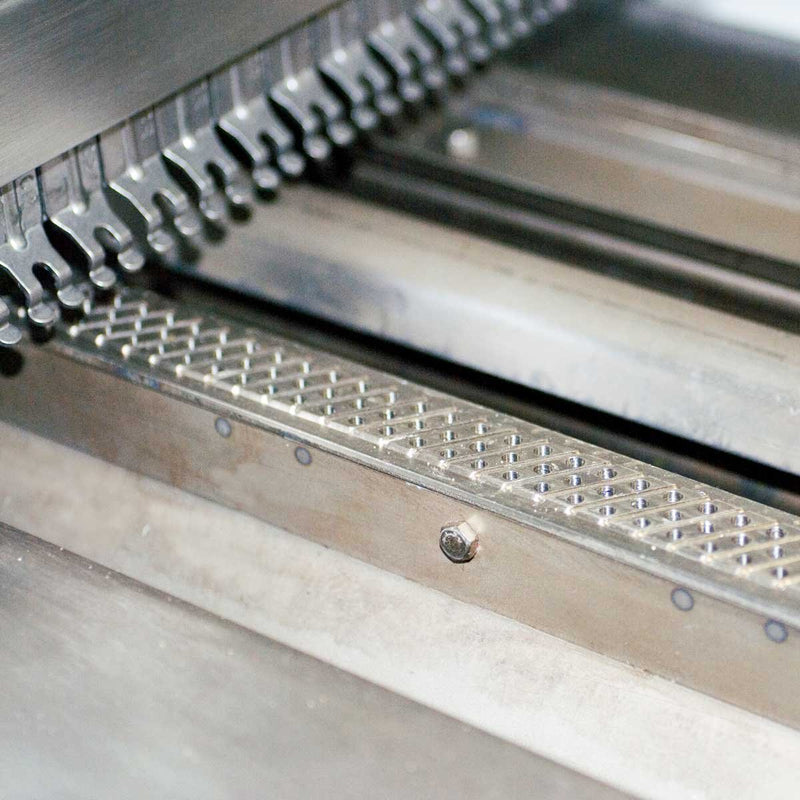

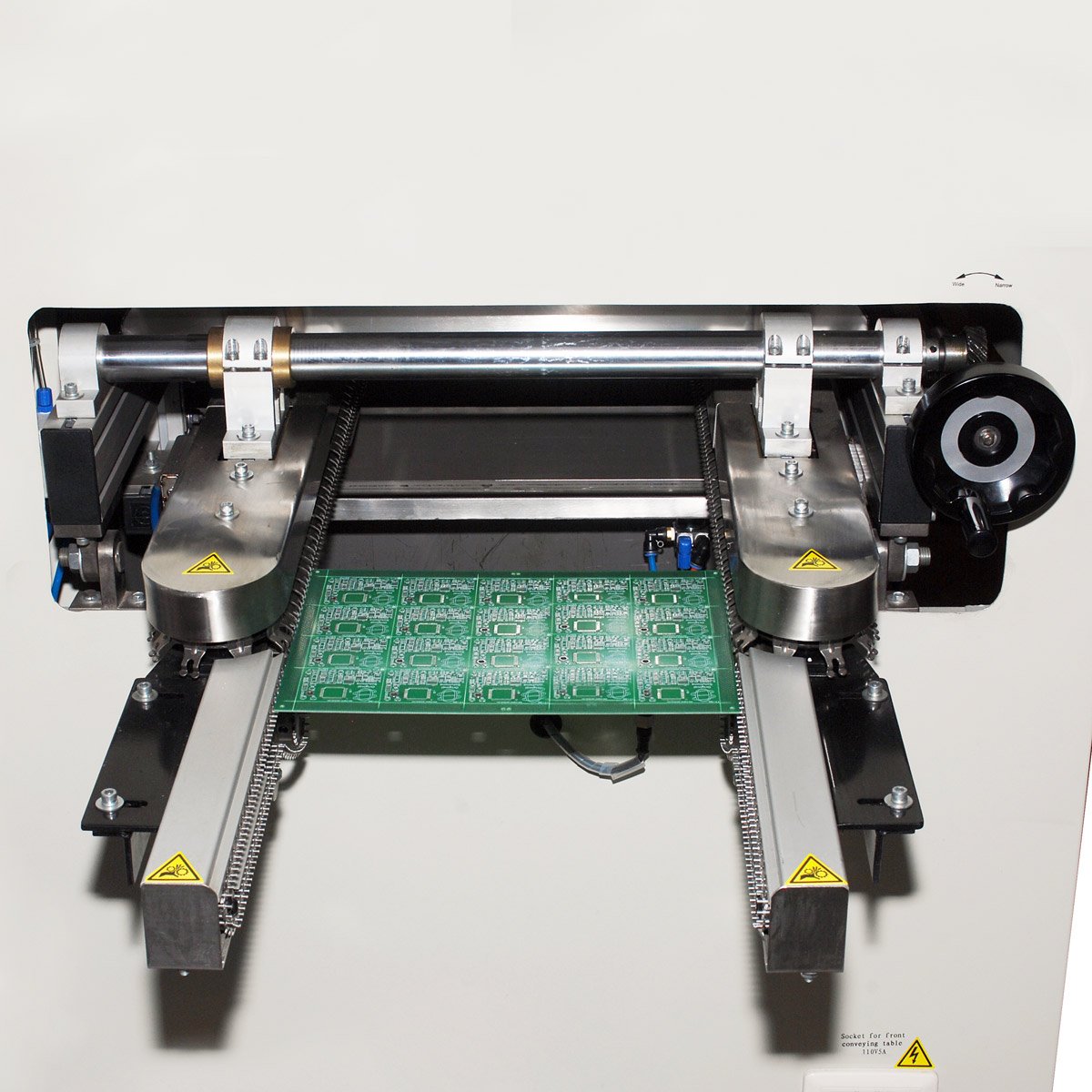

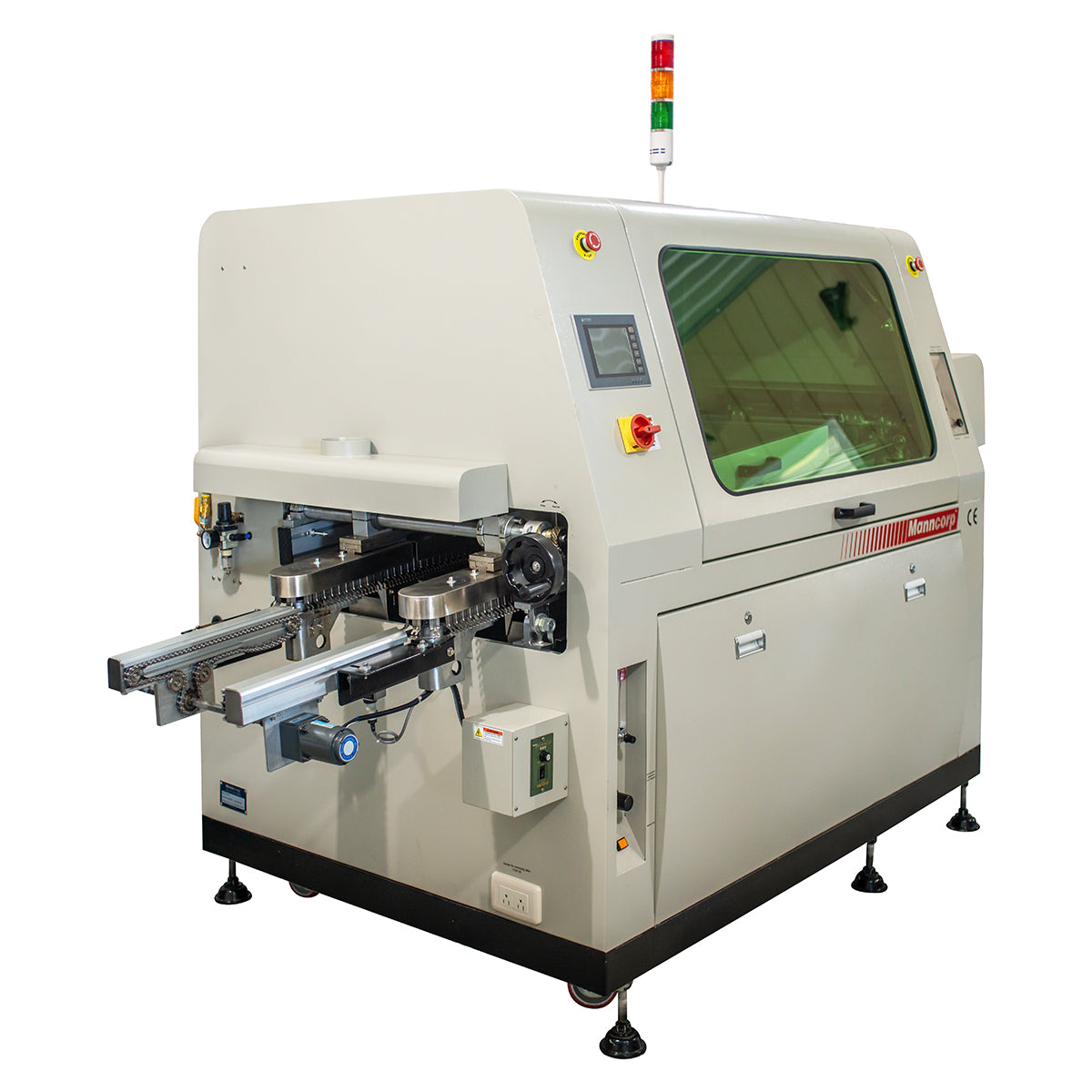

- Titanium finger conveyor: durable and low maintenance
- Variable speed: 500–2200 mm/min for throughput control
- Auto finger cleaning: reduces buildup and maintenance
An optional center support rail prevents sagging on larger PCBs.
Flexible Dual or Single Wave Operation
The system supports both dual-wave and single-wave soldering for maximum process flexibility.
- Chip wave: turbulent flow eliminates skips
- Main wave: smooth drainage prevents bridging
- Single-wave mode: disable chip wave for through-hole only
- Adjustable wave angle: fine-tunes solder flow
- Improved wetting: reduces defects like icicles and bridging
This configuration ensures optimal results across mixed-technology and complex PCB designs.

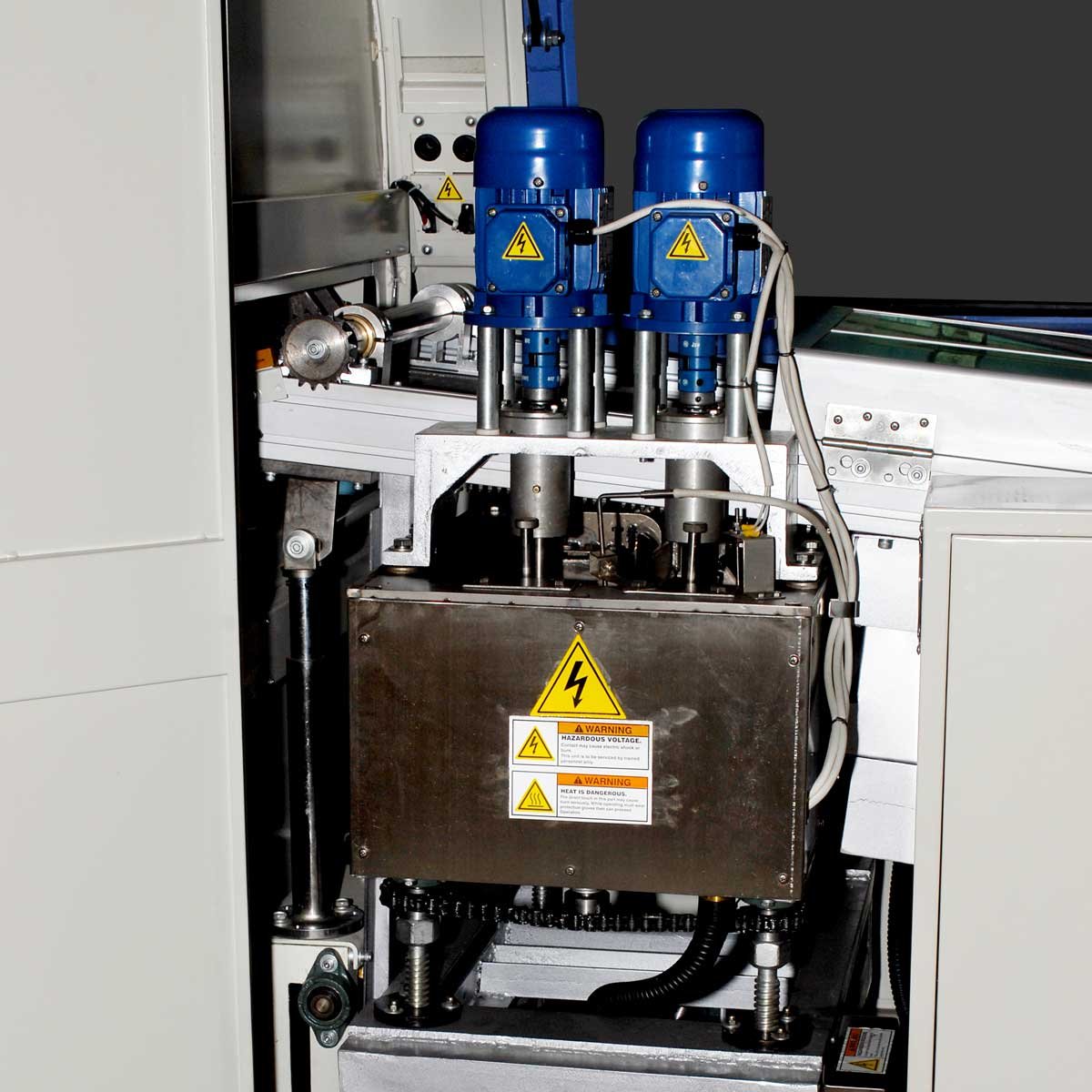

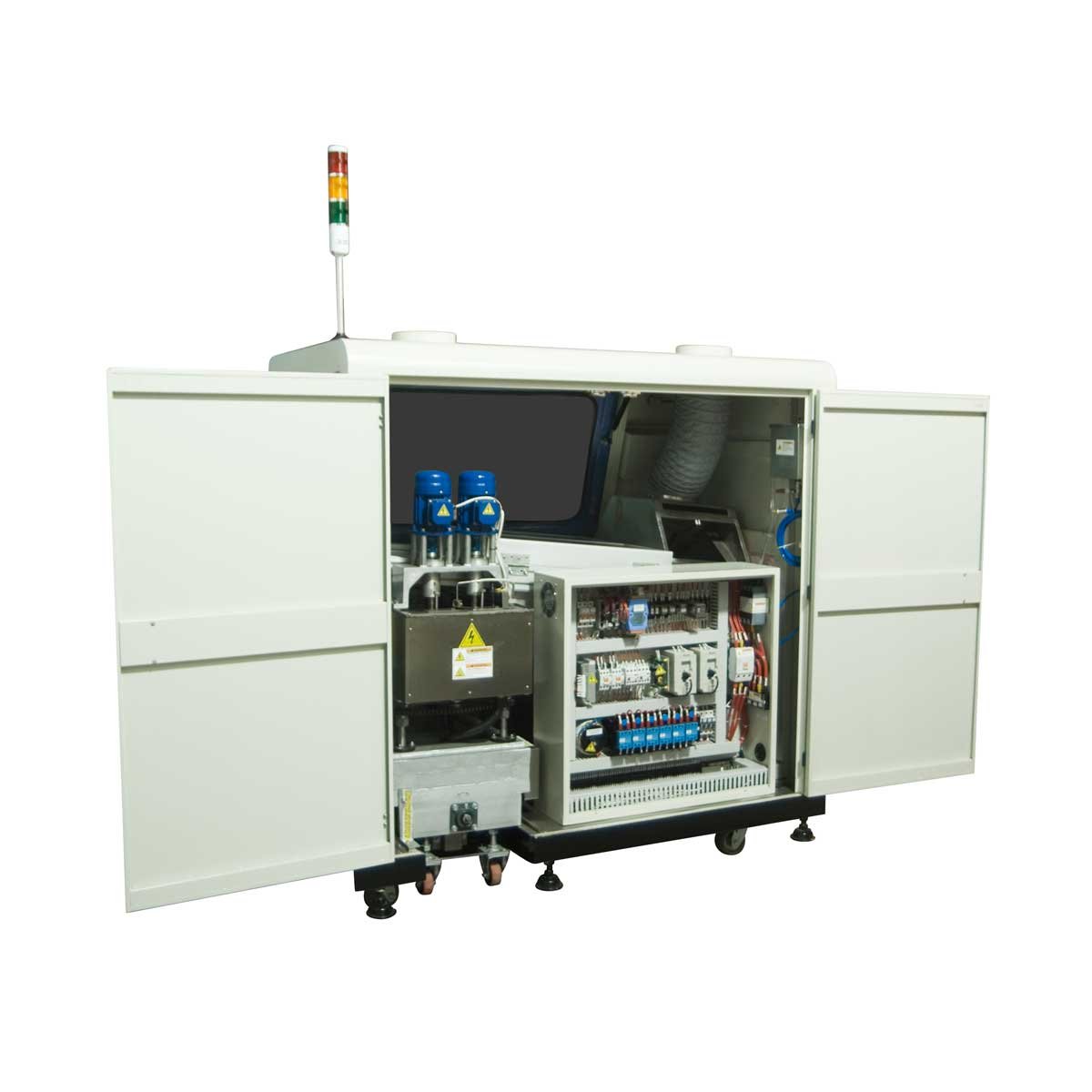

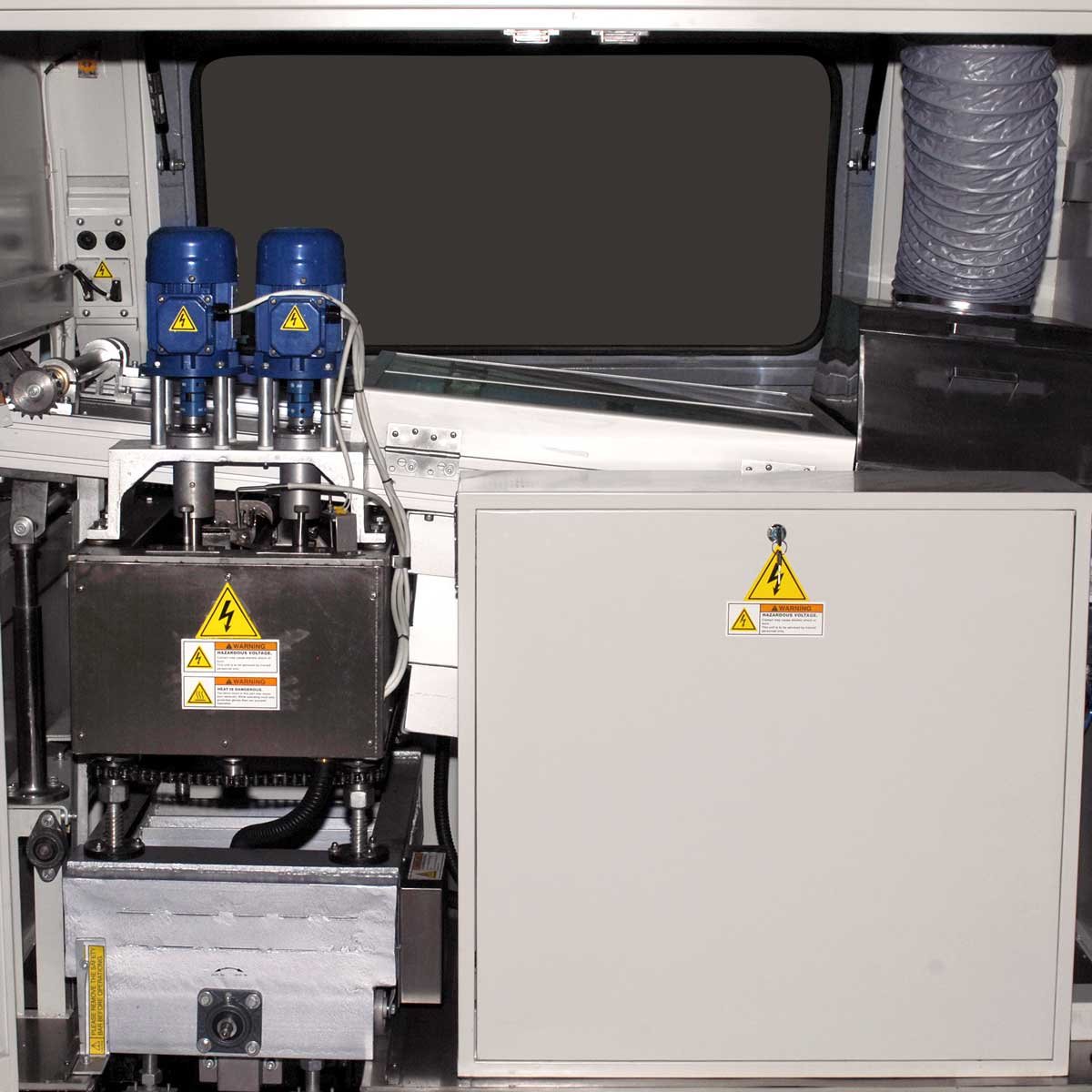

Quick-Connect Solder Pot for Fast Changeovers
The quick-connect secondary solder pot enables fast transitions between leaded and lead-free processes.
- 440 lb (200 kg) capacity: supports high-volume production
- Up to 300°C: fully lead-free capable
- Quick-change design: minimizes downtime
- Roll-out pot: easy maintenance and cleaning
- Level alarm: prevents interruptions and defects
This design improves flexibility and reliability in high-mix environments.
Optional Inlet & Unload Conveyors
Optional loader and unloader systems improve workflow and production efficiency.
- Inlet conveyor (WL-100M-L1): smooth, controlled board feeding
- Supports up to 350 mm: wide PCB compatibility
- Adjustable speed, angle, height: flexible integration
- Unload conveyor (WU-120M-H1): safe post-solder handling
- Heat-resistant belt: secure transfer of assemblies
- Adjustable speed: 500–800 mm/min output control
These systems enable smoother transitions between operators and downstream equipment.

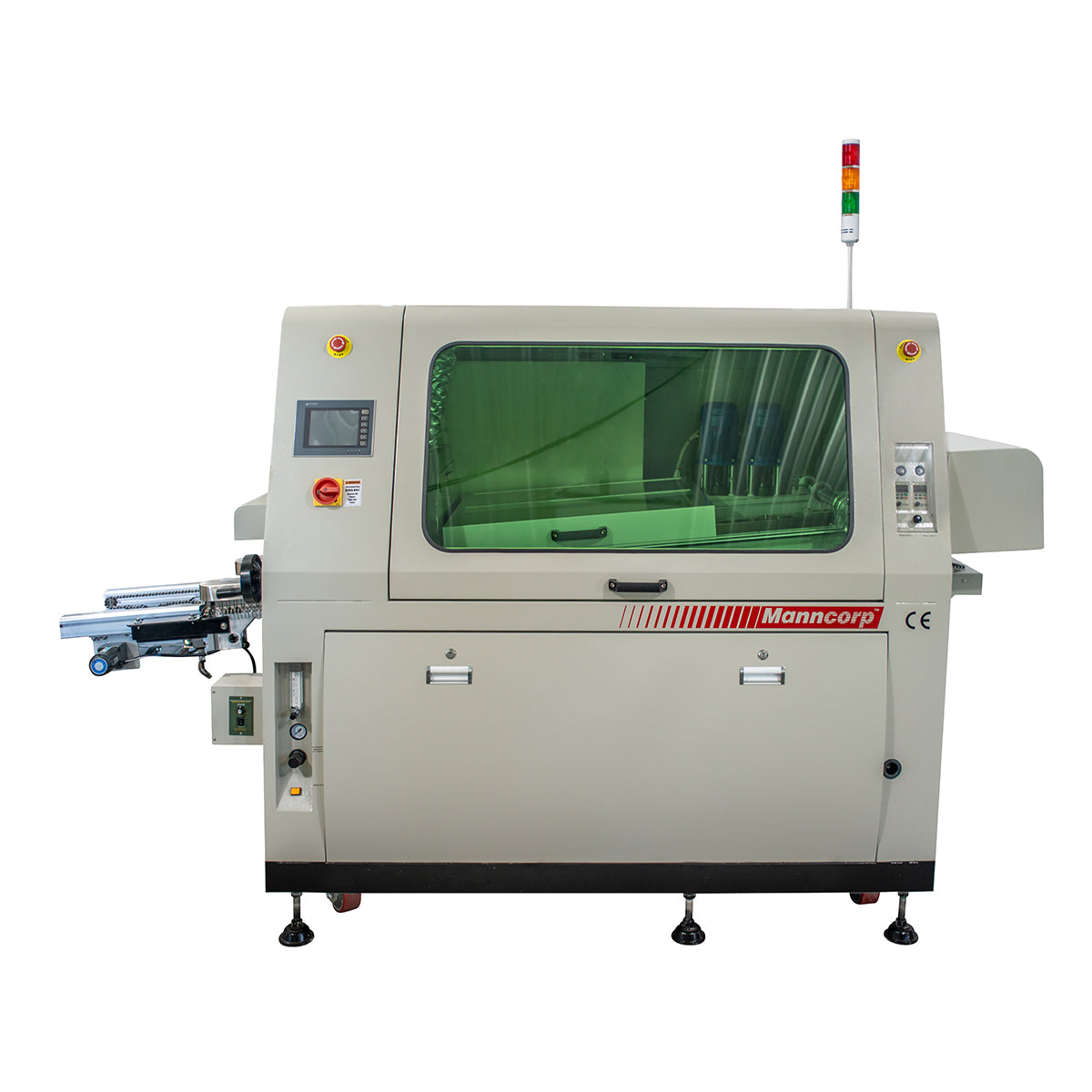

| 16.350 Wave Solder Specifications | |
|---|---|
| Power Supply* | 220V 3-Phase 50/60 Hz |
| Total Power | 18 Kw |
| Working Power | 3-5 Kw |
| Air Pressure | 60-85 psi (4-6 bar) |
| Pin Conveyor Adjust Range | 2" - 13.8" (50-350 mm) |
| PCB Size Max | 350 x 350 mm |
| Conveyor Width | 2" x 13.8" (50 -350 mm) |
| Conveyor Speed | 500-2200 mm/min |
| Soldering Angle (Adjustable) | 4° - 7° |
| Solder Capacity | 440 lbs (200 kg) |
| Solder Pot Temp | Ambient - 300° C |
| Solder Pot Startup Time | Approx. 60 min |
| Solder Wave Width | 14.1" (360 mm) |
| Wave Height | 0" - .47" (0-12 mm) |
| Max Lead Protusion | 10 mm |
| Wave | Dual Wave |
| Preheat Length | 23.6" (600 mm) |
| Preheating Section | 1 section with independent control |
| Preheat Method | Forced Hot-Air Convection |
| Preheat Control Method | PID Temperature Controller |
| Preheat Temperature Range | 85 - 110° C |
| Flux Atomization Spray Gun | Auto Timing Cleaning |
| Spray Gun Movement | Step Motor |

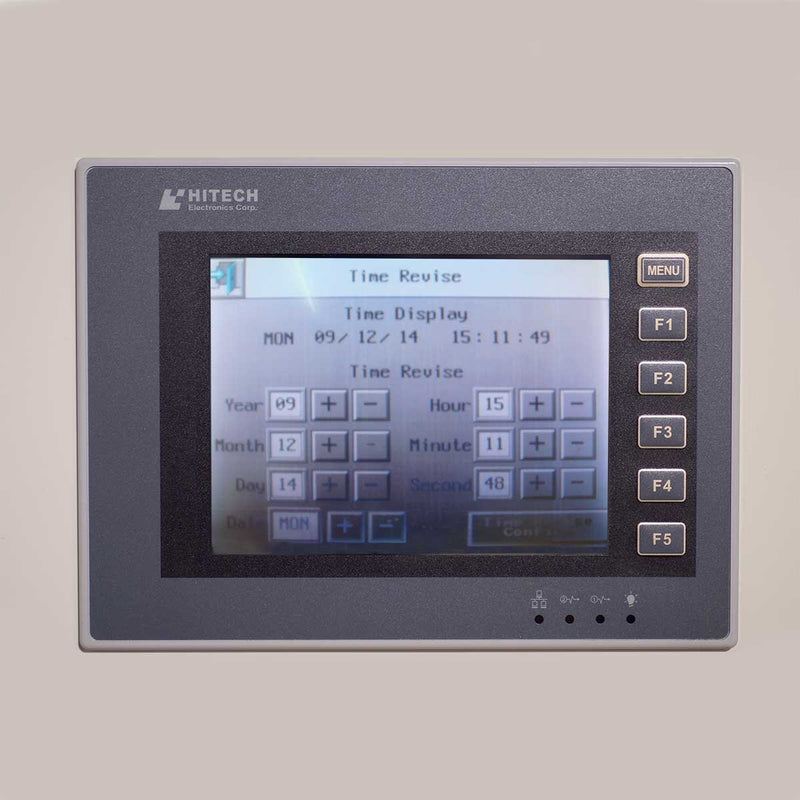

| Controls | Touchscreen, PLC and SSR |
| Exhaust Requirements | 250 cfm |

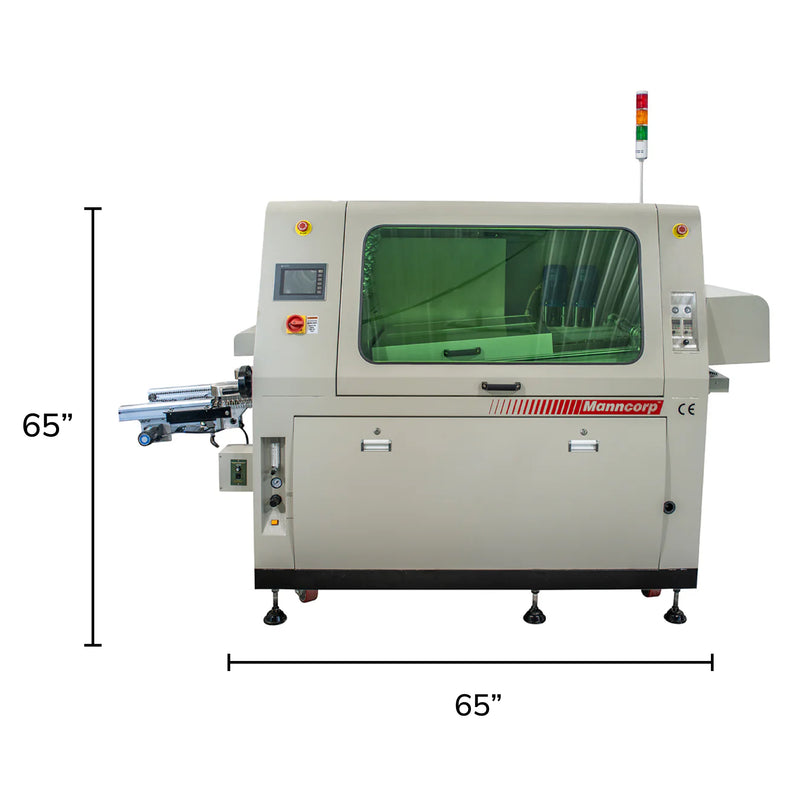

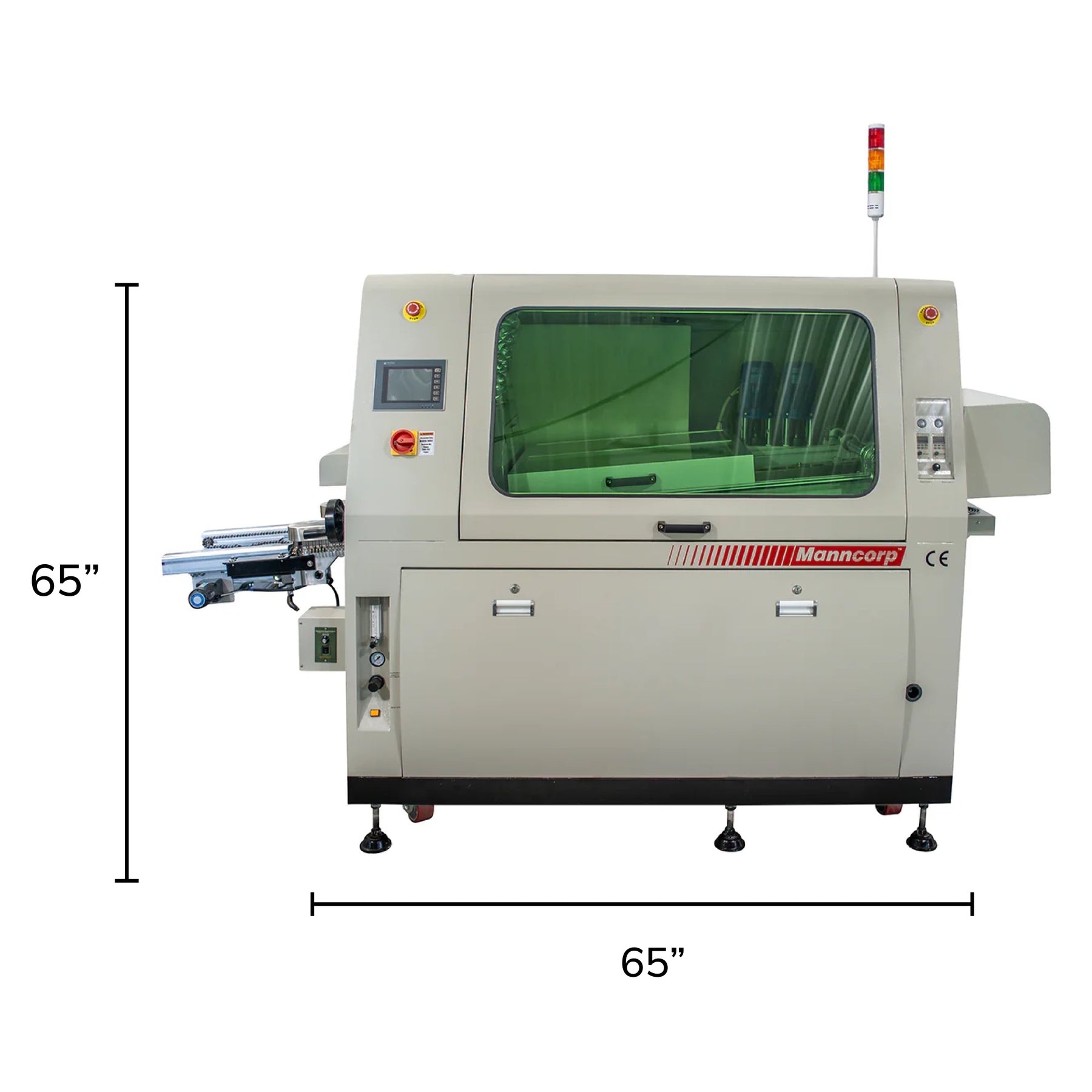

| Machine Dimensions | 65" L x 45" W x 65" H (1650 mm L x 1150 mm W x 1650 mm H) |
| Crate Dimensions | 106.3" L x 59" W x 74" H (2700 mm L x 1500 mm W x 1880 mm H) |
| Net Weight | 780 kg |
| Gross Weight | 920 kg |
| Auto Solder Pot In/Out, Up/Down | Optional |
| Top Preheating | Optional |
| Selective Spray Fluxer | Optional |
| Second Titanium Solder Pot Set | Optional |
| Second Stainless Solder Pot Set | Optional |
| Second Spray Fluxer | Optional |
| Smaller Solder Pot 370 kilos lead-free solder for 400 mm wide 300 kilos lead-free solder for 350 mm wide Solder Pot Dimension: 1024 x 450 x 203 mm |
N/A |
| 350, 450, & 500 mm Width | N/A |
| Dual Nozzle Spray System | N/A |
| Nitrogen Soldering | N/A |
*If the local power supply voltage of the end user is three-phase 380V, the power connection method is three-phase give wire system, which means three power lines, one neutral line, and one grounding wire.
