MX1 X-Ray Inspection System

MX1 X-Ray Inspection System

MX1 X-Ray Inspection System

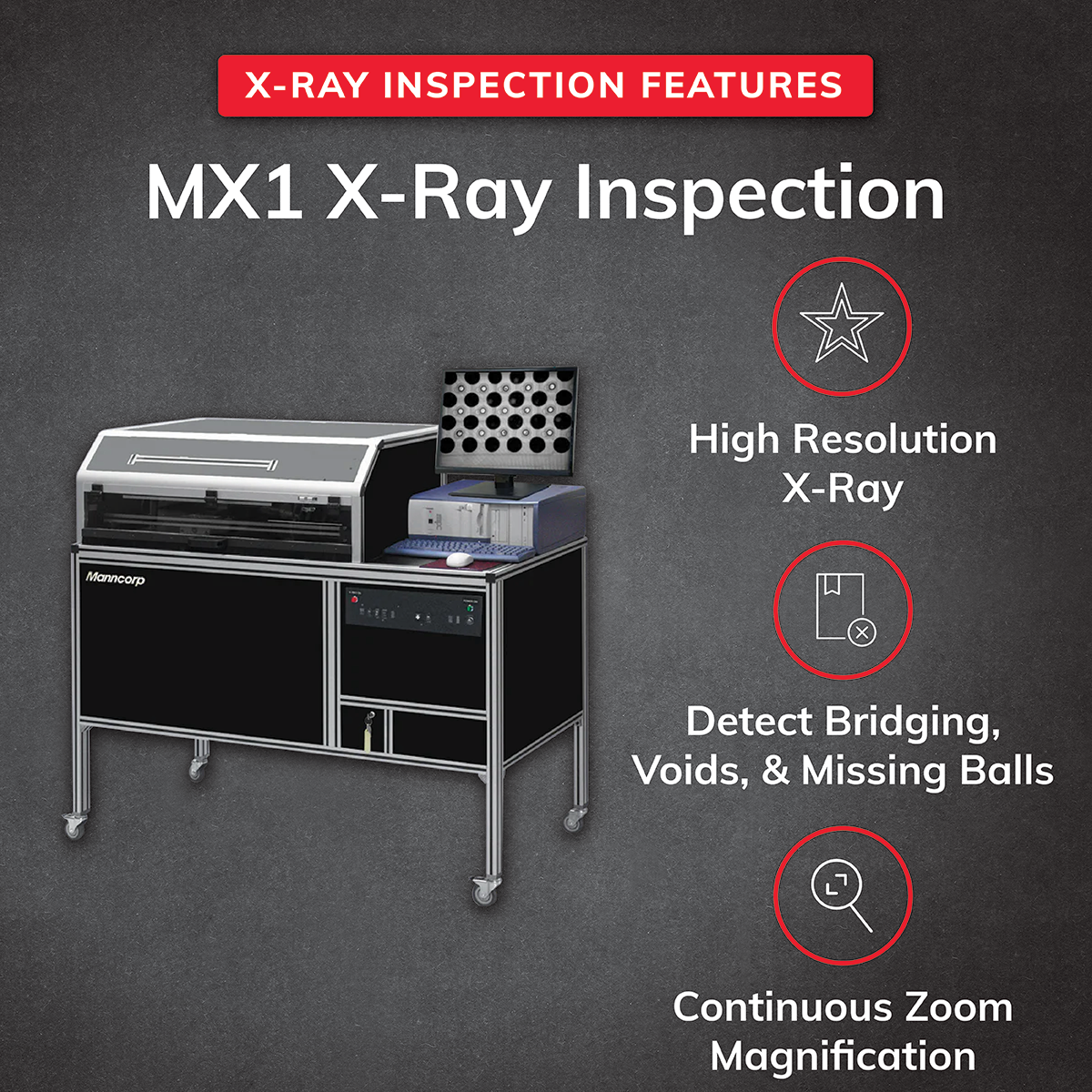

Manncorp’s new MX1 is a high-performance x-ray inspection system designed for real time imaging of multilayer PCBs and dense metal BGAs, μBGAs, and chip scale packages. Its high voltage (80kV), computer-controlled x-ray tube and 10 μm focal spot provide the power necessary for detection of a variety of defects including bridging, voids, and missing balls. The MX1’s camera features continuous optical zoom magnification from 4X to 100x geometric and 225x optical magnification. Includes wedge for 45° viewing angle. When using Variable Angle Viewing, will operate at 15x geometric magnification.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $57,795.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Difference In Magnification

The images above show the differences in magnification and detail that can be expected between a standard 80 kV x-ray tube with a 35 µm focal spot (left) or our upgraded x-ray tube with a 10 µm focal spot and magnification up to 225X (right).

MX1 X-Ray Inspection Exposes Hidden BGA Flaws

Manncorp's MX1 Real-Time X-Ray Inspection System detects hidden BGA flaws such as missing solder balls (image A), misregistration between solder balls and pads (image B), solder bridging (image C), and voids within solder balls (image D).

MX1 Specifications
Contrast ResolutionCan resolve 0.001 gold wire
Spatial Resolution100 line-pairs/mm
Anode Voltage80kV
Anode Current150 microamps (internal adjustment)
Focal Spot Size10 μm
Focal Spot to Image Plane Distance4-6" (101.6 mm - 152.4 mm)
XRTV Zoom Camera4X - 225X optical magnification (standard)
Up to 100x geometric magnification
X-Y Positioner Range14" x 14" (356 mm x 356 mm)
Operating Voltage120v/220v, 50-60hz
Dimensions50" H x 60" W x 33" D
(1270 mm x 1524 mm x 838.2 mm)

MX1 X-Ray Features

  • High voltage 80 kV x-ray tube w/ 10 µm focal spot
  • XRTV high-sensitivity x-ray camera w/ 4X-225X optical magnification and up to 100X geometric magnification
  • Motorized X-Y positioner
  • Includes wedge for 45° viewing angle (when used it will operate at 15x geometric magnifcation)
  • Safety shielded work area
  • PC and monitor
  • Powerful, easy-to-use, image-processing software
