High-Accuracy Manual Dispensing

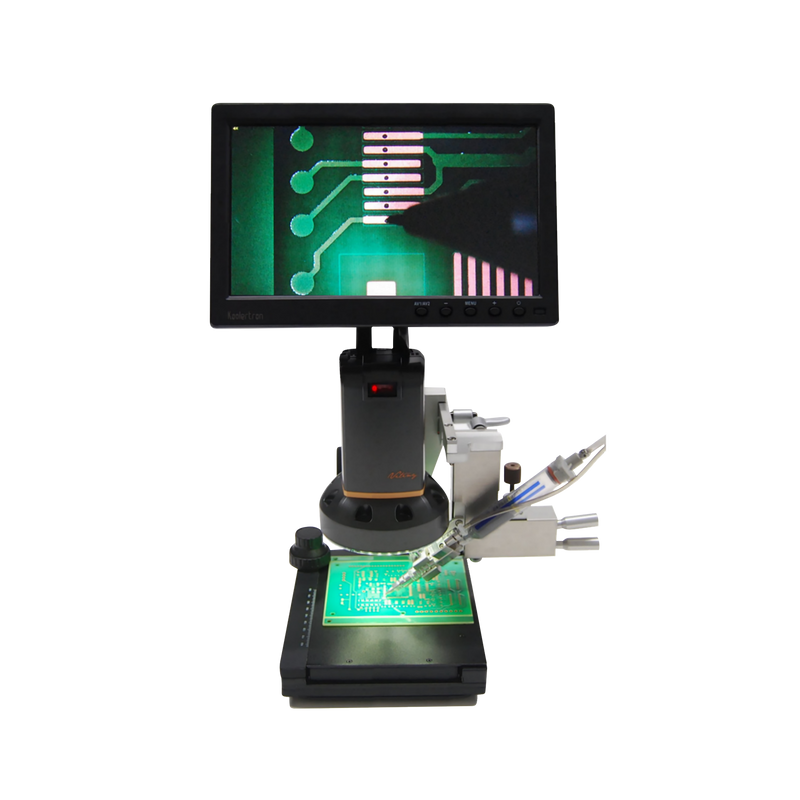

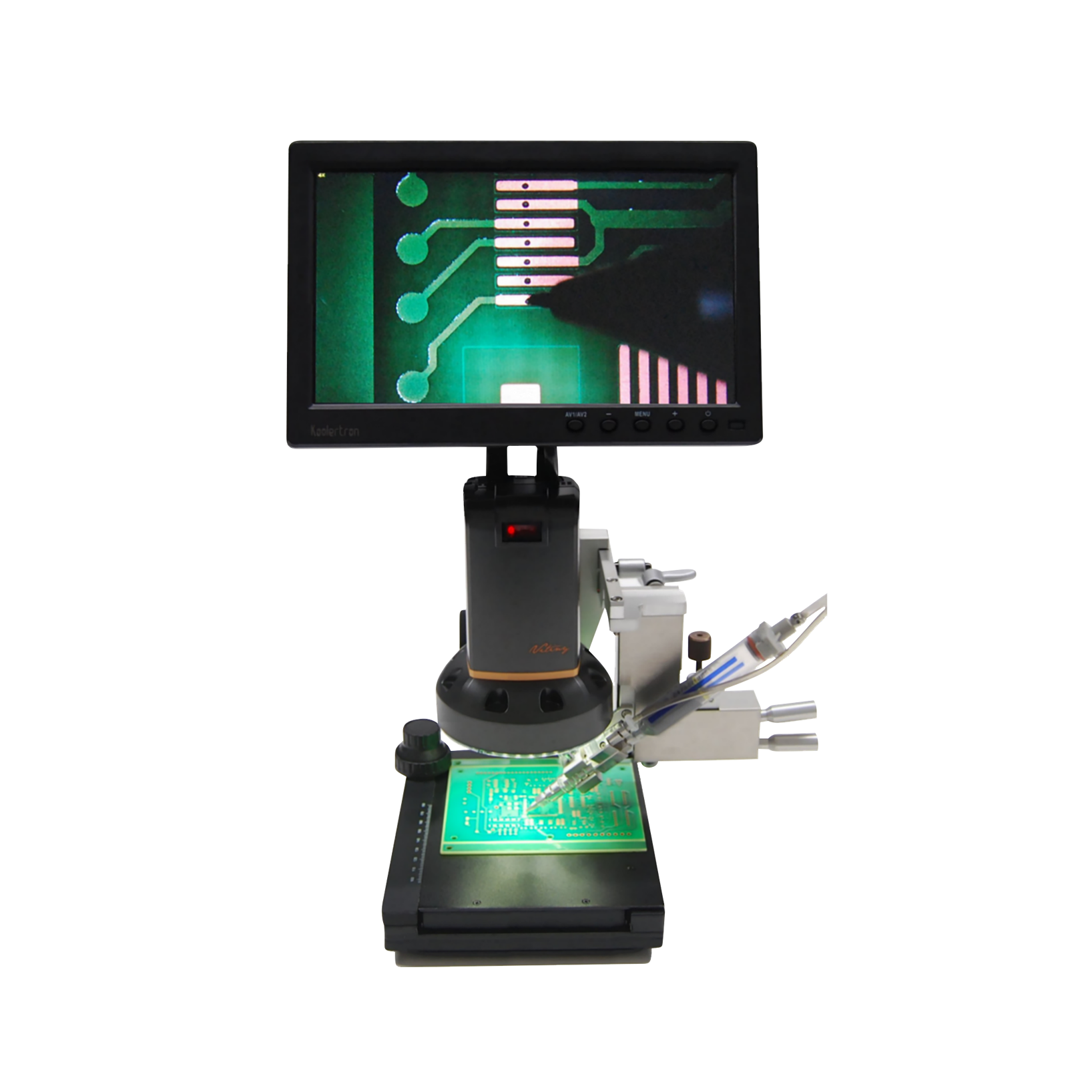

The Precision Twin-Air Solder Paste Dispenser is designed for high-accuracy manual dispensing where control and repeatability are critical. Mounted on a manipulator, the twin-air dispenser allows users to apply precise, minute amounts of liquid while maintaining a stable flow-even with challenging adhesives or materials that aren't suitable for traditional air-pulse systems.

Precision & Alignment

A built-in autofocus microscope (1280 x 1800 resolution, 60 fps) provides a clear view of the application area for accurate positioning. Independent vertical and horizontal adjustments ensure precise alignment and parallel dispensing, while the nozzle gap is fixed relative to the work surface for consistent, repeatable results.

Key Features

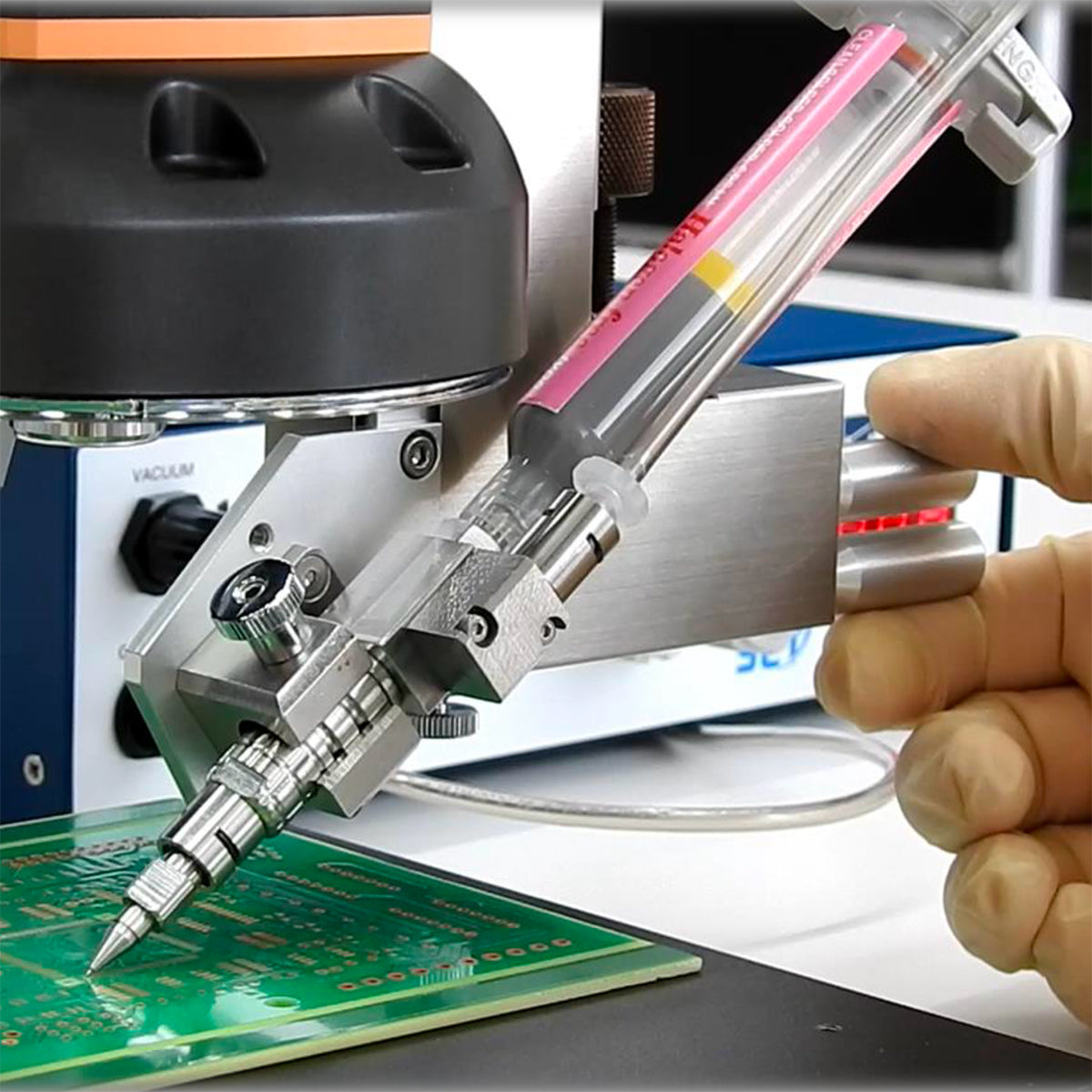

• Twin-Air Dispenser: Enables precise manual dispensing of small volumes.

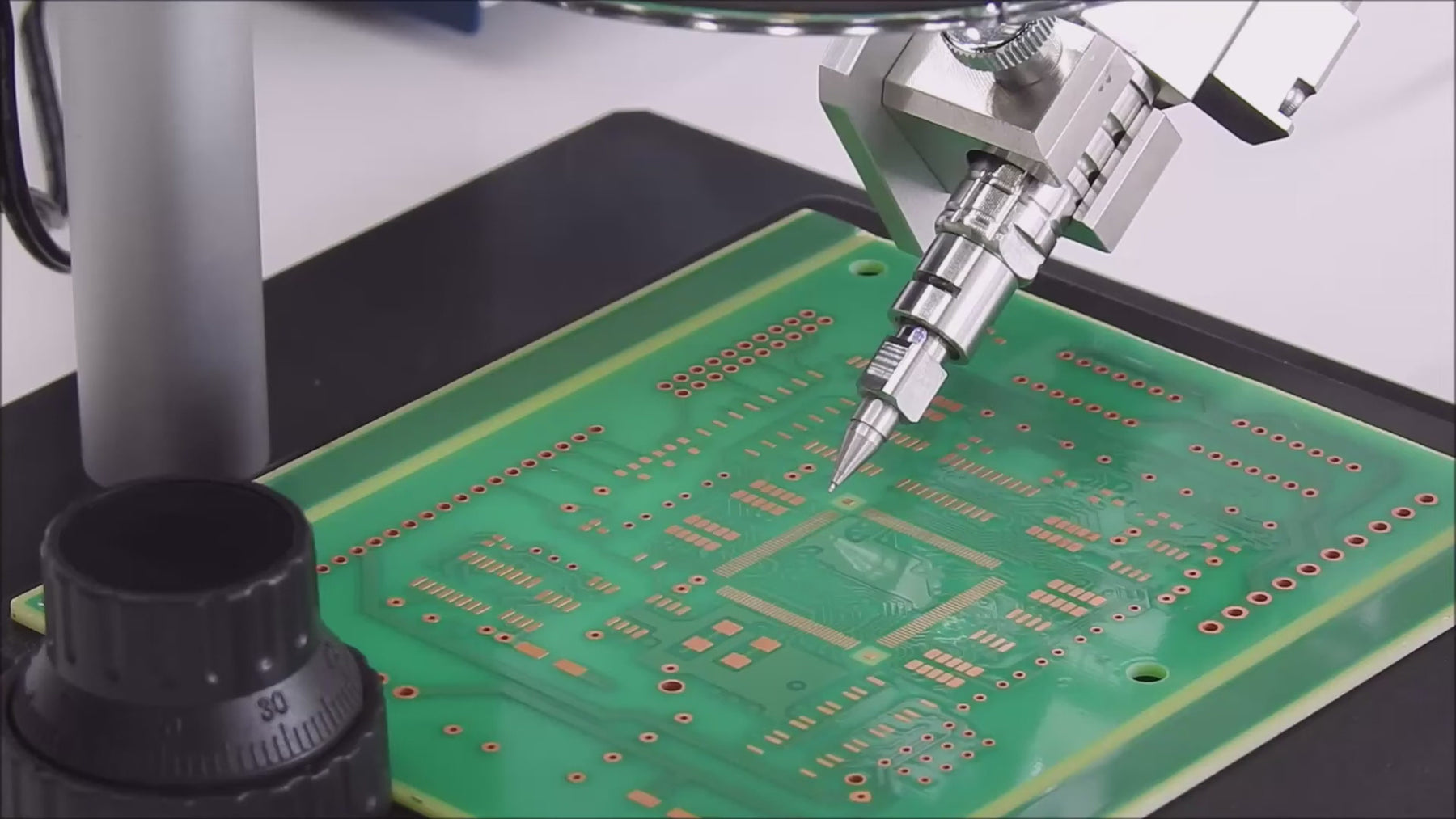

• Manual XY Table & Manipulator: Smooth, flexible positioning with a 55 x 75 mm stroke.
• Autofocus Microscope with LCD Monitor: Clear, high-resolution observation for accurate application.
• Stable High-Viscosity Dispensing: Handles adhesives and liquids that air-pulse systems cannot.
• Compact & Lightweight Design: Approximately 10 kg, with minimal parts for easy maintenance.

Applications

• PCB rework and repair, including solder joints and BGA balls
• Dispensing adhesives not suited for air-pulse methods

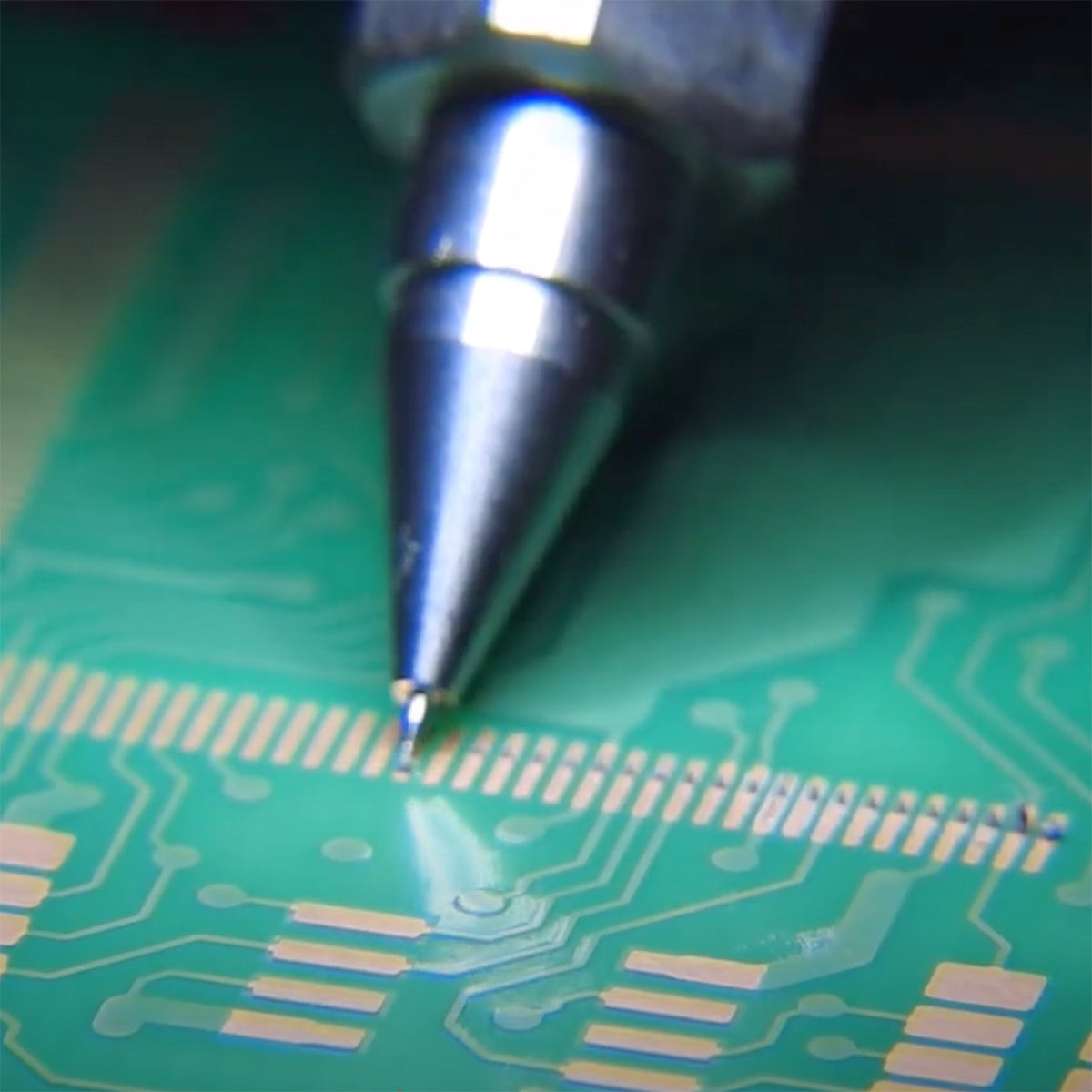

• Micro-dispensing tasks requiring high precision and stability
• Manual application of small-quantity materials
• 3rd Party Integration of Robotics
• Prototyping
