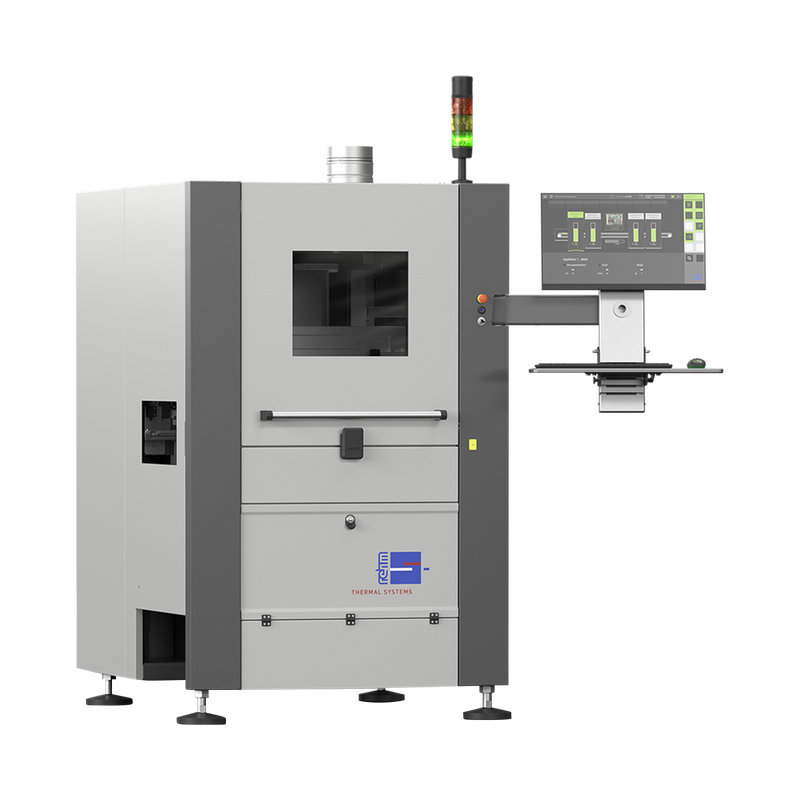

ProtectoXC Solder Paste Jet Printing System

The ProtectoXC Jet Printer delivers the perfect balance between speed and quality by eliminating the limitations of traditional stencil printers. Instead of remaking costly stencils when aperture sizes change, adjustments can be made in minutes—keeping production efficient and defect rates low. This makes the ProtectoXC Jet Printer the smarter choice for zero-defect soldering and high-mix manufacturing environments.

Engineered for advanced PCB assembly, the ProtectoXC Jet Printer handles densely packed boards, flexible circuits, multi-level chip packages, and package-on-package designs with ease. By depositing software-controlled solder dots directly on the board, it ensures accurate paste volumes for even the most complex applications, including QFNs, pin-in-paste, and cavity jetting. With fast CAD or Gerber-driven setup, new jobs can be launched quickly while maintaining the precision and consistency required for next-generation PCB manufacturing.

or for pricing

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

High Speed Precision for Modern SMT Production

The ProtectoXC Solder Jet Printer System delivers unmatched speed and precision for modern SMT production and PCB assembly. Equipped with a 1K Cartridge Valve application head and advanced software-controlled jetting technology, it can deposit up to 240 miniature solder dots per second with pinpoint accuracy. This ensures consistent, defect-free results across a wide range of applications, including QFNs, pin-in-paste, cavity jetting, and complex board designs.

With a large 520 x 508 mm work area, the ProtectoXC Solder Paste Jet System offers the flexibility to handle everything from simple boards to today's densely packed, high-density interconnect PCBs. By combining high-speed soldering performance with precision control, this solder jet printer helps manufacturers optimize throughput, reduce rework, and achieve superior solder joint quality in demanding electronics manufacturing environments.

Versatile Solder Jetting and Glue Dispensing

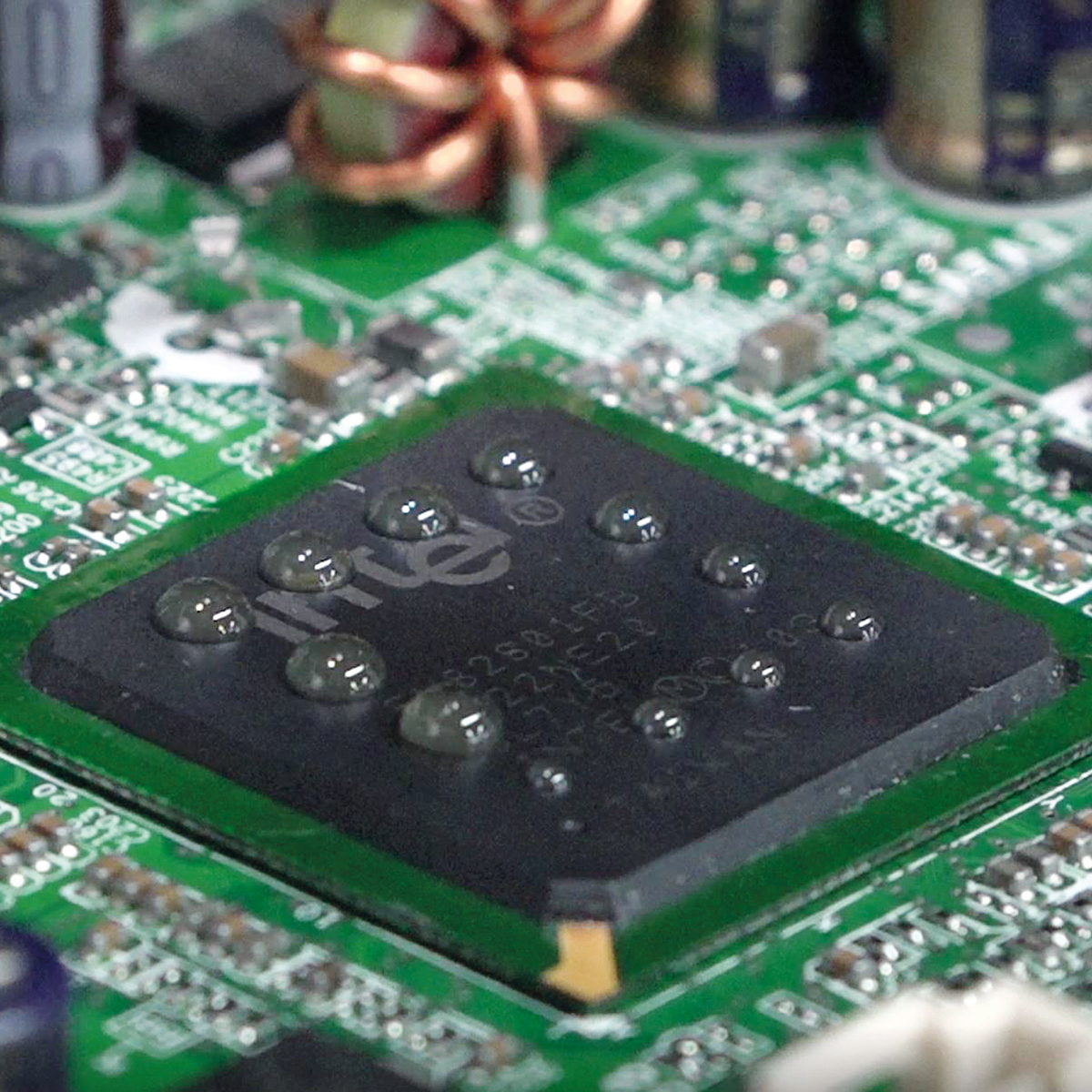

In addition to high-speed solder jetting, the ProtectoXC Solder Paste Jet Printing System also provides the ability to dispense glue, making it ideal for securing components that require extra stability during assembly or reflow. Equipped with three heads—one dedicated to solder jetting and two for dispensing—the system delivers unmatched flexibility for a wide range of applications. Whether you need precise solder placement, glue reinforcement for sensitive parts, or a combination of both, the ProtectoXC ensures accuracy, consistency, and efficiency across every board design.

Ensuring Absolute Process Reliability with Protecto Systems

ProtectoXC Solder Paste Jet Printing Systems offer unmatched process reliability, optionally featuring a fiducial camera to guarantee precision. This camera allows the coating program to automatically adjust, ensuring components are coated in the correct position—even if the board is placed inaccurately in the carrier.

Designed for modern production environments, Protecto systems integrate seamlessly with MES platforms, enabling full traceability, enhanced productivity, and streamlined workflow management. This integration ensures every step is monitored, recorded, and optimized for maximum efficiency.

ProtectoXC Machine Specifications
Number of Applicator Heads	1 jet printer, 2 optional dispensing heads
Maximum PCB Size	710 x 508 mm
Minimum PCB Size	80 x 80 mm
Max Area Reached by 1 Applicator	520 x 508 mm
Max Area Reached by All Applicators	400 x 508 mm
Inline Chain Conveyor	Pin rest each 5 mm (3 mm option)
Conveyor Height	950 mm +/- 50 mm
Width Adjustment	80 - 508 mm
Max PCB Weight Per Pin	8 g/pin
Max Weight Heavy Duty Chain	20 g/pin
Max PCB Component Height	100 mm

Drive System
X-Y Speed	2 m/s
Z Speed	0.25 m/s
X Positioning Resolution	150 µm
Y Positioning Resolution	150 µm
Z Positioning Resolution	0.25 µm
X-Y Repeatability	+/- 80 µm
Z Repeatability	+/- 10 µm

PC
Touch Screen	24" TFT, 1920 x 1080
Operating System	Windows®-10
Hard Drive	256 GB SSD

Environmental
Maximum Noise Level	70 db
Room Temperature	15°C - 35°C
Humidity	20% - 80%

Power
Voltage	220VAC or 480VAC 3ɸ
Power	4 kW
Air	TBD per Application
Air Connection	1/2" (12 mm Cu pipe)
Air Consumption	75 l/m per applicator

ProtectoXC Dimensions
Dimensions	1152 mm L x 1622 mm D x 2192 mm H
Required Area	1.9m²
Weight (More with Options)	1100 kg
Load Per Unit Area	≤ 685 kg/m²
Options
Material	Material pumps for manufacturers containers Standard Stainless container Gear or Diaphram pumps for material Container change free of air bubbles through special varnish lance Pressure controlled cartridge container
Other Options	SMEMA Stationary 1D/2D Scanner

Types of Applicator Heads
Hurricane - for jetting, dispensing, and spraying	Multi-mode spray valve (spraying, jetting, dispensing) Includes: Fluid Circuit incl. analog fill level monitoring Fluid heater Base holder 0° Swirl sleeve 300 µm nozzle Set of cleaning needles Service Kit

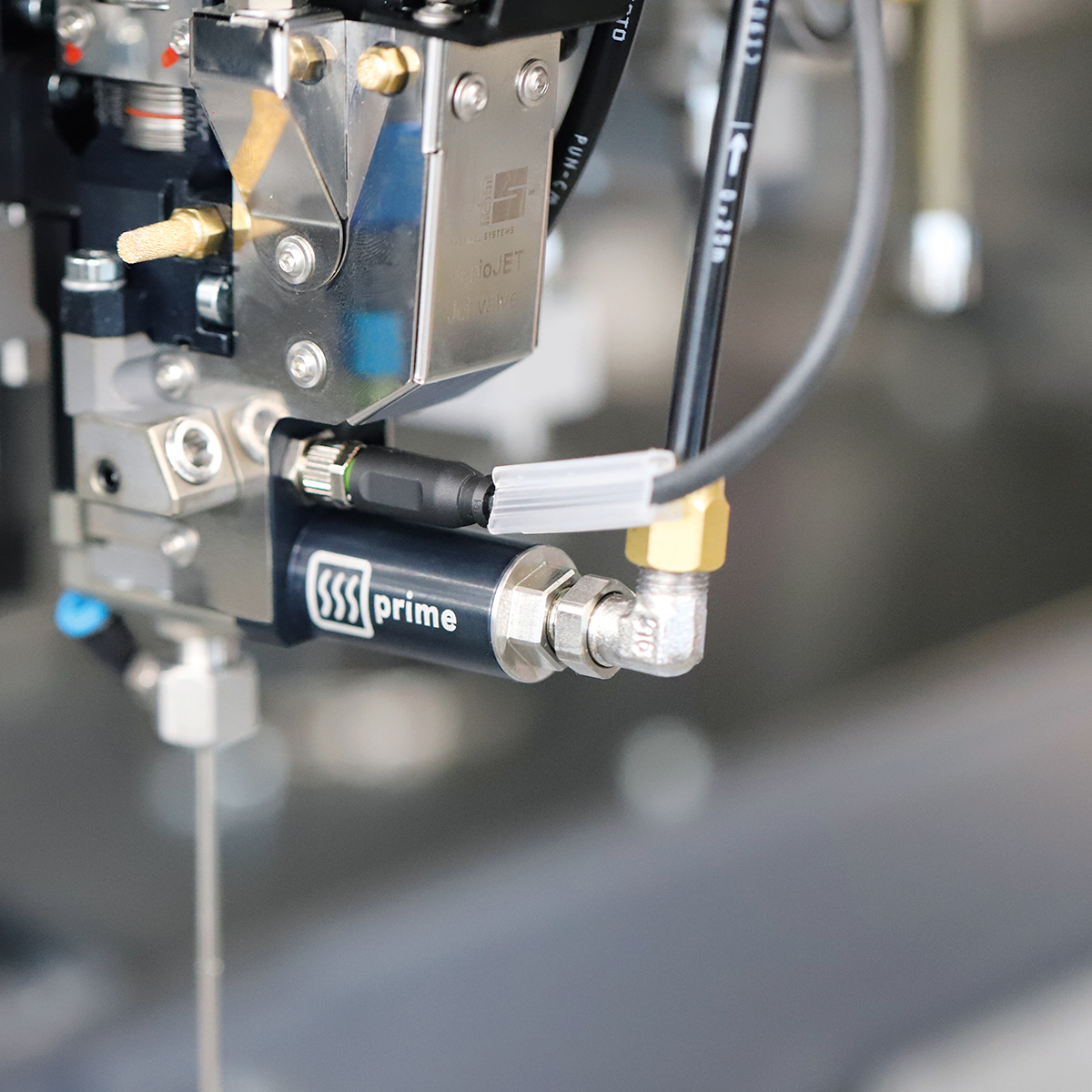

Vario Jet Prime - for jetting, dispensing, and spraying	3 in 1 Vario Stream-Coat Technology (jetting, dispensing, spraying) Includes: Material needle 700 µ (70 mm length) Distributor air nozzle (70 mm length) or 500/700 µ material nozzle Basic holder feeder Heating control to ensure the viscosity stability on the applicator
Retraction	Retraction Valve Heated (dispensing) Includes: Nozzle heater Basic holder fixed Dispense adapter DA 10
UA Activator	Activator for UV Coatings XC Includes Control Unit Wavelength according to customer specification
ECO Pen	ECO Pen (Dispensing) Volumetric Dispenser Type 300 Direct control via PLC Includes basic holder fixed
Curtain Valve	Curtain Valve Heated material circulation and level sensor, Curtain width with automatic pressure control via proportional valve, Coating direction 0° + 90° turn station with end position control Viscosity max. <100mPas

Heavy duty transport system loading to max 5 kg/m
Pin chain 3 mm bolt length
Control of material quantity over weigh scale
Air knife in blow-out station for blowing off solvent/varnish residues from the nozzles
Interior lighting (black light) one LED light (max. 2 possible)
Preparation for additional 2 application heads: hoses, sensors, and cable in cable duct for later assembly of an applicator
Camera for fiducial marks, includes additional lighting and optional interior lighting white light

ECAD Import - supports the import of ODB++
Bad board mark detection via MES
MES Interface
ViCON Connect
Valid per one workplace
- Search for automatic detection of all machines in the company network
- Central information about the current operating status of all machines
- Direct access to the individual production systems and their applications
- Installation and licensing takes place on your provided Windows computer system, from there all machines in the network can be accessed
