High Repeat Accuracy (±0.01 mm)
The MC1400 is engineered for high-speed, high-precision printing with repeat accuracy of ±0.01 mm. A built-in camera system aligns the PCB before every print cycle, ensuring consistent positioning and reliable results across production runs.
- ±0.01 mm repeat accuracy: delivers precise, consistent results for fine-pitch applications
- Automatic vision alignment: built-in camera system aligns each PCB before printing
- AT-Align software: automatically detects fiducials and compensates for PCB offsets
- Fully automated operation: alignment and printing are handled without operator intervention
Reduces Solder Paste Consumption

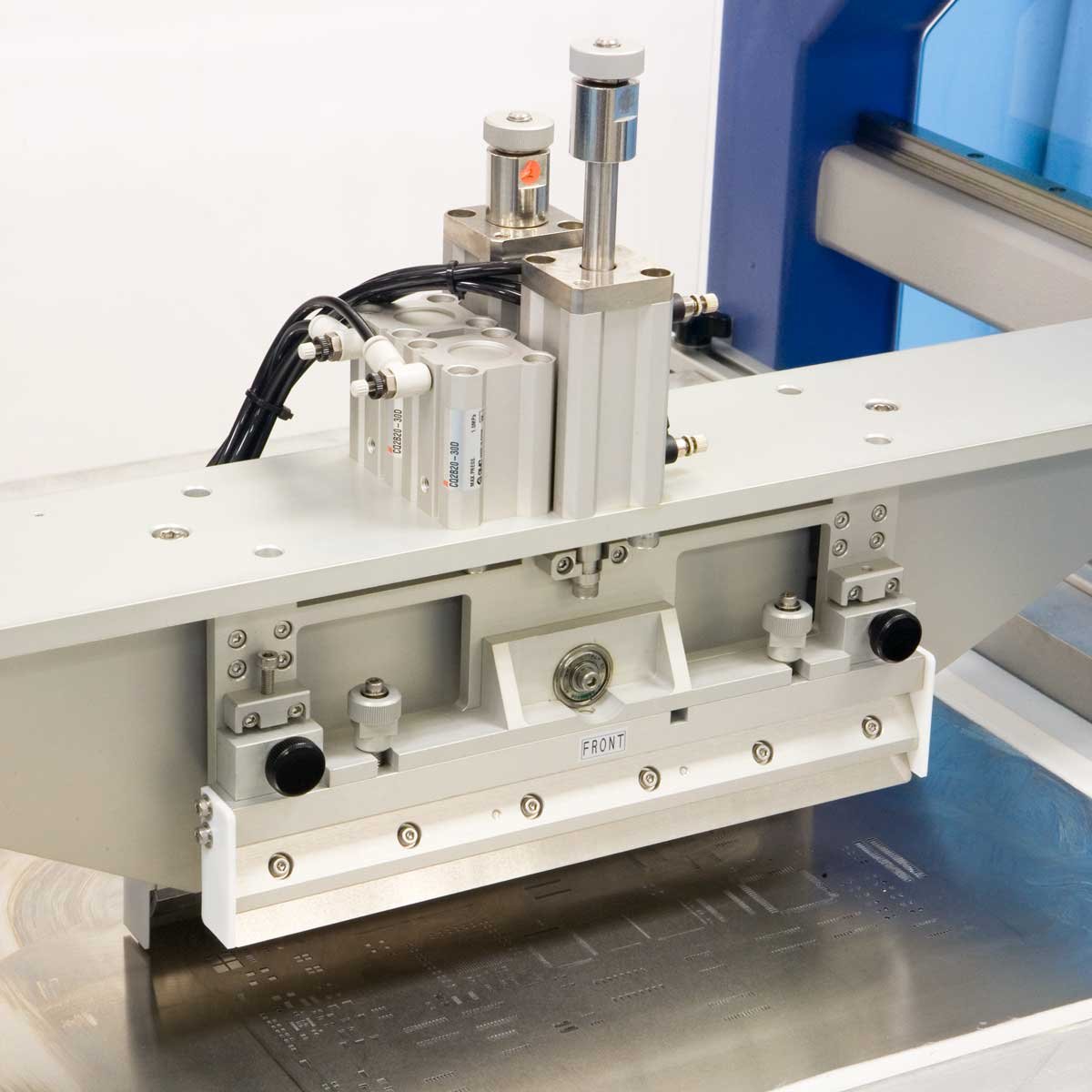

The MC1400 maximizes solder paste efficiency through a dual-squeegee, dual-stroke control system designed to reduce waste and maintain consistent material usage throughout production.
- Reduced paste waste: dual-squeegee, dual-stroke system optimizes paste usage across each print cycle
- Efficient print cycles: 15–25 second cycle time supports steady, high-throughput production
- Controlled material application: consistent squeegee operation helps maintain uniform paste deposition
- Precision motion system: linear rails and servo-controlled speeds ensure smooth, stable operation
Large Print Area
The MC1400 is designed to handle a wide range of board sizes, supporting both standard and larger PCB configurations for flexible production needs.
- Flexible board support: standard 400 × 400 mm (15.75" × 15.75") mounting table with larger 500 × 400 mm (19.68" × 15.75") options available
- Large stencil compatibility: supports stencil frames up to 700 × 700 mm (27.5" × 27.5")
- Handles oversized panels: accommodates both standard PCBs and larger panelized designs
- Production versatility: enables manufacturers to run a wide range of applications without equipment limitations
Intuitive Control and Fast Changeover
The MC1400 features a Windows-based control system that simplifies operation and allows full programmability of key print parameters. Operators can quickly set up jobs, monitor performance, and maintain consistent production with minimal effort.
- Full parameter control: easily adjust print speed, stroke length, squeegee pressure, and more through a graphical interface
- Real-time process visibility: on-screen display shows job status and production details during operation
- Fast setup and changeover: flexible tooling holders reduce setup time between jobs
- Versatile PCB support: accommodates tooling pins (included) or vacuum support for edge-to-edge printing
| MC1400 Specifications | |
|---|---|
| PCB Min Size | 20 mm x 20 mm |
| PCB Max Size | 400 mm x 400 mm |
| Board Thickness | .0078" to 0.315" (0.2 mm to 8 mm) |
| Stencil Frame Size (External) Min. | 17.7" x 17.7" (450 mm x 450 mm) |
| Stencil Frame Size (External) Max. | 29" x 29" (736 mm x 736 mm) |
| Print Area/td> | 400 x 400 mm |
| Print Repeatability | 0.00039" (± 0.01 mm) |
| Registration Repeatability | 0.00039" (± 0.01 mm) |
| Print Speed | 10-100 mm/s |
| Transport Speed | 10-100 mm/s |
| Underside Clearance | 1" (25 mm) |
| PCB Fixture | Magnetic pin table with vacuum block |
| Squeegee Type | Metal |
| Print Type | Single and double sided printing |
| X Adjustment | ± 0.2" (5 mm) |
| Y Adjustment | ± 0.2" (5 mm) |
| R Adjustment | ± 2° |
| Operating System | Industrial PC with Windows 10 |
| Power Specs | 220V, 50/60 Hz 500W |
| Air Requirements | 75 psi |
| Dimensions | 60" x 34" x 49" (1540 x 872 x 1248 mm) |
| Weight | 880 lbs (400 kg) |
| Options | |
| Print Area | 500 x 400 mm |
| PCB Size | 500 x 400 mm |
