MC600 Semiautomatic Stencil Printer

SMT Stencil Printer MC600 - Large Print Area from Manncorp

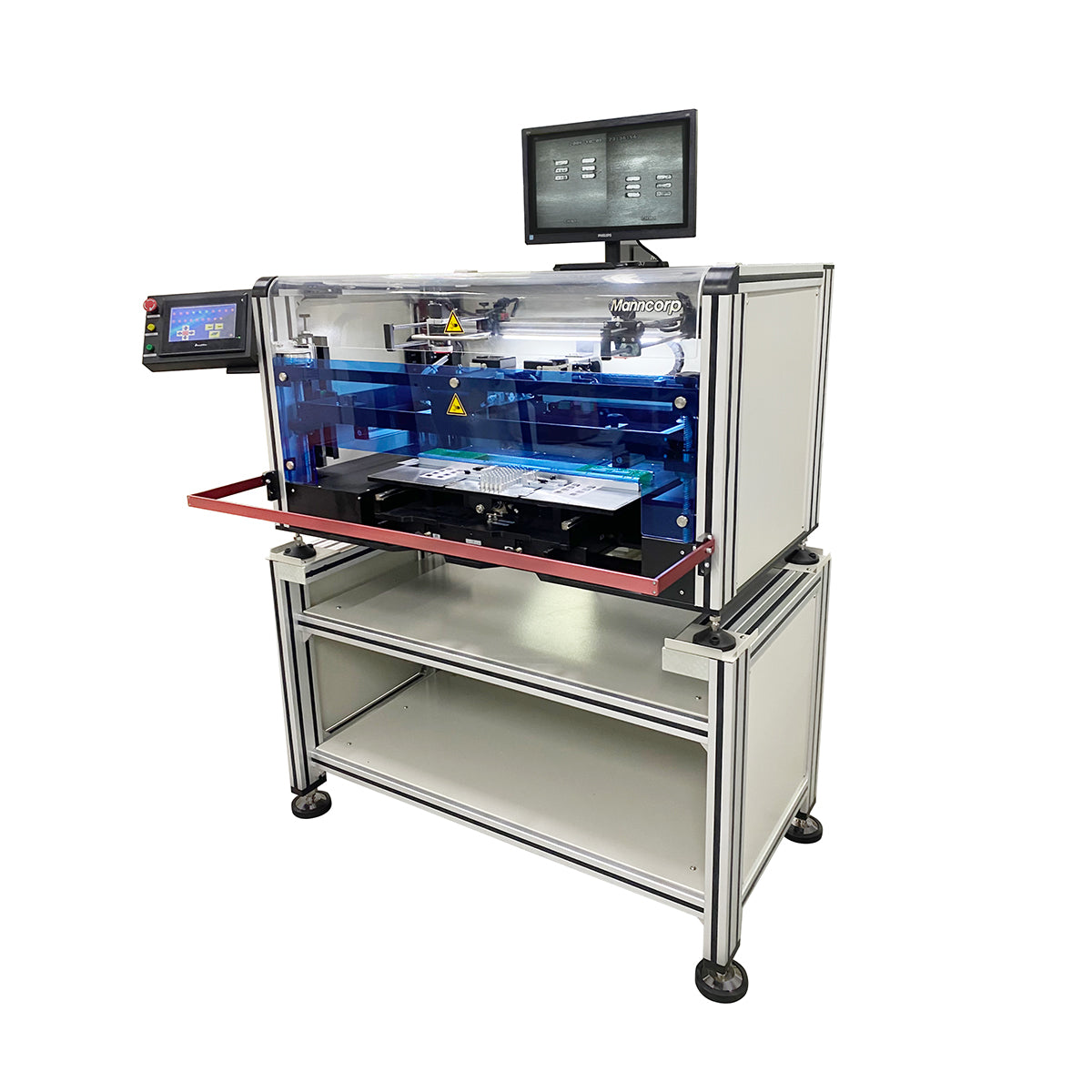

MC600 Semiautomatic Stencil Printer Shown with Optional Stand

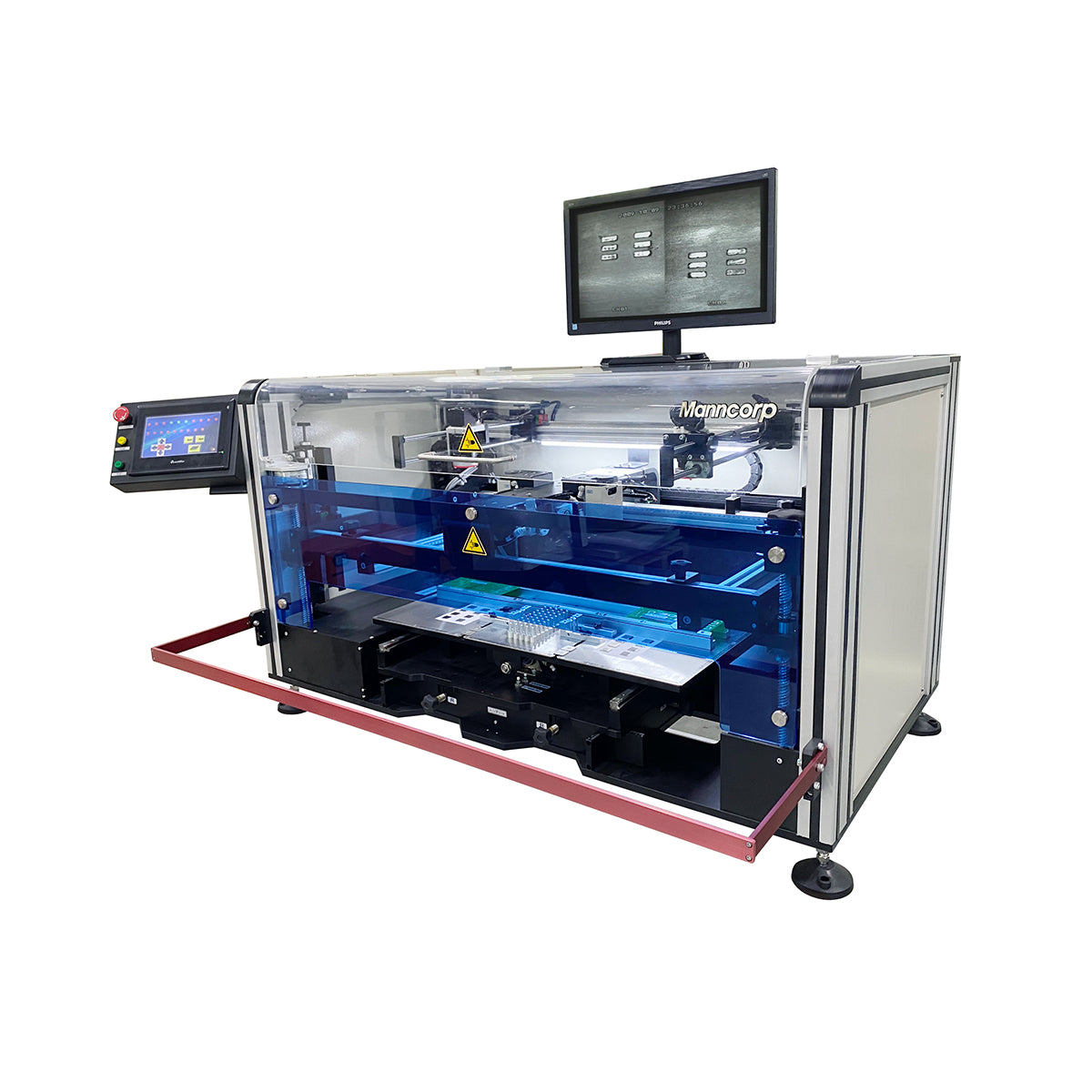

MC600 Semiautomatic Stencil Printer

The MC600 semiautomatic stencil printer fills application requirements of large-board assemblers with a two-foot print area and a max stencil size of 736 X 470 mm, making it ideal for LED, backplane, and multi-panel assemblies. Replace manual printers in your assembly process with this big-board printer for a faster, more accurate result.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $27,995.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Advanced Features Included as Standard

The MC600 has double-sided board printing capability and provides outstanding repeatability of ±0.01 mm. Vertical board/stencil separation ensures clean prints with excellent registration. Print speed control permits complex, fine-pitch circuit boards to be processed at slower speeds than simpler, less densely populated ones.

An optional dual-camera vision system shows X, Y, and theta alignments on an LCD screen. Once set, all adjustments remain locked-in during the entire run. Once the start button is activated, solder paste application and print stroking take place automatically. Squeegee movement and stencil separation speeds are fully programmable using the control panel.

Oversized Print Area—Custom Sizes Available

The MC600 features an oversized print area of 600 x 400 mm (23.6" X 15.75"). Custom print area sizes are also available.
Contact sales@manncorp.com to discuss options for your requirements.

5step

Printing with the MC600 in Five Easy Steps

Step 1:
Place the PCB board on the slidable working table.
Step 2:
Press the IN button. The working table will move inside automatically.
Step 3:
Press the DOWN button and the stencil will automatically move downward.
Step 4:
Use the magnifying camera to adjust X, Y and theta alignments easily & precisely.
Step 5:
Press the START button to begin printing. The squeegee will then automatically begin to spread the solder paste.
MC600 Specifications
Stencil Frame Size350 x 350 mm to 736 x 470 mm
Max. Printing Area600 mm x 400 mm
Max. Board Size650 mm x 410 mm
X- and Y-Axes Range±13 mm
Theta Rotation± 3.5°
Underside Clearance25 mm
Z-Axis Range0-35 mm
Registration Repeatability± 0.01 mm
Power Requirements220VAC 50-60 Hz
Overall Dimensions (L x W x H):1064 mm x 1006 mm x 851mm
Machine Weight108 kg
