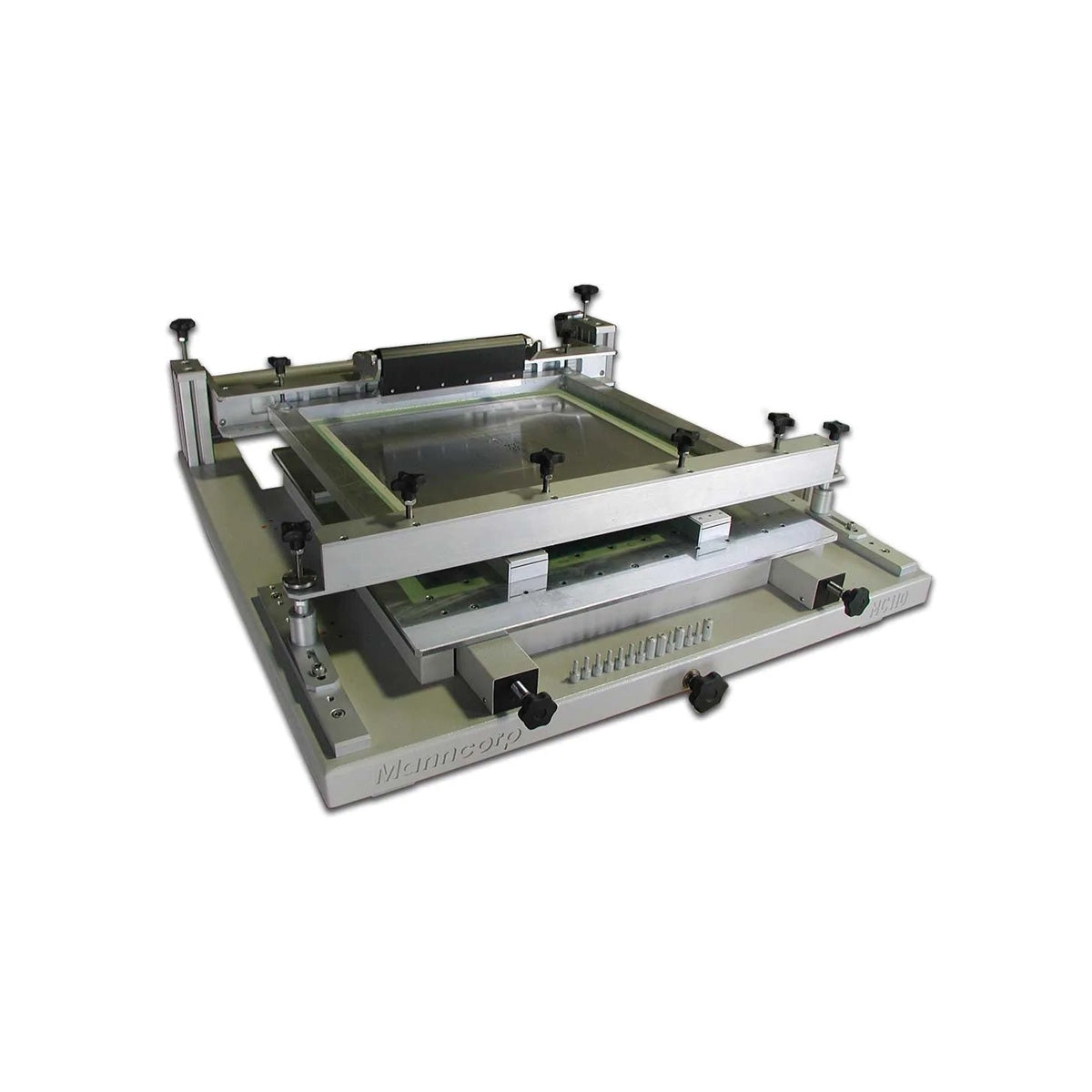

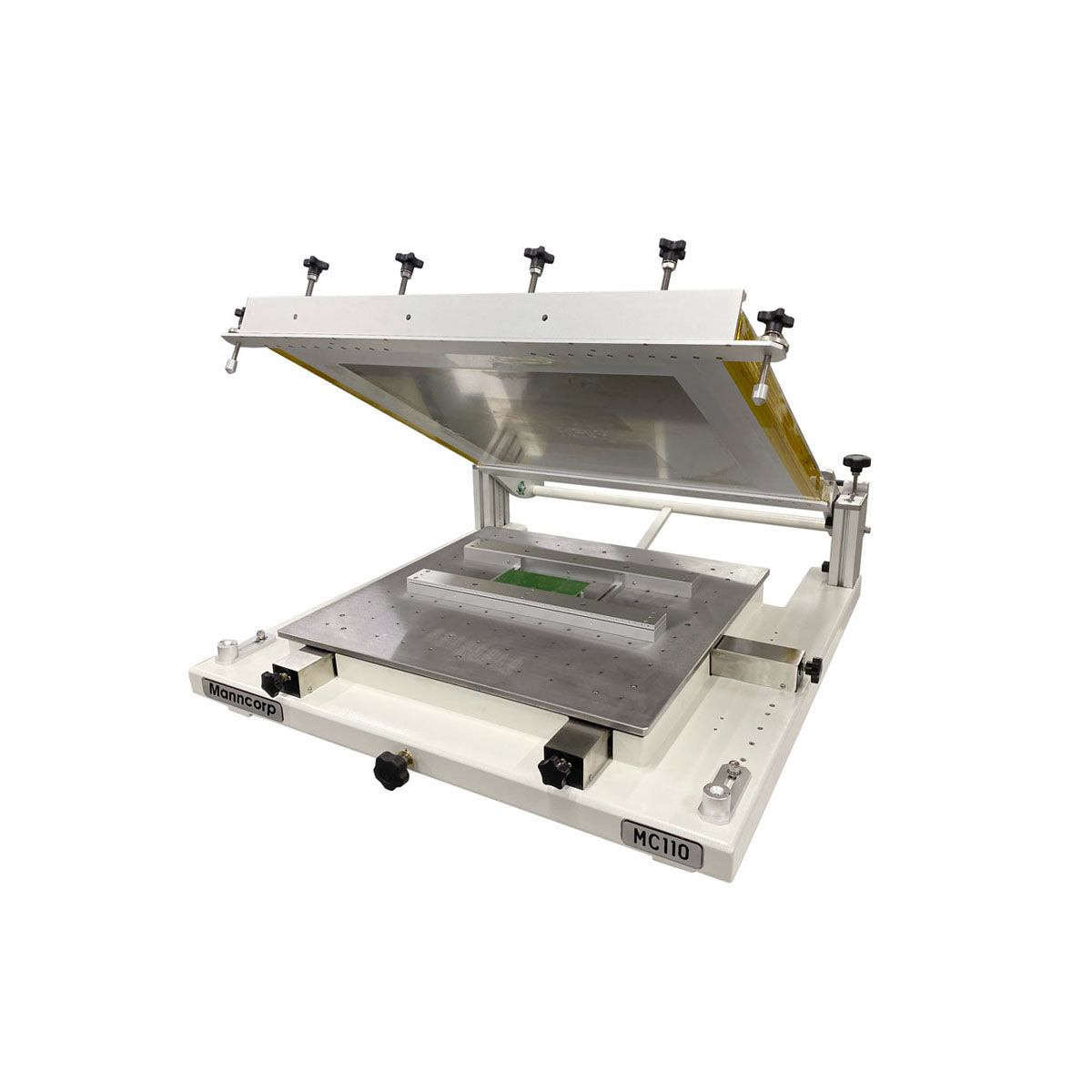

Large Work Area and Flexible Printing
The MC110 supports a wide range of PCB sizes and applications, making it ideal for prototypes, low-volume production, and large-format boards.
- Large board support: handles PCBs up to 610 × 610 mm (24" × 24")
- Extended size capability: up to 1250 × 410 mm (24" × 48") with optional FIX-AT-L120
- Stencil compatibility: supports frames up to 736 × 736 mm (29" × 29")
- Flexible production use: suitable for prototyping, low-volume runs, or backup to automated lines
High Repeat Accuracy for Fine-Pitch Printing
The MC110 delivers precise, repeatable results with fine-pitch capability down to demanding tolerances.
- ±0.02 mm repeat accuracy: ensures consistent results across print cycles
- Self-locking adjustments: X, Y, and theta controls maintain stable alignment
- Fine-pitch capability: supports detailed PCB designs and tight component spacing
- Stable positioning: maintains alignment throughout the print process

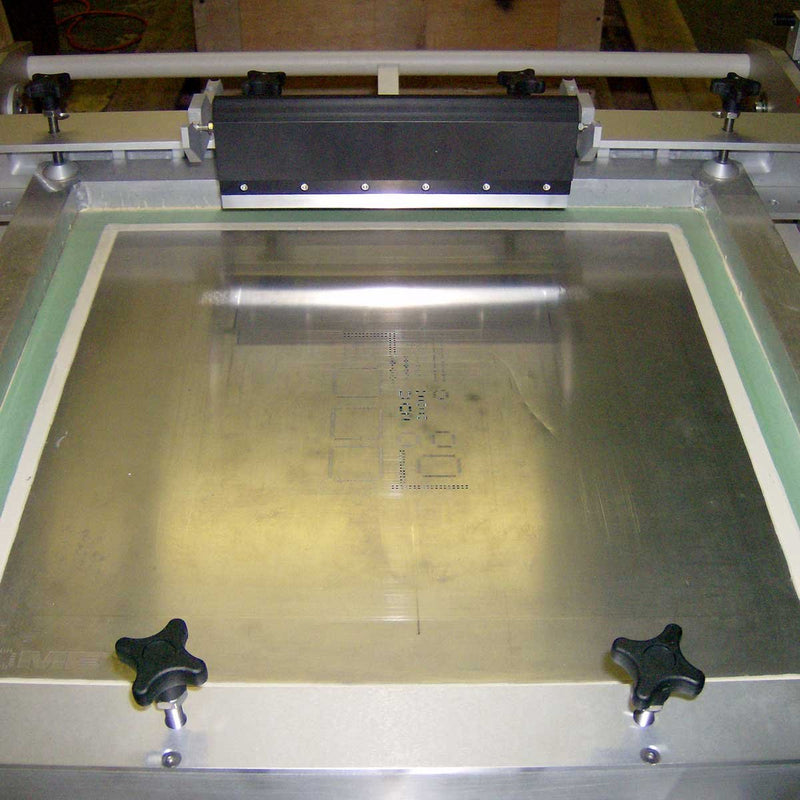

Flexible Stencil Frame Compatibility

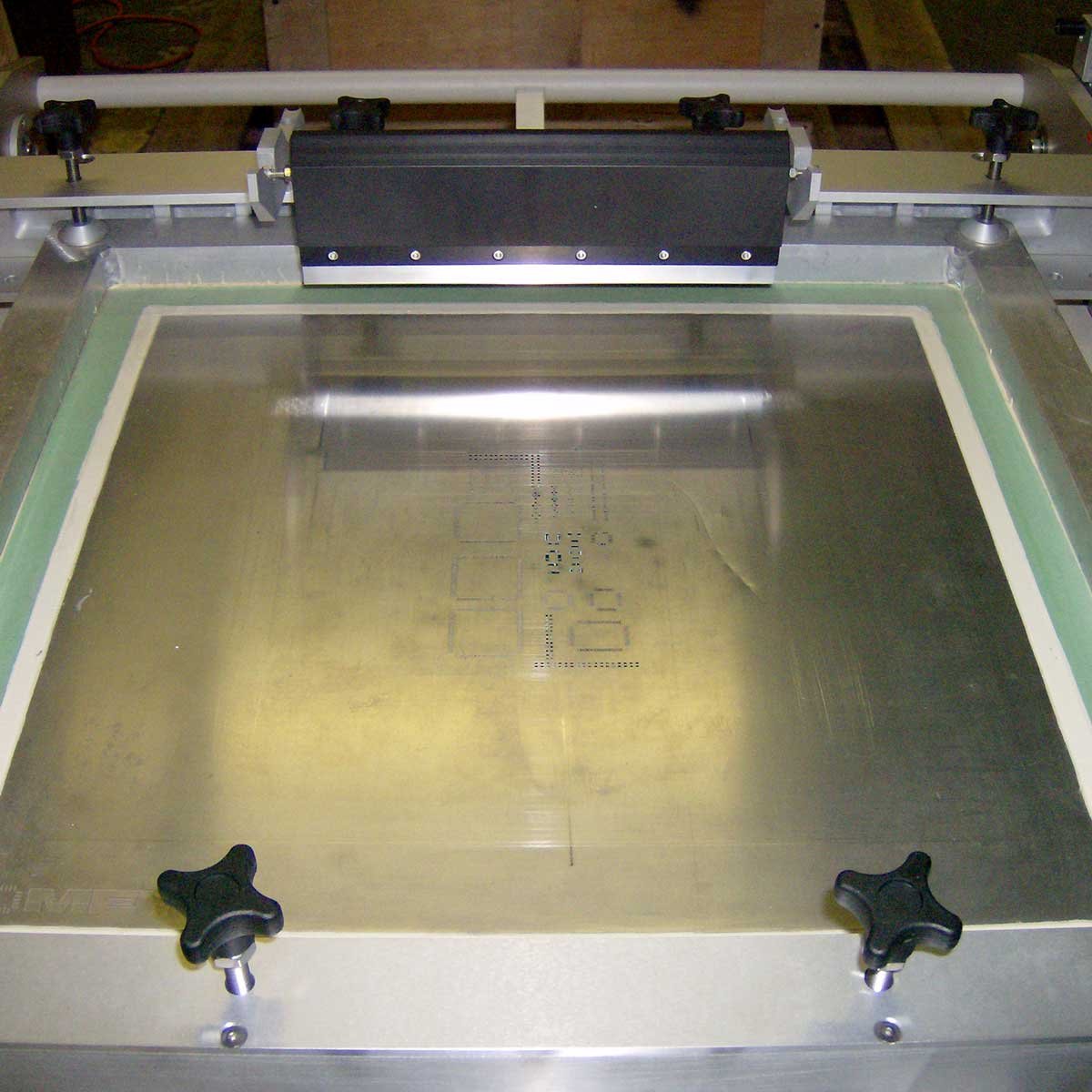

The MC110 supports a wide range of stencil frames, allowing operators to use existing tooling across different applications.
- Wide size range: supports frames from 300 × 300 mm to 736 × 736 mm (11.8" × 11.8" to 29" × 29")
- Multiple mounting options: frames can be clamped or screw-mounted
- Compatible with existing tooling: reduces the need for additional equipment
- Consistent alignment: maintains reliable positioning across different frame types

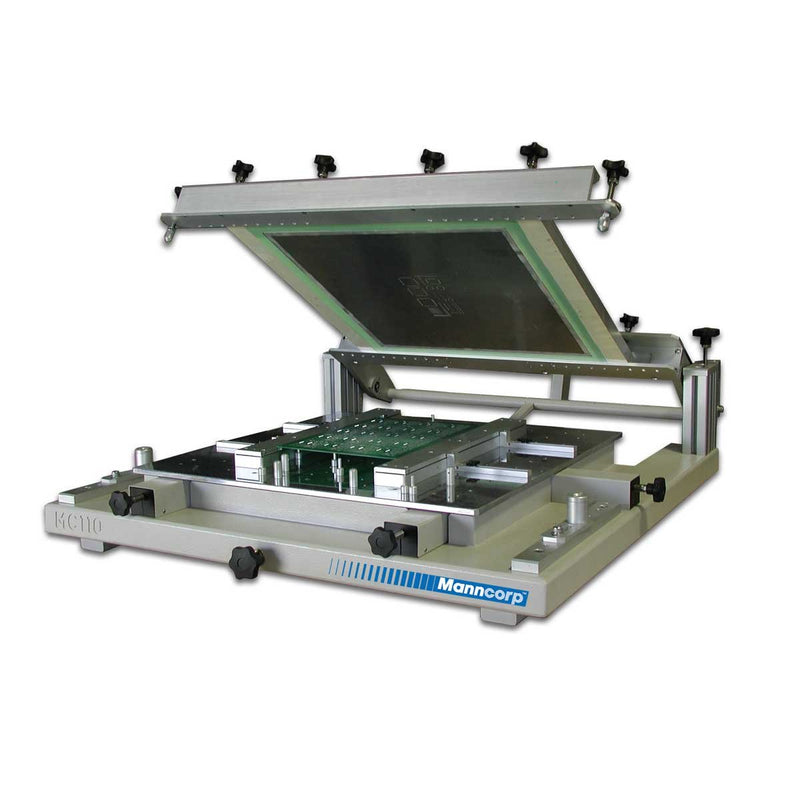

Versatile Board Mounting and Support
The MC110 includes a fully adjustable mounting system designed to accommodate a wide range of PCB designs and setups.

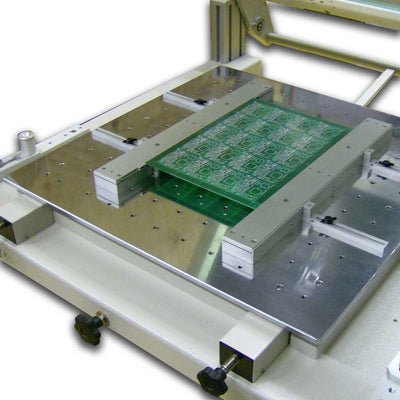

- Flexible mounting options: supports tooling holes, pin registration, and edge mounting

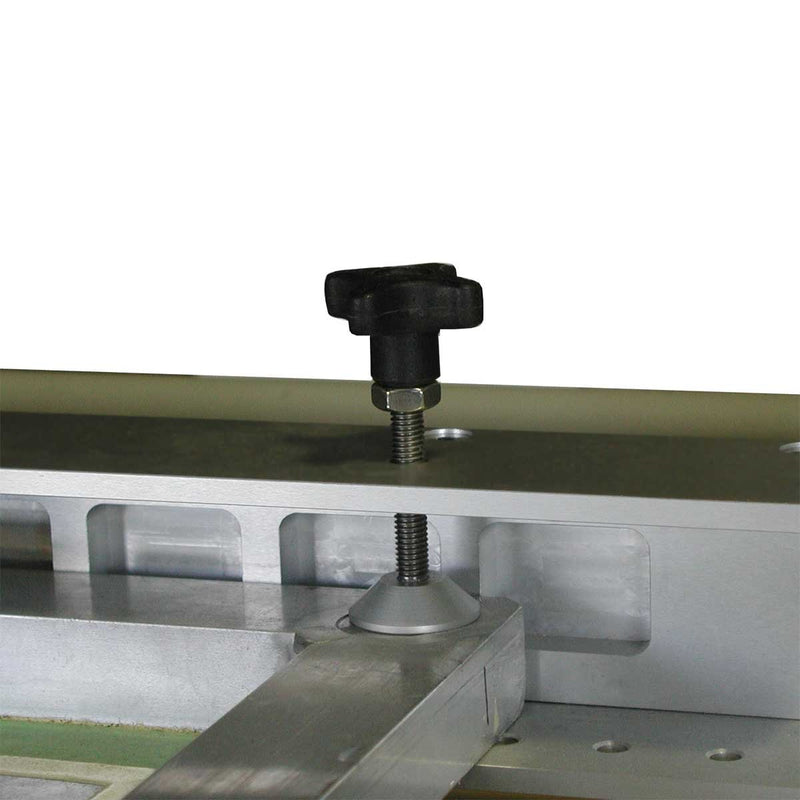

- Adjustable support pins: magnetic pins maintain board flatness during printing
- Supports double-sided PCBs: ensures stable alignment for complex assemblies
- Ideal for prototyping: enables quick setup for first articles and low-volume runs
| MC110 Specifications | |
|---|---|
| PCB Max Size | 24" x 24" (610 mm x 610 mm) |
| Stencil Frame Size (External) Min. | 11.8" x 11.8" (300 mm x 300 mm) |
| Stencil Frame Size (External) Max. | 29" x 29" (740 mm x 740 mm) |
| Print Repeatability | 0.00079" (± 0.02 mm) |
| Underside Clearance | 1" (25 mm) |
| PCB Fixture | Screw clamps and magnetic pins |
| Support System | Magnetic pins |
| Squeegee Type | Metal |
| Print Type | Single and double sided printing |
| X-Axis Range | ± 0.51" (13 mm) |
| Y-Axis Range | ± 0.51" (13 mm) |
| Z-Axis Range | 0-1.38" (0-35 mm) |
| Air Requirements | N/A |

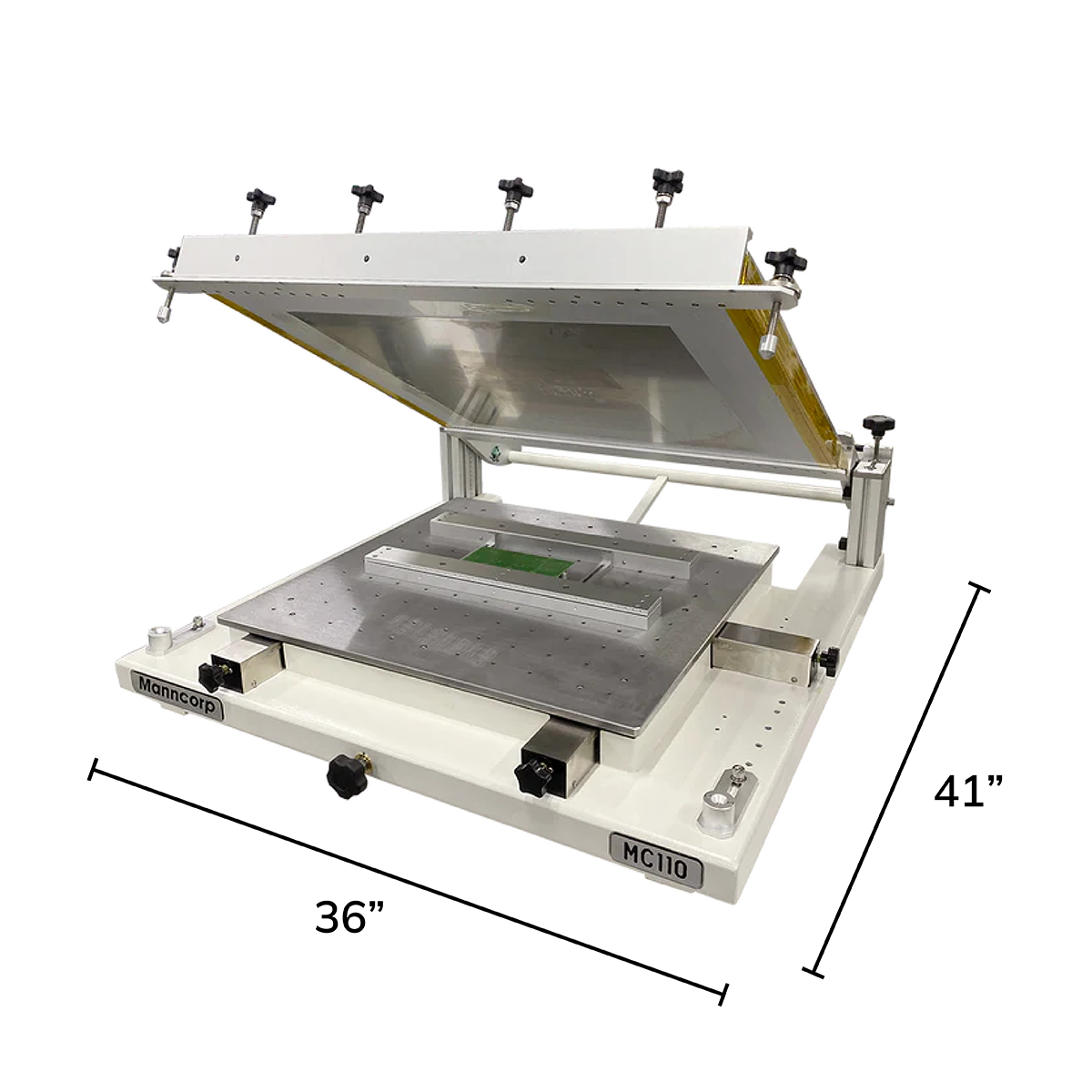

| Dimensions | 36" x 41" x 12" (910 mm x 1040 mm x 300 mm) |
| Weight | 198 lb (90 kg) |
