Your Pick & Place is Jet Dispenser Ready

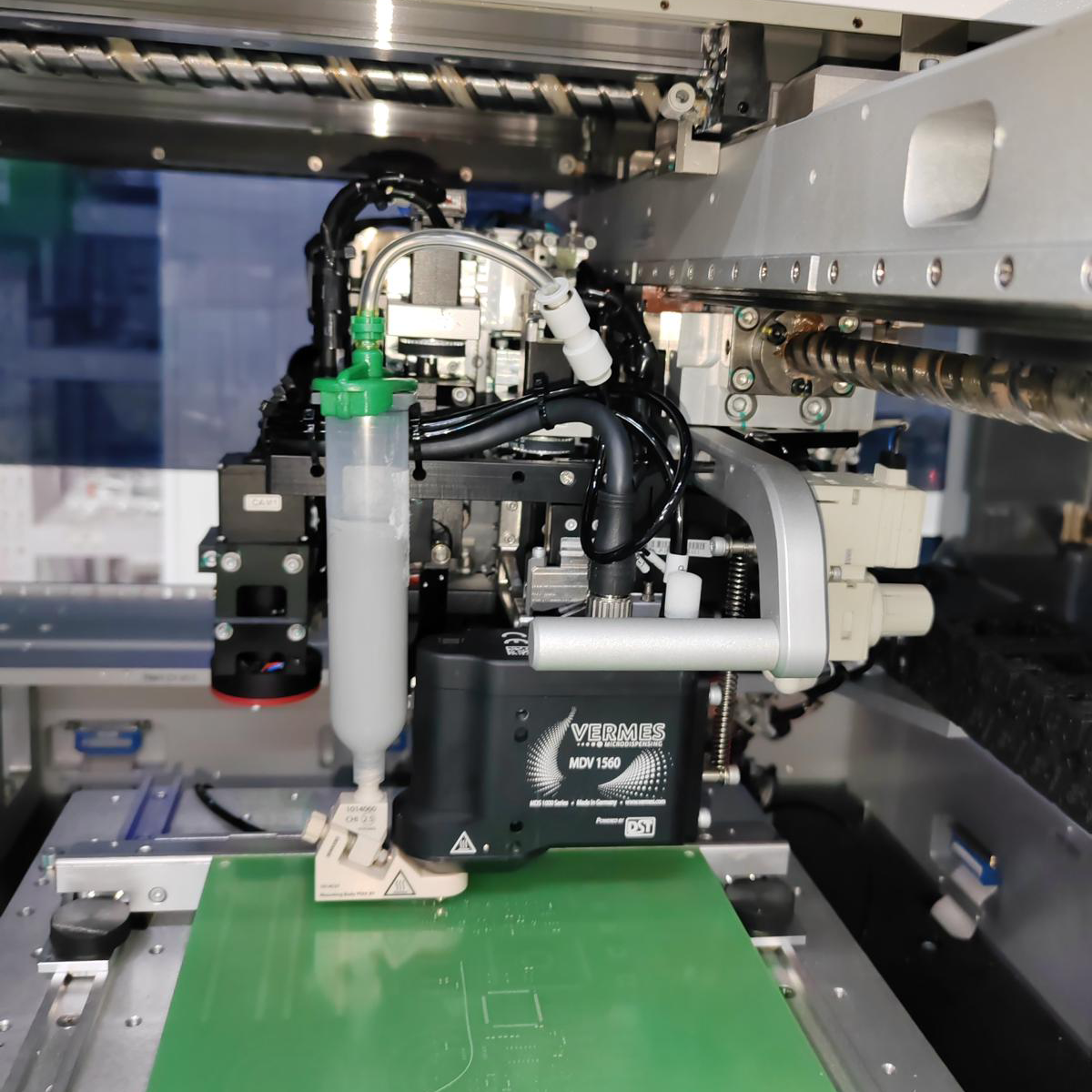

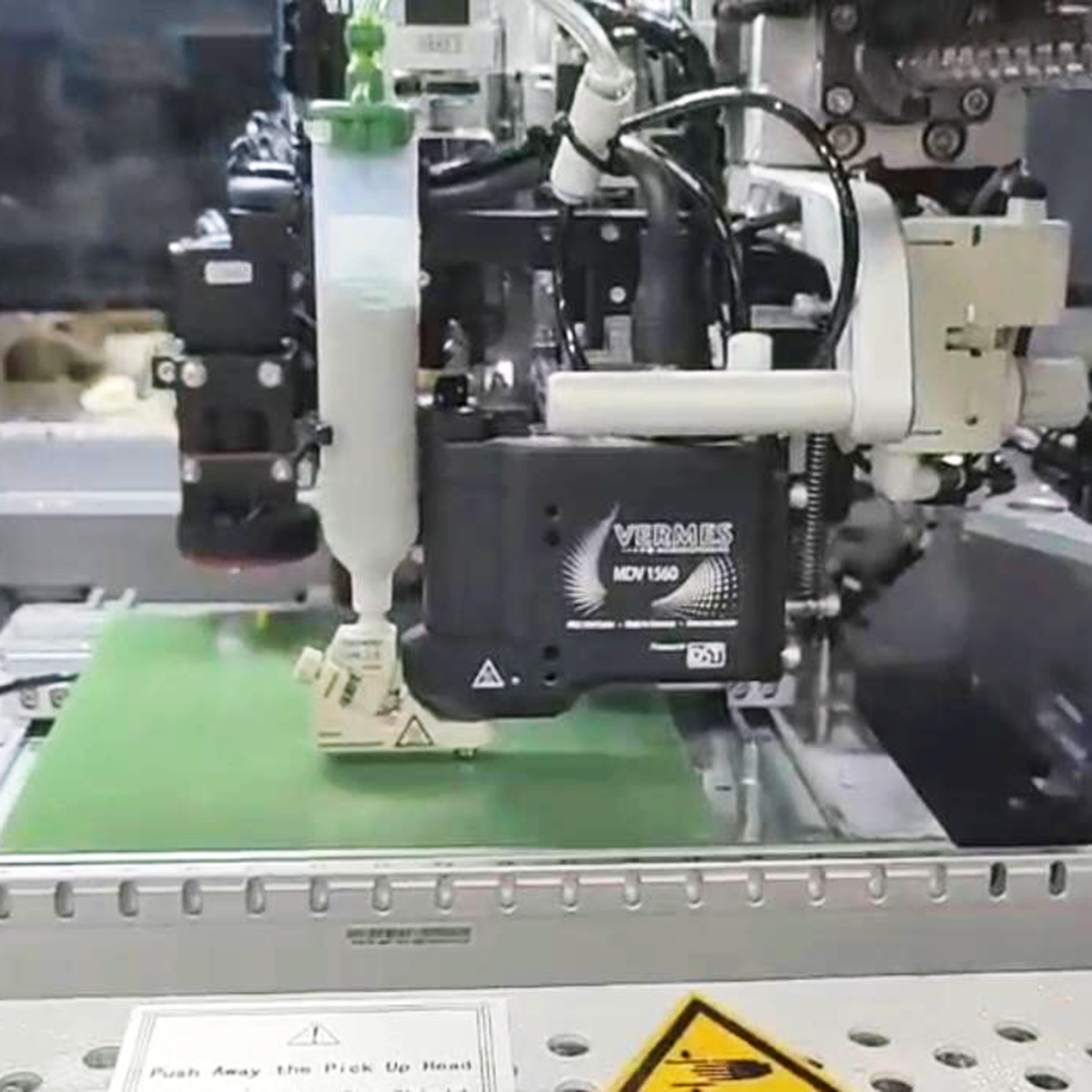

The integration of the Vermes MDV1560 jet dispenser transforms your high-speed pick-and-place system into a complete "all-in-one" solution. By combining high-speed dispensing with precision placement, you can streamline your entire assembly process without the need for additional specialized equipment.
Compatible only with high-speed Manncorp Pick & Place models MC889 and MC388HS. This option must be integrated at the time of machine purchase and cannot be retrofitted later.Please note: when added to a high-speed machine, it replaces one of the placement heads.
- Eliminate Stencils & Printers: Avoid the high cost and lead times associated with custom stencils and the footprint of a dedicated stencil printer.
- Print & Place in One Machine: Consolidate your production line by handling solder paste or glue application and component placement on a single platform.
- Perfect for Prototyping & High-Mix: Rapidly switch between different board designs without retooling, making it the ideal choice for R&D, small batches, and high-mix production environments.
| Inventec Solder Paste | Dispenser | Tappet Rod | Nozzle | Mode | Min Dot Size | Speed |
|---|---|---|---|---|---|---|
| ECOREL FREE JP32/6 80.0T6 | Vermes MDV1560 | ZZ74 | N64-90 | High Speed | 380-390 µm | 225 dots / 21 sec (640 dpm) |
| ECOREL FREE JP32/6 80.0T6 | Vermes MDV1560 | ZZ73 | N25-100 | Low Speed | 280-290 µm | 225 dots / 56 sec (240 dpm) |
| ECOREL FREE JP32/6 80.0T7 | Vermes MDV1560 | ZZ73 | N64-60 | High Speed | 270-280 µm | 225 dots / 21 sec (640 dpm) |
| ECOREL FREE JP32/6 80.0T7 | Vermes MDV1560 | ZZ73 | N11-50 | Low Speed | 200-210 µm | 225 dots / 56 sec (240 dpm) |
T6, 390 µm
T6, 290 µm
T7, 280 µm
T7, 210 µm
