High-Accuracy Manual Dispensing

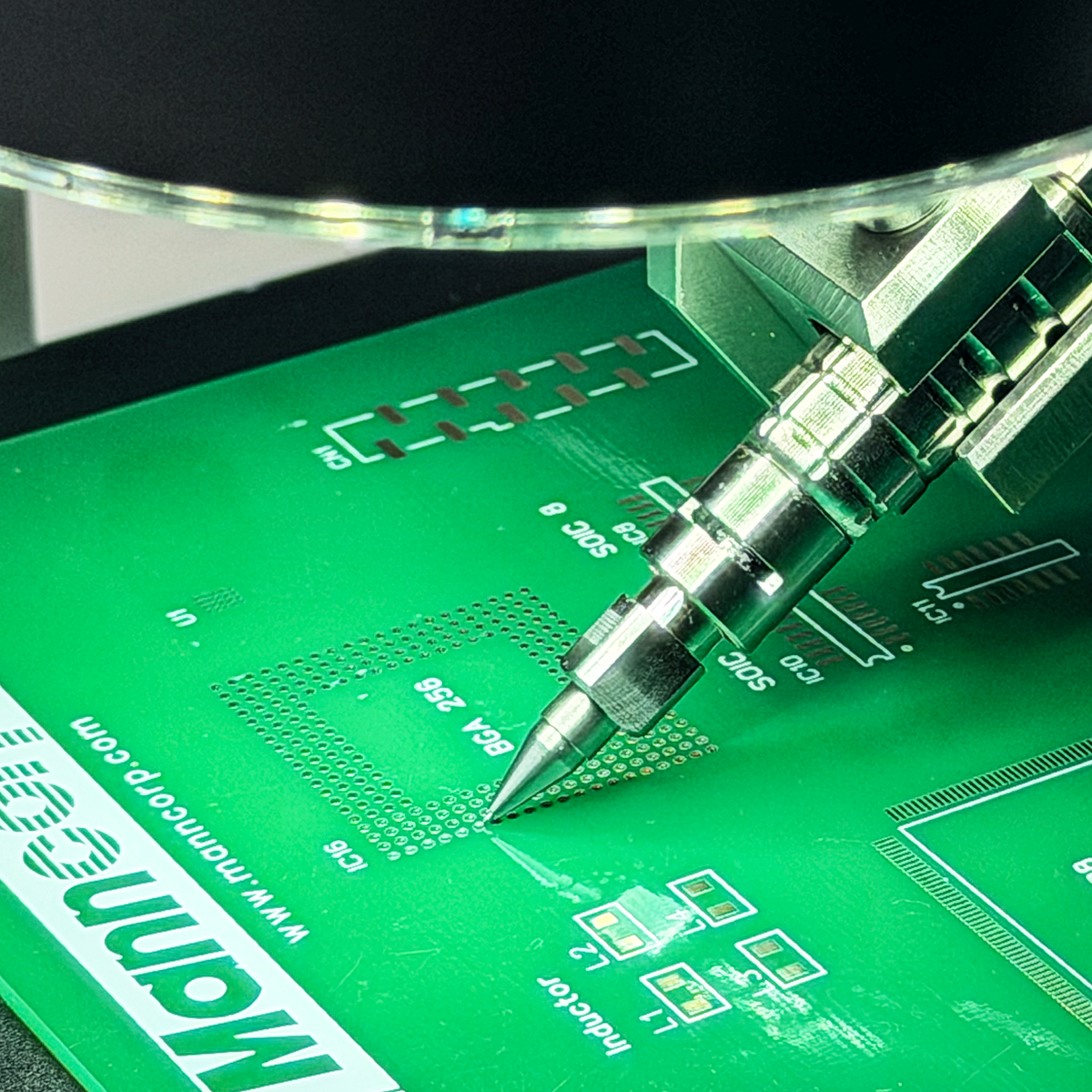

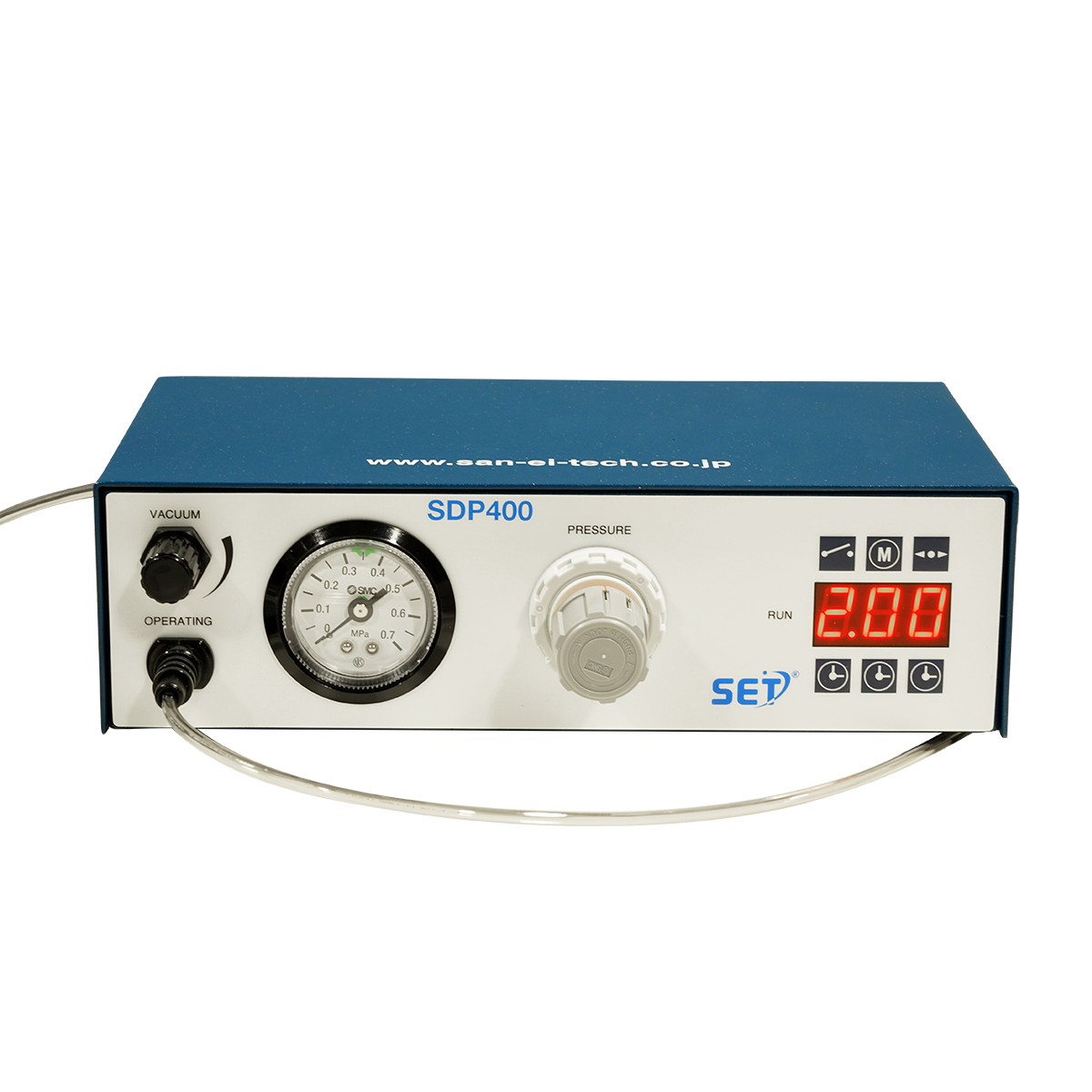

The TA5575 twin-air dispenser delivers precise, repeatable manual dispensing for applications where control is critical.

• Twin-air system: smooth, stable material flow
• High-precision output: accurate micro-volume dispensing
• Handles difficult materials: ideal for high-viscosity adhesives

Mounted on a manipulator, the system ensures consistent flow and control—even with materials unsuitable for traditional air-pulse dispensers.

Precision Alignment with Integrated Vision

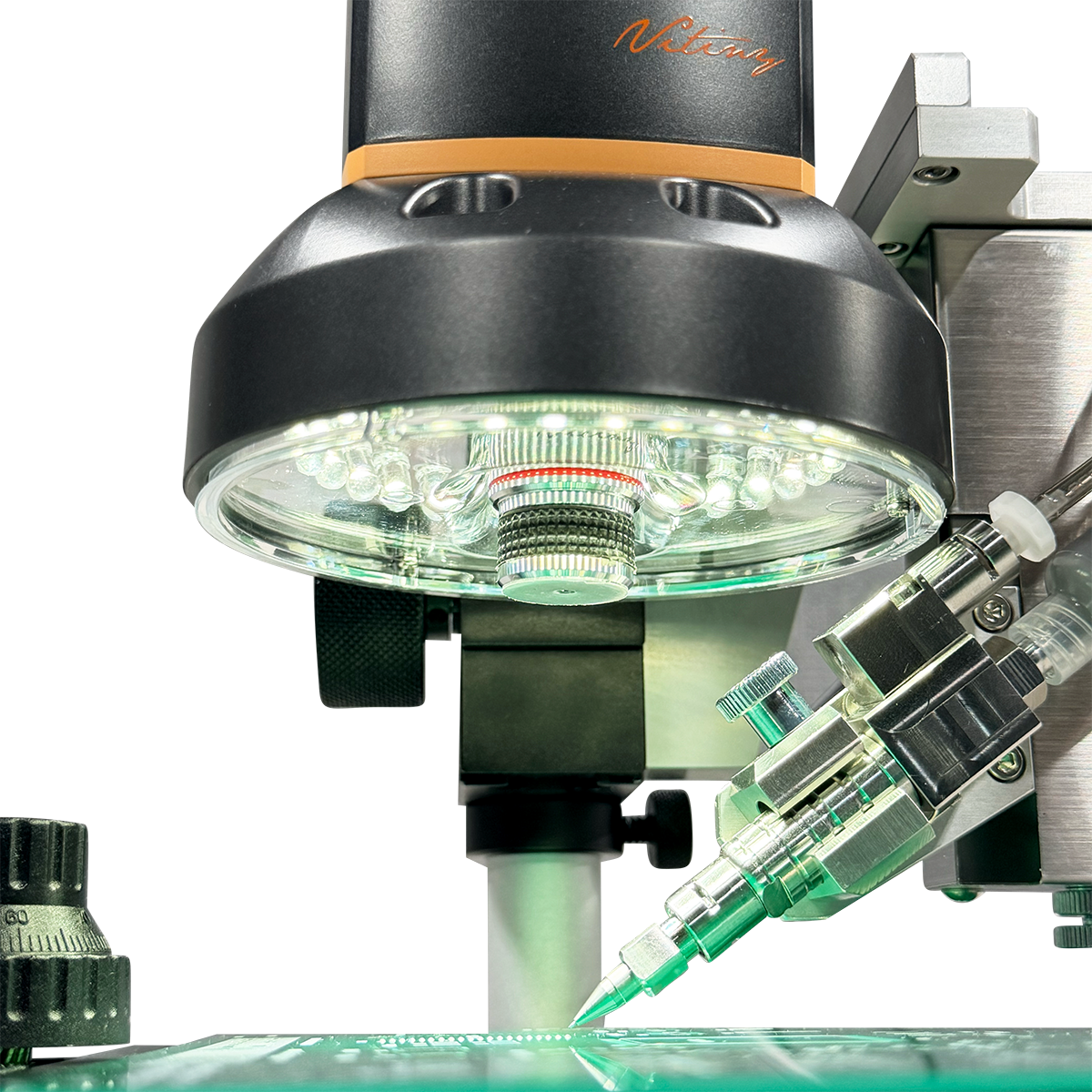

The TA5575 includes a built-in autofocus microscope for accurate positioning and repeatable dispensing.

• Autofocus microscope: 1280 × 1800 resolution at 60 fps
• Clear visual feedback: precise placement control
• X/Y adjustments: fine alignment of dispensing position
• Fixed nozzle gap: consistent dispensing height

This integrated vision system ensures precise alignment and parallel dispensing across all applications.

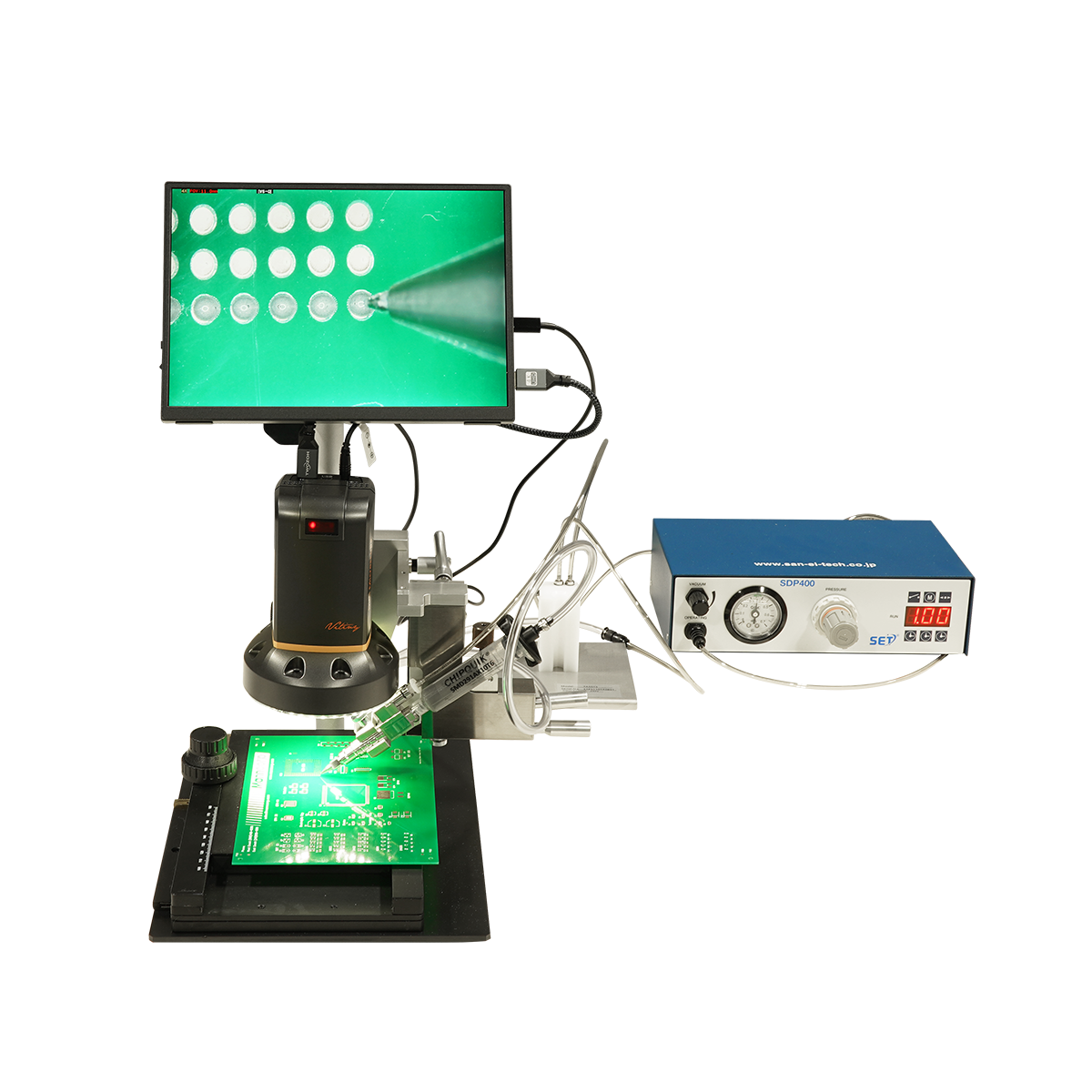

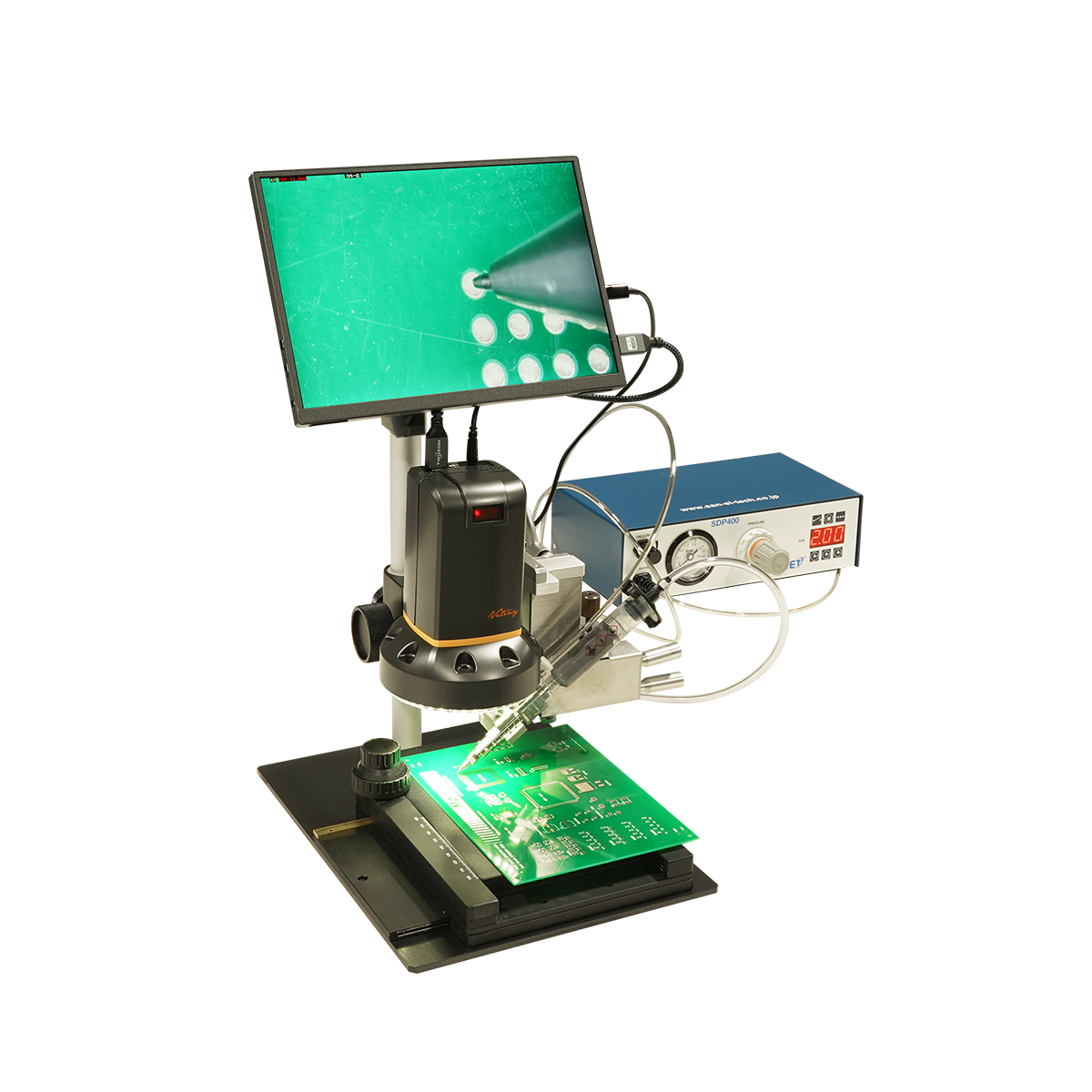

Flexible, Compact Design

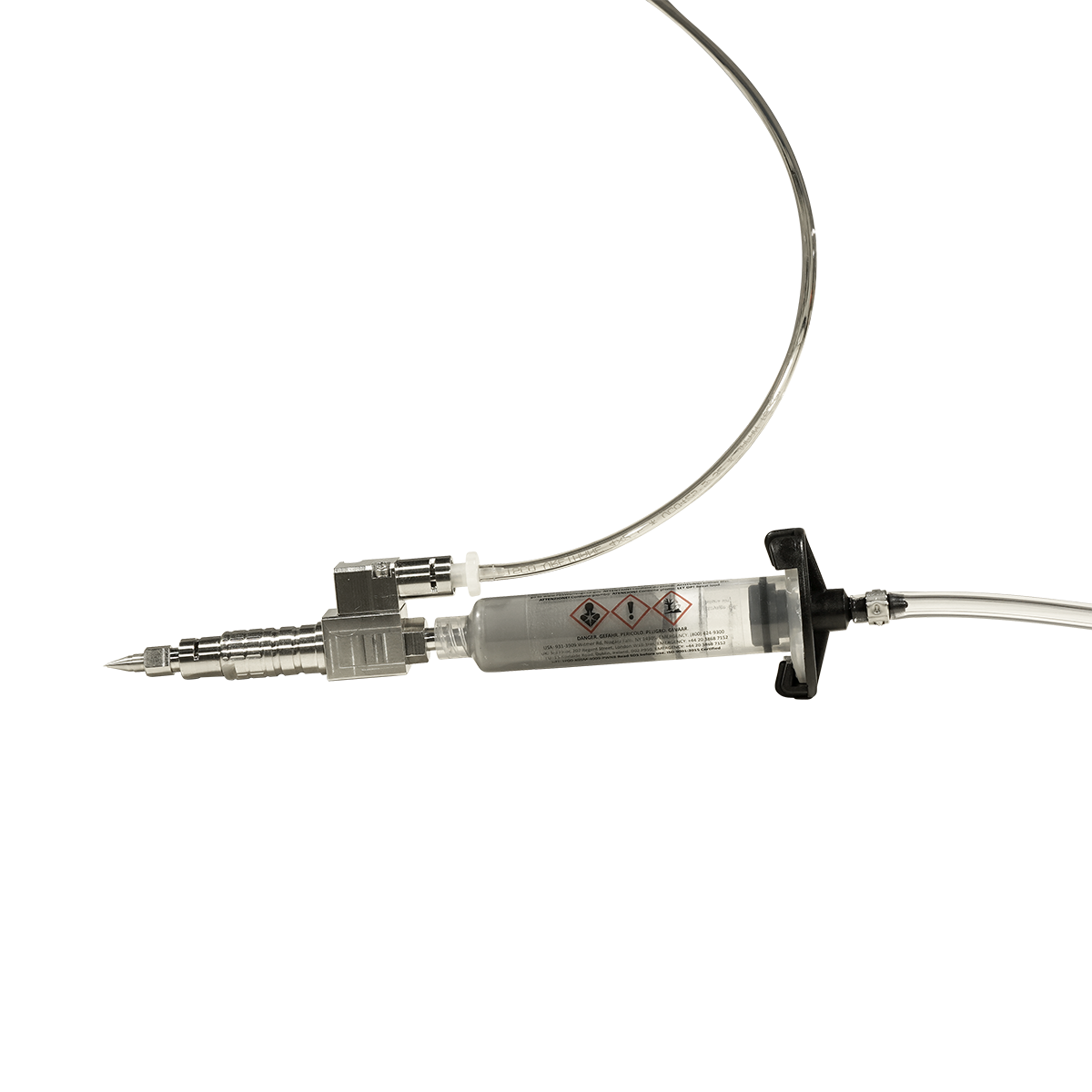

• Twin-air dispenser: precise manual control of small volumes
• Manual XY table & manipulator: smooth positioning (55 × 75 mm stroke)
• Microscope with LCD display: real-time application visibility
• High-viscosity compatibility: handles materials air-pulse systems cannot
• Compact design: ~10 kg with low maintenance requirements

The compact, low-maintenance design makes it easy to integrate into any rework or prototyping environment.

Applications

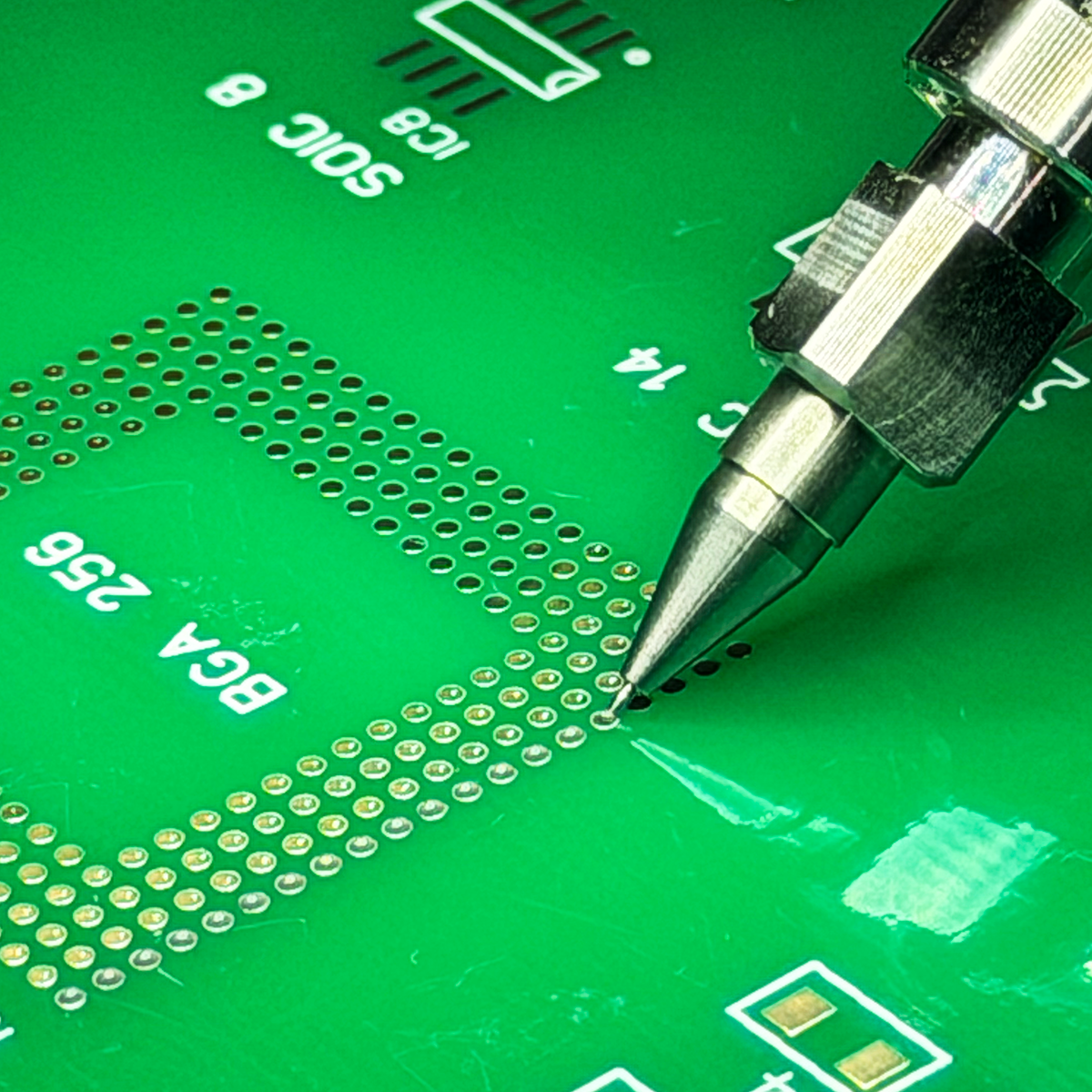

• PCB rework and repair: solder joints, BGA balls, and fine features
• Adhesive dispensing: for materials not suited to air-pulse systems

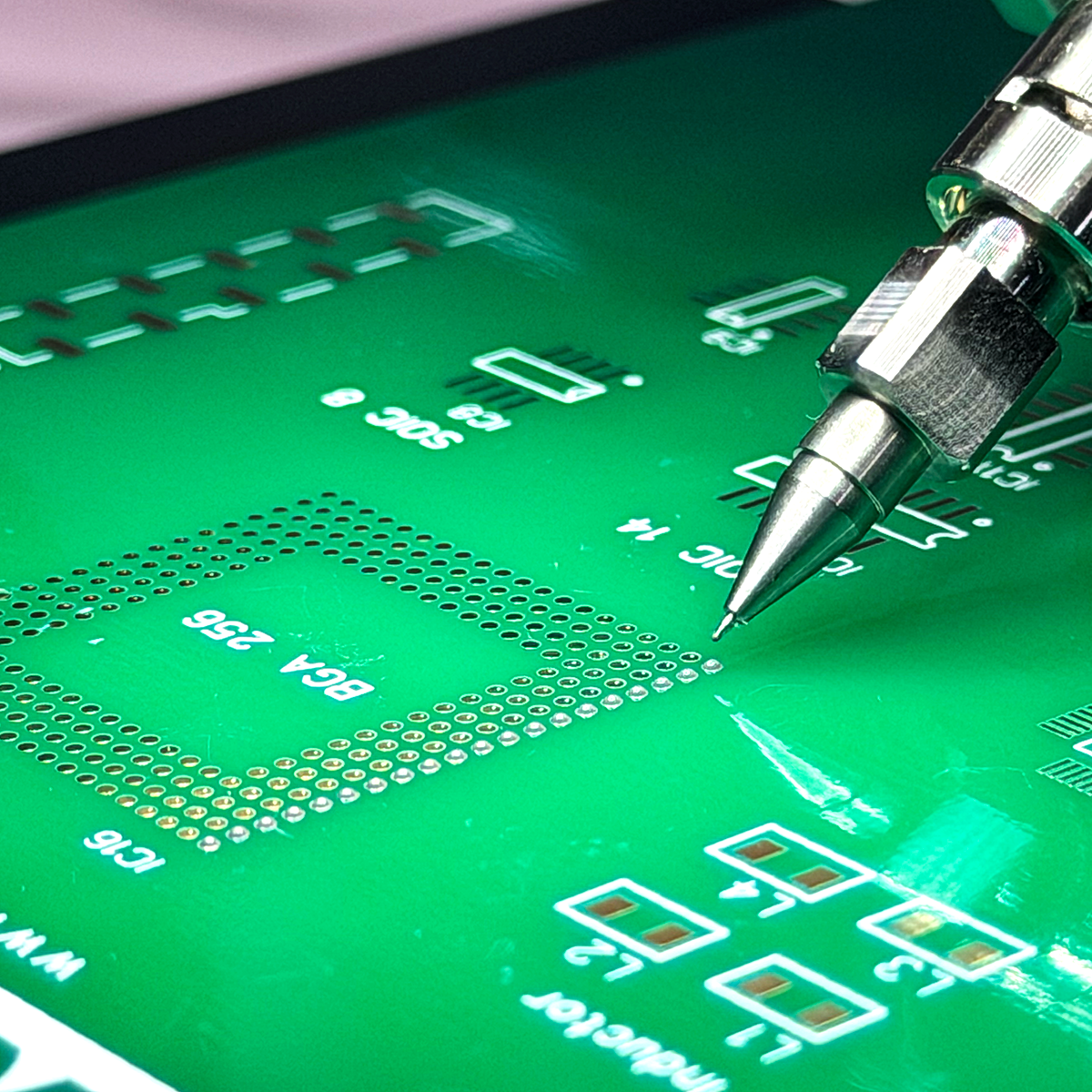

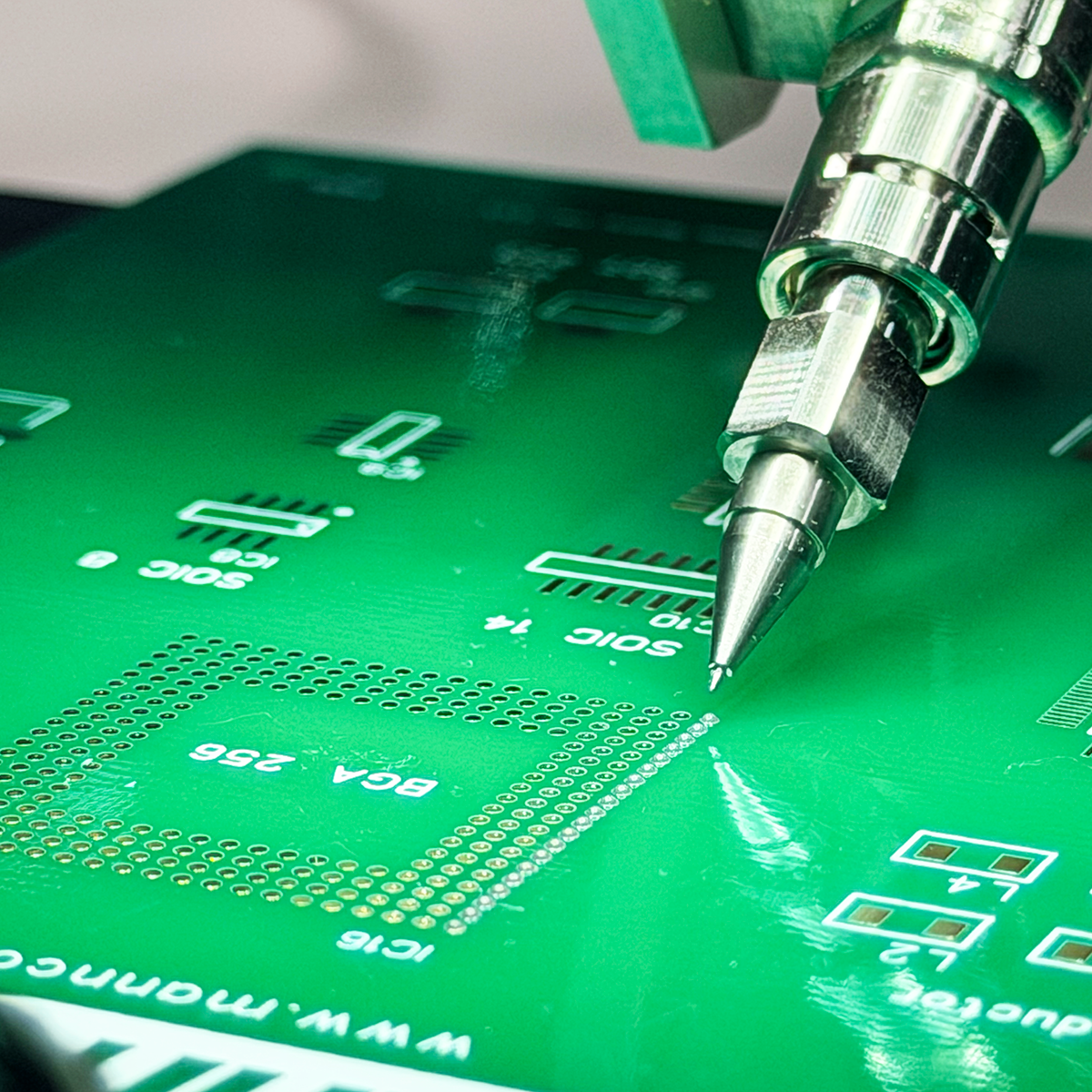

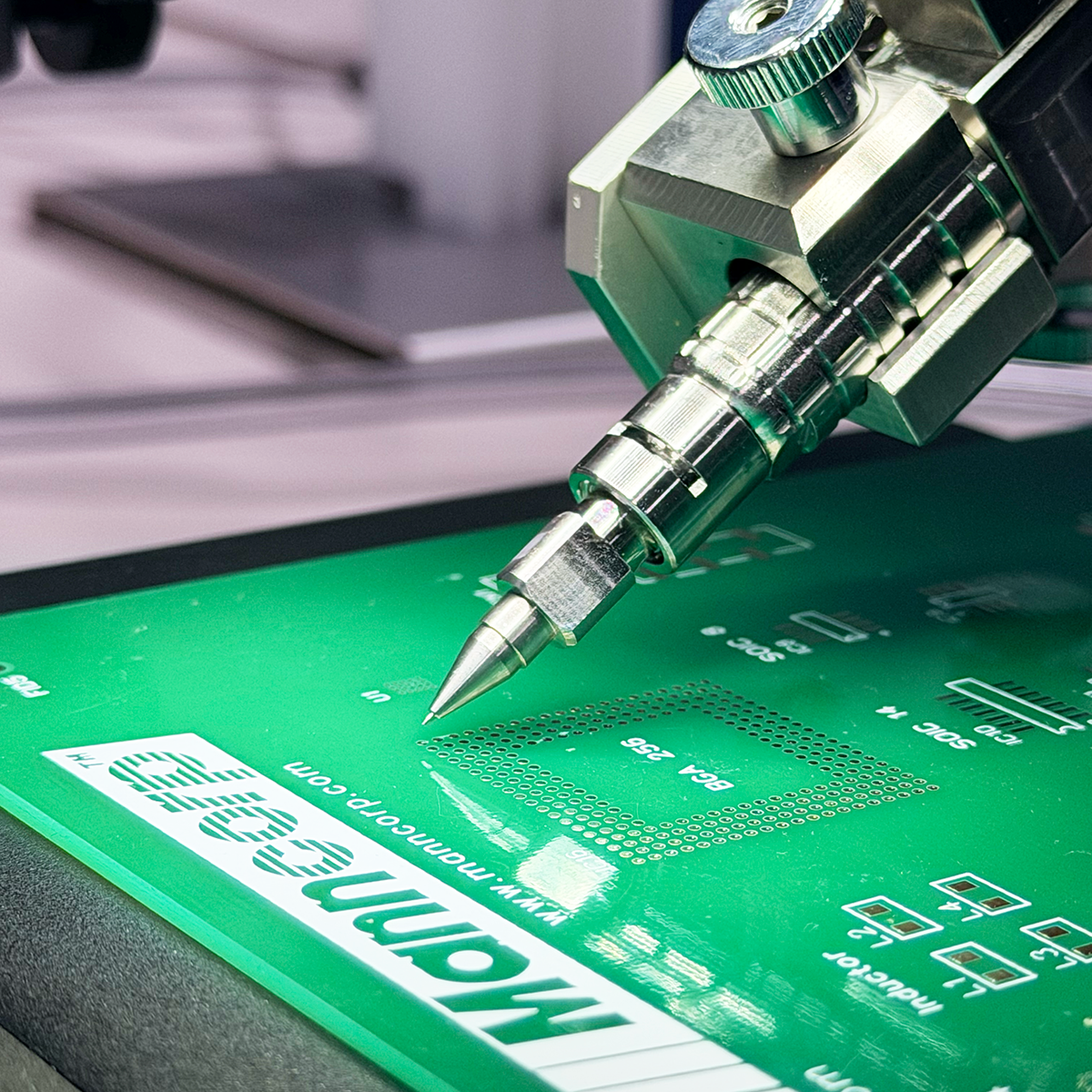

• Micro-dispensing: high-precision, small-volume applications
• Prototyping: flexible, low-volume production work
• Manual material application: controlled dispensing of small quantities
• Automation integration: compatible with third-party robotics
