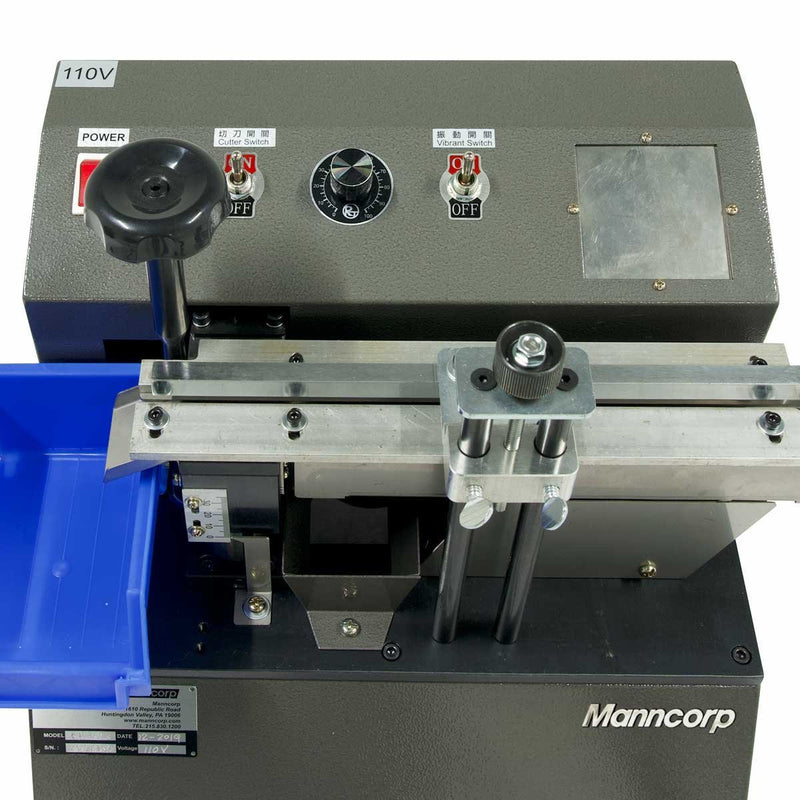

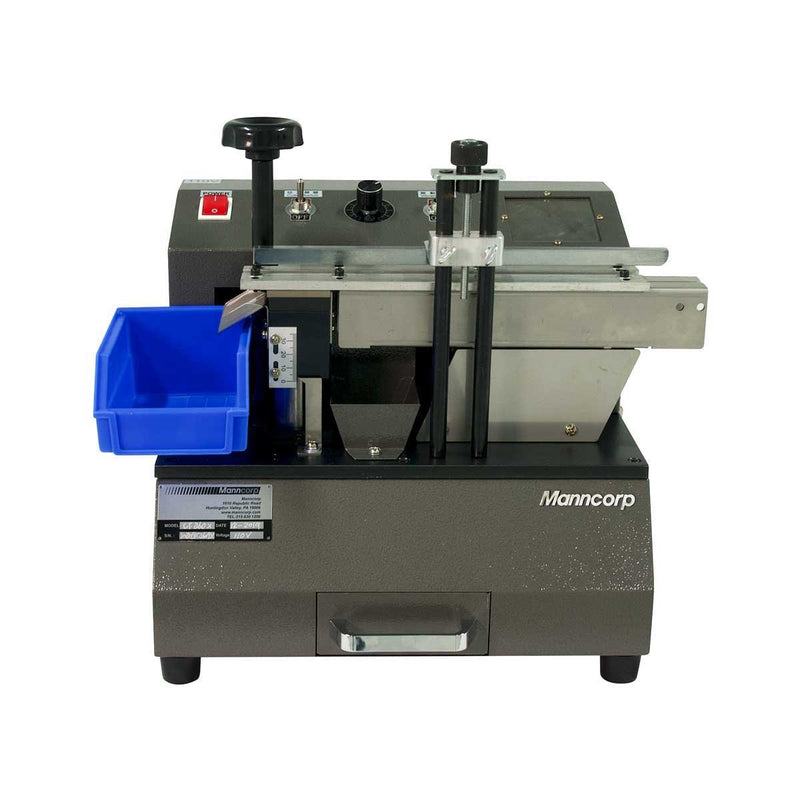

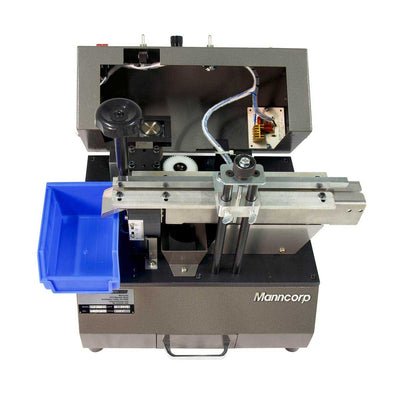

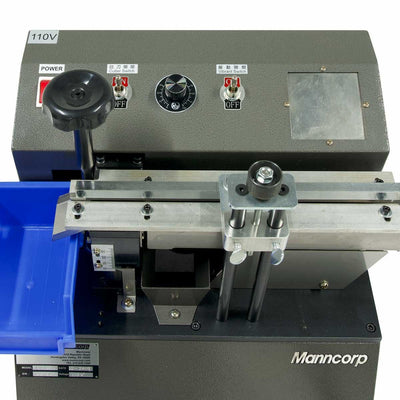

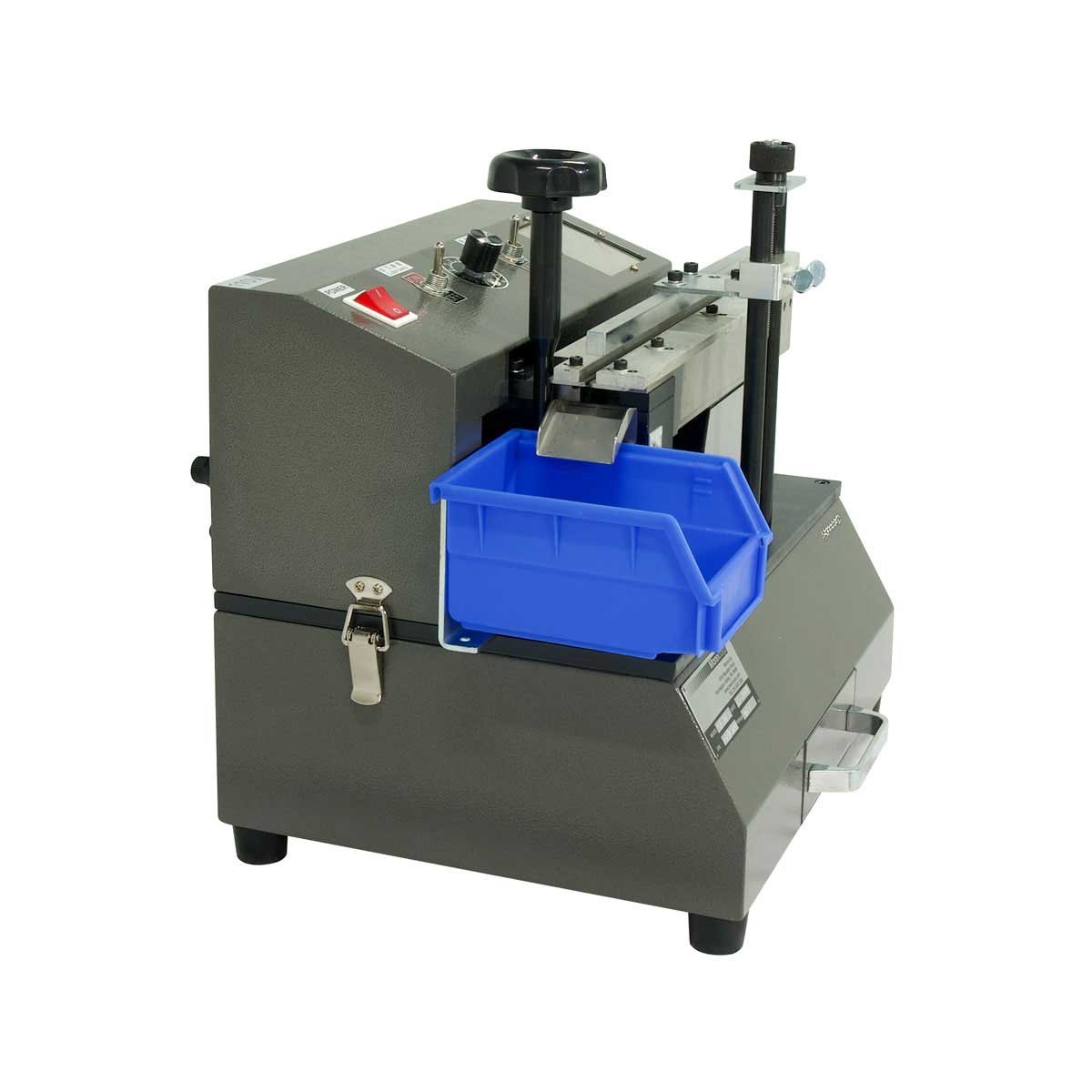

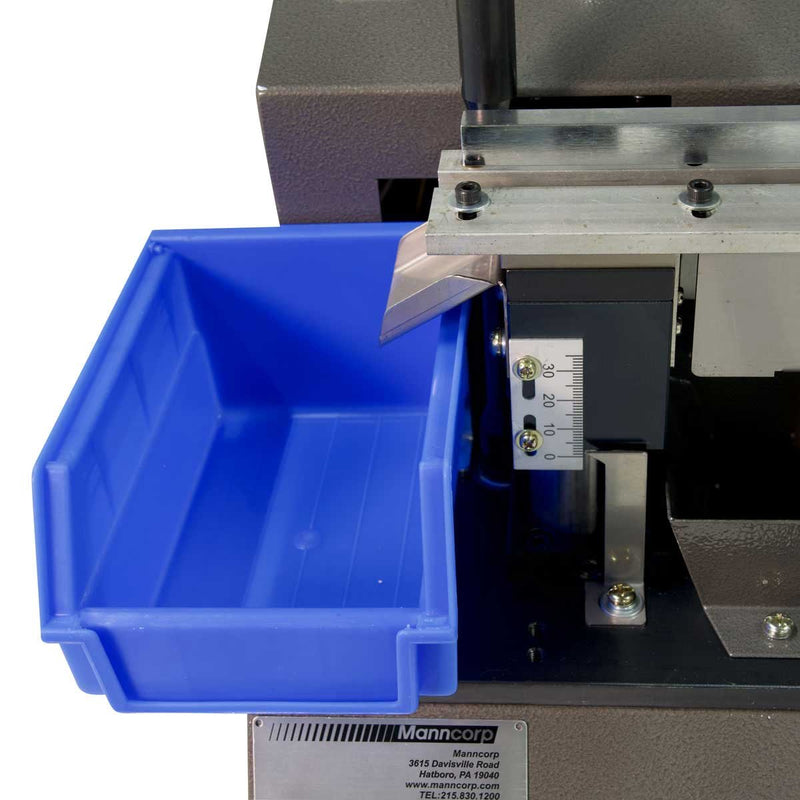

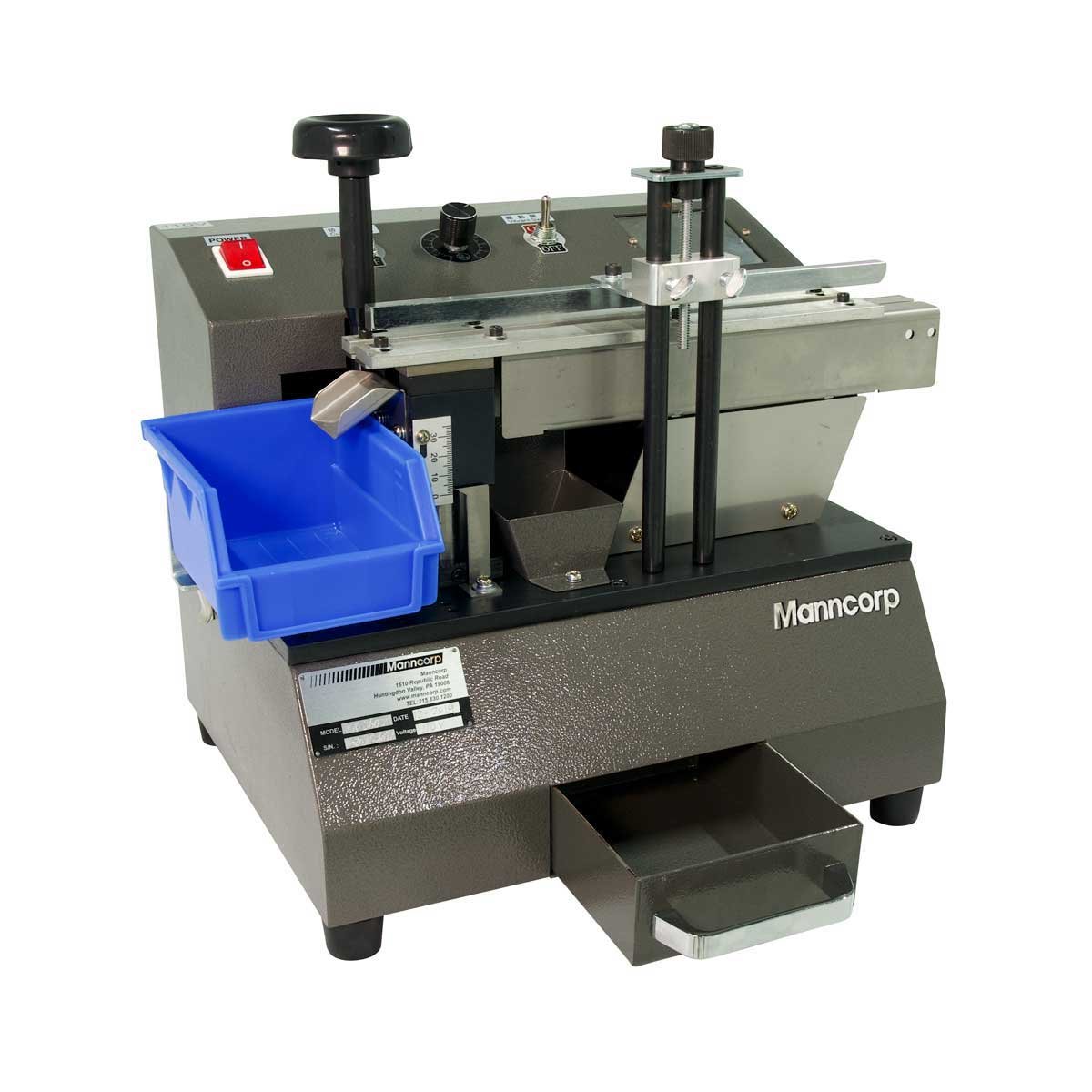

The CF360 loose radial lead cutter economizes PCB assembly and simplifies component insertion tasks by eliminating costly manual trimming. Linear feeder makes this cutter suitable for all size parts, and processes up to 9,000 parts per hour.
| CF360 SPECIFICATIONS | |
|---|---|
| Loose Radial Lead Cutter | |
| A Body Diameter | 3-25 mm |
| L Lead Length | N/A |
| C Shoulder Min | N/A |
| D Body Diameter | N/A |
| W Wire Diameter | 0.4-2.0 mm |
| H Lead Length | 3-20 mm |
| P (Pitch) | N/A |
| R (Radius) | N/A |
| Production Rates - Taped | N/A |
| Production Rates - Loose | 9,000 pcs/hr |
| Power | 110/220V 50/60 Hz |

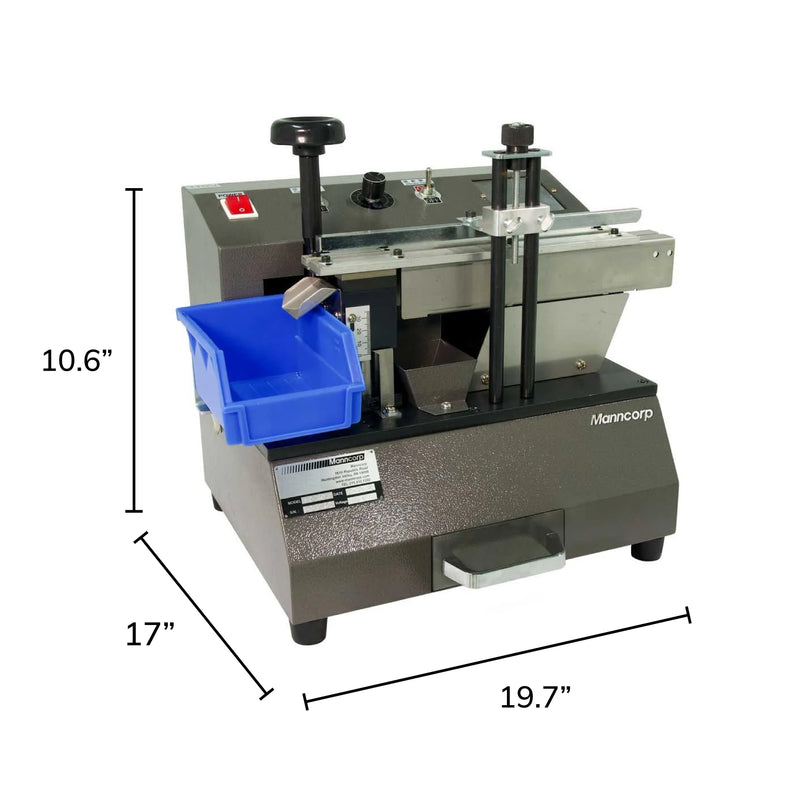

| Dimensions | 500 x 430 x 470 mm |
| Weight | 53 lbs (24 kgs) |
| Shipping Weight | 59 lbs (27 kgs) |
| Tape Pitch | N/A |
| Options | CF360 |
| Pitch Gauge | N/A |
| Foot Pedal | N/A |
| Component Counter | Yes |
| Bowl Feeder | Yes (CF366) |
