Flexible Design for Reliable PCB Transfer

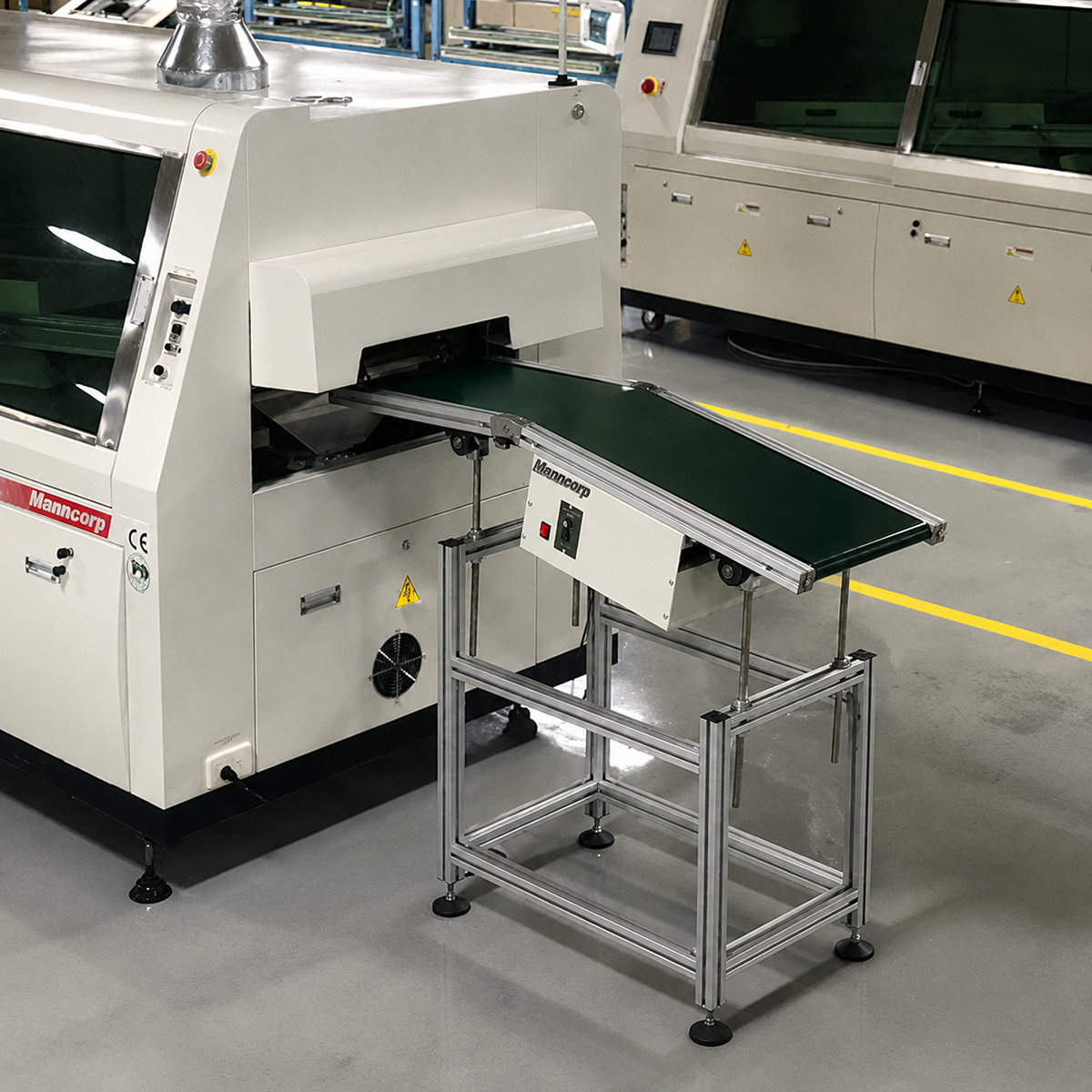

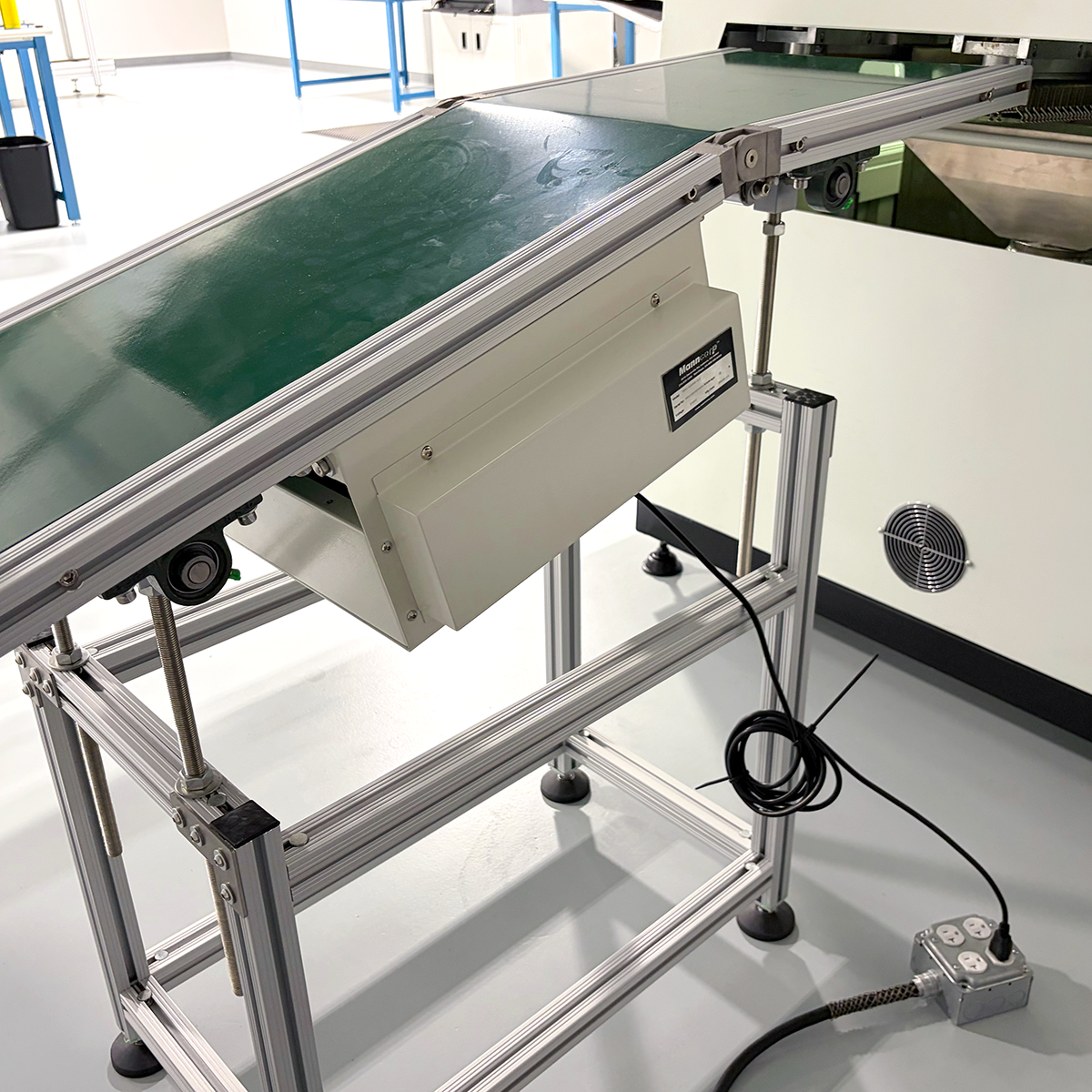

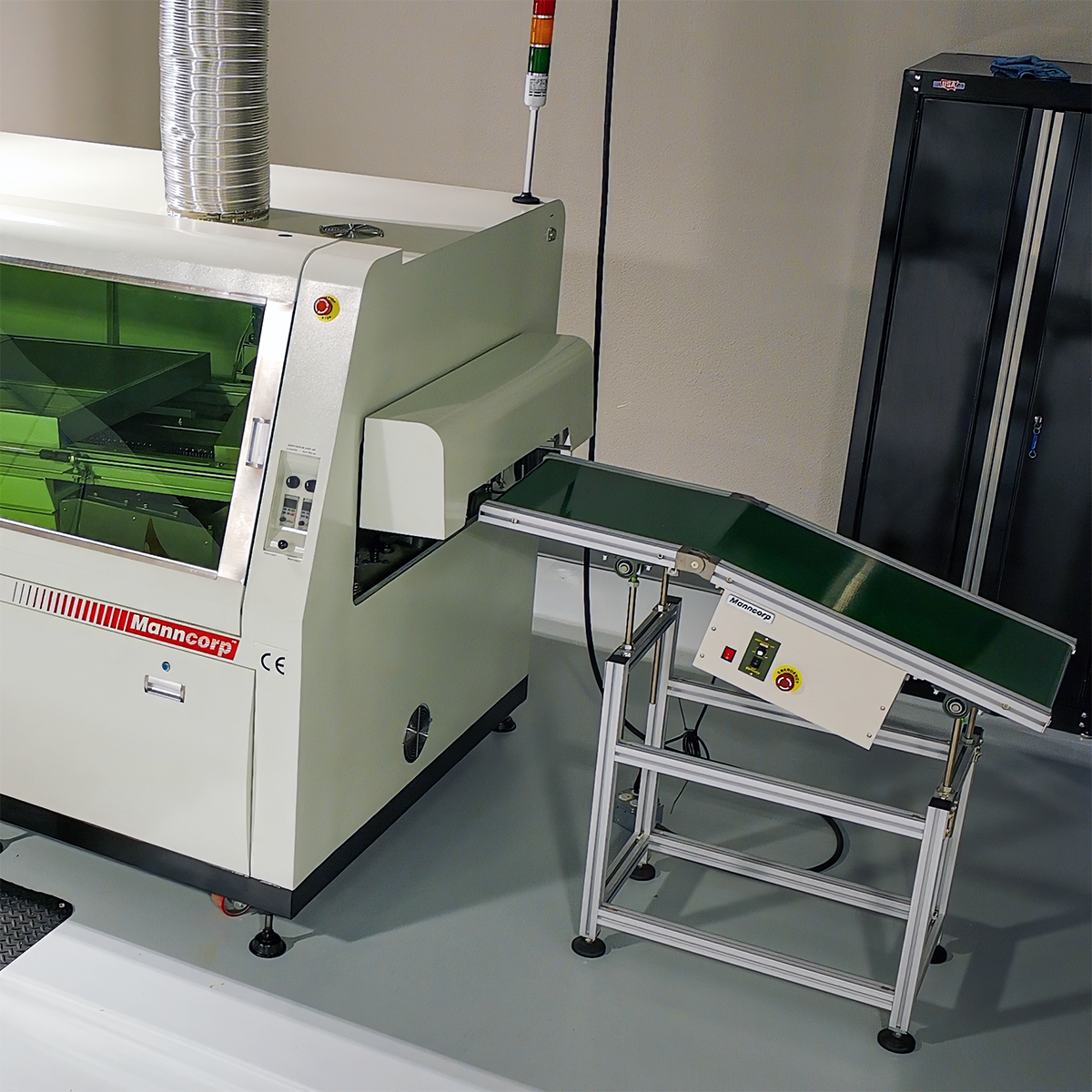

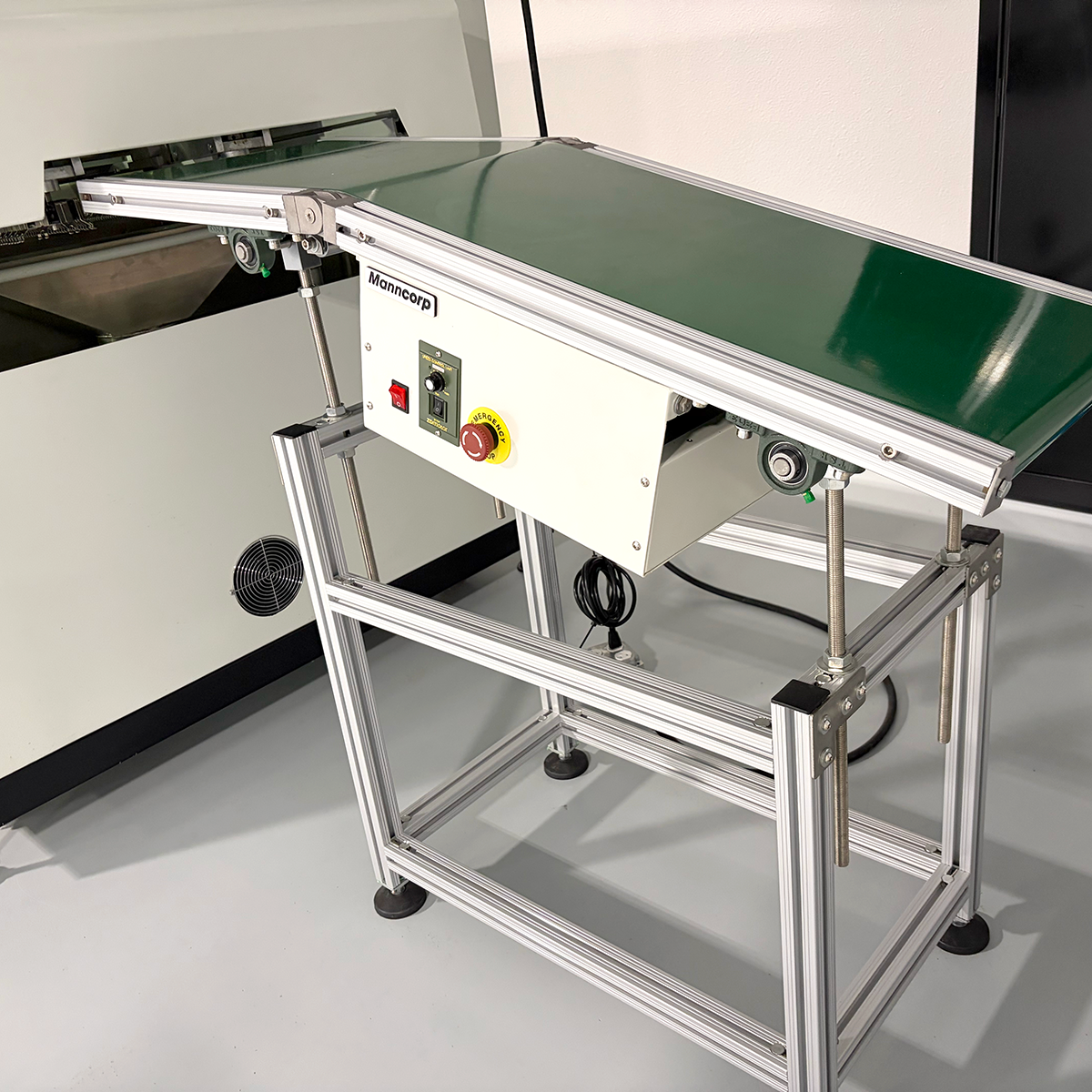

This outfeed conveyor is built for efficient handling of PCBs or pallets from wave solder systems, with a durable aluminum frame and heat-resistant belt for consistent performance in demanding environments.
- Handles PCB widths: 50–460 mm
- High-temperature belt for reliable operation
- Adjustable incline: 15°–30°
- Custom configurations available
Precision Control & Easy Integration
With adjustable speed, height, and angle, the conveyor integrates seamlessly into wave soldering lines while maintaining smooth, controlled board transfer.

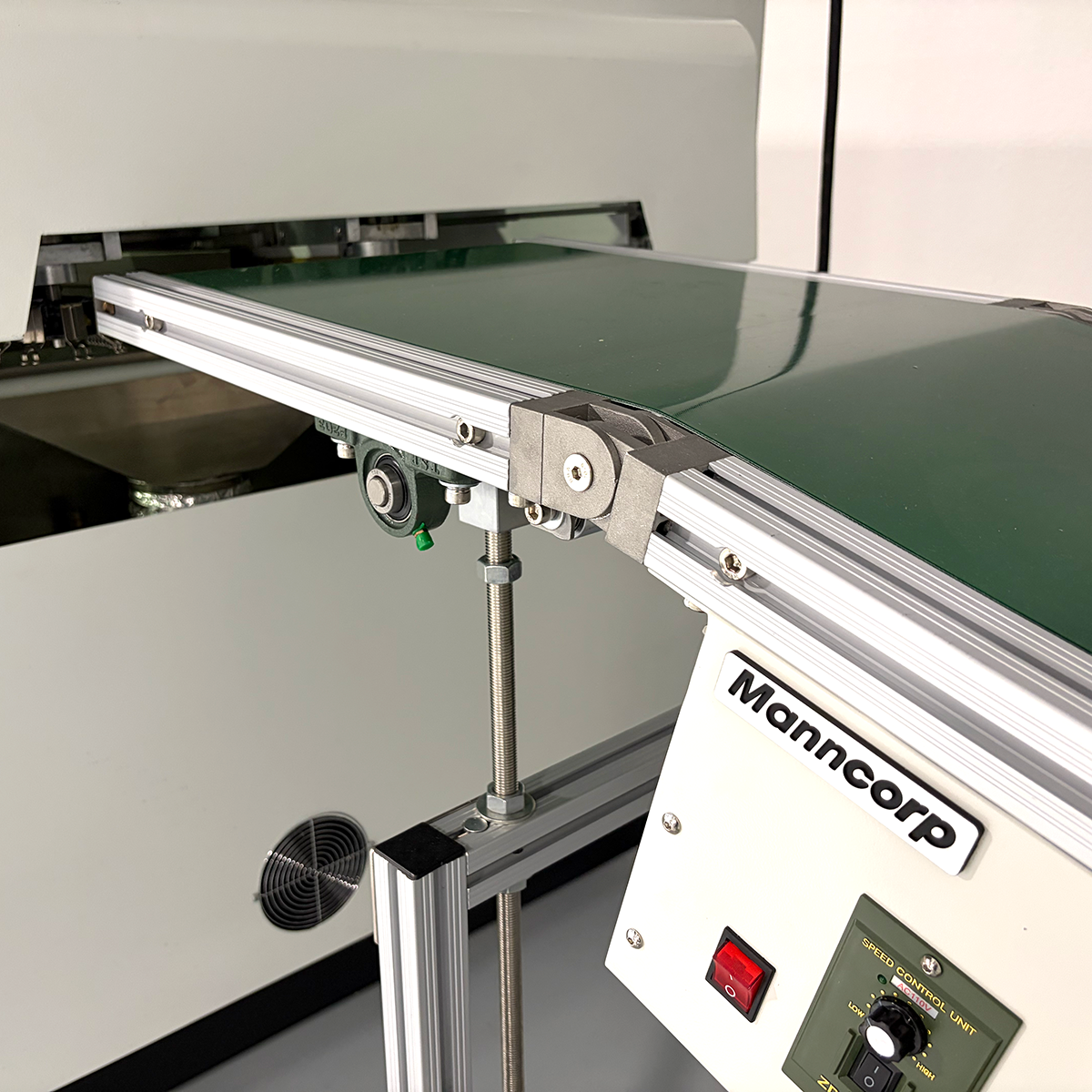

- Variable speed control for consistent flow
- Adjustable height and angle for line alignment
- Seamless integration with existing systems
- CE compliant for safe operation
| WU120M-H1 Wave Soldering Belt Unloader Specifications | |
|---|---|
| PCB Size Min. | 2" (50 mm) |
| PCB Size Max. | 13.7" (350 mm) Custom Widths Available |
| Belt Speed Min. | 3 ft/min (1 m/min) |
| Belt Speed Max. | 40 ft/min (12 m/min) |
| Belt Type | Non-slip, temperature resistant |
| Conveyor Height Input | 29.5" - 45.3" (750-1200 mm) |
| Conveyor Height Output | 31.5" - 39.4" (800-1000 mm) |
| Flow | Left to Right (Right to Left Available) |
| Machine Dimensions | 47.2" x 17.7" x 37.4" (1200 x 450 x 950 mm) |
| Weight | 154 lbs. (70 kgs) |
| Shipping Dimensions | 53.2" x 23.6" x 45.3" (1350 x 600 x 1150 mm) |
| Shipping Weight | 211 lbs. (96 kgs) |
| Power | 110 VAC +/- 10V, 60Hz (100 VA) |
