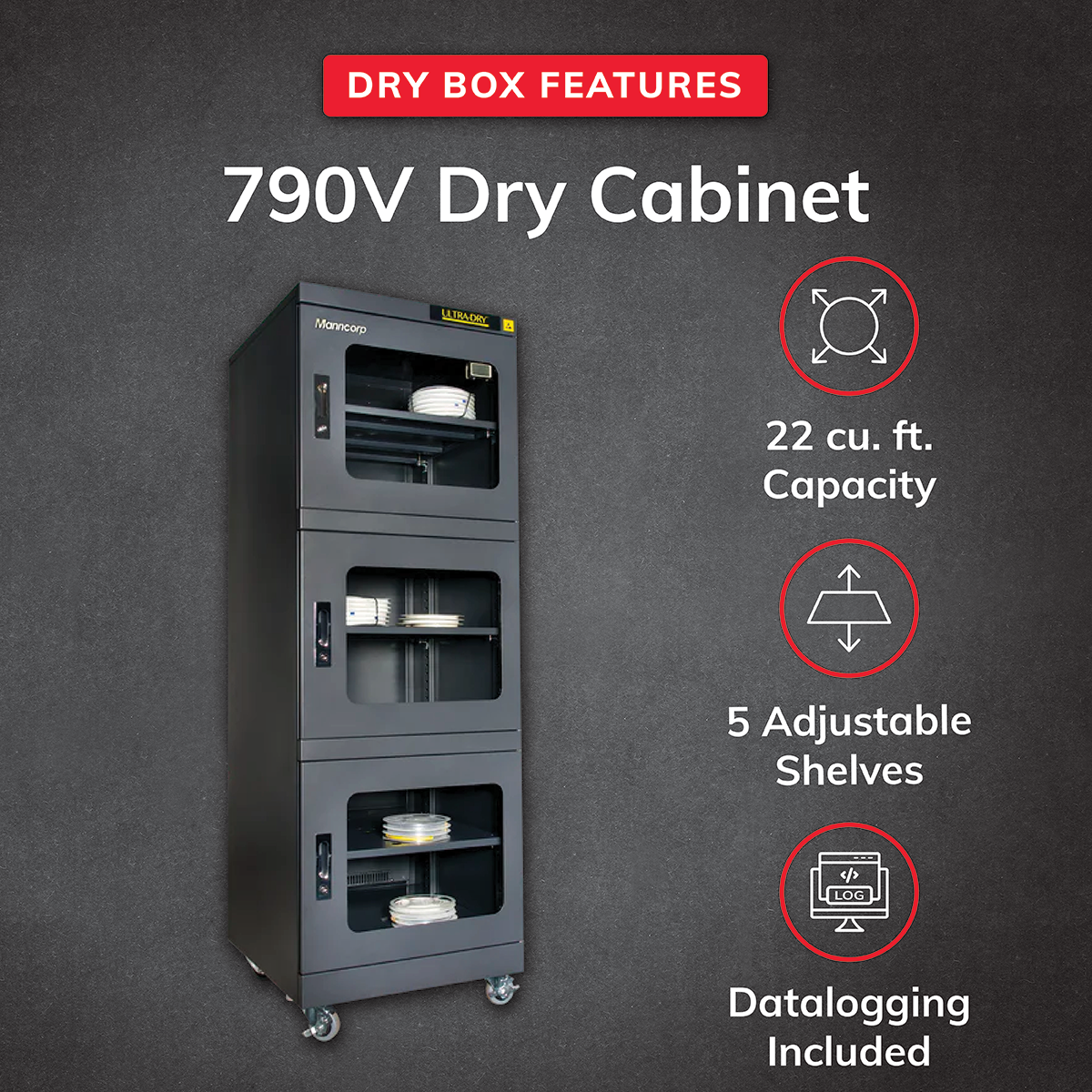

Manncorp 790V High-Capacity Dry Storage Cabinet
The Manncorp 790V High-Capacity Dry Storage Cabinet is designed for electronics assemblers, component manufacturers, PCB producers, and distributors that require reliable humidity-controlled storage for fast-moving inventory. The cabinet protects moisture-sensitive components, boards, and assemblies while maximizing floor space efficiency and improving inventory organization.
Built for high-volume storage environments, the 790V features a large interior capacity measuring 22"W x 25"D x 64"H (564 x 630 x 1600 mm), along with five adjustable shelves to support flexible storage configurations. An integrated data logger records both temperature and humidity with user-selectable recording intervals to support process control and quality documentation.
The cabinet also includes anti-static locking wheels for easy mobility and secure positioning, making it a practical solution for maintaining product integrity and improving accessibility in electronics manufacturing and storage environments.
Key Features & Specifications
- High-capacity humidity-controlled dry storage cabinet
-
Designed for:
- Electronics assemblers
- Component manufacturers
- PCB producers
- Distributors handling fast-moving inventory
- Protects moisture-sensitive materials, components, boards, and assemblies
- Optimized for efficient floor space usage and inventory organization
-
Interior dimensions:
- 22"W x 25"D x 64"H (564 x 630 x 1600 mm)
- Includes five adjustable shelves for flexible storage configurations
-
Integrated data logger:
- Records temperature and humidity
- User-selectable recording intervals
- Supports quality control and process documentation
- Anti-static locking wheels for secure placement and easy mobility
- Ideal for maintaining product integrity in high-volume storage environments
Reliable Humidity-Controlled Storage for Moisture-Sensitive Components
The Manncorp 790V provides dependable humidity-controlled storage designed to help protect moisture-sensitive devices, PCBs, components, and assemblies from oxidation, moisture absorption, and storage-related damage in electronics manufacturing environments.
- Designed for humidity-controlled component storage
- Helps reduce oxidation and moisture-related damage
- Protects MSDs, PCBs, components, and assemblies
- Ideal for electronics manufacturing and assembly operations
High-Capacity Storage for Fast-Moving Inventory
Built for mid- to high-volume storage applications, the 790V provides organized storage capacity for components, boards, and assemblies while maximizing floor space efficiency and improving inventory accessibility.
- Designed for mid- to high-volume storage environments
- Supports organized component and assembly storage
- Optimizes floor space utilization
- Improves accessibility for fast-moving inventory
Large Interior Capacity with Adjustable Shelving
The 790V features interior dimensions of 22"W x 25"D x 64"H (564 x 630 x 1600 mm) and includes five adjustable shelves to support flexible storage configurations for a wide range of electronic materials and assemblies.
- Interior dimensions: 22"W x 25"D x 64"H
- Includes five adjustable shelves
- Supports flexible storage organization
- Suitable for components, boards, and assemblies
Integrated Monitoring and Environmental Tracking
An integrated data logger records temperature and humidity levels with user-selectable recording intervals to support process monitoring, controlled storage verification, and quality documentation.
- Integrated temperature and humidity monitoring
- Built-in data logging capability
- User-selectable recording intervals
- Supports process control and quality documentation
- Helps maintain controlled storage conditions
Designed for Practical Manufacturing Environments
Anti-static locking wheels provide secure placement and mobility, making the 790V a practical solution for maintaining product integrity while supporting efficient workflow and inventory management in electronics production facilities.
- Anti-static locking wheels included
- Provides secure cabinet positioning
- Allows convenient mobility when needed
- Supports efficient workflow and storage access
- Designed for electronics production environments
| MODEL | 157V | 290V | 315V | 490V | 790V | 1490V |
|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
|
| Electrical Requirements | 110V | 110V | 110V | 110V | 110V | 110V |
| External Size L/W/H | 18" x 18" x 41" 450 x 452 x 1045 mm |
24" x 26.4" x 25" 600 x 672 x 636 mm |
36" x 18" x 41" 905 x 452 x 1045 mm |
24" x 26.4" x 50" 600 x 672 x 1274 mm |
24" x 26.4" x 72" 600 x 672 x 1820 mm |
47" x 26.4" x 72" 1200 x 672 x 1820 mm |
| Internal Size L/W/H | 16.2" x 16" x 33.5" 414 x 410 x 852 mm |
22" x 25" x 20" 564 x 630 x 508 mm |
34" x 16" x 33.5" 869 x 410 x 852 mm |
22" x 25" x 42" 564 x 630 x 1055 mm |
22" x 25" x 64" 564 x 630 x 1600 mm |
46" x 24" x 63" 1164 x 612 x 1600 mm |
| Capacity | 5.8 cu. ft. (164L) | 7.1 cu. ft. (202L) | 11.5 cu. ft. (328L) | 14.5 cu. ft. (413L) | 22 cu. ft.(624L) | 44.1 cu. ft. (1250L) |
| No. Of Shelves | 3 Adjustable | 2 Adjustable | 3 Adjustable | 3 Adjustable | 5 Adjustable | 5 Adjustable |
| Wheels | N/A | N/A | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard |
| Power Consumption | Avg 55 w/hr.; Max. 295W | Avg 55 w/hr.; Max. 295W | Avg 105 w/hr.; Max. 585W | Avg 105 w/hr.; Max. 585W | Avg 105 w/hr.; Max. 585W | Avg 105 w/hr.; Max. 585W |
| Shipping Information | 23" L x 23" W x 49" H; 120 lbs | 32" L x 29" W x 34" H; 145 lbs | 23" L x 41" W x 48" H; 200 lbs | 32" L x 29" W x 57" H; 180 lbs | 29" L x 32" W x 79" H; 235 lbs | 32" L x 52" W x 79" H; 445 lbs |
| Humidity Range | ≤5% RH | |||||
| Color | Black | |||||
| Structure | 1 mm thick carbon steel with antistatic paint | |||||
| Door | Compression handles, airtight magnetic sealers and antistatic glass. | |||||
| Grounding Wire | 1MΩ. (940 mm long) | |||||
| ESD Paint | 103~109 Ω. (surface resistance) | |||||
The best performance of the dry cabinet is achieved under the ambient condition of temperature below 30°C and relative humidity below 60% RH.
Reliable Humidity-Controlled Protection for Moisture-Sensitive Materials
The Manncorp 790V helps protect moisture-sensitive components, assemblies, and materials from humidity-related damage in electronics manufacturing, storage, and production environments. Controlled low-humidity storage supports product integrity, improves reliability, and helps reduce moisture exposure during storage and handling.
- Protects moisture-sensitive components and assemblies
- Helps reduce humidity-related damage and oxidation
- Supports long-term product reliability and storage protection
- Ideal for electronics manufacturing and inventory storage environments
Designed for Electronics Manufacturing and Component Storage
The 790V is designed for organized storage of electronic components, PCBs, assemblies, and production materials that require dependable humidity-controlled storage conditions in fast-moving manufacturing and inventory environments.
- Electronic components stored in reels, trays, feeders, or bins
- PCBs and multilayer circuit boards
- Partially assembled and completed electronic assemblies
- Moisture-sensitive devices (MSDs)
- Production inventory and assembly materials
- High-volume electronics manufacturing operations
- Component storage for PCB production environments
- Fast-access inventory management applications
Performance
A. Start Installation
B. Stable
C. Door Open and Close
Door Is Opened 30 Seconds and Closed
Ultra-Dry "V" series always reaches ≤5%Rh within 30 minutes after the door is opened and closed.
Ultra-Dry 790V includes:

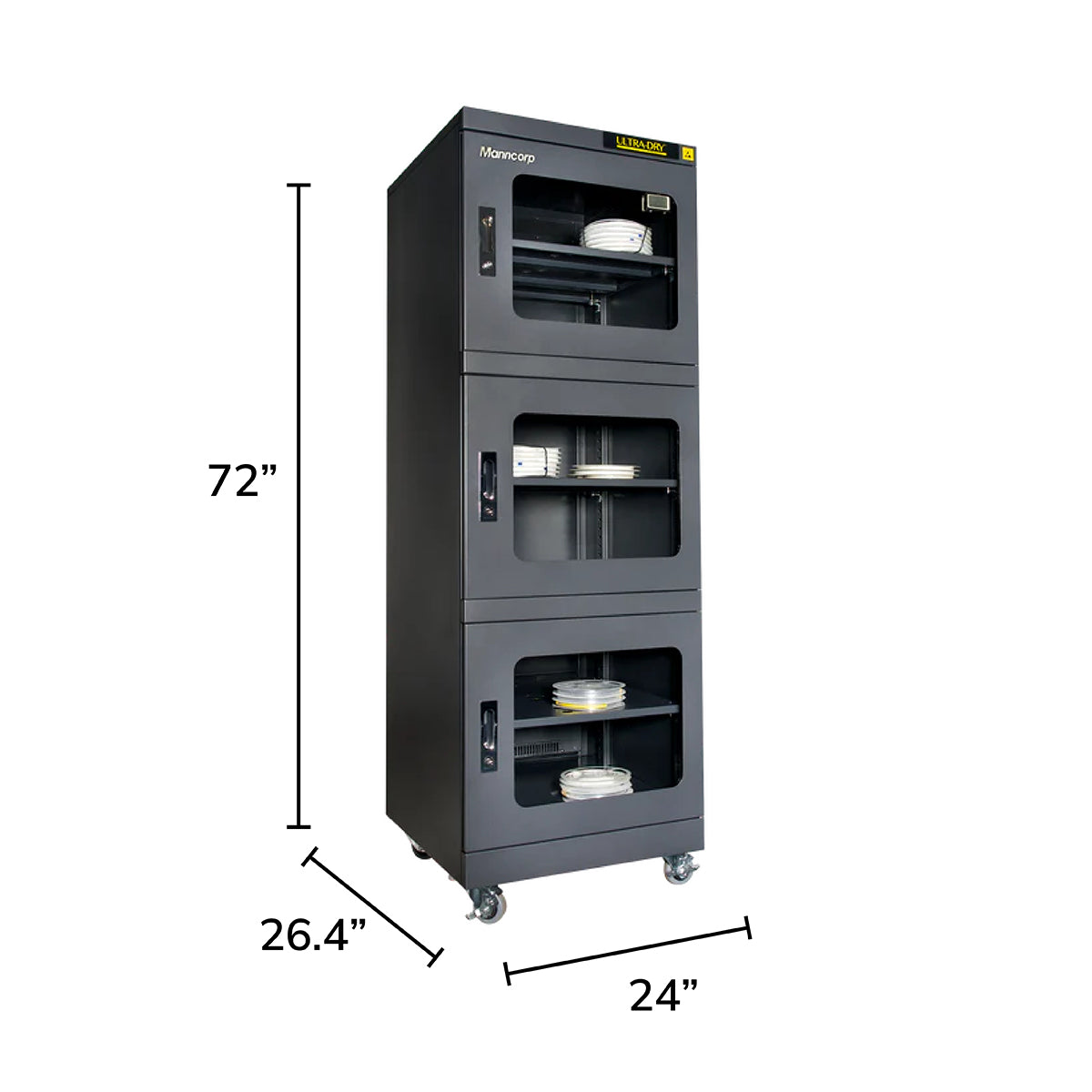

- One black dry cabinet measuring 24" x 26.4" x 72" (600 mm x 672 mm x 1820 mm) LxWxH with 22 cu. ft. (624 L) internal capacity
- Three doors with compression handles and airtight magnetic sealers
- Ultra-low humidity storage of ≤5%RH
- 2 Turbo dry modules for faster drying without compressed air
- 2 anti-static wheels with brakes
- 2 standard wheels
- Anti-static paint and glass
- 5 adjustable shelves with 200-lb capacity each
- 1-year warranty
- Digital RH & temperature display with data logging function and Windows-based PC software
Shipping Information
- Crated Dimensions: Approx. 29" L x 32" W x 79" H (720mm L x 800mm W x 2000mm H)
- Gross Weight: Approx. 235 lbs. (106 kgs)
