Pneumatic depaneling for low-stress separation of aluminum and high-density PCBs.

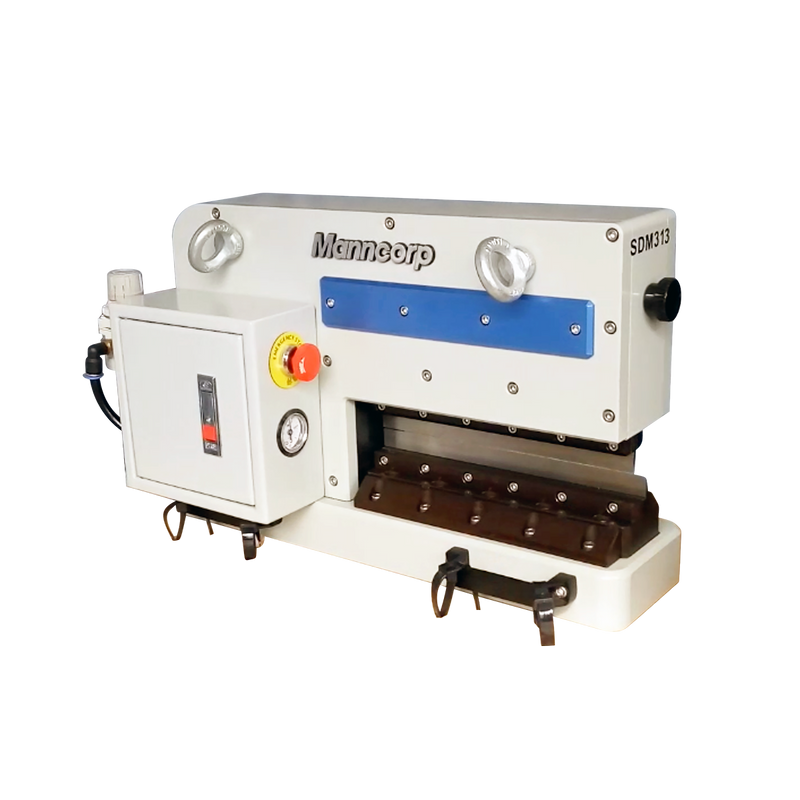

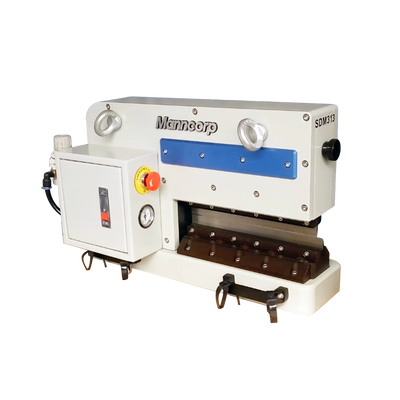

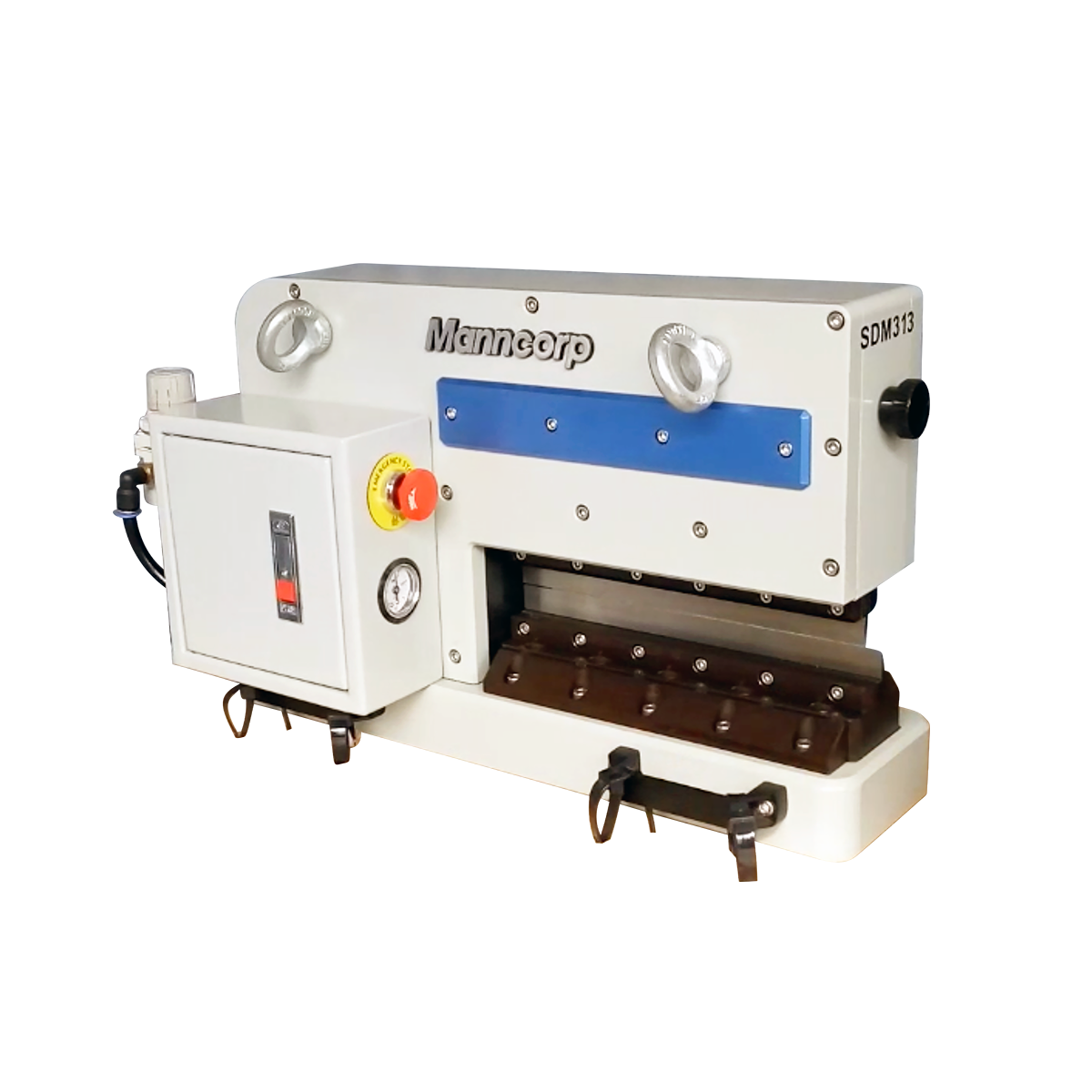

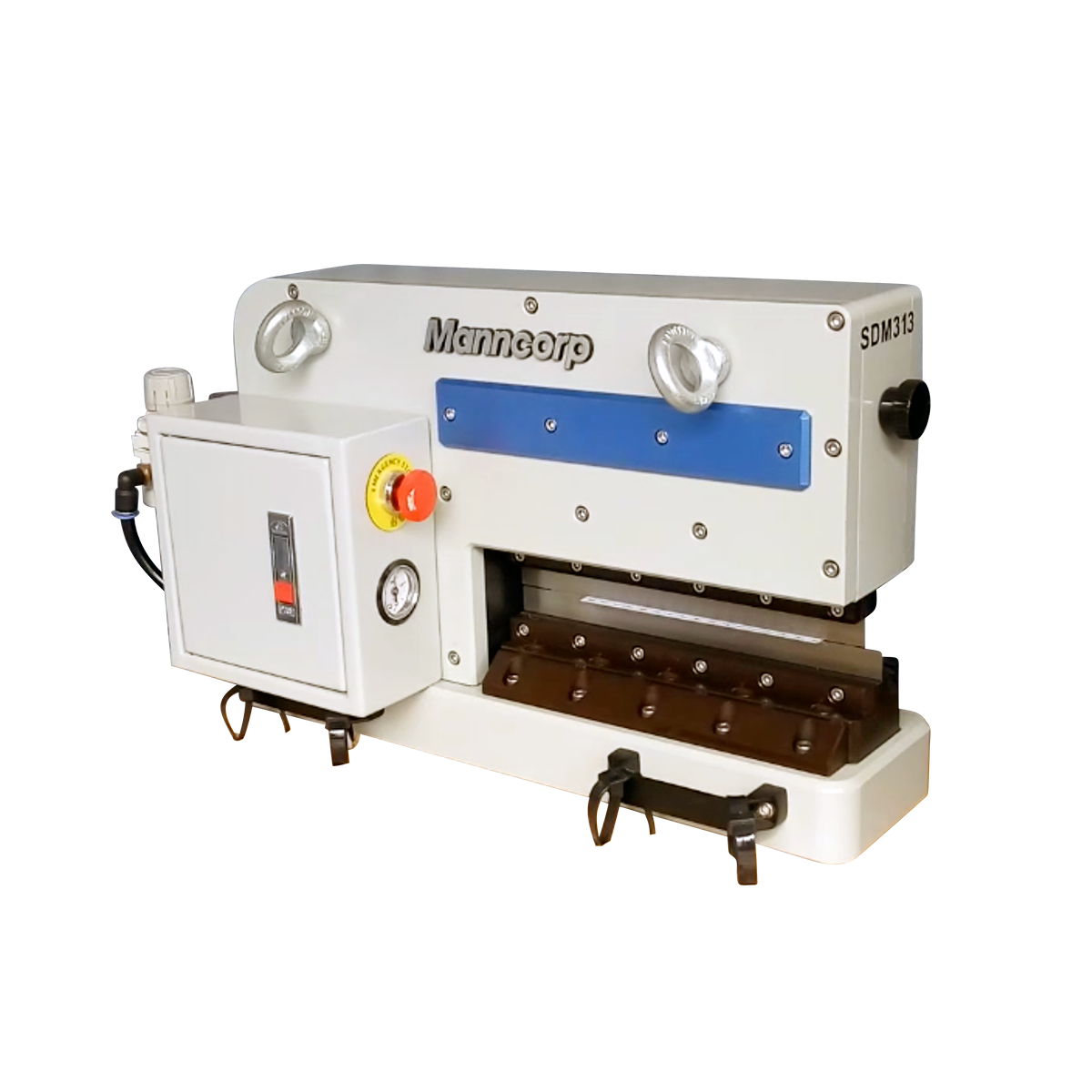

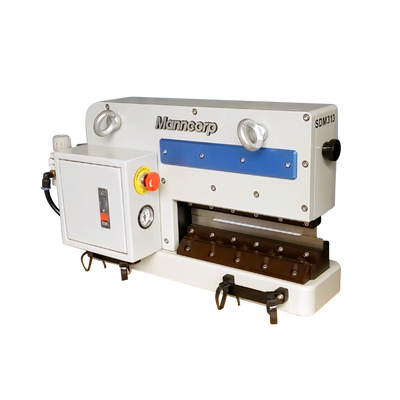

The SDM313 Pneumatic Depaneler is built for medium- to high-volume production, delivering clean, burr-free cuts with a safe, foot switch–activated process.

Aluminum PCB capable: handles rigid and specialty substrates
Low-stress rocking motion: reduces risk of board and component damage
0.5 mm component clearance: ideal for high-density assemblies
Up to 20 mm component height: accommodates taller parts near the score line
Adjustable blade gap: supports a range of PCB thicknesses

With wedge-shaped blades and a controlled rocking separation process, the SDM313 minimizes mechanical stress—ensuring reliable results even on thin boards and sensitive assemblies.

or for pricing

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

The SDM313 cleanly separates metal-core PCBs—including LED boards—as well as ultra-thin and flexible substrates down to 0.5 mm, without damaging components located just 0.5 mm from the score line.

Handles metal-core PCBs: ideal for LED applications
Ultra-thin capability: processes boards down to 0.5 mm thick
0.5 mm component clearance: supports high-density designs
Low-stress linear blades: fast, precise, and damage-free separation
Top-mounted adjustment knob: quick and easy alignment
Max 4 mm blade gap: enhanced operator safety

This combination of precision cutting and low-stress operation ensures consistent, high-quality results across a wide range of PCB materials and applications.

SDM313 SPECIFICATIONS
PCB Thickness	0.5-2.0 mm
Max PCB Width	Unlimited
Max PCB Length	300 mm
Score Angle	20˚
Minimum Component Distance to V-Groove	0.5 mm
Max Component Height	.79" (20 mm)
PCB Materials	All Materials Including Aluminum
Separating Speed	N/A
Depaneling Mode	Pneumatic
Production Volume	High
Power	60 to 80 psi (4 to 6 bar)
Dimensions	10.1" x 23.4" x 14.9" (259 x 595 x 380 mm)
Net Weight	309 lbs (140 kg)
Shipping Weight	366 lbs (166 kg)
