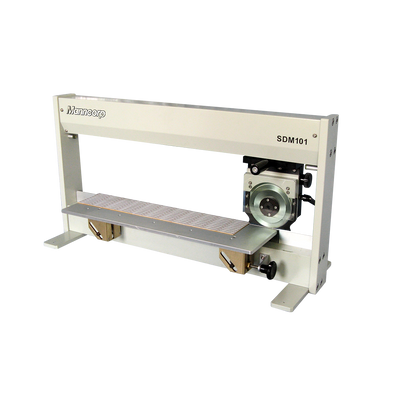

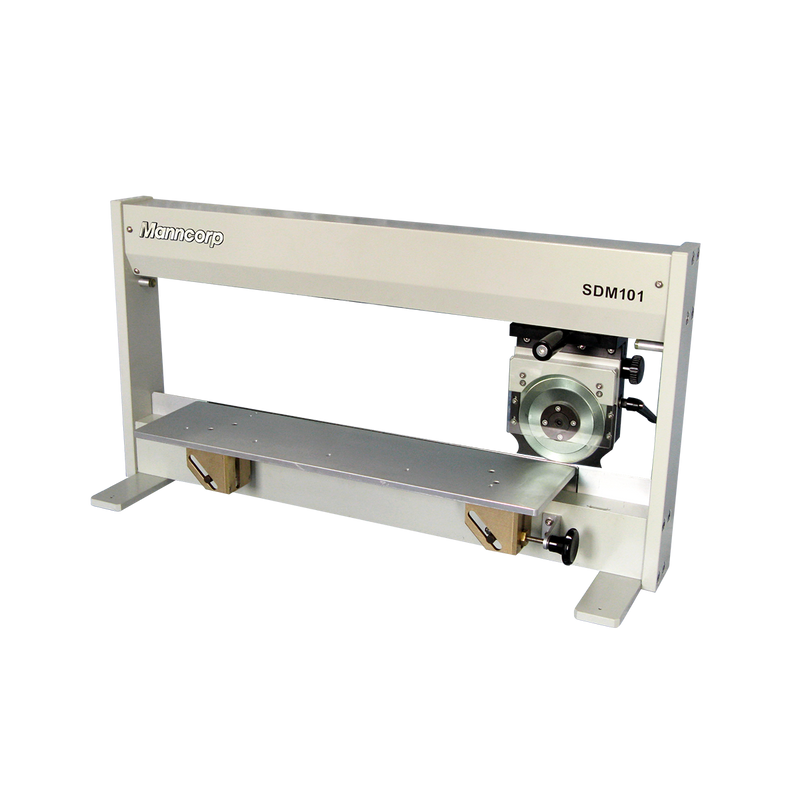

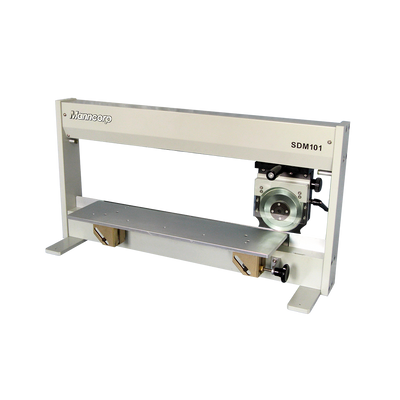

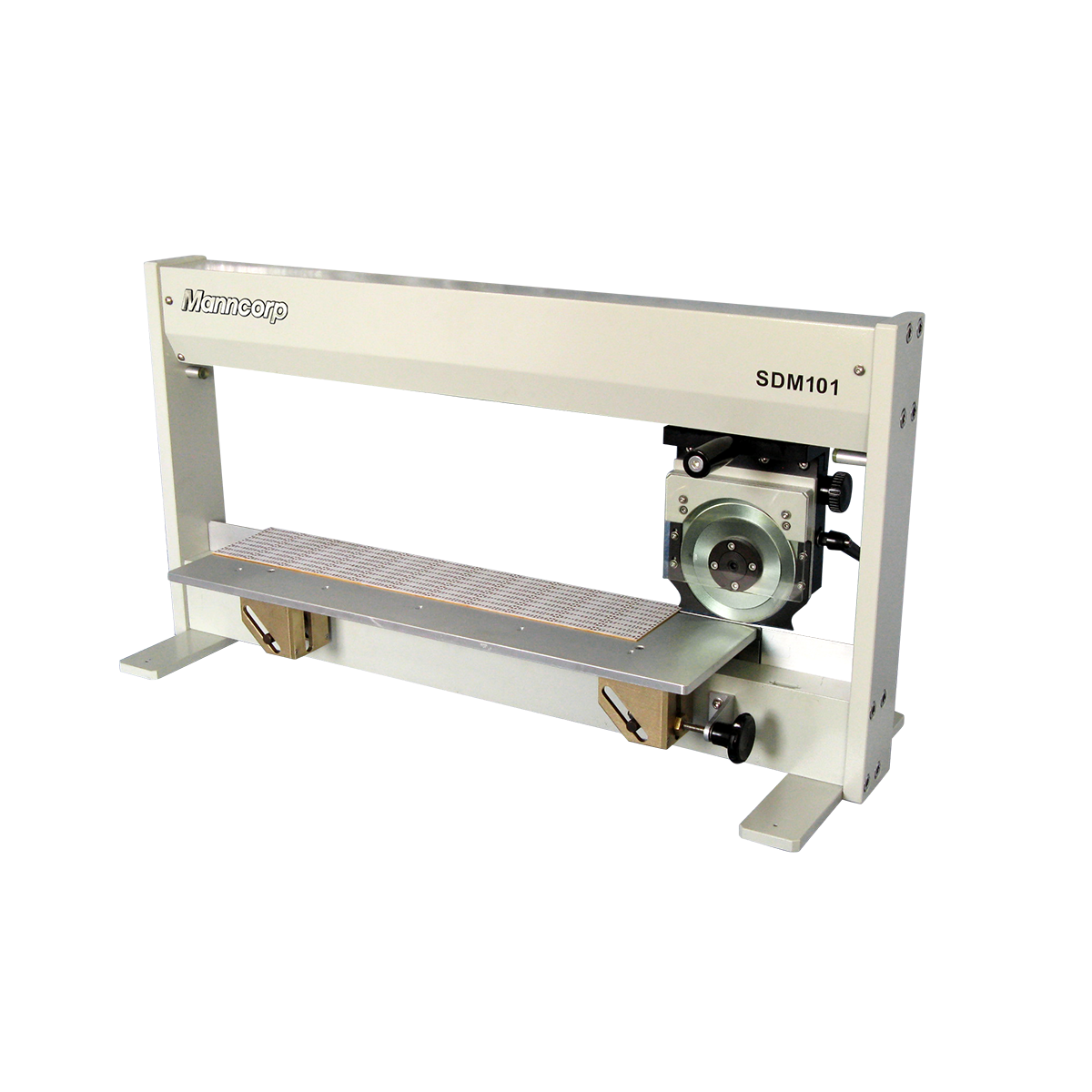

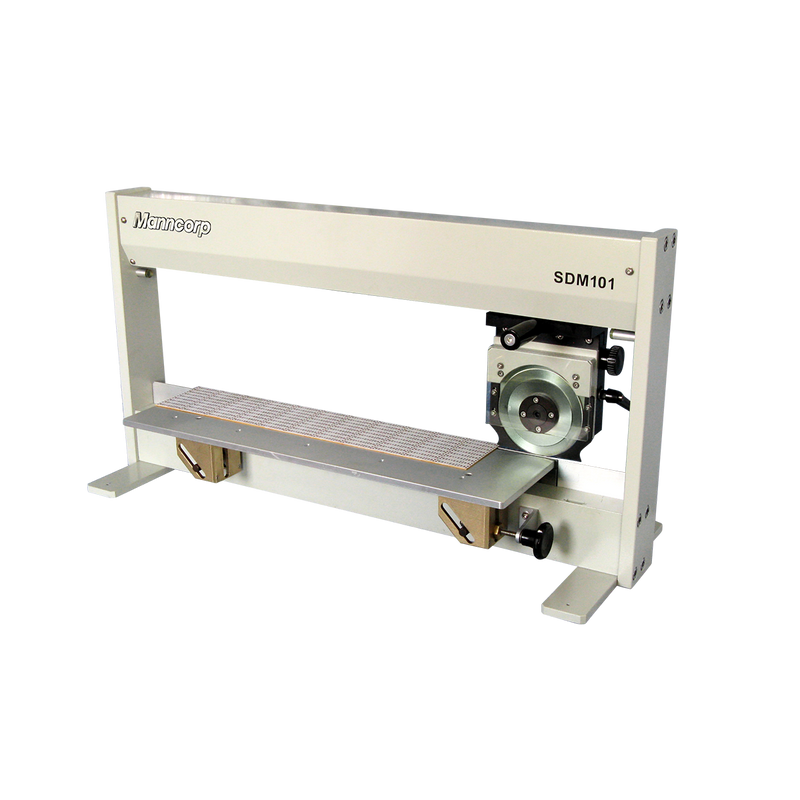

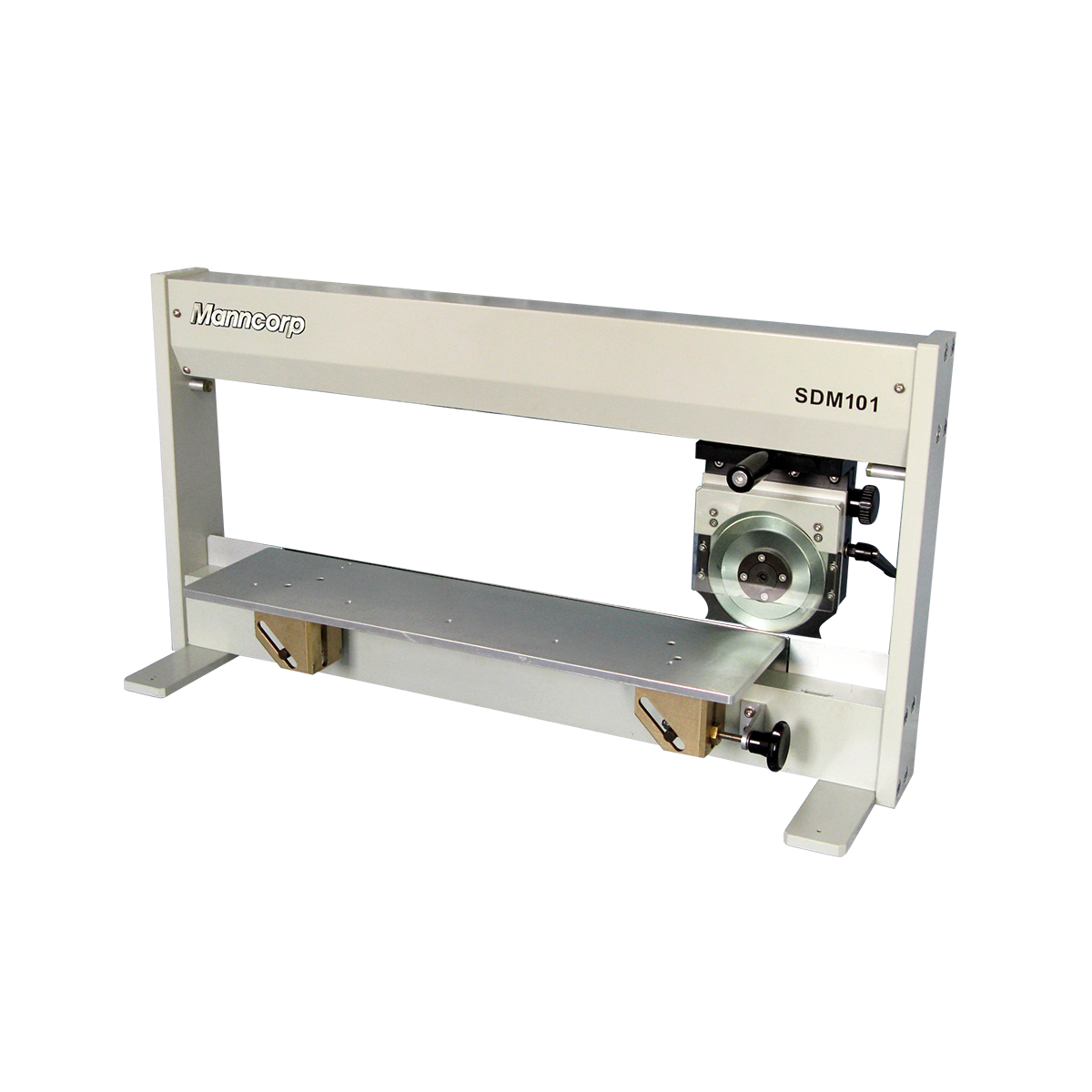

SDM101 Manual PCB Depaneling Machine for V-Cut Panels

Cost-effective manual depaneling for low- to mid-volume PCB production.

The SDM101 Manual Depaneler provides clean, low-stress separation of pre-scored PCBs. The operator simply aligns the score line and guides the circular blade across the board for safe, controlled cutting.

Low-stress separation: helps prevent solder joint cracking
Manual operation: simple, reliable, and easy to use
Circular + linear blades: precise cutting for small and large boards
Adjustable blade height: accommodates different board thicknesses
Custom blade options: adapts to specific applications

Capable of handling boards with overhanging components, the SDM101 is a versatile, low-maintenance solution for dependable PCB depaneling.

or for pricing

[{"id":40316112994443,"title":"445 mm (17.5 in.)","option1":"445 mm (17.5 in.)","option2":null,"option3":null,"sku":"SDM101-445","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SDM101 Manual PCB Depaneler - 445 mm (17.5 in.)","public_title":"445 mm (17.5 in.)","options":["445 mm (17.5 in.)"],"price":849500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316113027211,"title":"483 mm (19 in.)","option1":"483 mm (19 in.)","option2":null,"option3":null,"sku":"SDM101-483","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SDM101 Manual PCB Depaneler - 483 mm (19 in.)","public_title":"483 mm (19 in.)","options":["483 mm (19 in.)"],"price":1099500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

The SDM101 is designed for true low-stress depaneling, preventing board damage, solder joint cracks, and component defects—even with components placed as close as 1 mm from the score line.

Low-stress separation: protects boards, components, and solder joints
Flexible panel support: handles X or X/Y V-scored panels
0.8–3.0 mm PCB thickness: accommodates a wide range of boards
Angled processing table: allows boards to fall away after cutting
No power or air required: zero utility cost and portable use
Safety shield: shatterproof Plexiglas protects the operator

With its heavy-duty construction and low-maintenance design, the SDM101 offers a reliable, flexible depaneling solution for any production environment.

SDM101 SPECIFICATIONS
PCB Thickness	0.8-3.0 mm
Max PCB Width	Unlimited
Max PCB Length	17.5" (445 mm) 19" (483 mm) Optional
Score Angle	20˚
Minimum Component Distance to V-Groove	1 mm
Max Component Height	1.26" (32 mm)
PCB Materials	Anything but Aluminum
Separating Speed	Operator Dependent
Depaneling Mode	Manual
Production Volume	Moderate
Power	N/A
Dimensions	29.5" x 9.4" x 18.4" (750 x 240 x 742 mm) Process Table: 19.7" x 6.5" (500 x 165 mm)
Net Weight	Standard Size with 445 mm Cut Length: 70.5 lbs (32 kg) Large Size with 483 mm Cut Length: 88 lbs (40 kg)
Shipping Weight	Standard Size with 445 mm Cut Length: 146 lbs (66 kg) Large Size with 483 mm Cut Length: 163 lbs (74 kg)
