StencilWasher LDO Stencil Cleaner

Stencilwasher LDO Ultrasonic Stencil Cleaner from Manncorp
Front View: StencilWasher LDO Stencil Cleaner
StencilWasher LDO Stencil Cleaner
StencilWasher LDO Stencil Cleaner Shown with Stencil Ready for Cleaning
StencilWasher LDO Stencil Cleaner
StencilWasher LDO Stencil Cleaner
StencilWasher LDO Stencil Cleaner
StencilWasher LDO Stencil Cleaner

StencilWasher LDO Stencil Cleaner

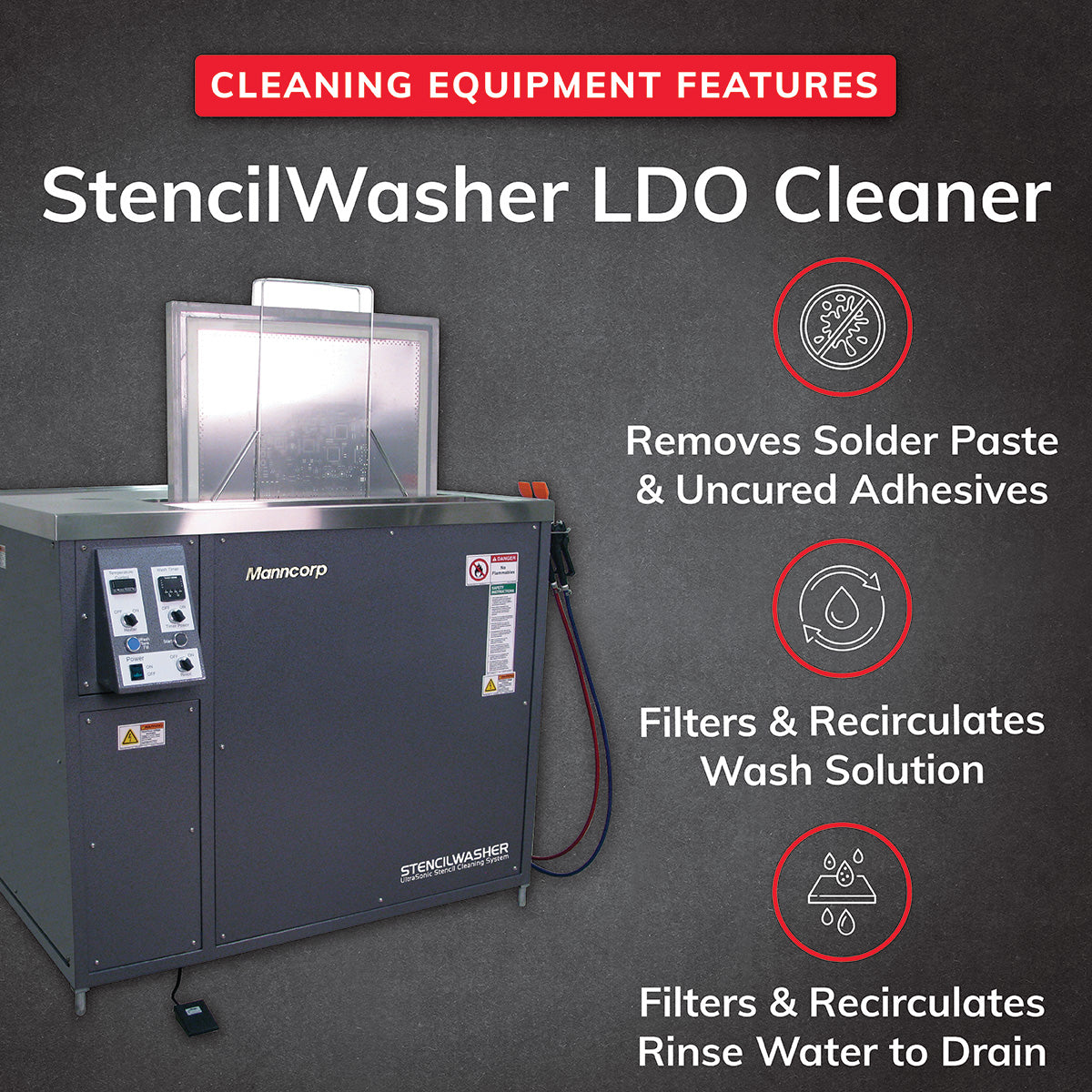

Ultrasonic StencilWasher LDO removes all types of un-reflowed solder paste, including lead-free, as well as uncured adhesives from stencils, screens and misprinted PCBs, safely and gently. Its built-in wash-solution filtration and recirculation system cuts down on the amount of wastewater sent to drain while maximizing the useful life of your wash solution.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $32,500.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Minimize Wash Solution Costs

Minimize your wash solution costs with the StencilWasher LDO, which uses a built-in wash-solution filtration and recirculation system to reuse wash solution rather than sending it directly to drain.

Uses Ultrasonic Technology

StencilWasher LDO uses ultrasonic technology to remove both un-reflowed solder past—including dried-on pastes—and uncured adhesives from stencils, screens and misprints, gently and without risk of damage to delicate stencils. StencilWasher LDO is effective even on fine-pitch stencils.

Complete Wash, Rinse and Dry Functions

Complete wash, rinse and dry functions are included, along with a programmable wash cycle timer, wash solution heater, wash solution filtration, powered drain/filtration pumps, rinse and dry wants, stainless steel wash and rinse tanks, drip-proof stainless steel decks and more. StencilWasher LDO's ultrasonics are generated by 1,000-watt side-mounted transducers

Accommodates Large PCBs

StencilWasher LDO accommodates stencils, screens and misprinted PCBs to 29" x 29" (736 x 736 mm).

StencilWasher LDO Specifications
Application Solder paste & uncured adhesive removal
Dimensions 48" L x 34" W x 40" H
Weight 550 lbs
Construction Welded tube steel frame and 16-gauge steel panels
Finish Power-coat epoxy
Internal Plumbing Stainless steel polypropylene
Electrical Requirements 208-240 VAC 1 Ø 50 amps
Wash Tank Capacity 35 gallons (132 liters)
Maximum Stencil Size 29" x 29" (74 cm x 74 cm)
Full immersion
Drain Requirements 3/4" NPT
Wash Cycle Timer Digital 1-99 minutes
Ultrasonics 1000-watt side-mounted transducers
Hand-Held Rinse Wand Standard
Hand-Held Airknife Standard
Wash Solution Heating Standard
Wash Solution Filtration Standard
