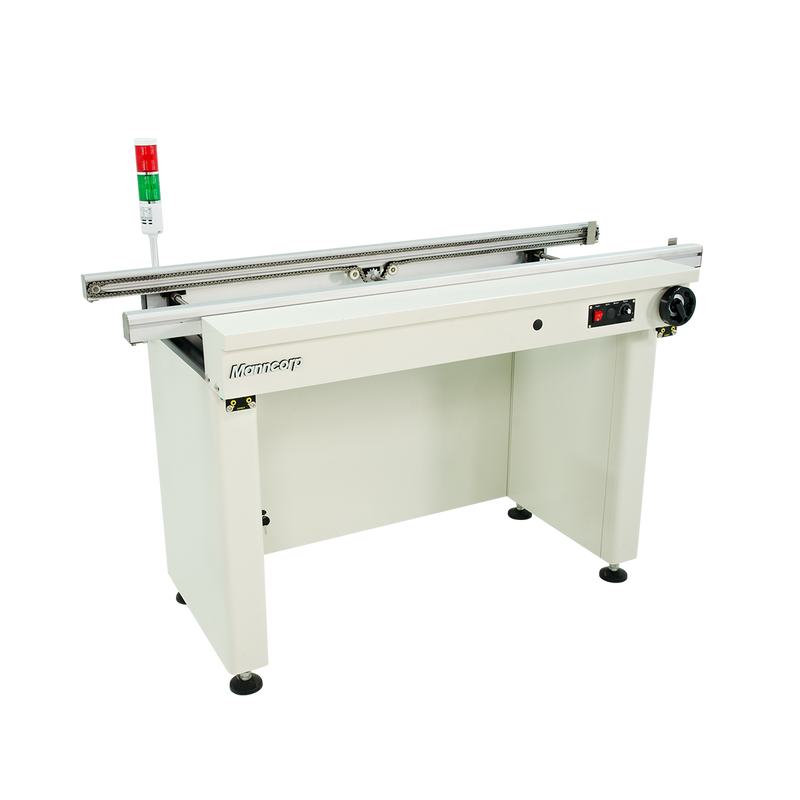

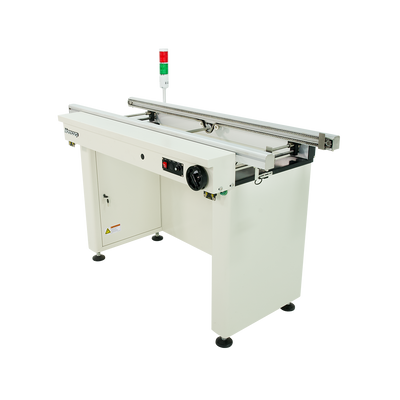

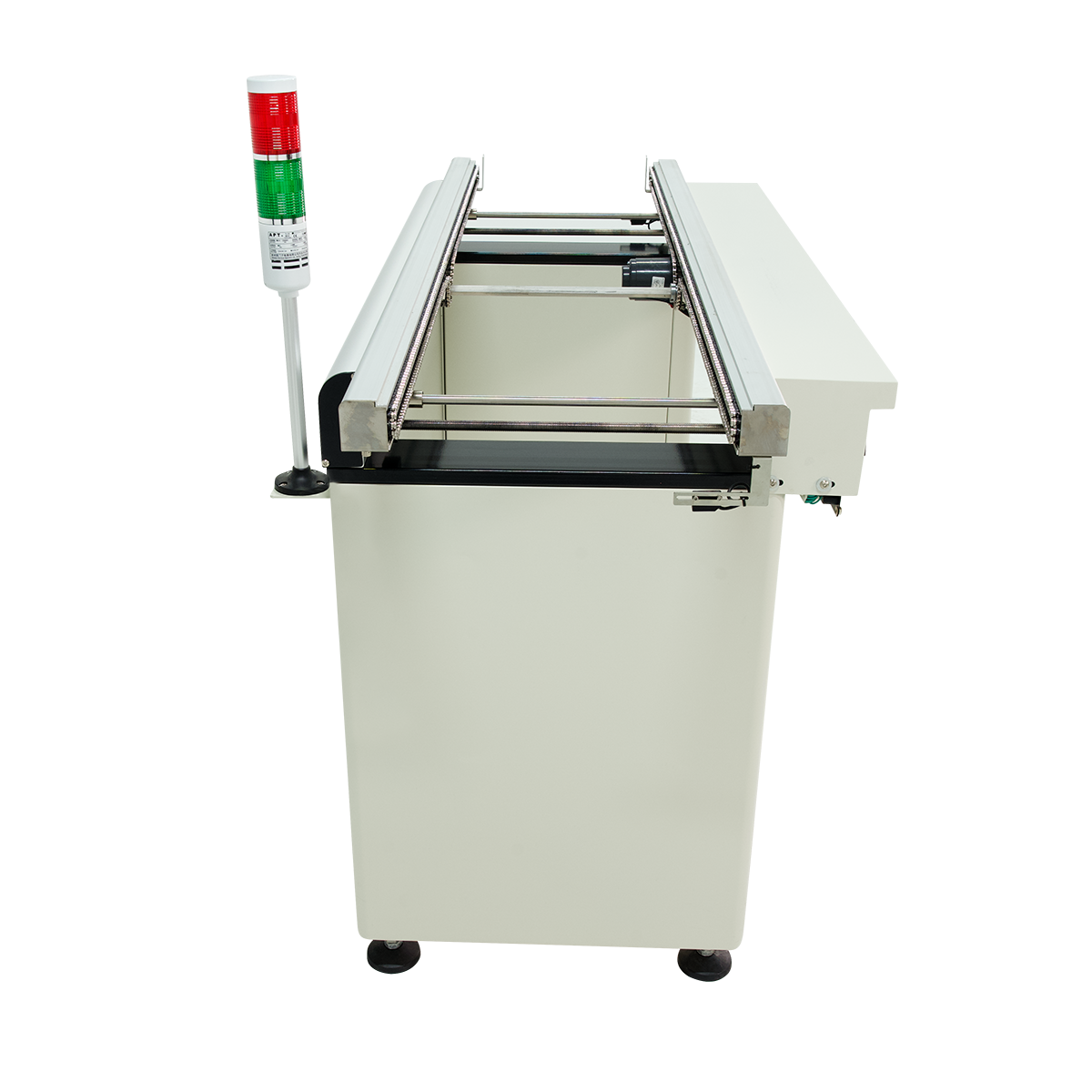

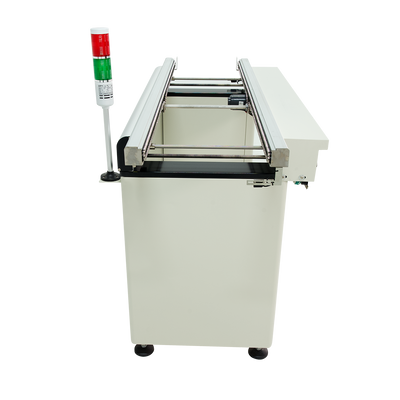

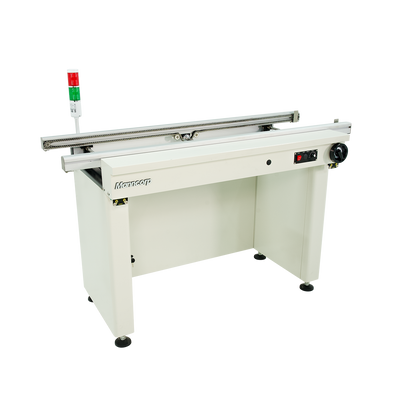

Reflow Oven Exit / Unloading Conveyor - BP Series

Manncorp’s BP-Series power and free-roller exit conveyors provide efficient, low-friction PCB handling for post-reflow lines. Boards move safely—even when queued—while an automatic alert prevents overflow.

Low-friction rollers for smooth, damage-free movement
Continuous flow even at end-of-line accumulation
Overflow alert to prevent board collisions
Optional cooling fans for faster PCB cooling

or for pricing

[{"id":40316106244235,"title":"1000 mm (39 in.)","option1":"1000 mm (39 in.)","option2":null,"option3":null,"sku":"BP100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Reflow Oven Exit \/ Unloading Conveyor - BP Series - 1000 mm (39 in.)","public_title":"1000 mm (39 in.)","options":["1000 mm (39 in.)"],"price":649500,"weight":249476,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44634087719051,"title":"1200 mm  (47 in.)","option1":"1200 mm  (47 in.)","option2":null,"option3":null,"sku":"BP120","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Reflow Oven Exit \/ Unloading Conveyor - BP Series - 1200 mm  (47 in.)","public_title":"1200 mm  (47 in.)","options":["1200 mm  (47 in.)"],"price":699500,"weight":249476,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316106277003,"title":"1500 mm (59 in.)","option1":"1500 mm (59 in.)","option2":null,"option3":null,"sku":"BP150","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Reflow Oven Exit \/ Unloading Conveyor - BP Series - 1500 mm (59 in.)","public_title":"1500 mm (59 in.)","options":["1500 mm (59 in.)"],"price":699500,"weight":272155,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Operator-Friendly Control & Performance

The BP-Series conveyor is designed for simple, reliable operation with adjustable speed control to match production needs—without the complexity of a PLC system. Sensors at both the вход and output automatically start the conveyor when boards arrive, while a built-in end stop allows safe accumulation.

Adjustable speed control for precise throughput tuning
Automatic start/stop via вход and exit sensors
End-of-line accumulation with hard stop design
Overflow alarm alerts operators at full capacity
CE compliant for safety and reliability

Durable Construction & Flexible Design

Built for long-term performance, the BP-Series features a rugged all-metal design with solid-edge rollers and a high-strength carbon steel chain system. A stainless-steel lead screw and hand crank allow smooth, precise width adjustments to accommodate varying product sizes.

All-metal construction for industrial durability
Carbon steel roller chain for strength and wear resistance
Lead screw adjustment for accurate width control
Hand crank system for easy manual adjustment
Standard lengths: 1000, 1200, 1500, and 2000 mm
Custom lengths available for line flexibility

MODEL	BP100	BP150
Conveyor	1000 mm (39.37")	1500 mm (59.06")
Machine Dimensions	1000 mm L x 800 mm W x 900 mm H (39.37" L x 31.5" W x 35.5" H)	1500 mm L x 800 mm W x 900 mm H (59.06" L x 31.5" W x 35.5" H)
Net Weight	70 kg (154 lbs.)	95 kg (210 lbs.)
Shipping Weight	100 kg (220 lbs.)	132 kg (290 lbs.)
PCB Size	50 mm L x 50 mm W to 530 mm L x 460 mm W (1.97" L x 1.97" W to 20.87" L x 18.11" W)	50 mm L x 50 mm W to 530 mm L x 460 mm W (1.97" L x 1.97" W to 20.87" L x 18.11" W)
PCB Thickness	0.4 mm min. (0.016" min.) 2.5 mm max. (0.098" max.)	0.4 mm min. (0.016" min.) 2.5 mm min. (0.098" max.)
Conveyor Direction	Left to right (standard) right to left (optional)	Left to right (standard) right to left (optional)
Conveyor Speed	2-11 m/min (approx. 6.56 - 36.09 ft/min)	2-11 m/min (approx. 6.56 - 36.09 ft/min)
Voltage	110 VAC, 50/60 Hz	110 VAC, 50/60 Hz
Power	100 VA Max	100 VA Max
