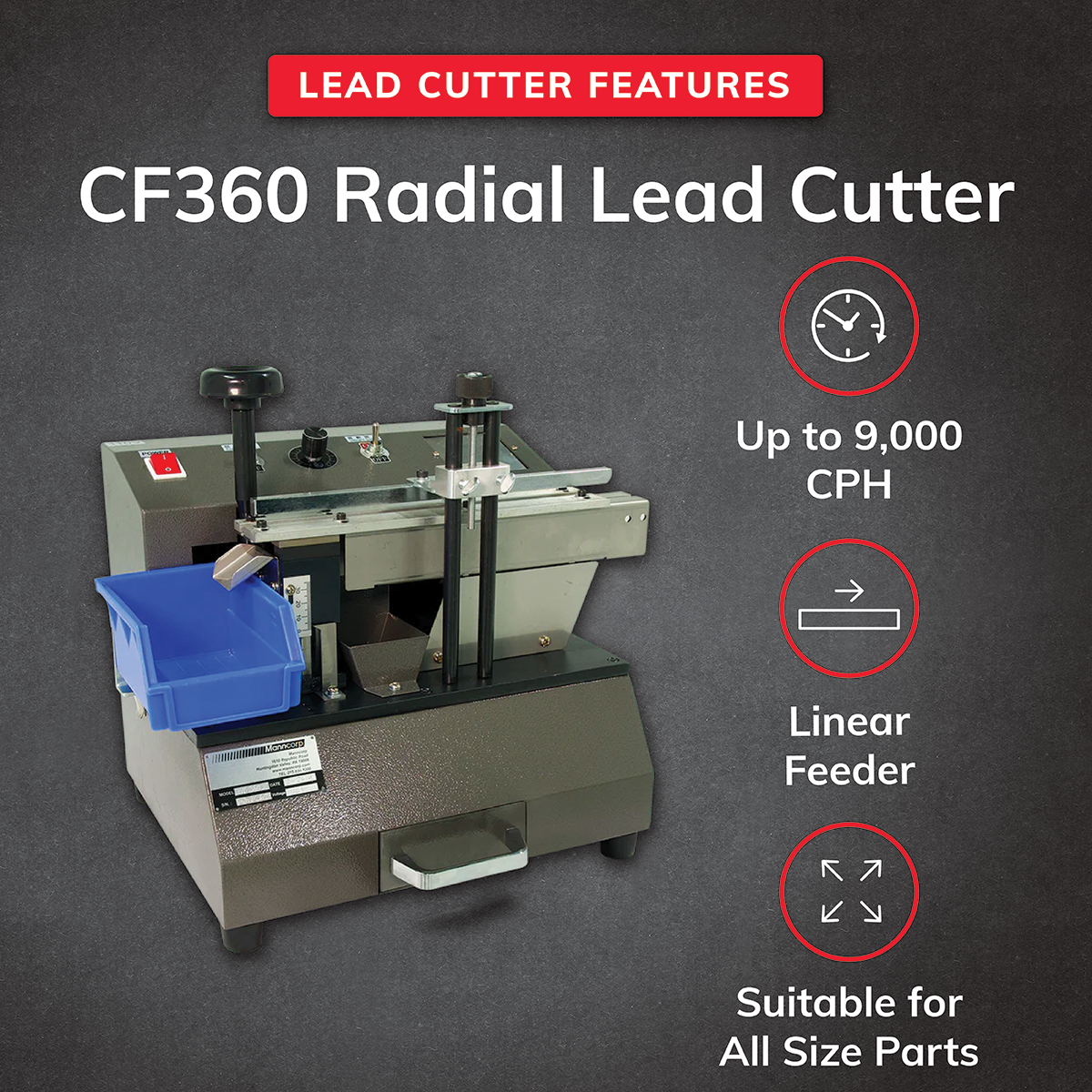

CF360 Loose Radial Lead Cutter

CF360 Loose Radial Lead Cutter

The CF360 delivers fast, efficient lead trimming for loose radial components—processing up to 9,000 parts per hour with consistent, high-quality results.

Its vibratory linear feed ensures smooth, accurate handling, while a durable cutting mechanism provides clean cuts, extends blade life, and minimizes downtime and replacement costs.

The CF360 features a simple interface and low-maintenance design, making it a dependable choice for high-speed radial lead processing.

Share Product
Regular price

or for pricing

/

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

The CF360 is compatible with a wide range of loose radial components and supports various lead lengths and diameters for versatile application. Its compact footprint fits easily into space-limited production areas, and the sturdy construction ensures long-term durability in demanding environments. The machine operates quietly, making it well-suited for bench-top use or integration into manual assembly workflows. Quick-access panels simplify routine adjustments and maintenance, further enhancing efficiency and usability. It is ideal for environments that demand consistency and speed.

CF360 SPECIFICATIONS
Loose Radial Lead Cutter
A Body Diameter 3-25 mm
L Lead Length N/A
C Shoulder Min N/A
D Body Diameter N/A
W Wire Diameter 0.4-2.0 mm
H Lead Length 3-20 mm
P (Pitch) N/A
R (Radius) N/A
Production Rates - Taped N/A
Production Rates - Loose 9,000 pcs/hr
Power 110/220V 50/60 Hz
Dimensions 500 x 430 x 470 mm
Weight 53 lbs (24 kgs)
Shipping Weight 59 lbs (27 kgs)
Tape Pitch N/A

Options CF360
Pitch Gauge N/A
Foot Pedal N/A
Component Counter Yes
Bowl Feeder Yes (CF366)
