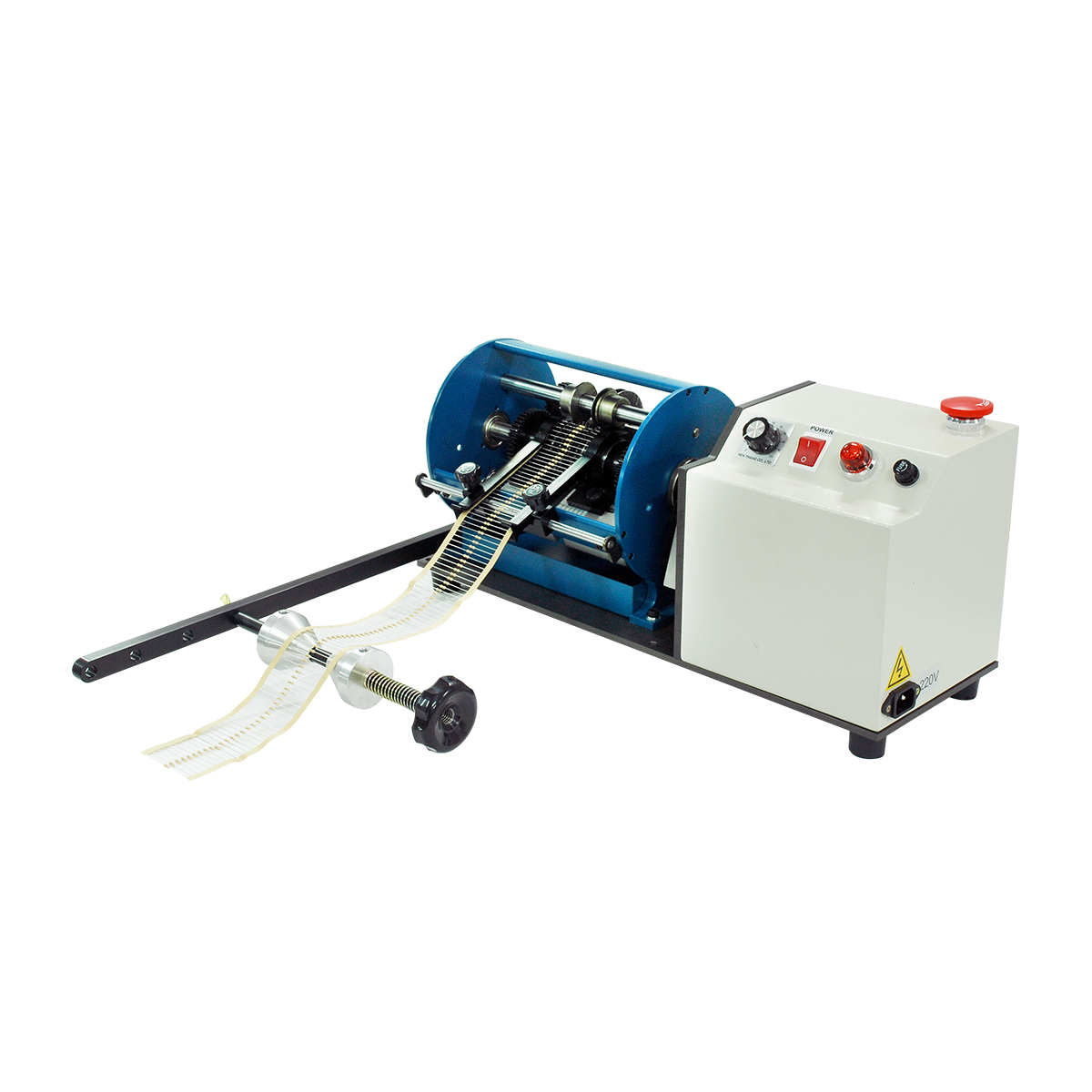

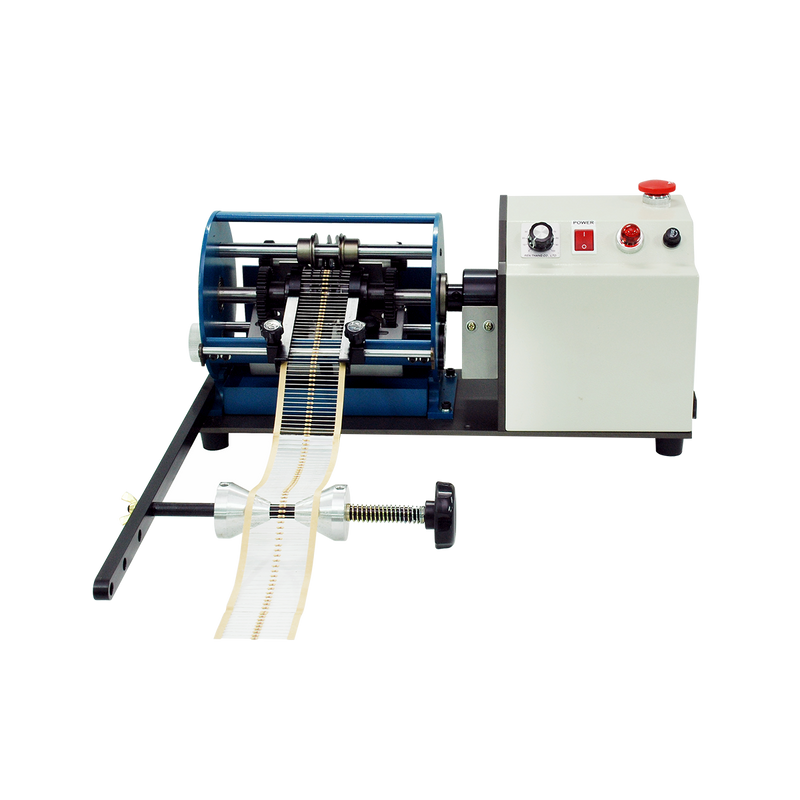

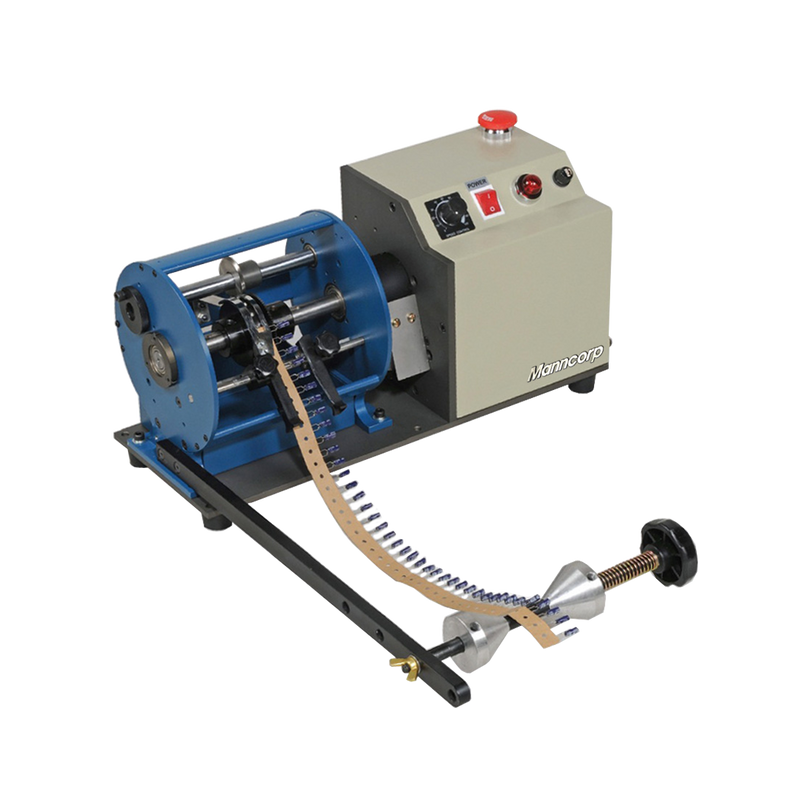

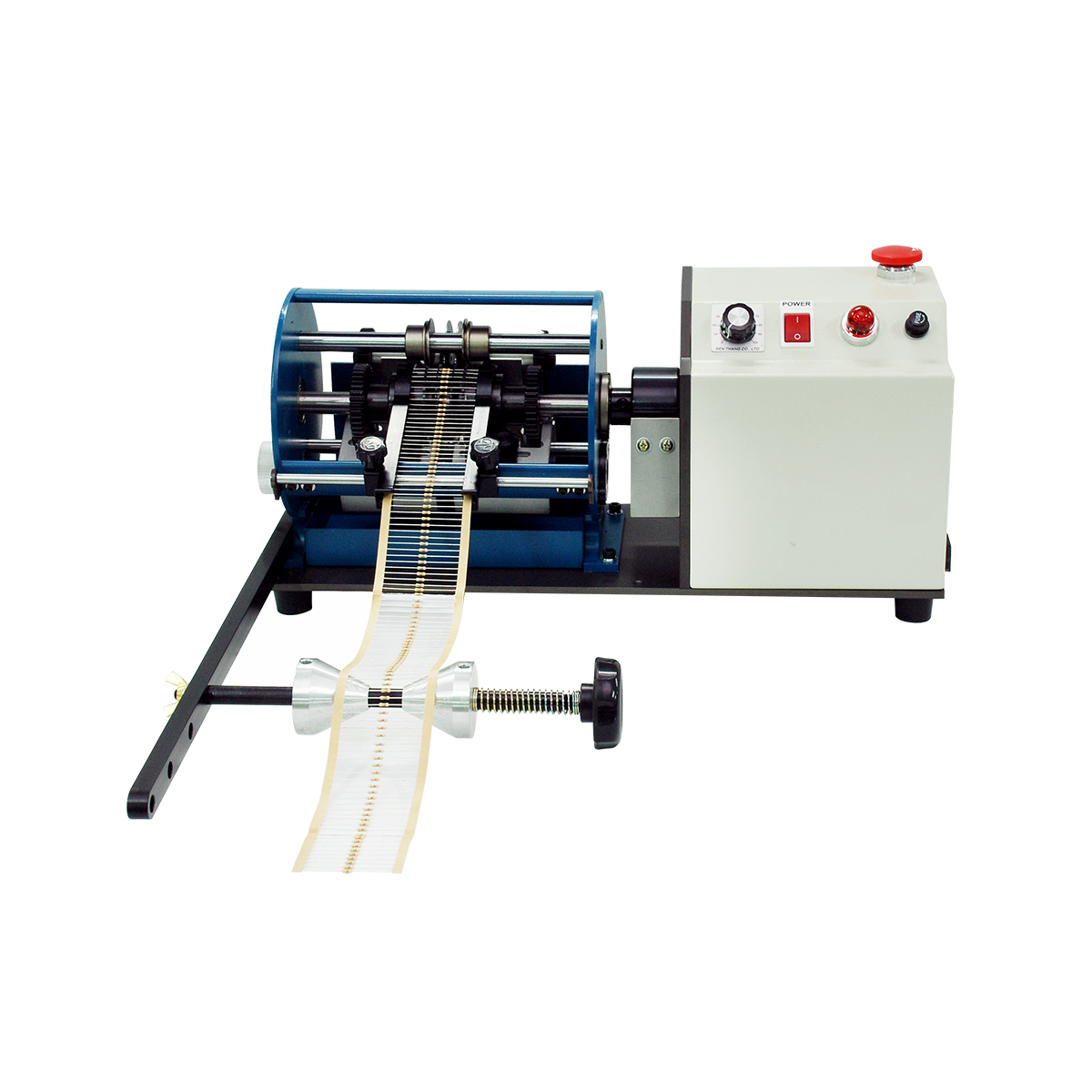

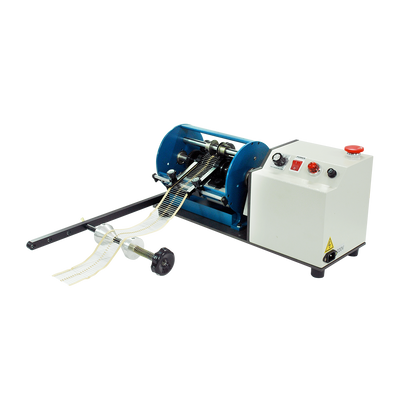

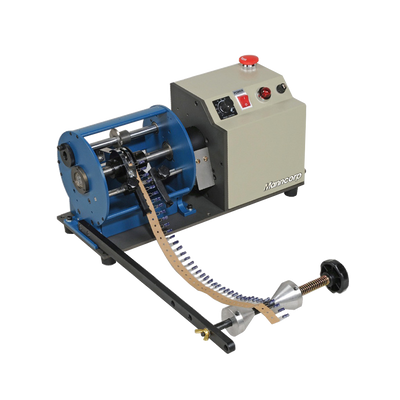

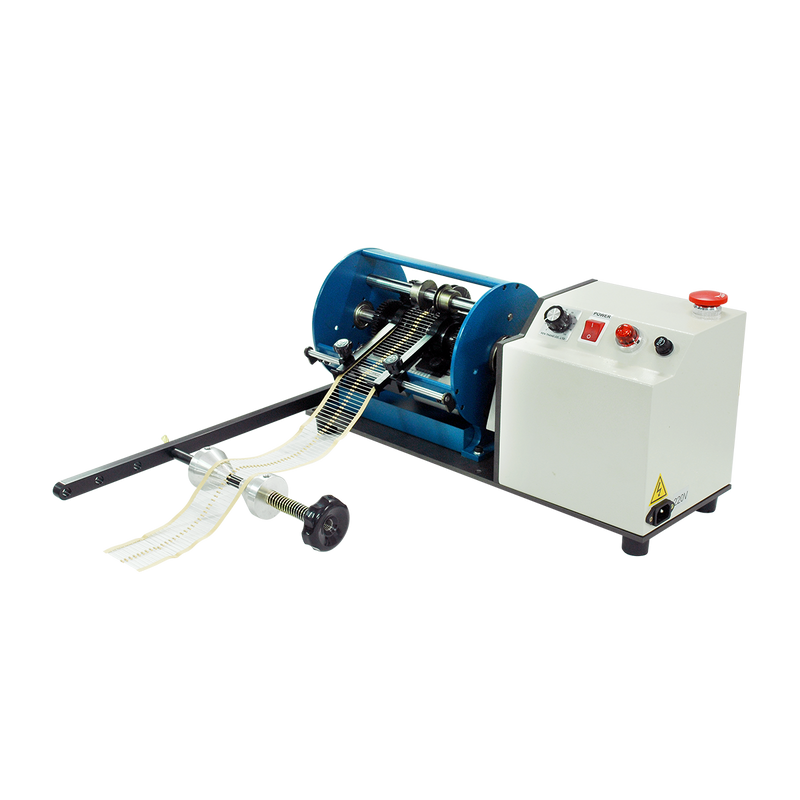

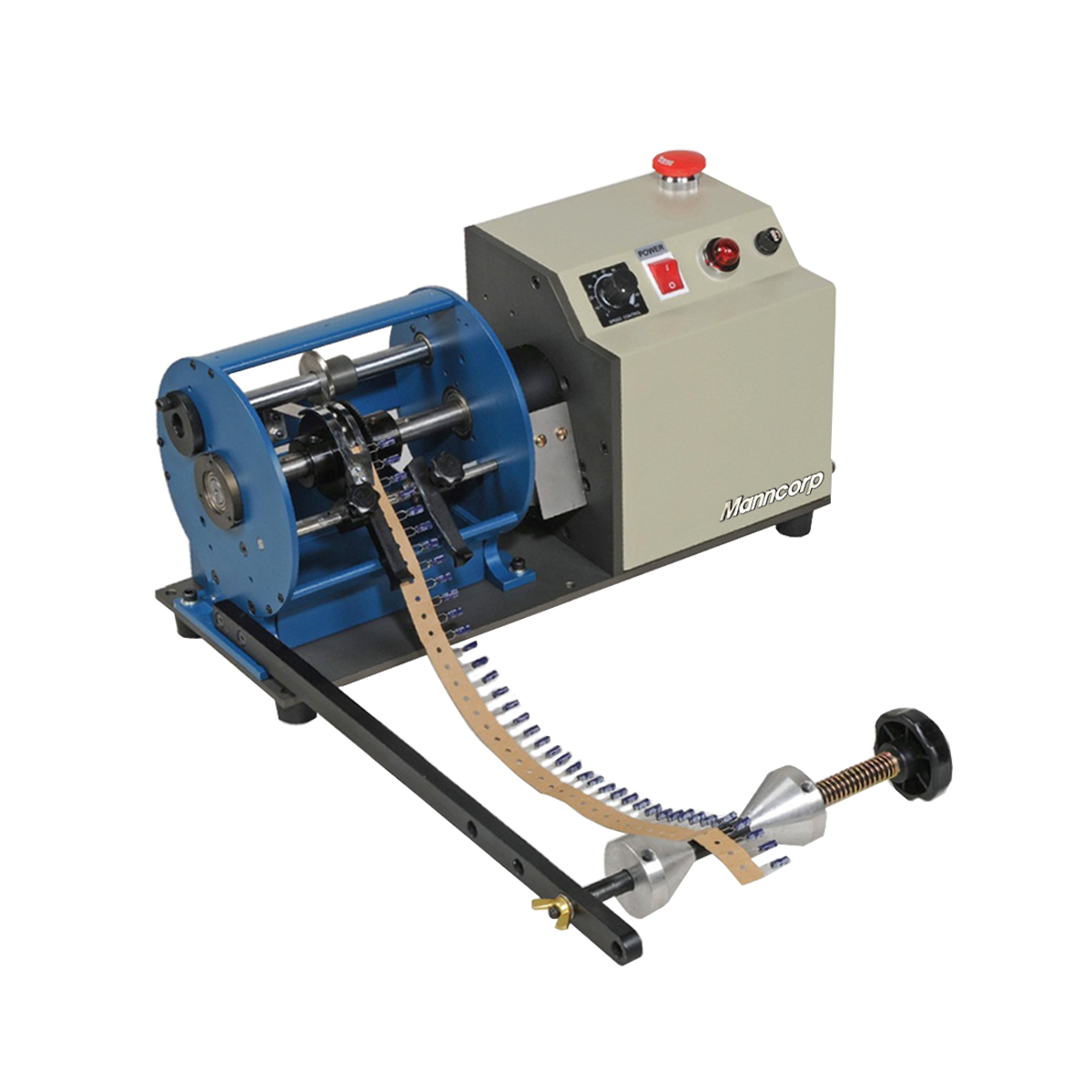

RT70 Motorized Radial Lead Cutter

The RT70 is a high-speed motorized radial lead cutter designed to process up to 25,000 taped components per hour with precision and consistency. It supports a wide range of components—including radial LEDs, capacitors, and varistors—and requires no tooling for setup, enabling fast changeovers and minimal downtime.

Independent rotary disc cutters ensure clean, accurate cuts while extending blade life. Its unique cutting method places no score, mechanical stress, or axial tension on the component leads, preserving the integrity of the components. The fully adjustable lead length adds versatility, allowing users to tailor the cut to specific application needs.

Model

RT70

RT70S

or for pricing

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Two Models Available

RT70 motorized radial lead cutter with tape reel holder meets most lead cutting requirements. For 12.7mm tape pitch.

RT70S motorized radial lead cutter with tape reel holder. For 15mm tape pitch.

With its straightforward operation and low-maintenance design, the RT70 is ideal for manufacturers seeking speed, reliability, and ease of use. Whether for large-scale production or precision trimming of sensitive components, the RT70 delivers dependable performance in a compact and efficient package.

Specifications	RT70	RT70S
	Motorized Radial Component Cutter - 12.7 mm tape	Motorized Radial Component Cutter - 15 mm tape
A Pitch	N/A	N/A
L Lead Length	2-10 mm	2-10 mm
C Shoulder Min	N/A	N/A
D Body Diameter	N/A	N/A
W Wire Diameter	0.3-1.2 mm	0.3-1.2 mm
H Lead Length	N/A	N/A
R (Radius)	N/A	N/A
Production Rates - Taped	25,000	25,000
Production Rates - Loose	N/A	N/A
Power	110/220V 50/60 Hz	110/220V 50/60 Hz
Dimensions	520 x 380 x 300 mm	520 x 380 x 300 mm
Weight	16 kgs	16 kgs
Shipping Weight	18 kgs	18 kgs
Tape Pitch	12.7 mm	15 mm

Options	RT70	RT70S
Pitch Gauge	N/A	N/A
Foot Pedal	N/A	N/A
Component Counter	Yes	Yes
Bowl Feeder	N/A	N/A
