Vertical LIFO/FIFO Buffer

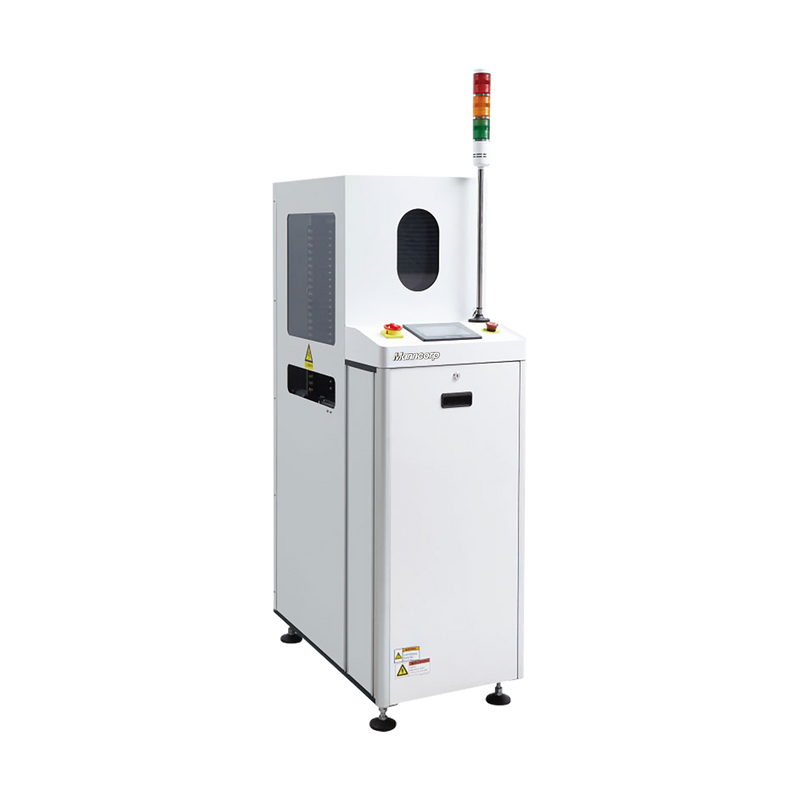

Manncorp's HB350W-ST vertical buffering system can hold up to 24 PCBs in only 600 mm (23.5") of floor space while you clear down-stream stoppages or perform routine maintenance.

or for pricing

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Description Protect_msd Restore_and_store Specifications Features Feeders Machine_configurations Applications Profile_predictions Performance_charts Video Navigator_software Process_window Add_ons Temperature_tolerance Includes Add_fluxing Machine_options Software_options

Despite your best efforts at line-balancing, there will always be situations when even the fastest and most efficient processes require some operator intervention or attention. As these processes come back on-line and catch up, the HB-350W-ST accesses its built-in memory and releases stored PCBs in either FIFO (First-In First-Out) or LIFO (Last-In First-Out) modes.

The HB-350W-ST accepts boards from 50 mm L x 50 mm W to 400 mm L x 350 mm W (1.97" L x 1.97" W to 15.75" L x 13.78" W) and also includes a pass-through function.

PCB widths larger than 350 mm are also available upon special request. Please contact Manncorp for pricing.

Vertical LIFO/FIFO Buffer Specifications
PCB Size	50 mm L x 50 mm W to 400 mm L x 350 mm W (1.97" L x 1.97" W to 15.75" L x 13.78" W)
PCB Thickness	0.6 mm min. (0.024" min.) 2.5 mm max. (0.098" max.)
Air Supply Pressure	5-6 kg/cm² (70-85 psi)
Air Consumption	15 I/min (.53 CFM)
Voltage	110 VAC, 50/60 Hz
Power	200 VA max.
Machine Dimensions	600 mm L x 1000 mm W x 1600 mm H (23.5" L x 39.5" W x 63" H)
Net Weight	200 kg (441 lbs.)
Shipping Weight	260 kg (574 lbs.)
