Telescoping Gate Design & Durable Construction

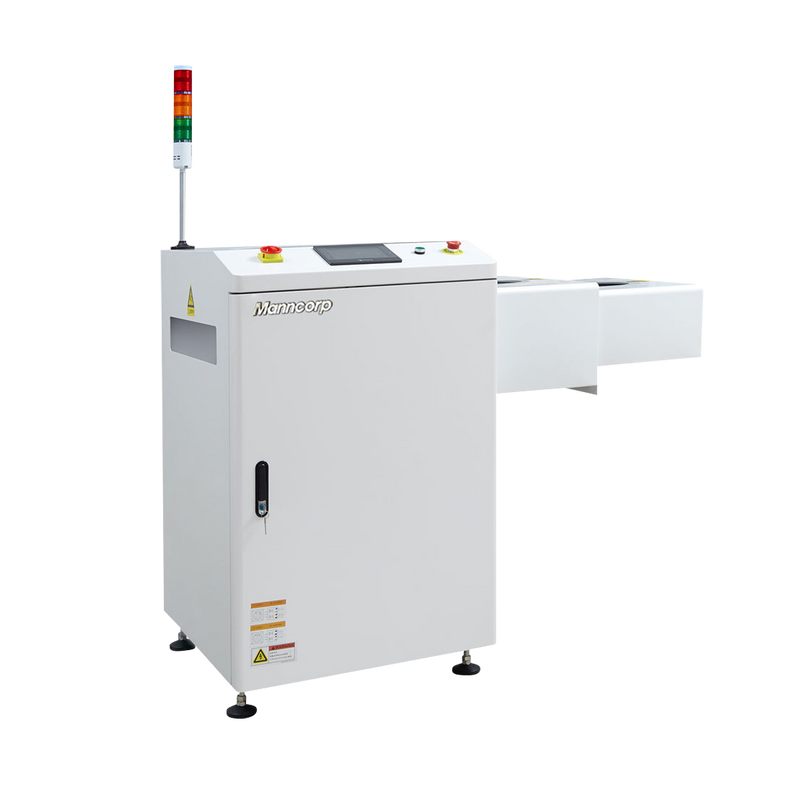

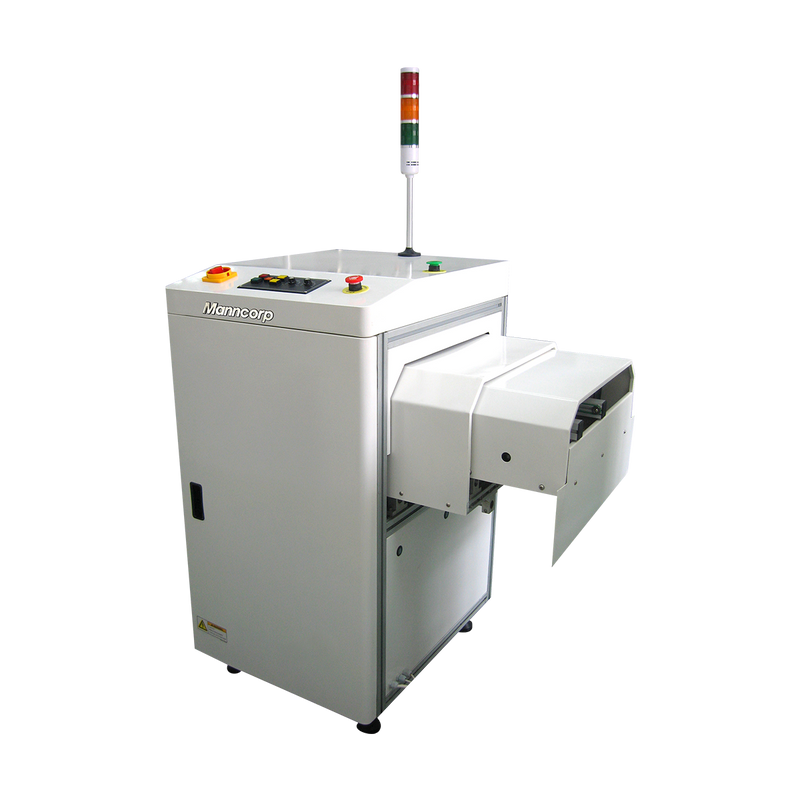

The GC Series features a solid, all-metal telescoping gate that creates a normally open walkway within the SMT line. When needed, the conveyor section slides into place for smooth PCB transfer—maintaining workflow without sacrificing accessibility.
- Telescoping gate design for integrated operator access
- Smooth transfer action when conveyor is engaged
- Fully enclosed structure for safety and component protection
- Lead screw adjustment for precise width control
Advanced Control & Seamless Integration
With PLC control and an intuitive HMI interface, the GC Series delivers reliable automation and easy operation. Adjustable speed and SMEMA compatibility ensure consistent performance across connected equipment.
- PLC-controlled system with 7" HMI display
- Adjustable speed for optimized throughput
- ESD-safe belt for secure PCB handling
- SMEMA-compatible for full line integration
- CE compliant for safety and reliability
| Model | GL350W-SB | GC350W-ST |
|---|---|---|
| Description | Folding Passageway Conveyor | Automatic Telescoping Passageway Conveyor |
| Machine Dimensions | 1320 mm L x 550 mm W x 900 mm H (52" L x 21.7" W x 35.5" H) |
1700 mm L x 750 mm W x 1200 mm H (67" L x 29.5" W x 47.25" H) |
| PCB Size | 400 mm x 50-350 mm (15.74" x 2"-13.78") |
400 mm x 50-350 mm (15.74" x 2"-13.78") |
| Power | 110V, 50-60Hz | 110V, 50-60Hz |
| Weight | 150 kg (330 lbs) | 230 kg (507 lbs) |
| Supply Pressure | 72 psi | 72psi |
| PCB Direction | Left to right (standard) or right to left (optional) operation | Left to right (standard) or right to left (optional) operation |
