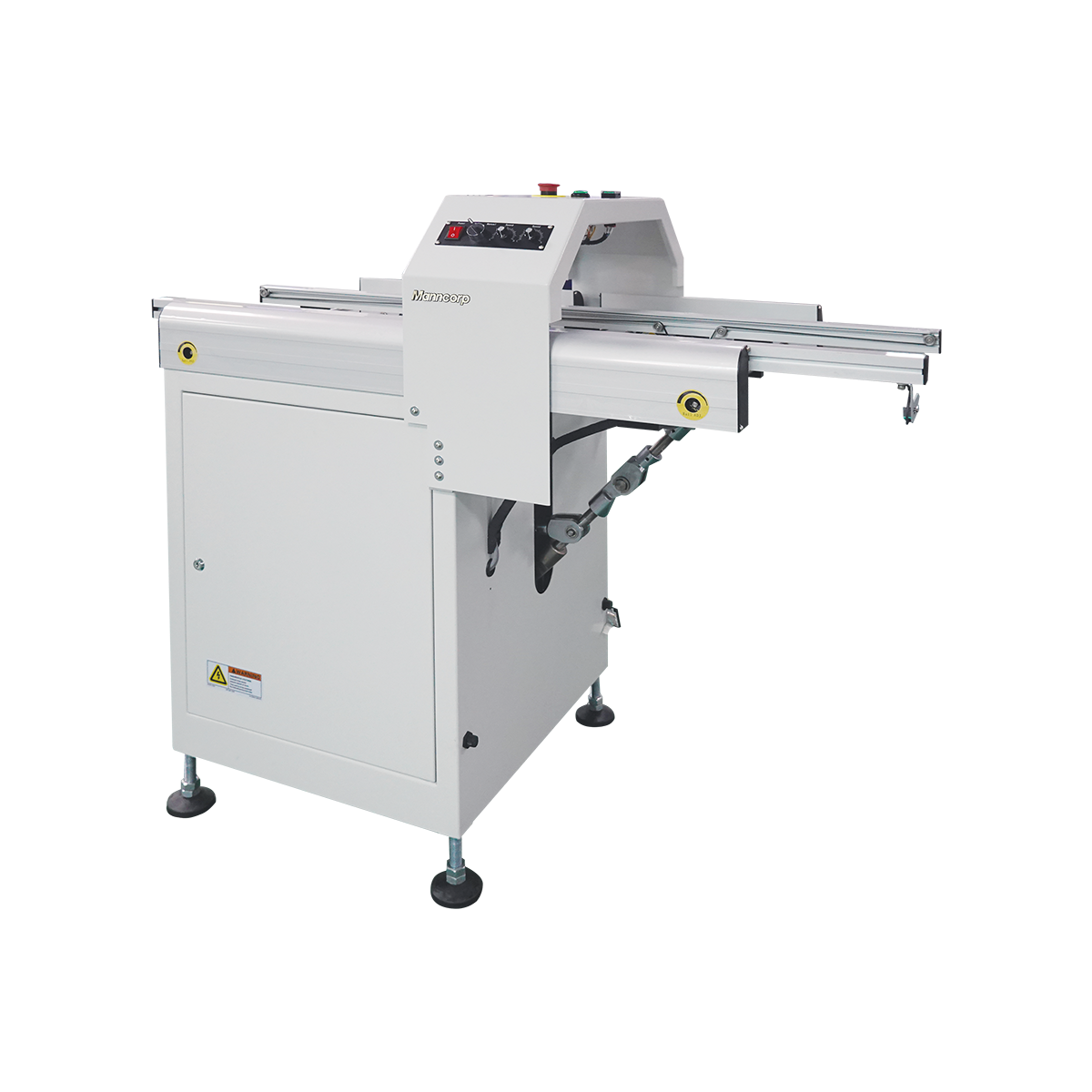

Folding Passageway Design & Durable Construction

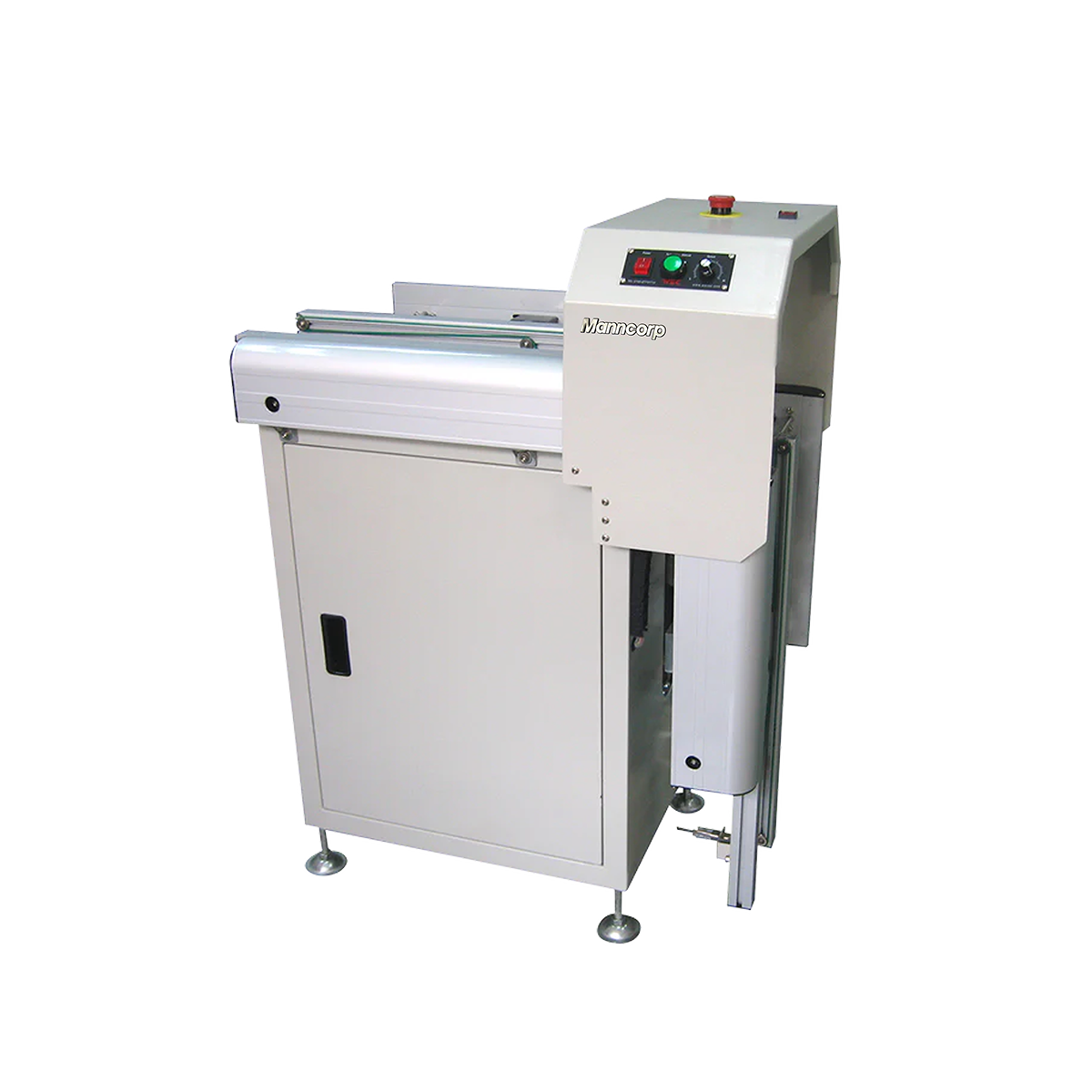

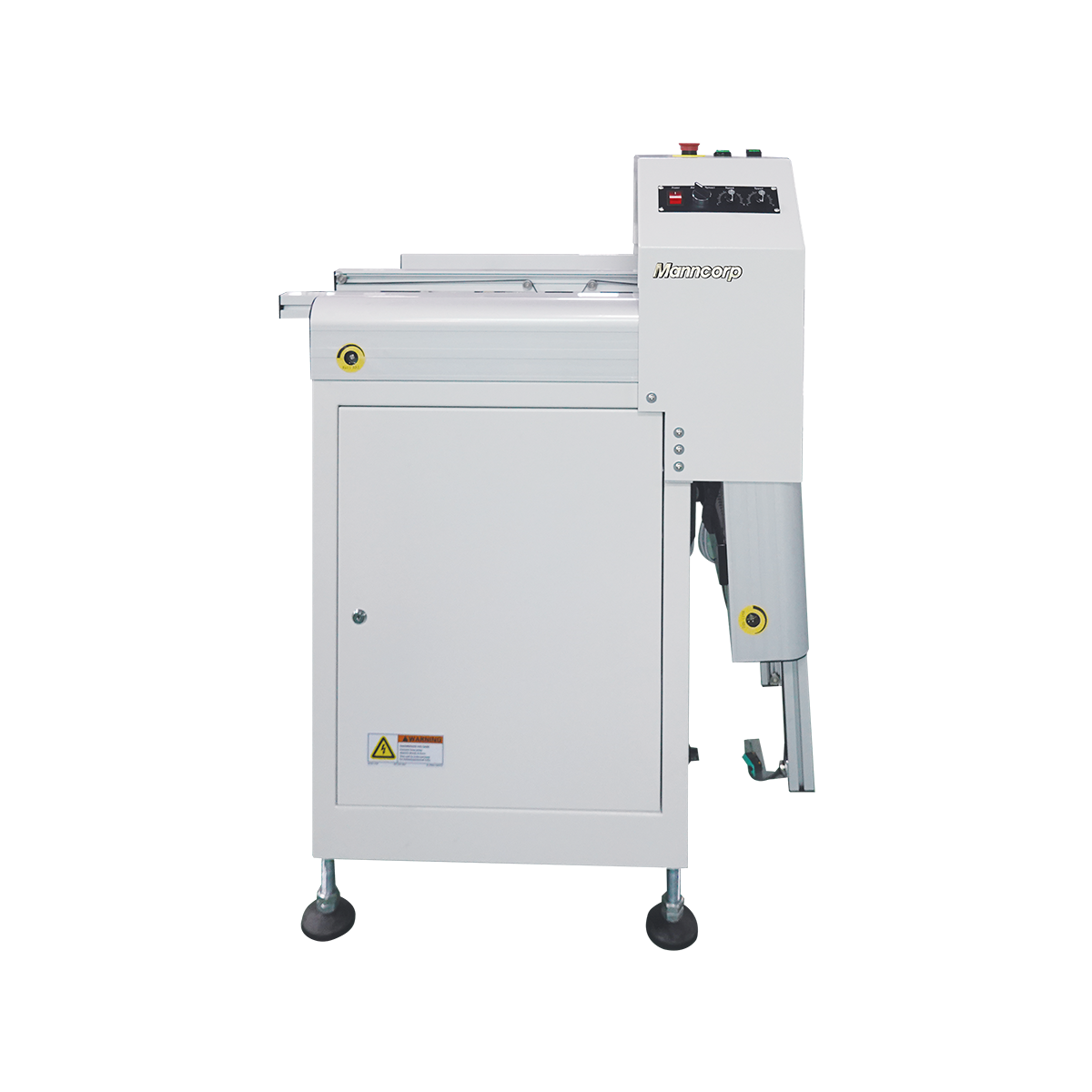

The GL350W Folding Passageway Conveyor allows operators to safely pass through the SMT line with a simple lift-up motion. At the push of a button, the conveyor raises to create access, then returns to position for continuous production.
- Lift-up folding design for quick operator access
- Push-button control for easy operation
- Maintains production flow with minimal disruption
- All-metal construction for durability and stability
Advanced Control, Safety & Precision
Designed for reliable operation, the GL350W combines PLC control, safety sensors, and precise adjustments to ensure smooth integration and consistent performance in automated lines.
- PLC-controlled system for consistent operation
- Integrated safety sensors for operator protection
- Adjustable speed for optimized throughput
- Lead screw adjustment for accurate width control
- ESD-safe belt for secure PCB handling
- SMEMA-compatible and CE compliant
| Model | GL350W-SB | GC350W-ST |
|---|---|---|
| Description | Folding Passageway Conveyor | Automatic Telescoping Passageway Conveyor |

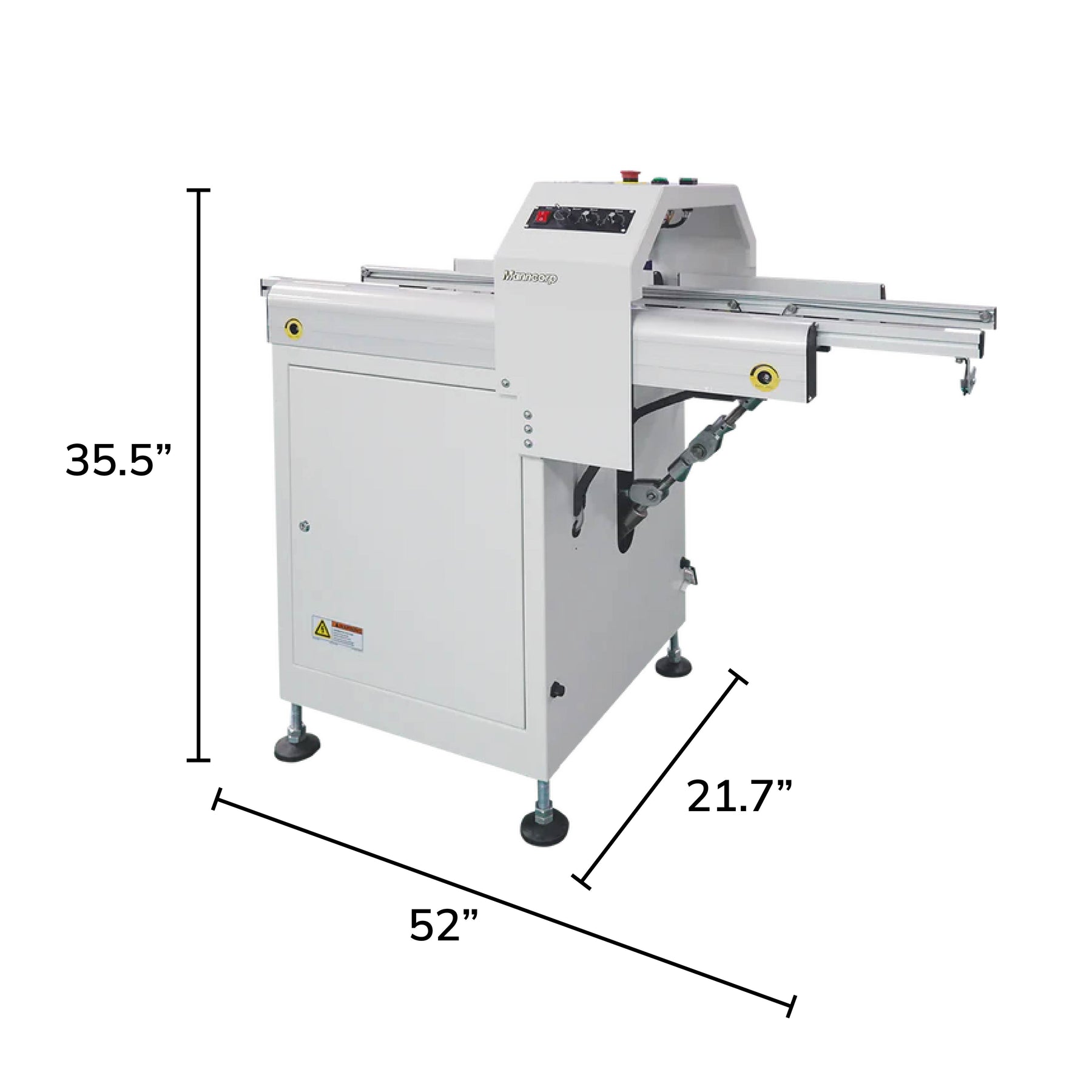

| Machine Dimensions | 1320 mm L x 550 mm W x 900 mm H (52" L x 21.7" W x 35.5" H) |
1700 mm L x 750 mm W x 1200 mm H (67" L x 29.5" W x 47.25" H) |
| PCB Size | 400 mm x 50-350 mm (15.74" x 2"-13.78") |
400 mm x 50-350 mm (15.74" x 2"-13.78") |
| Power | 110V, 50-60Hz | 110V, 50-60Hz |
| Weight | 150 kg (330 lbs) | 230 kg (507 lbs) |
| Supply Pressure | 72psi | 72psi |
| PCB Direction | Left to right (standard) or right to left (optional) operation | Left to right (standard) or right to left (optional) operation |
