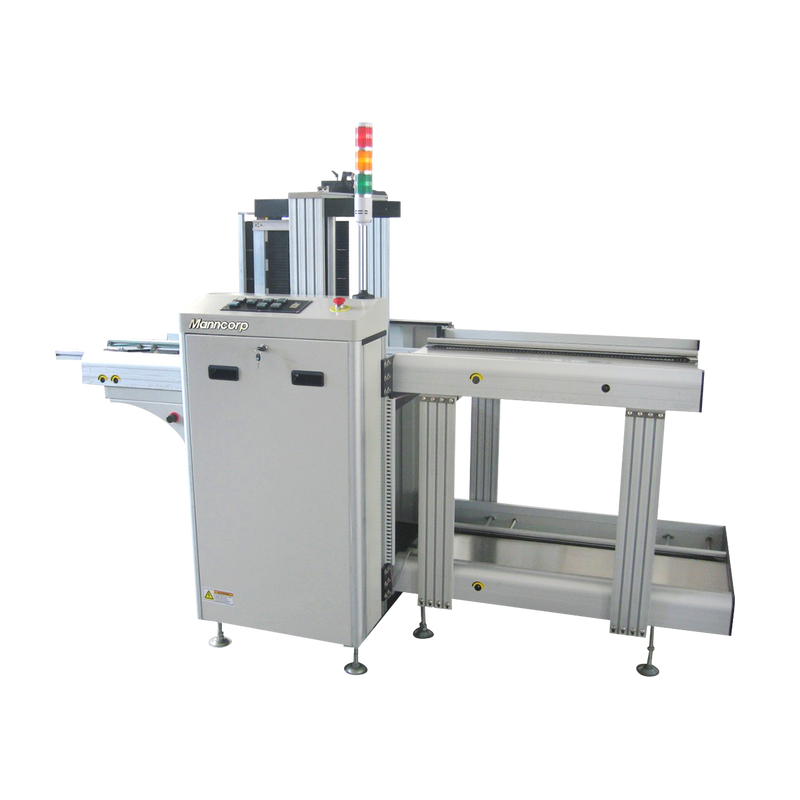

Automated Unloading with Flexible Adjustment
The adjustable PCB magazine unloader automatically transfers assembled boards into magazines, ensuring smooth, continuous end-of-line handling with minimal operator involvement.
- Automatic PCB unloading via controlled pusher system
- Selectable pitch: 10, 20, 30, 40 mm
- Adjustable rails and lift width for flexible setup
- Continuous operation with easy magazine removal
Wide Compatibility & Versatile Operation
Designed for a range of magazine formats and PCB sizes, the system enables quick changeovers and reliable performance across diverse production needs.
- Supports multiple magazine sizes: 250–460 mm
- Magazine range: 355 × 320 × 563 mm to 535 × 530 × 570 mm
- PCB size range: 50–530 mm (L) / 50–460 mm (W)
- Adjustable design for fast product changeovers
| Adjustable PCB Magazine Unloader Specifications | |
|---|---|
| PCB Size | 50-530 mm L x 50-460 mm W (1.97-20.87" L x 1.97-18.11" W) |
| Magazine Size | 355-535 mm L x 320-530 mm W x 563-570 mm H (13.98-21.06" L x 12.60-20.87" W x 22.17-22.44" H) |
| Selectable Pitch | 10, 20, 30, or 40 mm |
| Conveyor Direction | Left to right (standard) or right to left (optional) |
| Air Supply Pressure | 70-85 psi |
| Air Consumption | 0.35 CFM |
| Voltage | 110 VAC, 50/60 Hz |
| Power | 300 VA max. |

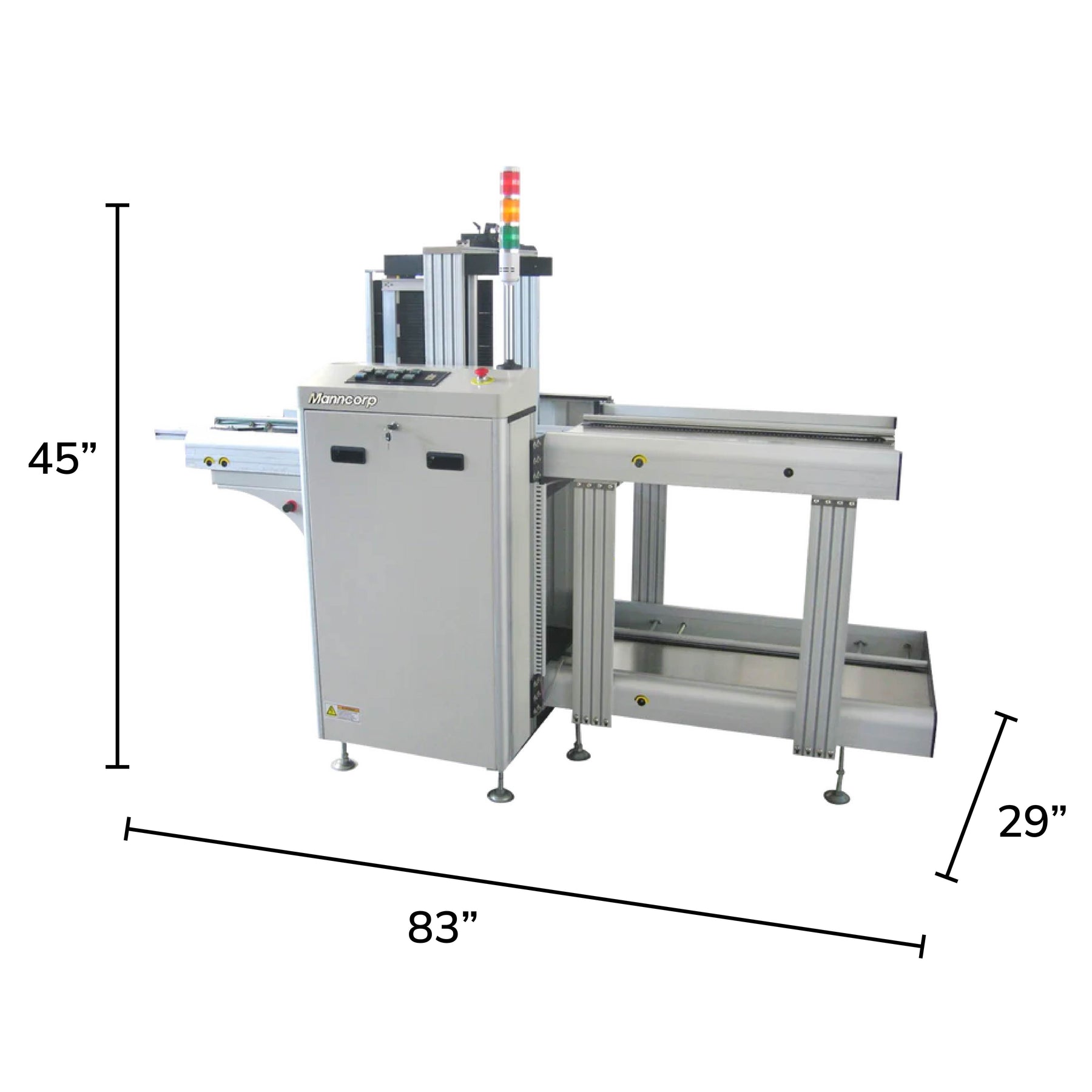

| Machine Dimensions | 2100 mm L x 740 mm W x 1150 mm H (82.68" L x 29.13" W x 45" H) |
| Net Weight | 315 kg (695 lbs.) |
| Shipping Weight | 365 kg (805 lbs.) |
