Versatile Magazine & Stack Loading

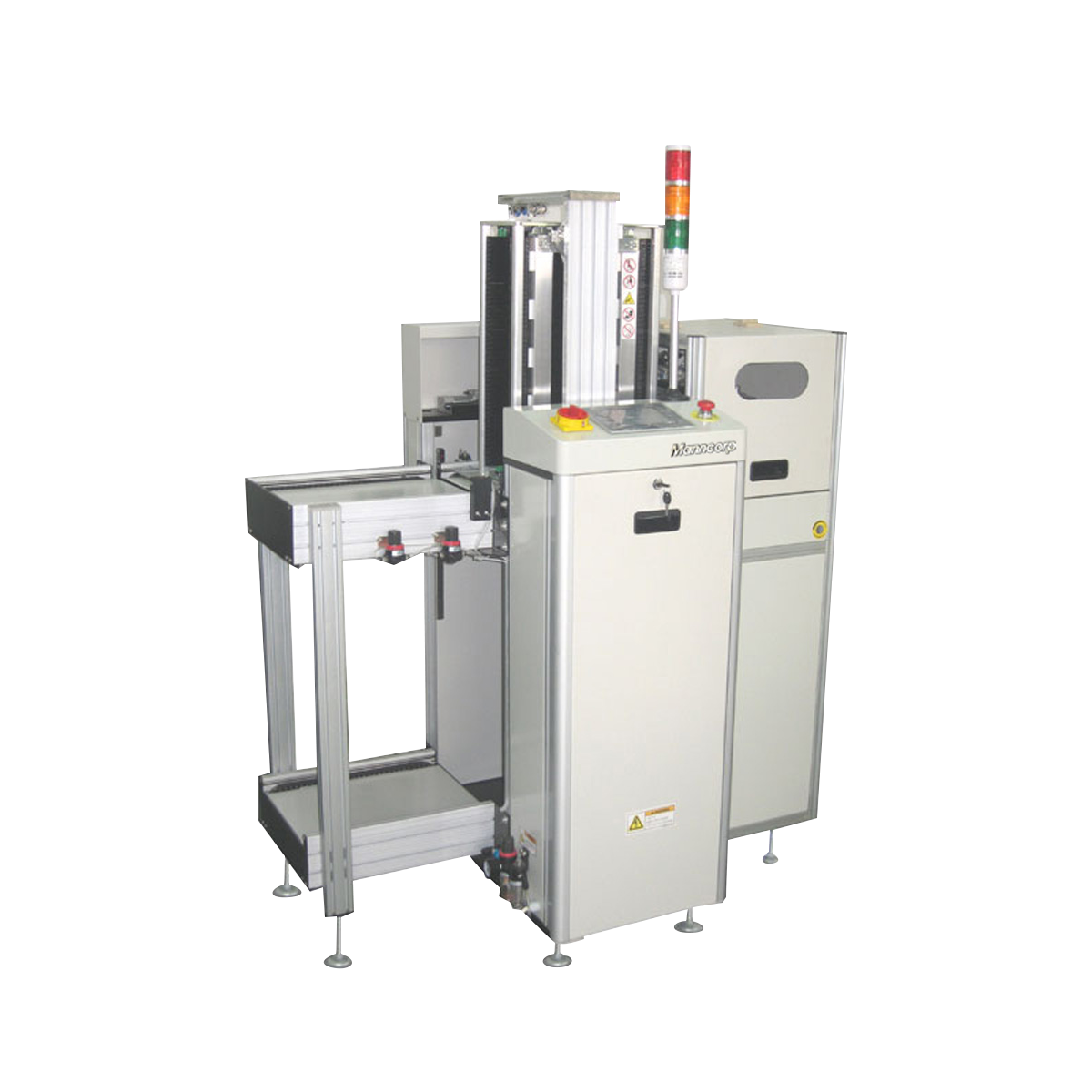

The XL-390W-ST supports both magazine and drop-stack PCB loading, giving manufacturers flexibility across single- and double-sided SMT processes while maintaining continuous operation.
- Dual loading modes for magazines or stacked boards
- Stack capacity: up to 240 mm height
- Automatic magazine indexing for uninterrupted flow
- Integrated buffer conveyor for smooth transfer
Precision Handling & Intelligent Automation
Built for consistent performance, the system combines automated controls, stable construction, and intuitive operation to ensure reliable PCB handling and efficient production.
- Automatic stack sensing with low-level alerts
- Auto magazine changeover with selectable pitch
- Pneumatic pusher for controlled board transfer
- 7" HMI interface for monitoring and control
- ESD-safe belt for secure PCB handling

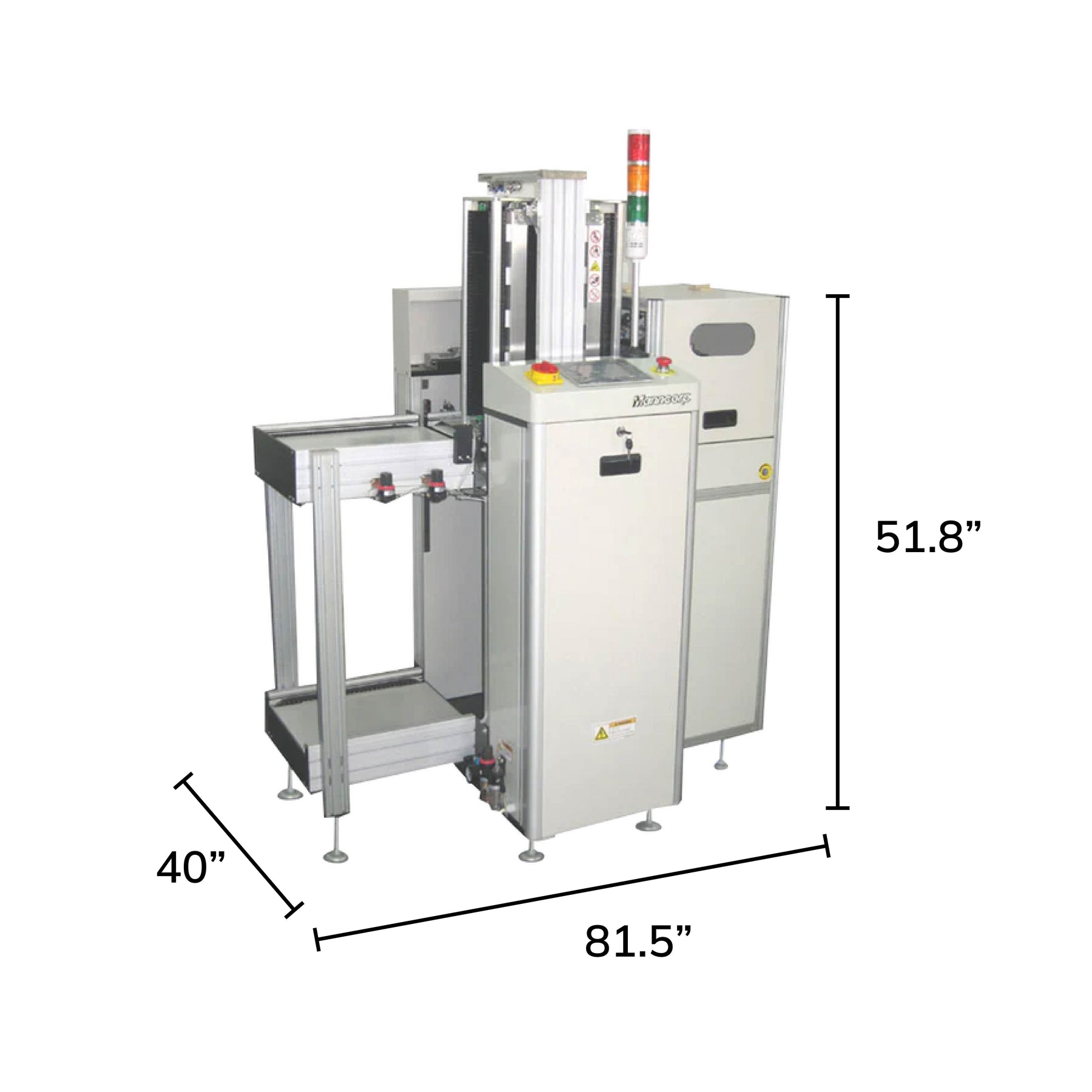

| Magazine Loader / Drop Stack Specifications | |
|---|---|
| PCB Size | 50 mm L x 50 mm W to 535 mm L x 390 mm W (1.97" L x 1.97" W to 21.06" L x 36.61" W) |
| PCB Stack Capacity | 400 pcs. (0.6 mm thickness) or 240 mm (9.45") stack height |
| PCB Thickness | 0.4 mm min. (0.016" min.) 2.5 mm max. (0.098" max.) |
| Conveyor Direction | Left to right (standard) or right to left (optional) operation |
| Conveyor | 3 mm diameter edge belt |
| Air Supply Pressure | 70-85 psi |
| Air Consumption | .35 CFM |
| Voltage | 110 VAC, 50/60 Hz |
| Power | 300 VA max. |
| Machine Dimensions | 2068 mm L x 1018.5 mm W x 1290 mm H (81.5" L x 40" W x 50.8" H) |
| Net Weight | 200 kg (440 lbs.) |
| Shipping Weight | 450 kg (540 lbs.) |
