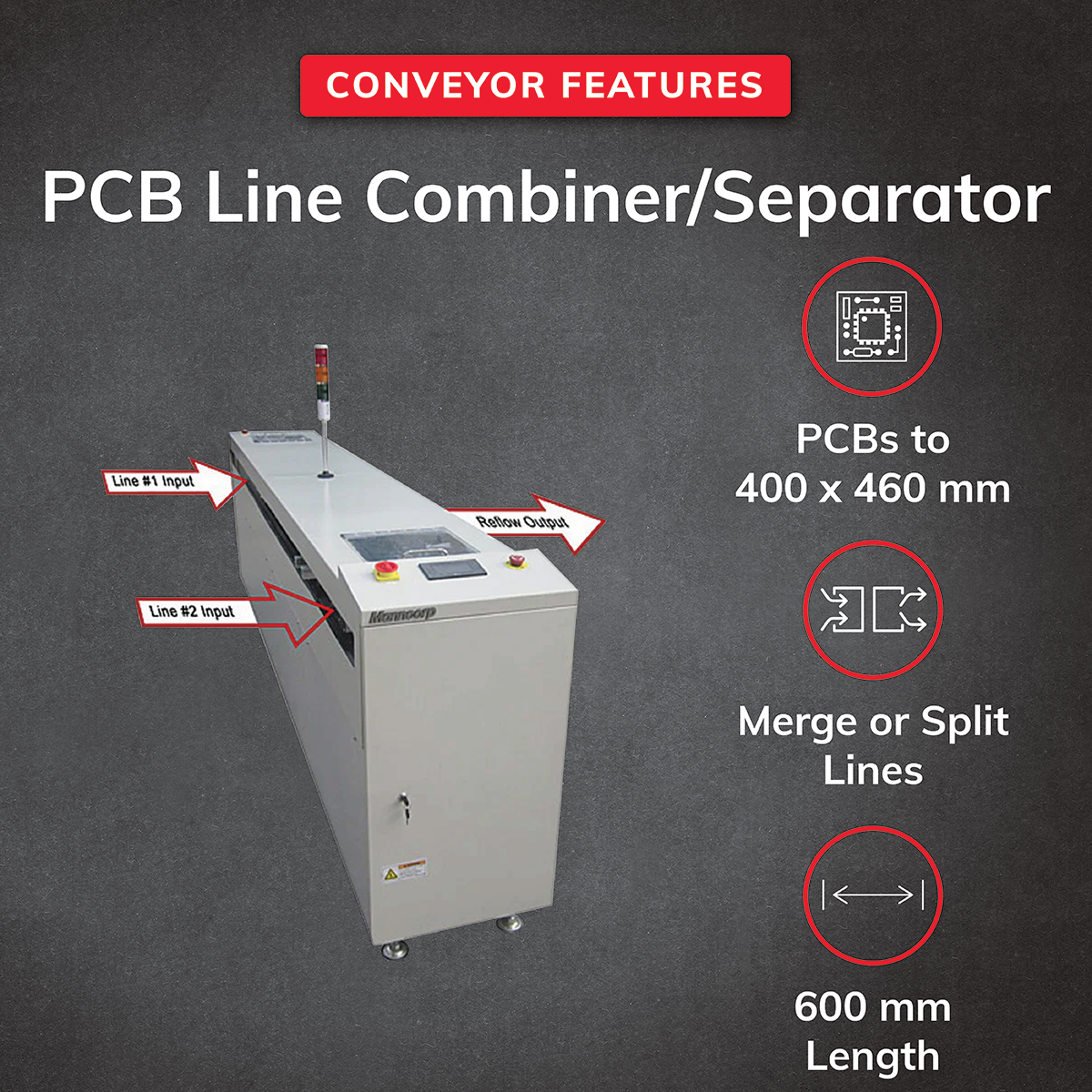

The PCB Line Combiner / Separator (PC350W-ST) accommodates board widths to 460 mm. If you require a larger board width, contact Manncorp for custom pricing.
Flexible Line Combining & Separation
The PC350W-ST optimizes SMT production by merging or splitting PCB flow between lines, improving throughput and maximizing equipment utilization.
- Combines two lines into one for downstream processes
- Splits one line into two for parallel workflows
- Ideal for inspection sorting (pass/fail routing)
- Supports rework and test loops
Intelligent Routing & Smooth Handling
A precision shuttle conveyor system ensures accurate, reliable board transfer between paths, adapting easily to changing production needs.
- Shuttle conveyor system for controlled PCB routing
- Handles board widths up to 460 mm
- Balances line throughput across processes
- Custom width options available
| PCB Line Combiner / Separator Specifications | |
|---|---|
| PCB Size | 50 mm L x 50 mm W to 400 mm L x 460 mm W (1.97" L x 1.97" W to 15.75" L x 18.11" W) |
| PCB Thickness | 0.4 mm min. (0.016" min.) 2.5 mm max. (0.098" max.) |
| Conveyor Direction | Front Rail Fixed left to right (standard) or right to left (optional) |
| Conveyor Height | 900 +50/-20 mm (35.5" +2"/-0.75") |
| Conveyor | 3 mm Edge Belt |
| Voltage | 110 VAC, 50/60 Hz |
| Power | 300 VA max. |
| Controls | Omron PLC Controller Yamatake Japan Sensor Control |
| Machine Dimensions | 3800 mm L x 600 mm W x 1100 +50/-20 mm H (12.5" x 23.5" x 39" + 2"/-0.75") |
| Net Weight | 300 kg (662 lbs.) |
| Shipping Weight | 450 kg (992 lbs.) |
