AOI/SPI PCB Inspection Conveyor | Auto NG Board Removal & Pass-Through

AOI/SPI/PCB Inspection Conveyor - BE Series

PCB Inspection Conveyor for AOI/SPI from Manncorp

The AOI/SPI/PCB Inspection Conveyor helps prevent line stoppages by automatically separating rejected boards for review. NG (no-good) PCBs are lifted for easy visual inspection or removal, while good boards continue through the line without interruption.

Automatic NG board lifting for quick inspection and removal
Continuous flow as good PCBs pass to the next process
Reduces line downtime by isolating defects immediately
Ideal for AOI and SPI integration in SMT production lines

A simple, reliable solution for maintaining throughput and catching defects early in your SMT process.

or for pricing

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Reduce Assembly Line Interruptions

The AOI/SPI/PCB Inspection Conveyor isolates rejected boards without stopping production. When an NG signal is received, the system alerts the operator and lifts the faulty PCB above the rails—allowing good boards to continue moving through the line.

Automatic NG detection response lifts rejected boards for access
Visual and audible alerts notify operators immediately
Uninterrupted flow as good PCBs pass beneath
Smart halt function stops the line if multiple NG boards accumulate
Quick reset resumes operation after board removal

A reliable solution for reducing downtime and maintaining continuous SMT production flow.

AOI/SPI/PCB Inspection Conveyor Specifications
PCB Size	50 mm x 50 mm to 450 mm x 350 mm wide (1.97" x 1.97" to 15.75" x 13.78" wide)
PCB Direction	Left to right (right to left optional)
Transport Height	900 ±20 mm (35.4 ± 0.79")
Fixed Side	Front
Main Motor Power	115 W
Power Supply	110 VAC, 50/60 Hz

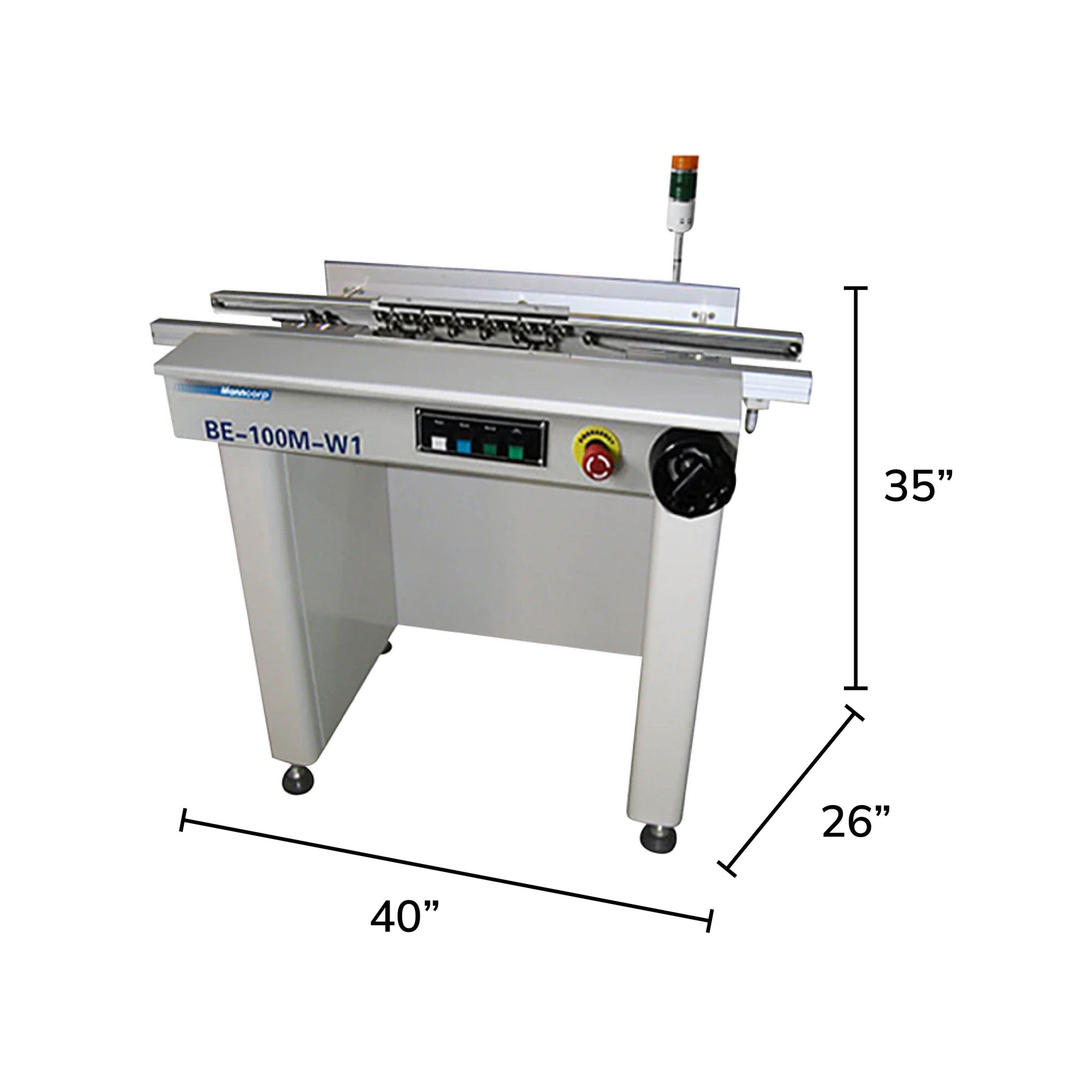

Dimensions	1000 mm x 650 mm x 900 +50/-20 mm (40" L x 26" W x 35" H + 1.97"/-0.79")
Weight	95 kg (209 lbs)
