MC1400 Automatic Stencil Printer

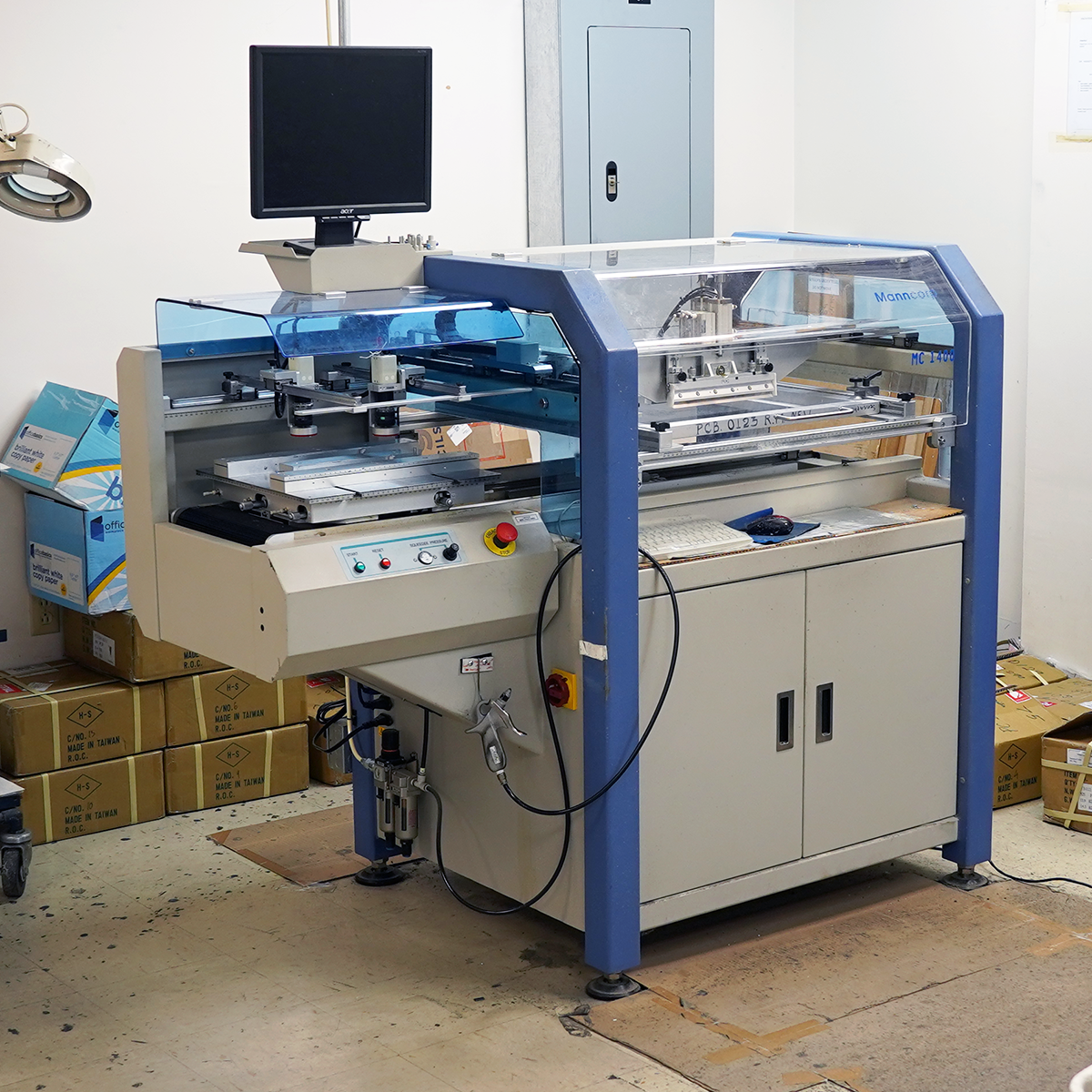

MC1400 Automatic SMT Stencil Printer from Manncorp
Cover Open: MC1400 Automatic Stencil Printer
Front View: MC1400 Automatic Stencil Printer
Tooling on Conveyor: MC1400 Automatic Stencil Printer
Installing Stencil: MC1400 Automatic Stencil Printer
Squeegees Up: MC1400 Automatic Stencil Printer
Squeegees Down: MC1400 Automatic Stencil Printer
Front View, Squeegee Assembly: MC1400 Automatic Stencil Printer
Vision Alignment: MC1400 Automatic Stencil Printer
Vision Camera: MC1400 Automatic Stencil Printer

MC1400 Automatic Stencil Printer

The MC1400's automatic vision alignment system ensures accuracy while the printer's linear-guided movements and vertical stencil separation provide high precision and repeatability, a combination that results in ultra-fine-pitch printing capability. Experience component pitches as tight as 0.3 mm (12 mil). With quick setup and changeover, our MC1400 stencil printer easily keeps pace with medium-to-high volume production lines and is well-suited for precision batch printing.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Max Print Area
Regular price $49,995.00
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Automates Alignment & Printing

Included AT-Align software is a powerful automatic fiducial finding and PCB board offset adjustment system that automatically aligns the PCB to the stencil for each print without operator intervention—simply press the start key and the MC1400 takes over the aligning and printing.

Eliminates Alignment Errors

Gaps, shadows, parallax errors and solder residue may all be concealed when viewing PCBs through the stencil. The MC1400's vision cameras view the board directly rather than through the stencil, eliminating image distortion.

Reduces Solder Paste Consumption

The MC1400 comes standard with a dual-squeegee/dual-stroke-control system for the most efficient use of solder paste. Its cycle time is just 15-25 seconds per PCB with registration repeatability of ±0.01 mm (0.0004"). All movements—PCB position, mounting table, and squeegee head—rely on precision linear guide while the print speed and table speed are servo controlled.

Large Print Area

A 400 x 400 mm mounting table comes standard (15.75" x 15.75"). Larger sizing, such as 500 x 400 mm (19.68" x 15.75"), is available. Stencil frames up to 700 x 700 mm (27.5" x 27.5") can be mounted.

Easy programming

All parameters—print speed, stroke length, squeegee pressure, etc.—are fully programmable using the graphical, Windows-based control software. During operation, the on-screen process status shows all details of the current print job. Flexible tooling holders make PCB setup and changeover very quick. The holders can be used with tooling pins (included) or with vacuum, for edge-to-edge printing.

MC1400 Specifications
Printing Speed2 to 150 mm/s (servo controlled)
Table Up / Down Speed0.2 to 4 mm/s (servo controlled)
Vision Alignment SystemAutomatic (AT-Align system)
Stencil Frame Size (External Dimensions)450 mm x 450 mm to 700 mm x 700 mm
(17.7" x 17.7" to 27.5" x 27.5")
Thickness: 31.7 mm (1.25" max.)
Printing AreaMax: 400 x 400 mm
Optional max: 450 x 400 mm
Optional max: 500 x 400 mm
Board SizeMin: 20 x 20 mm
Max: 400 x 400 mm
Optional max: 450 x 400 mm
Optional max: 500 x 400 mm
Board Thickness0.8 to 8 mm
Optional: 0.2 to 8 mm
Underside ClearanceMax: 26 mm
Printing StrokeMax: 400 mm
Squeegee Pressure0-15 kg
Blade TypeStandard length: 250 mm
Optional: 200 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm
XY Adjustment±5 mm
Radial Adjustment±2°
Registration Repeatability±0.01 mm
Support ToolingMagnetic pin & vacuum block
Vision Alignment Resolution0.0085 mm/step
Vision FiducialStandard fiducial and any pads
Air & Power Requirements220VAC power, 75psi (5 bar) air
Dimensions (L x W x H)51" x 35" x 51" (1300 x 900 x 1300 mm)
Weight904 lbs (410 kg)
