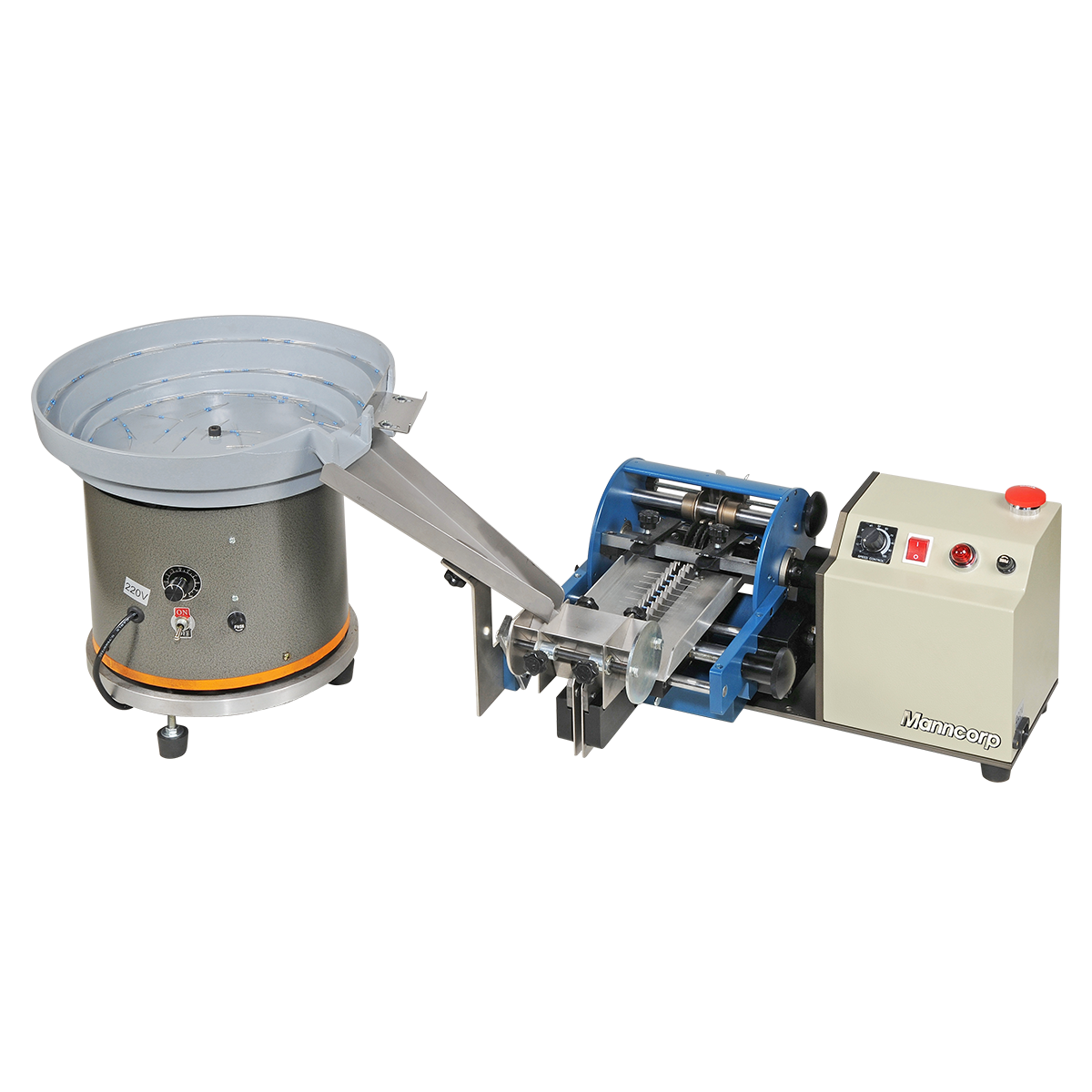

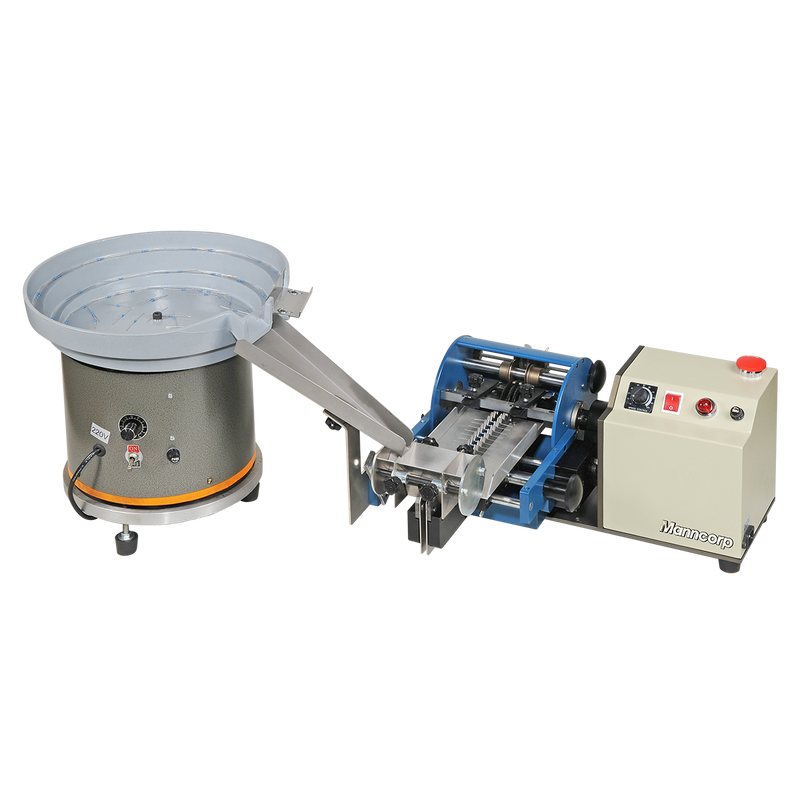

RT86 Motorized Axial Lead Former

Motorized Radial Lead Cutter for Taped Parts RT70

High-speed lead forming with tool-free adjustment.

The RT86 Motorized Lead Former delivers fast, precise processing with fully adjustable pitch and lead length—no tooling required.

Tool-free setup: quick pitch and lead length adjustment
High throughput: up to 35,000 taped or 2,500 loose parts/hr
Precision build: sealed bearings for long-term accuracy
Rotary disc cutters: low stress, easy replacement, extended life

or for pricing

[{"id":40317000351883,"title":"RT86U","option1":"RT86U","option2":null,"option3":null,"sku":"RT86U","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86U","public_title":"RT86U","options":["RT86U"],"price":599500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000319115,"title":"RT86S","option1":"RT86S","option2":null,"option3":null,"sku":"RT86S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86S","public_title":"RT86S","options":["RT86S"],"price":609500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000384651,"title":"RT86W","option1":"RT86W","option2":null,"option3":null,"sku":"RT86W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86W","public_title":"RT86W","options":["RT86W"],"price":639500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000417419,"title":"RT86F","option1":"RT86F","option2":null,"option3":null,"sku":"RT86F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86F","public_title":"RT86F","options":["RT86F"],"price":649500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Available in Four Models

RT86: standard model for most applications (0.35–1.0 mm leads)
RT86S: for fine wires and small components (0.35–0.8 mm)
RT86W: for heavy gauge wires (0.3–1.5 mm)
RT86F: for vertical lead forming (0.35–0.8 mm)

All models include a tape reel holder and walking beam for handling both taped and loose components.

Designed for flexibility and speed, the RT86 series is ideal for upgrading manual processes and improving production efficiency.

Specifications	RT86S	RT86	RT86W	RT86F
	Motorized Taped and Loose Axial Lead Bender with Hopper	Motorized Taped and Loose Axial Lead Bender with Hopper	Motorized Taped and Loose Axial Lead Bender - Smaller diameter/components with Hopper	Motorized Taped and Loose Axial Lead Bender with Hopper
A Body Length	3.5-37.6 mm	3.5-37.6 mm	3.5-37.6 mm	3.6-18 mm
B Lead Length	3.5-15 mm	3.5-15 mm	3.5-15 mm	2-12 mm
C Shoulder Min	0.6 mm	1.2 mm	1.2 mm	3.5 mm
D Body Diameter	1.5-8 mm	1.5-8 mm	1.5-8 mm	1.5-6 mm
ɸW Wire Diameter	0.35-0.8 mm	0.35-0.8 mm	0.35-1.2 mm	0.35-0.8 mm
H Support Lead Max	N/A	N/A	N/A	25 mm
P (Pitch)	5-40 mm	6-40 mm	6-40 mm	2.5-13.5 mm (The lower C=3 mm, the wider P=40 mm)
R (Radius)	N/A	N/A	N/A	1-3°
Production Rates - Taped	43,000 pcs/hr	43,000 pcs/hr	43,000 pcs/hr	43,000 pcs/hr
Production Rates - Loose	7,200 pcs/hr	7,200 pcs/hr	7,200 pcs/hr	7,200 pcs/hr
Power	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz
Dimensions	470 x 500 x 235 mm	470 x 500 x 235 mm	470 x 500 x 235 mm	470 x 500 x 235 mm
Weight	25 kgs	25 kgs	26 kgs	25 kgs
Shipping Weight	27 kgs	27 kgs	28 kgs	27 kgs
Tape Pitch	N/A	N/A	N/A	N/A

Options	RT86S	RT86	RT86W	RT86F
Pitch Gauge	Yes	Yes	Yes	Yes
Foot Pedal	N/A	N/A	N/A	N/A
Component Counter	Yes	Yes	Yes	Yes
Bowl Feeder	Yes (RT90)	Yes (RT90)	Yes (RT90)	Yes (RT90)
