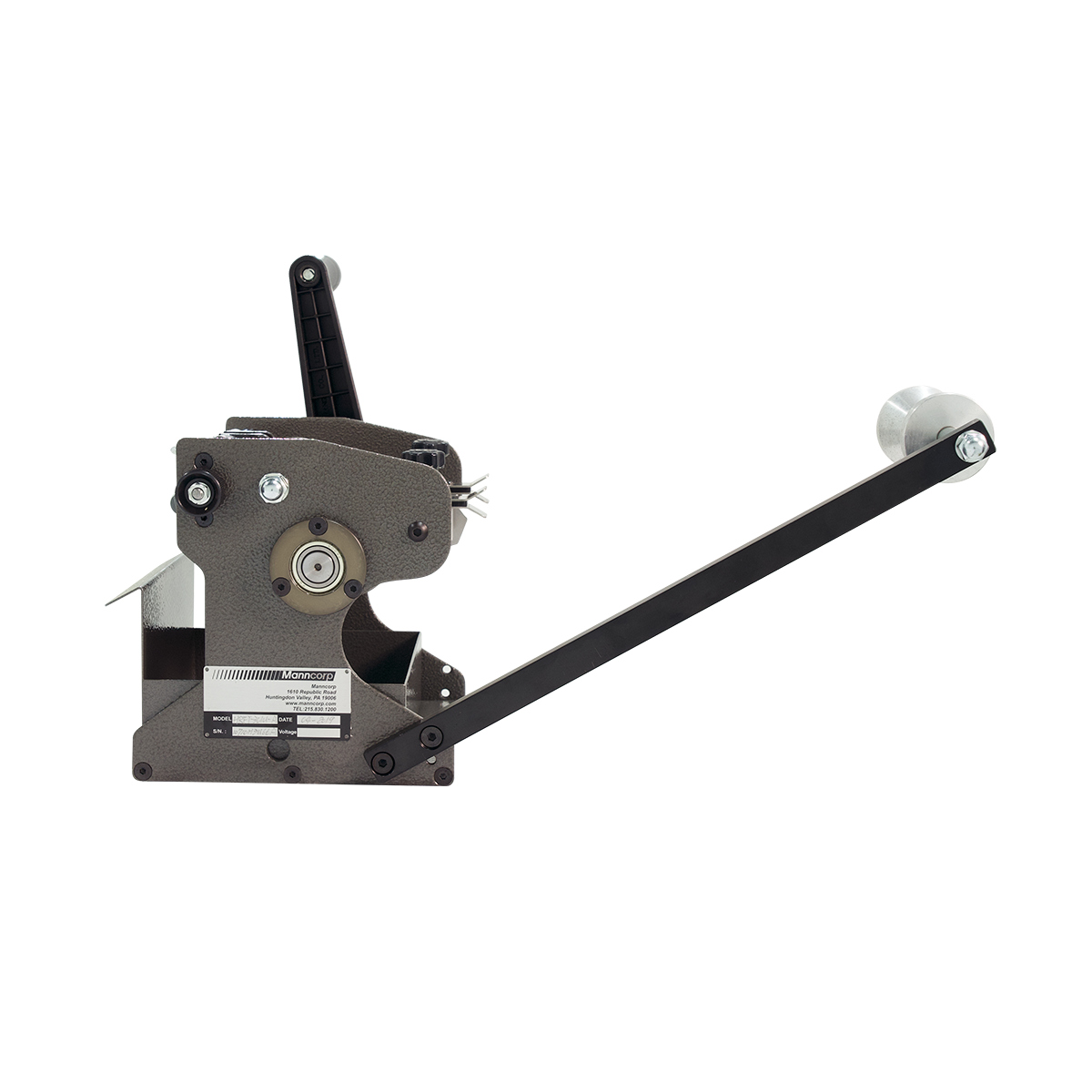

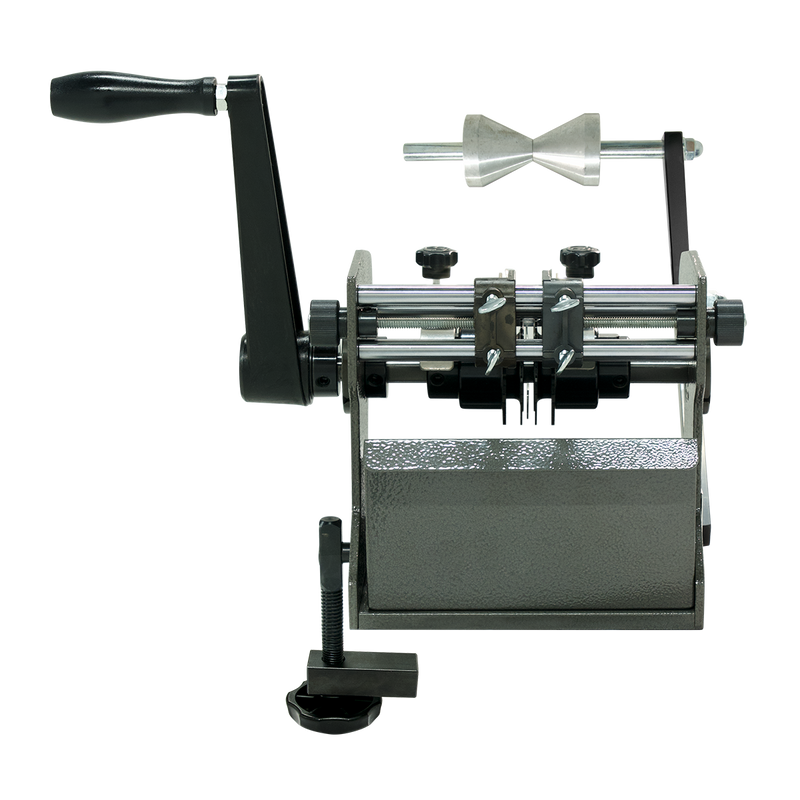

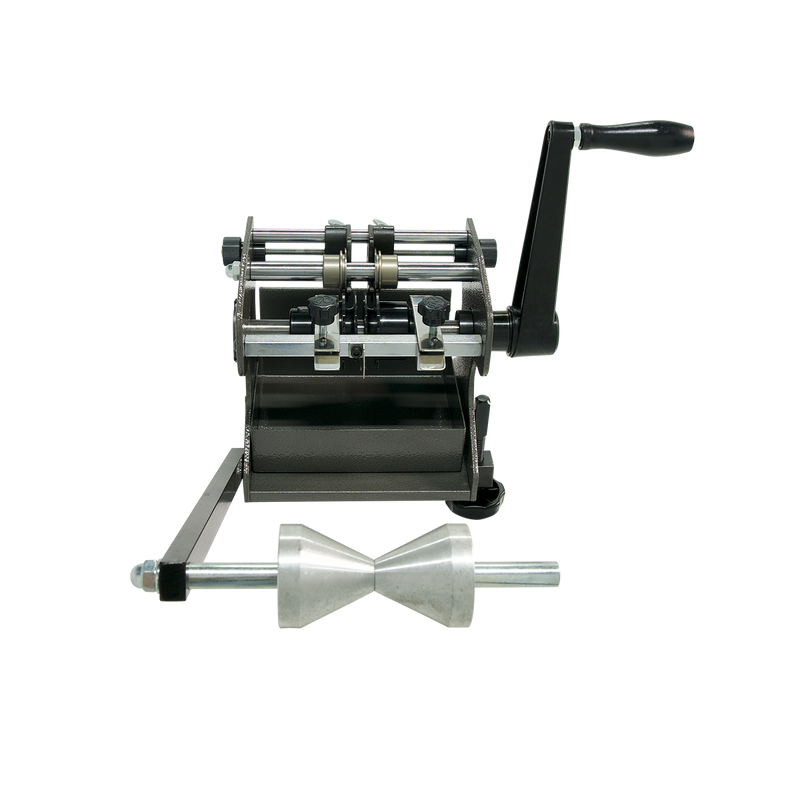

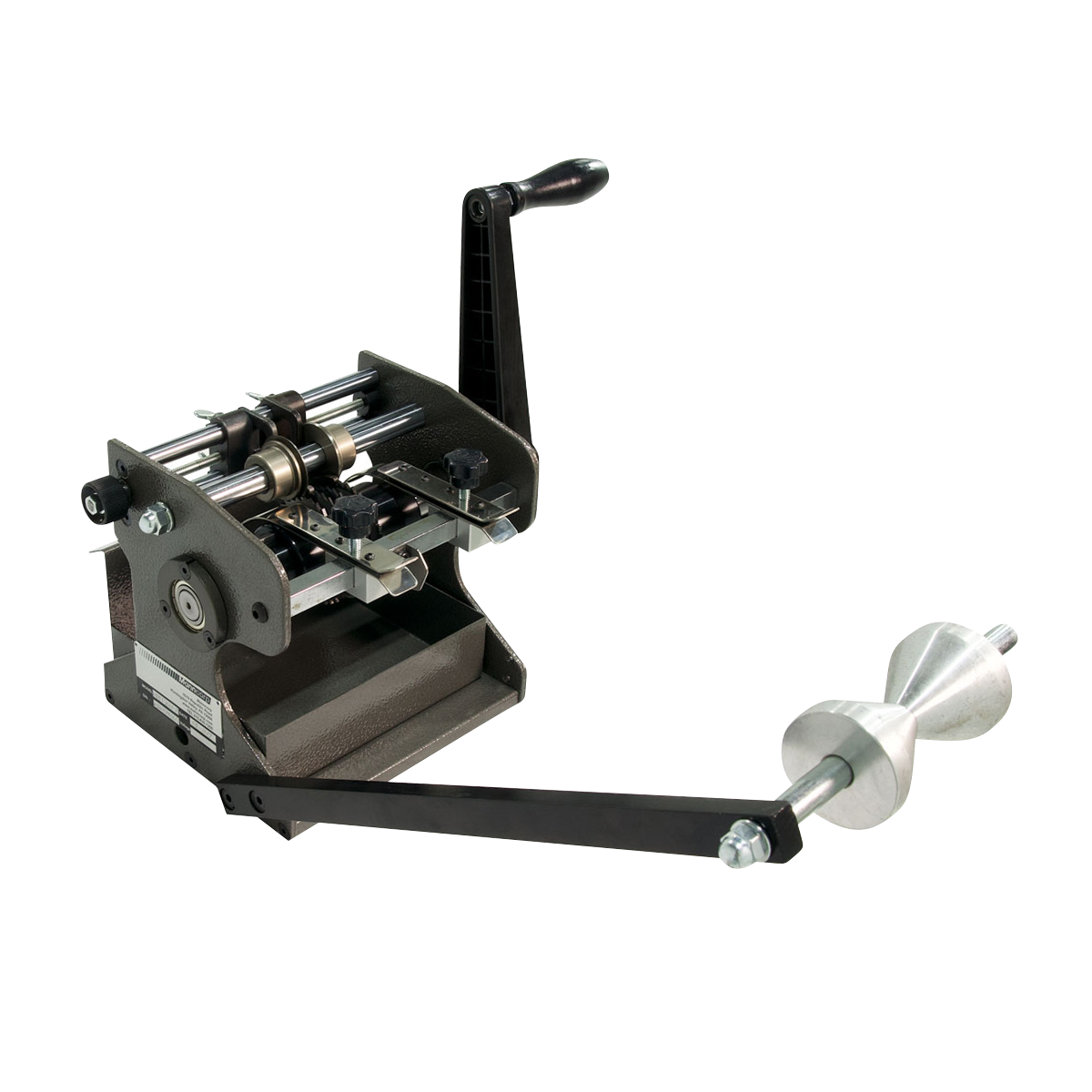

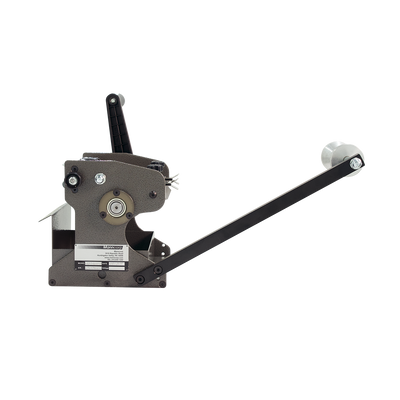

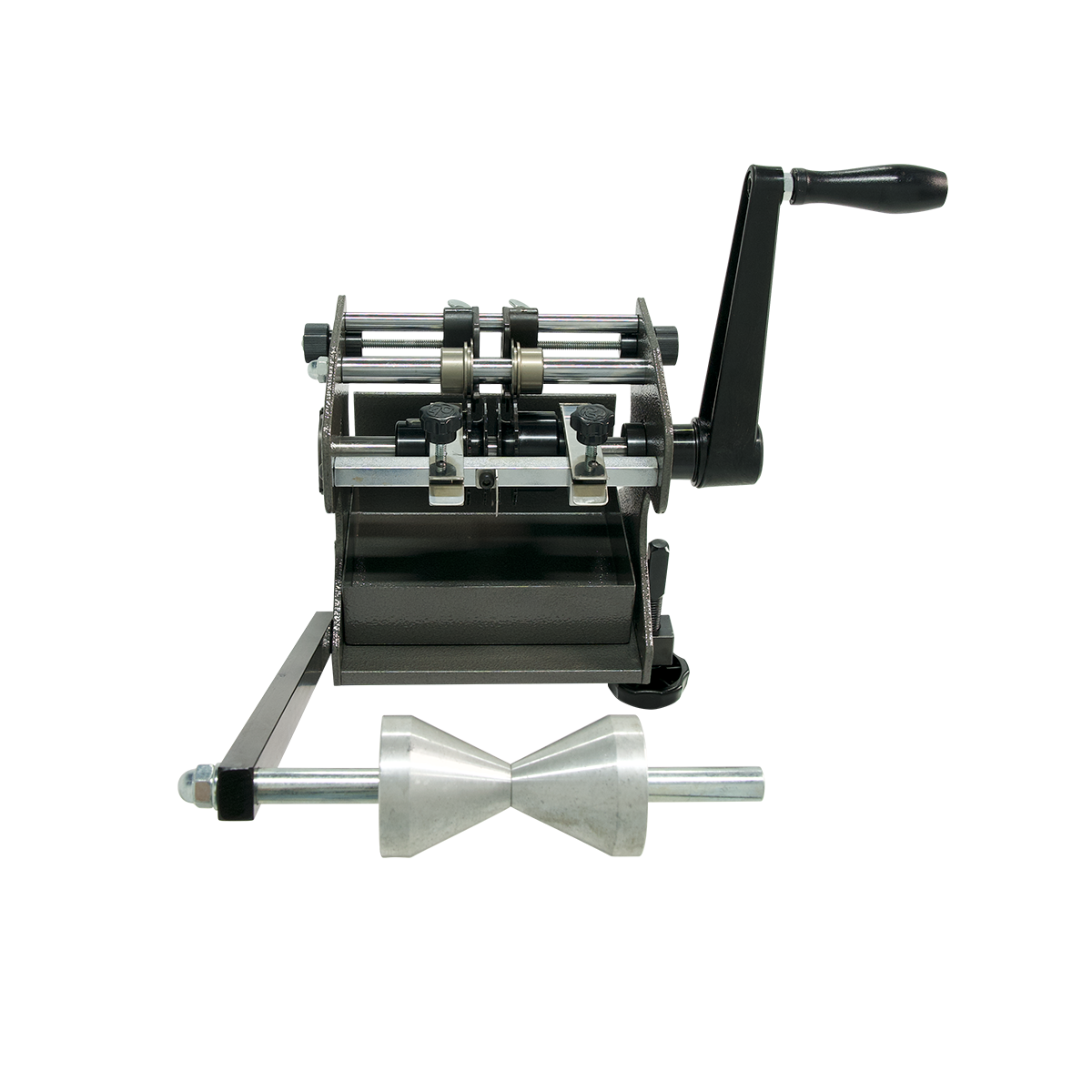

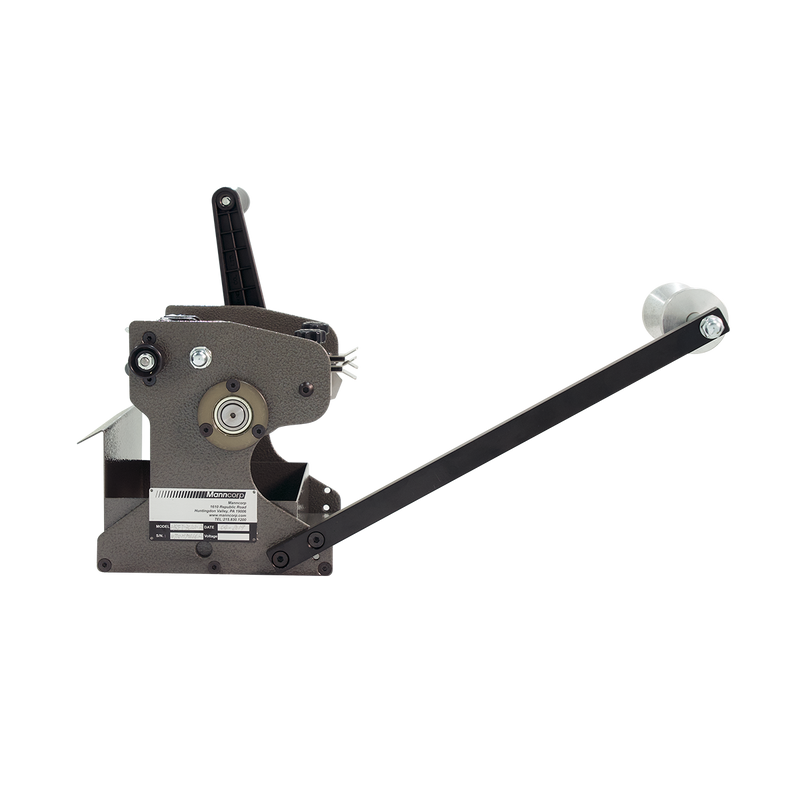

Manual Axial Lead Former HRFT301 for Taped Parts

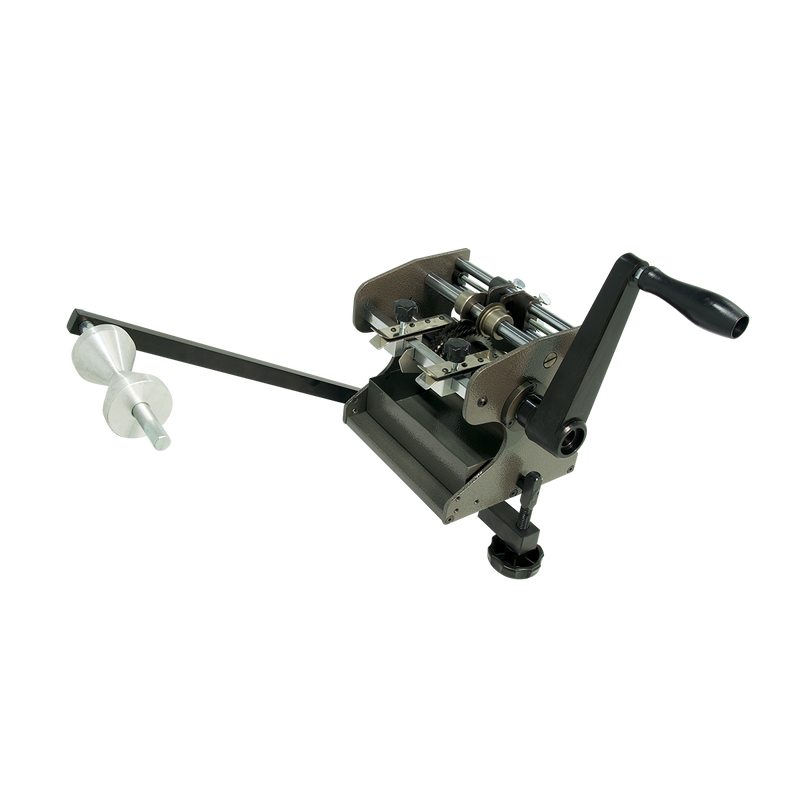

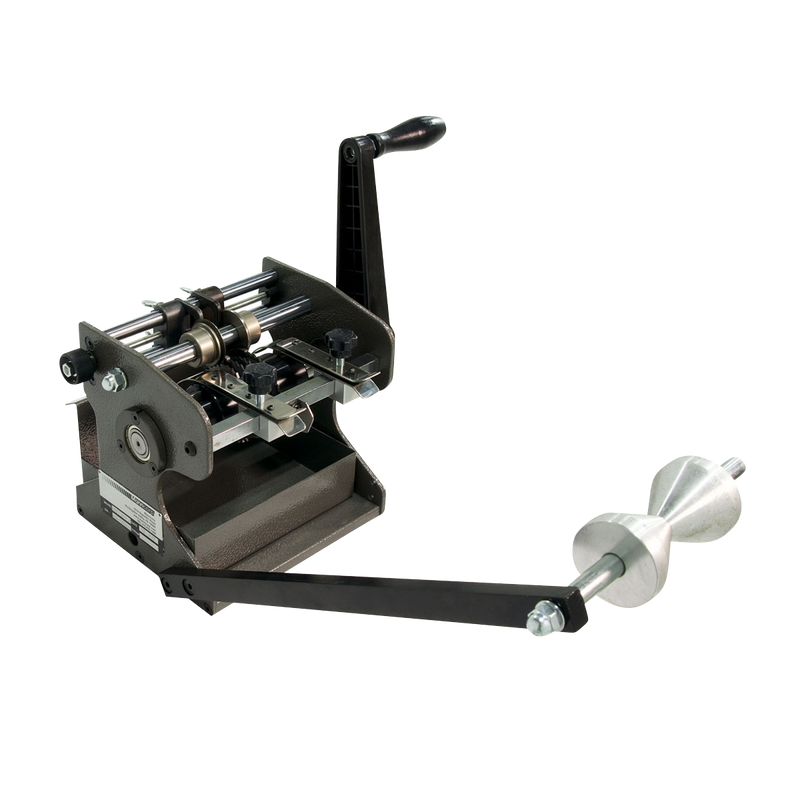

The HRFT301 is a high-performance manual axial lead former capable of processing up to 25,000 taped components per hour with speed and precision. It minimizes mechanical stress during bending, preserving component integrity and reliability.

An included adjustable tape reel holder allows quick setup for various pitch and cut lengths, supporting a wide range of production needs. Its low-maintenance, compact design is ideal for small-scale production, contract manufacturers, and facilities with limited workspace.

Requiring no formal training, the HRFT301 is a true set-and-go solution—durable, easy to use, and built for cost-efficient lead forming.

Model

HRFT301U

HRFT301S

HRFT301F

or for pricing

[{"id":40316999827595,"title":"HRFT301U","option1":"HRFT301U","option2":null,"option3":null,"sku":"HRFT301U","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HRFT301 Manual Axial Lead Former - HRFT301U","public_title":"HRFT301U","options":["HRFT301U"],"price":156500,"weight":24948,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316999860363,"title":"HRFT301S","option1":"HRFT301S","option2":null,"option3":null,"sku":"HRFT301S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HRFT301 Manual Axial Lead Former - HRFT301S","public_title":"HRFT301S","options":["HRFT301S"],"price":161500,"weight":24948,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316999893131,"title":"HRFT301F","option1":"HRFT301F","option2":null,"option3":null,"sku":"HRFT301F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HRFT301 Manual Axial Lead Former - HRFT301F","public_title":"HRFT301F","options":["HRFT301F"],"price":177500,"weight":24948,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Description Protect_msd Restore_and_store Specifications Features Feeders Machine_configurations Applications Profile_predictions Performance_charts Video Navigator_software Process_window Add_ons Temperature_tolerance Includes Add_fluxing Contact

Available in Three Models

Standard lead former/cutter (HRFT301U) for lead widths from 0.35 to 1.0mm diameter.

Thin-lead lead former/cutter (HRFT301S) for finer diameter wires or smaller components that can be bent closer to the body. For lead widths from 0.35 - 0.8mm diameter.

Vertical stand-up former/cutter (HRFT301F) for lead widths from 0.35 - 1.0mm diameter.

Specifications	HRFT301U	HRFT301S	HRFT301F
	Manual Taped Lead Bender	Manual Taped Lead Bender - Smaller diameter/components	Manual Taped Lead Bender - Vertical Mount
A Body Length	3.5-37.6 mm	3.5-37.6 mm	4-18 mm
B Lead Length	3.6-10 mm	3.6-10 mm	2-12 mm
C Shoulder Min	1.2 mm	0.6 mm	4 mm
D Body Diameter	1.5-8 mm	1.5-8 mm	1.5-8 mm
ɸW Wire Diameter	0.35-0.8 mm	0.35-0.6 mm	0.35-0.8 mm
H Support Lead Max	N/A	N/A	25 mm
P (Pitch)	6-40 mm	5-40 mm	2.5-13.5 mm (The lower C=3 mm, the wider P=40 mm)
R (Radius)	N/A	N/A	1°
Production Rates - Taped	25,000 pcs/hr	25,000 pcs/hr	25,000 pcs/hr
Production Rates - Loose	N/A	N/A	N/A
Power	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz
Dimensions	430 x 300 x 280 mm	430 x 300 x 280 mm	430 x 300 x 280 mm
Weight	18 lbs (8 kgs)	18 lbs (8 kgs)	18 lbs (8 kgs)
Shipping Weight	20 lbs (9 kgs)	20 lbs (9 kgs)	20 lbs (9 kgs)
Tape Pitch	N/A	N/A	N/A

Options	HRFT301U	HRFT301S	HRFT301F

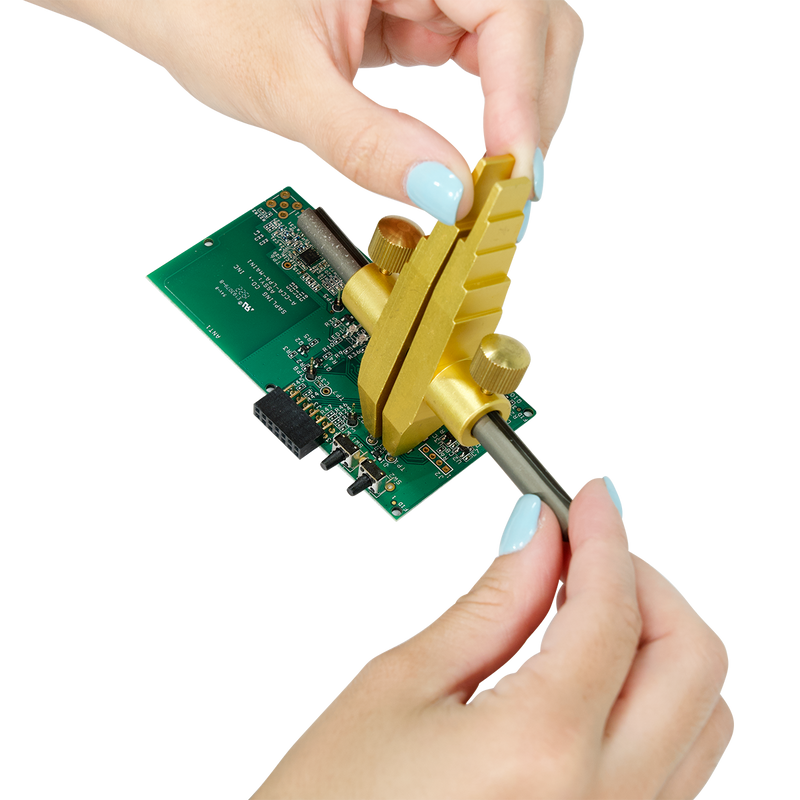

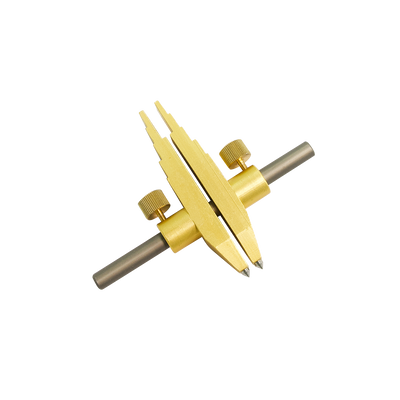

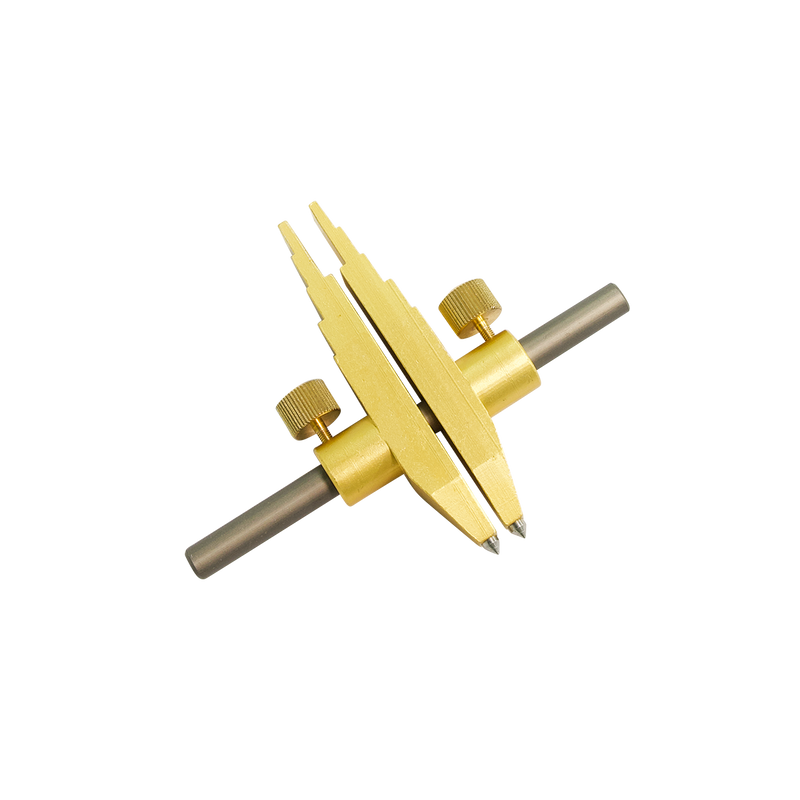

Pitch Gauge	Yes	Yes	Yes
Foot Pedal	N/A	N/A	N/A
Component Counter	N/A	N/A	N/A
Bowl Feeder	N/A	N/A	N/A
