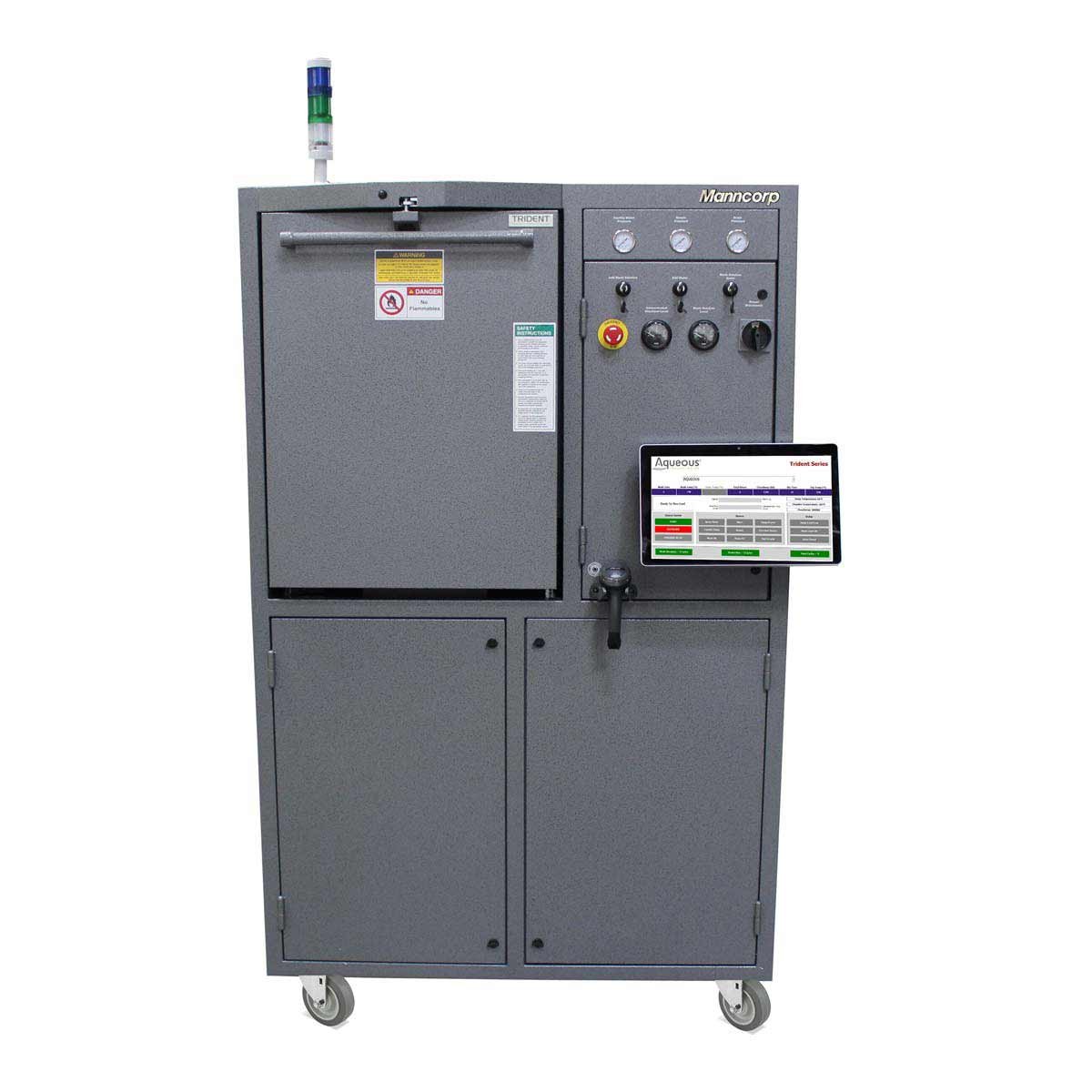

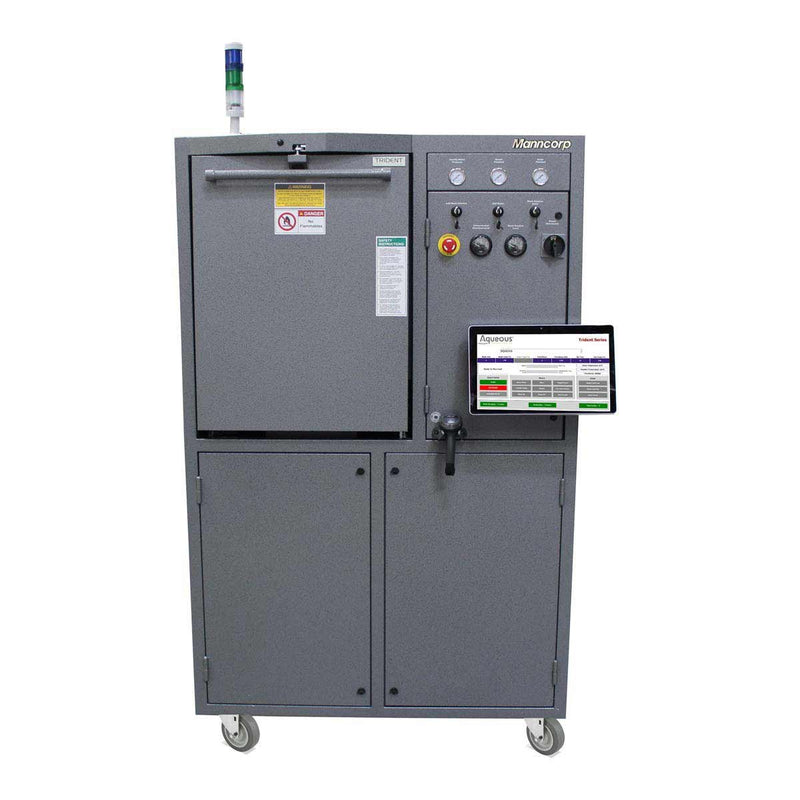

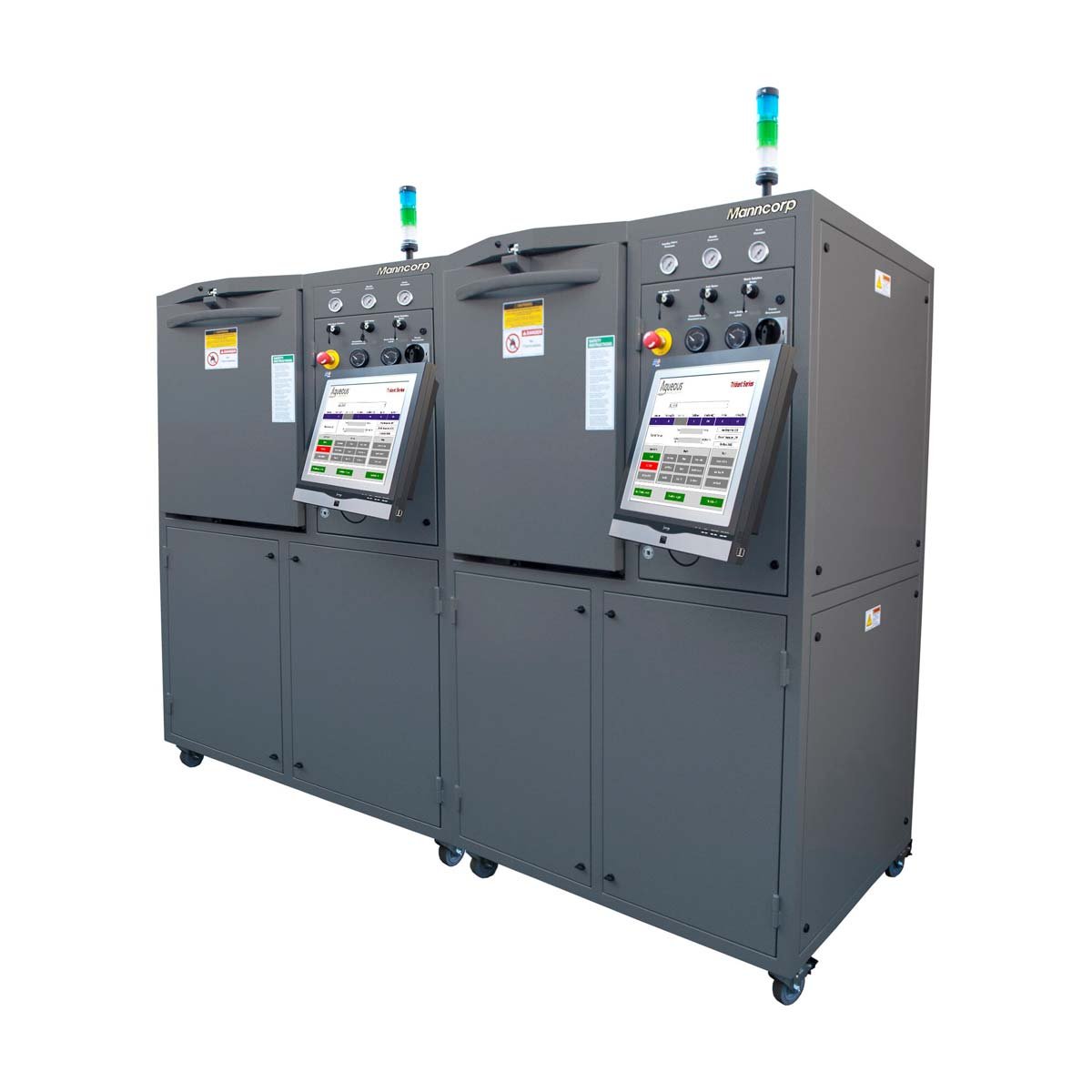

Thorough Cleaning of Assembles with Water Soluble Fluxes

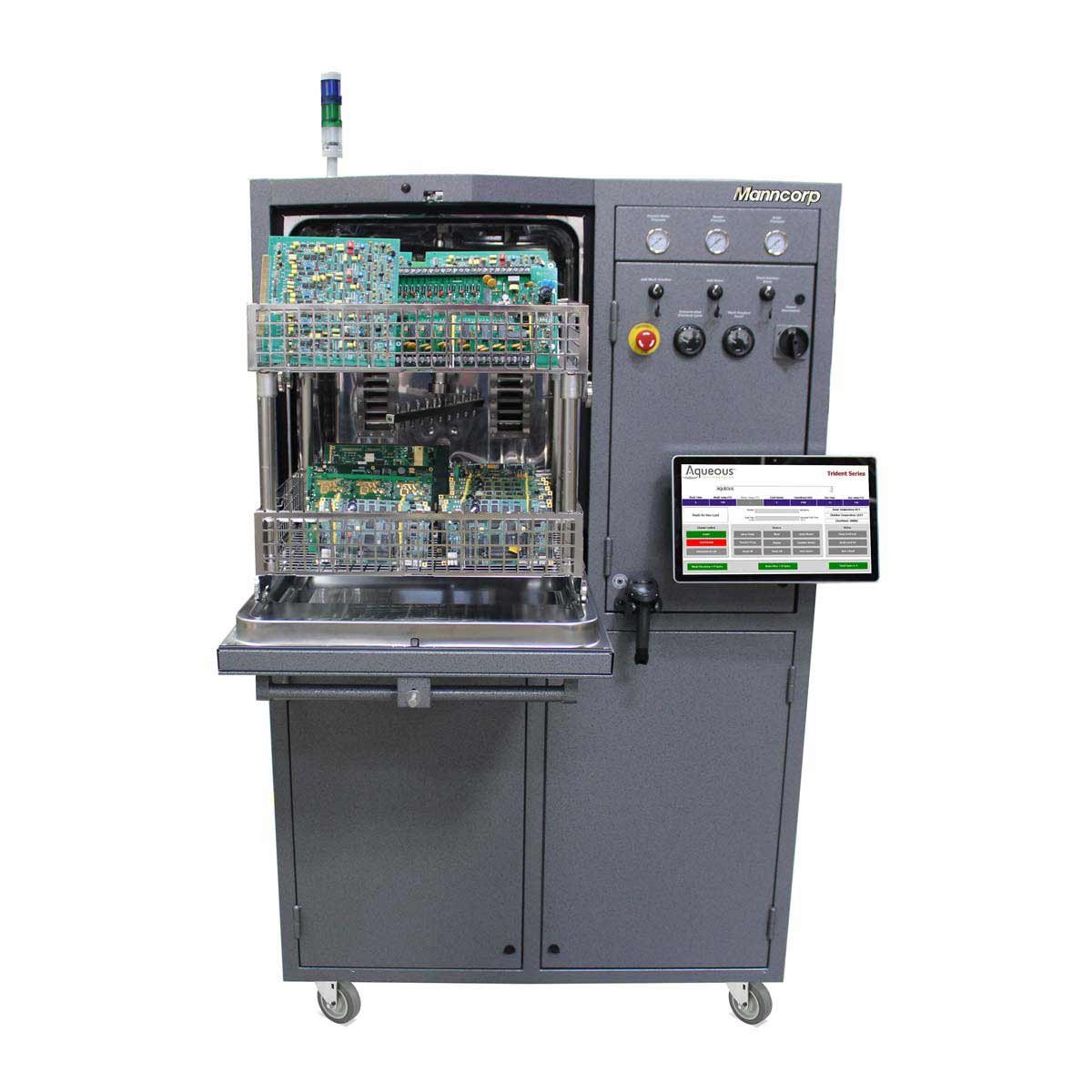

Trident CLO provides fully automatic washing, rinsing, drying and cleanliness testing of printed circuit boards assembled with eutectic (SnPb) or lead-free solders and water soluble fluxes. Trident's asymmetrical fan-jet spray system with twin counter-rotating spray bars and twenty fan-jet nozzles delivers precision-diffused washer solution and rinse water onto an oscillating board rack to ensure excellent under-component penetration and highly effective coverage on even high-density printed circuit boards populated with low-standoff surface mount (SMT) components.
Trident's fast cycle times allow more assemblies to be cleaned, tested and dried per shift than any other automated defluxing systems.
Cleans to Specified Levels
The on-board cleanliness tester continuously monitors cleanliness levels in real-time and controls the cleaning process automatically, ensuring cleaned circuit boards meet or exceed programmed settings, board after board, for the most consistent cleanliness levels possible.
Easy Operation & Maintenance

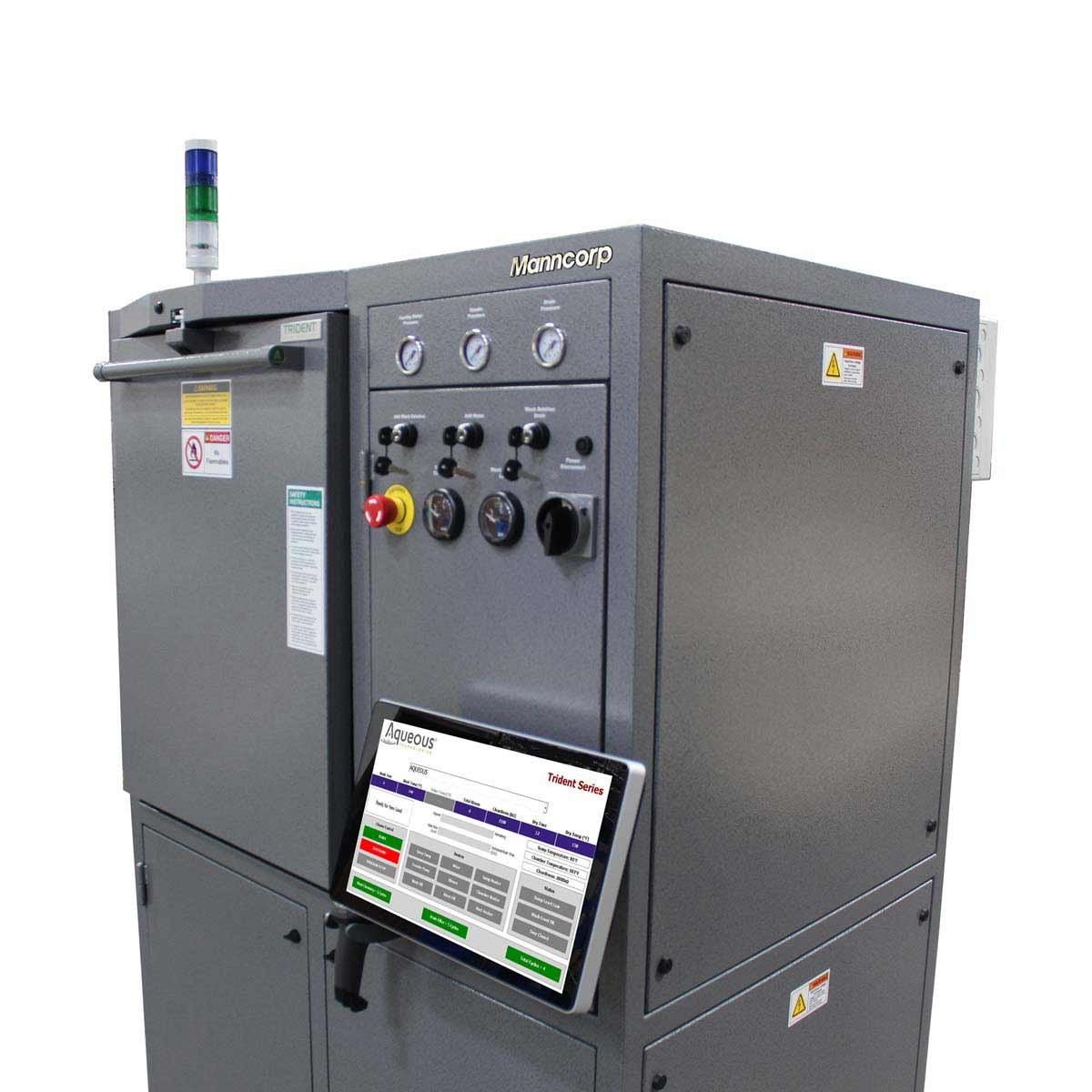

Estimated completion time, cleanliness values and operating temperatures are displayed in real time on screen. Gauges on the machine indicate water line, spray manifold and pre-drain filter pressures.
The machine may be connected to a water line, allowing the water storage tank to be refilled at the flip of a switch, or the tank can be filled manually, completely eliminating the requirement for a water connection.
Statistical Process Control (SPC) for Traceability and Tracking
Trident CLO's SPC data recording automatically tracks alpha-numeric cleaning program names, process times and temperatures, set and actual cleanliness levels, and other valuable data. The included bar code scanner makes it quick and easy to attach process data to a specific assembly. SPC data can be viewed on screen, sent to a networked printer, or exported to USB or another computer via network protocols.
|Trident CLO Specifications|

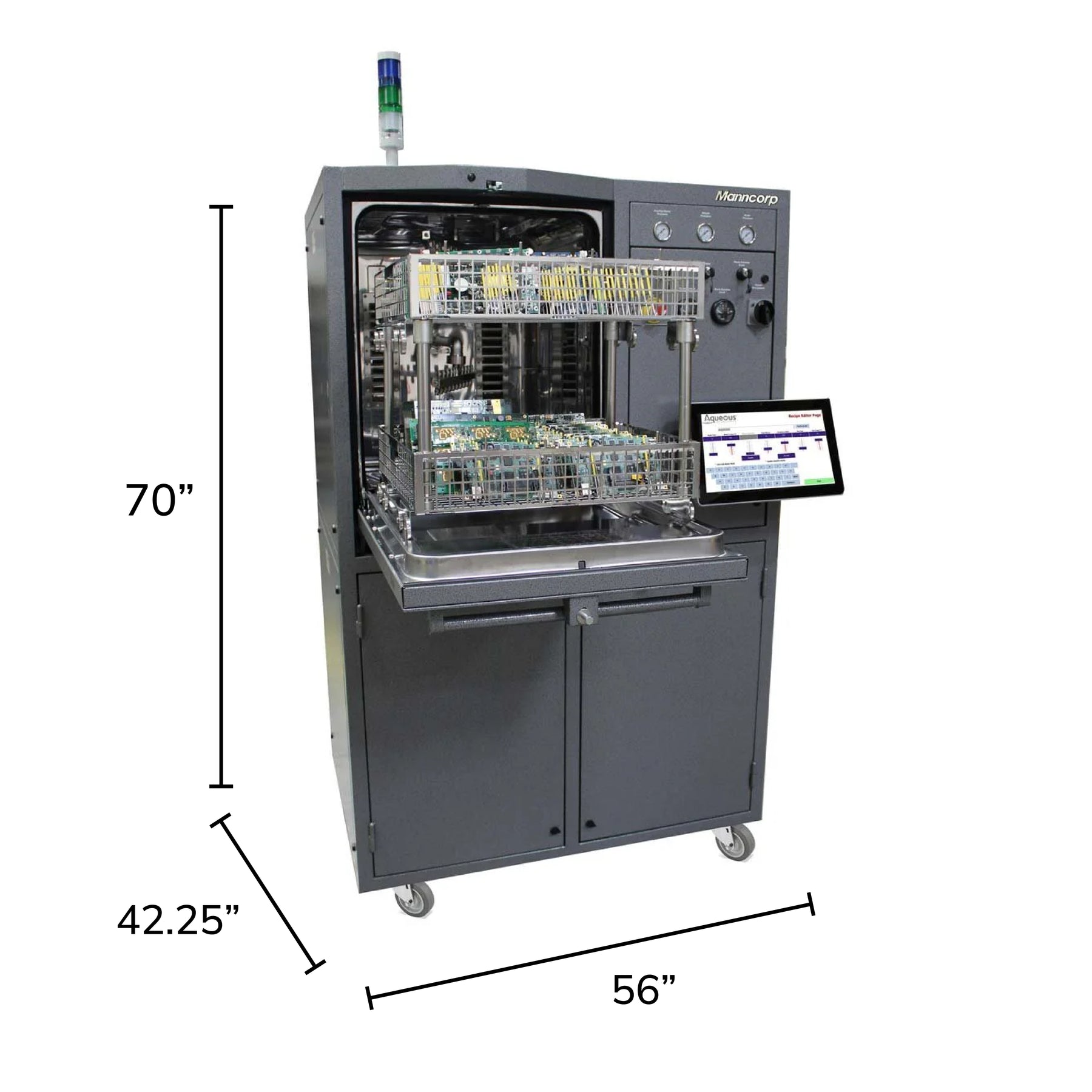

|Dimensions||42 ¼" L x 47 ¾" D x 70" H|
|Power Requirements||208-240 VAC 40 amps 3Ø |
400 VAC 31 amps 3Ø
|Water Input||¾" NPT|
|Air Exhaust||6" (static)|
|No-Clean Flux Removal||No|
|Water Soluble Flux Removal||Yes|
|Rosin Flux Removal||No|
|Lead & Lead-Free Compatible||Yes|
|Average Cycle Time||30 minutes|
|Estimated Assemblies Per Hour Per Chamber||3" x 10" - 144/hr |
4" x 5" - 192/hr
8" x 10" - 44/hr
20" x 20" - 24/hr
|Anti-Shadowing Technology||Oscillating board rack and asymmetrical nozzles|
|Fluid-Delivery Technology||Twenty 15° stainless steel adjustable nozzles|
|Built-In Cleanliness Testing||Standard|
|Discharge Configuration||Closed-loop (no drain)|
|Closed-Loop Wash Water Recycler||Standard|
|SPC Data Logging with On-Screen Viewing||Standard|
|SPC Data USB Export||Standard|
|SPC Remote Viewing||Standard|
|Heated Drying System||Standard|
|Control System||Windows® 10 computer|
|Operator Interface||Touchscreen Interface|
|ESD Ground Point||Standard|
