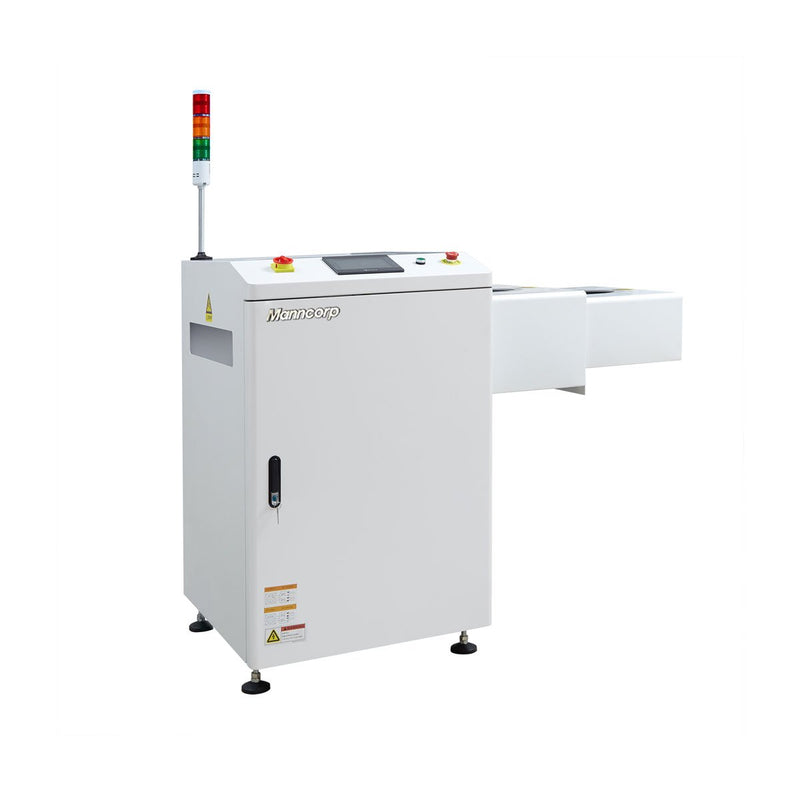

Automatic Telescoping Passageway Conveyor

Automatic Telescoping Passageway Conveyor from Manncorp

Automatic Telescoping Passageway Conveyor

When was the last time you checked traffic patterns of workers on your production floor? If they are detouring around a long line of machinery to go about their normal tasks, those extra steps could add up to many hours lost because of inefficiency. Manncorp's Automatic Telescoping Passageway Conveyor is designed to eliminate this issue by serving as a gateway, allowing personnel passage through desired locations along the PCB assembly line.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Conveyor Direction
Regular price $11,995.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Experience Smart Sensing Technology

The Automatic Telescoping Passageway Conveyor is completely automated. When its sensors detect the presence of someone wishing to cross the production line, the conveyor is halted momentarily, and the machine automatically telescopes into the housing to create a passageway. Immediately after the line is crossed, the conveyor returns to its normal position, saving time and increasing efficiency.

Model GL350W-SB GL350W-ST
Description Folding Passageway Conveyor Automatic Telescoping Passageway Conveyor
Machine Dimensions 1320 mm L x 550 mm W x 900 mm H
(52" L x 21.7" W x 35.5" H)
1700 mm L x 750 mm W x 1200 mm H
(67" L x 29.5" W x 47.25" H)
PCB Size 400 mm x 50-350 mm
(15.74" x 2"-13.78")
400 mm x 50-350 mm
(15.74" x 2"-13.78")
Power 110V, 50-60Hz 110V, 50-60Hz
Weight 200 kilos 230 kilos
Supply Pressure 5 kgf/cm² 5 kgf/cm²
PCB Direction Left to right (standard) or right to left (optional) operation Left to right (standard) or right to left (optional) operation
