AOI/SPI/PCB Inspection Conveyor

AOI/SPI/PCB Inspection Conveyor
PCB Inspection Conveyor for AOI/SPI from Manncorp

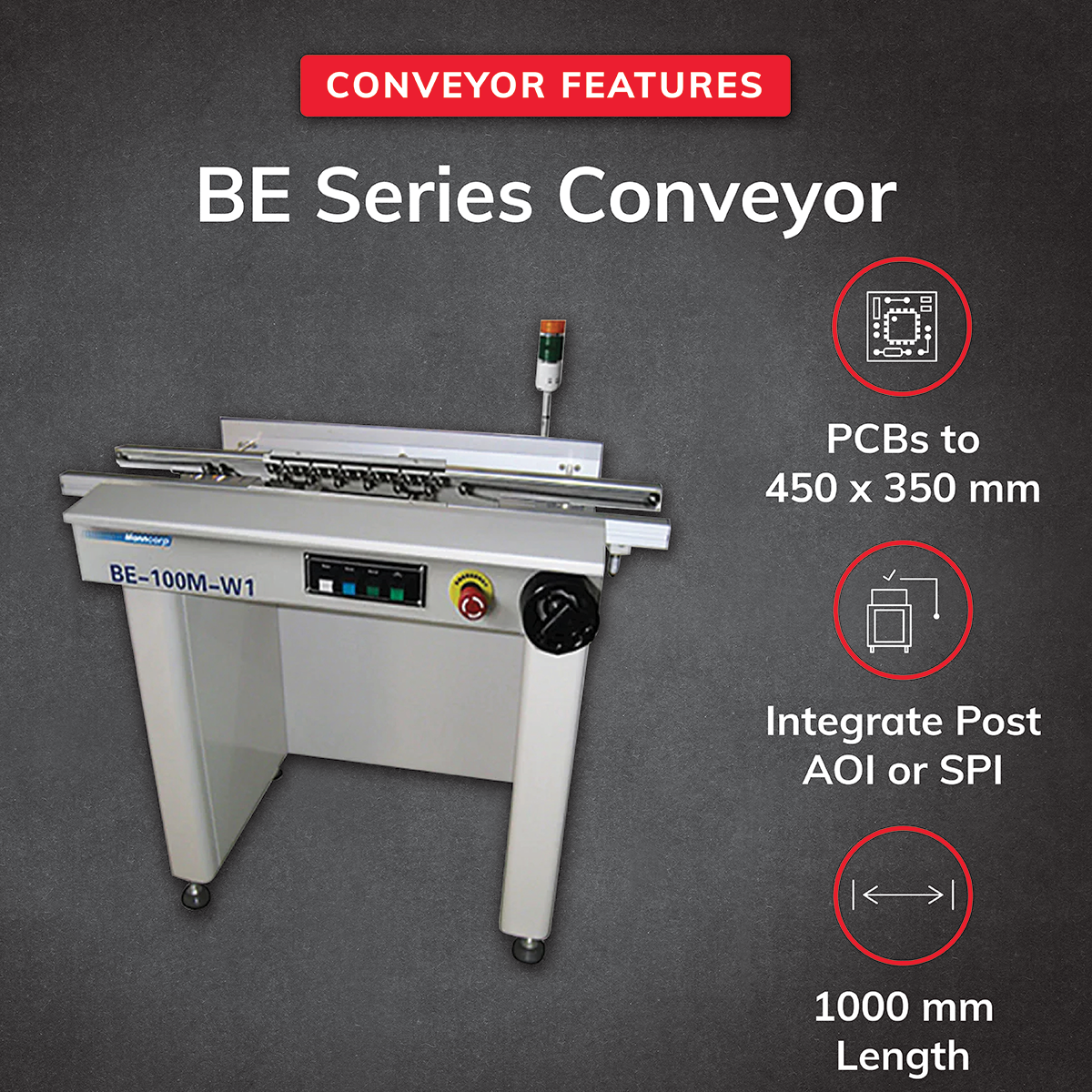

AOI/SPI/PCB Inspection Conveyor

Avoid board issues leading to halts in your assembly line. The AOI/SPI/PCB Inspection Conveyor automatically lifts rejected (NG) PCBs for visual inspection and/or removal as they come out of an inline AOI or SPI machine while good PCBs pass through for the next process.

Regular price $6,995.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Reduce Assembly Line Interruptions

When the AOI/SPI/PCB Inspection Conveyor receives an NG signal from an inline AOI or SPI system, it alerts the operator with a red light and an alarm while lifting the rejected PCB above the conveyor rails so that good boards can continue to pass through underneath. If a second NG board is signaled before the operator clears the first, the conveyor will halt and alert the operator. Once the operator removes the first NG board and presses the RESET button, the conveyor resumes operation.

AOI/SPI/PCB Inspection Conveyor Specifications
PCB Size 50 mm x 50 mm to 450 mm x 350 mm wide
(1.97" x 1.97" to 15.75" x 13.78" wide)
PCB Direction Left to right (right to left optional)
Transport Height 900 Â±20 mm (35.4 ± 0.79")
Fixed Side Front
Main Motor Power 115 W
Power Supply 110 VAC, 50/60 Hz
Dimensions (L x W x H) 1000 mm x 650 mm x 900 +50/-20 mm
(40" x 26" x 35 + 1.97"/-0.79")
Weight 95 kg (209 lbs)
