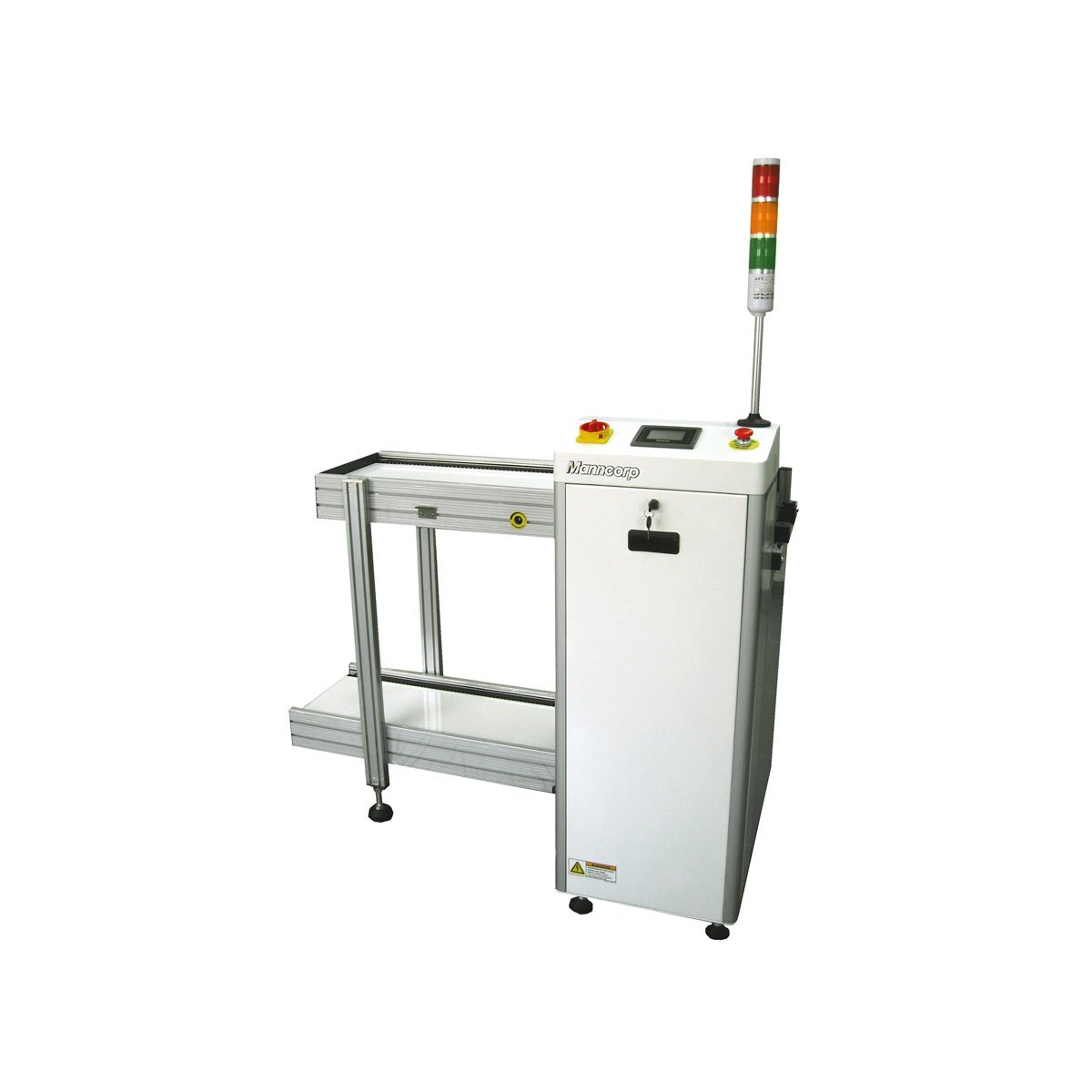

Standard PCB Magazine Loader | Dedicated Size, Automatic Loading

The BL Series provides cost-effective, space-saving PCB loading for SMT lines using standard magazine sizes. Its compact design ensures reliable, high-throughput performance while integrating easily into existing setups.

Compact footprint ideal for limited floor space
Optimized for uniform magazines
SMEMA-compatible for easy integration
CE compliant for safe operation

or for pricing

[{"id":40316103950475,"title":"250 mm \/ Small \/ Left to Right","option1":"250 mm","option2":"Small","option3":"Left to Right","sku":"BL250W-MT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 250 mm \/ Small \/ Left to Right","public_title":"250 mm \/ Small \/ Left to Right","options":["250 mm","Small","Left to Right"],"price":1399500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321594884235,"title":"250 mm \/ Small \/ Right to Left","option1":"250 mm","option2":"Small","option3":"Right to Left","sku":"BL250W-MT-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 250 mm \/ Small \/ Right to Left","public_title":"250 mm \/ Small \/ Right to Left","options":["250 mm","Small","Right to Left"],"price":1399500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316103983243,"title":"250 mm \/ Standard \/ Left to Right","option1":"250 mm","option2":"Standard","option3":"Left to Right","sku":"BL250W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 250 mm \/ Standard \/ Left to Right","public_title":"250 mm \/ Standard \/ Left to Right","options":["250 mm","Standard","Left to Right"],"price":1499500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321594917003,"title":"250 mm \/ Standard \/ Right to Left","option1":"250 mm","option2":"Standard","option3":"Right to Left","sku":"BL250W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 250 mm \/ Standard \/ Right to Left","public_title":"250 mm \/ Standard \/ Right to Left","options":["250 mm","Standard","Right to Left"],"price":1499500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104016011,"title":"330 mm \/ Standard \/ Left to Right","option1":"330 mm","option2":"Standard","option3":"Left to Right","sku":"BL330W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 330 mm \/ Standard \/ Left to Right","public_title":"330 mm \/ Standard \/ Left to Right","options":["330 mm","Standard","Left to Right"],"price":1699500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321594949771,"title":"330 mm \/ Standard \/ Right to Left","option1":"330 mm","option2":"Standard","option3":"Right to Left","sku":"BL330W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 330 mm \/ Standard \/ Right to Left","public_title":"330 mm \/ Standard \/ Right to Left","options":["330 mm","Standard","Right to Left"],"price":1699500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104048779,"title":"390 mm \/ Standard \/ Left to Right","option1":"390 mm","option2":"Standard","option3":"Left to Right","sku":"BL390W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 390 mm \/ Standard \/ Left to Right","public_title":"390 mm \/ Standard \/ Left to Right","options":["390 mm","Standard","Left to Right"],"price":1899500,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321594982539,"title":"390 mm \/ Standard \/ Right to Left","option1":"390 mm","option2":"Standard","option3":"Right to Left","sku":"BL390W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 390 mm \/ Standard \/ Right to Left","public_title":"390 mm \/ Standard \/ Right to Left","options":["390 mm","Standard","Right to Left"],"price":1899500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40316104081547,"title":"460 mm \/ Standard \/ Left to Right","option1":"460 mm","option2":"Standard","option3":"Left to Right","sku":"BL460W-ST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 460 mm \/ Standard \/ Left to Right","public_title":"460 mm \/ Standard \/ Left to Right","options":["460 mm","Standard","Left to Right"],"price":1999500,"weight":192777,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40321595015307,"title":"460 mm \/ Standard \/ Right to Left","option1":"460 mm","option2":"Standard","option3":"Right to Left","sku":"BL460W-ST-RL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Standard PCB Magazine Loader - BL Series - 460 mm \/ Standard \/ Right to Left","public_title":"460 mm \/ Standard \/ Right to Left","options":["460 mm","Standard","Right to Left"],"price":1999500,"weight":170097,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

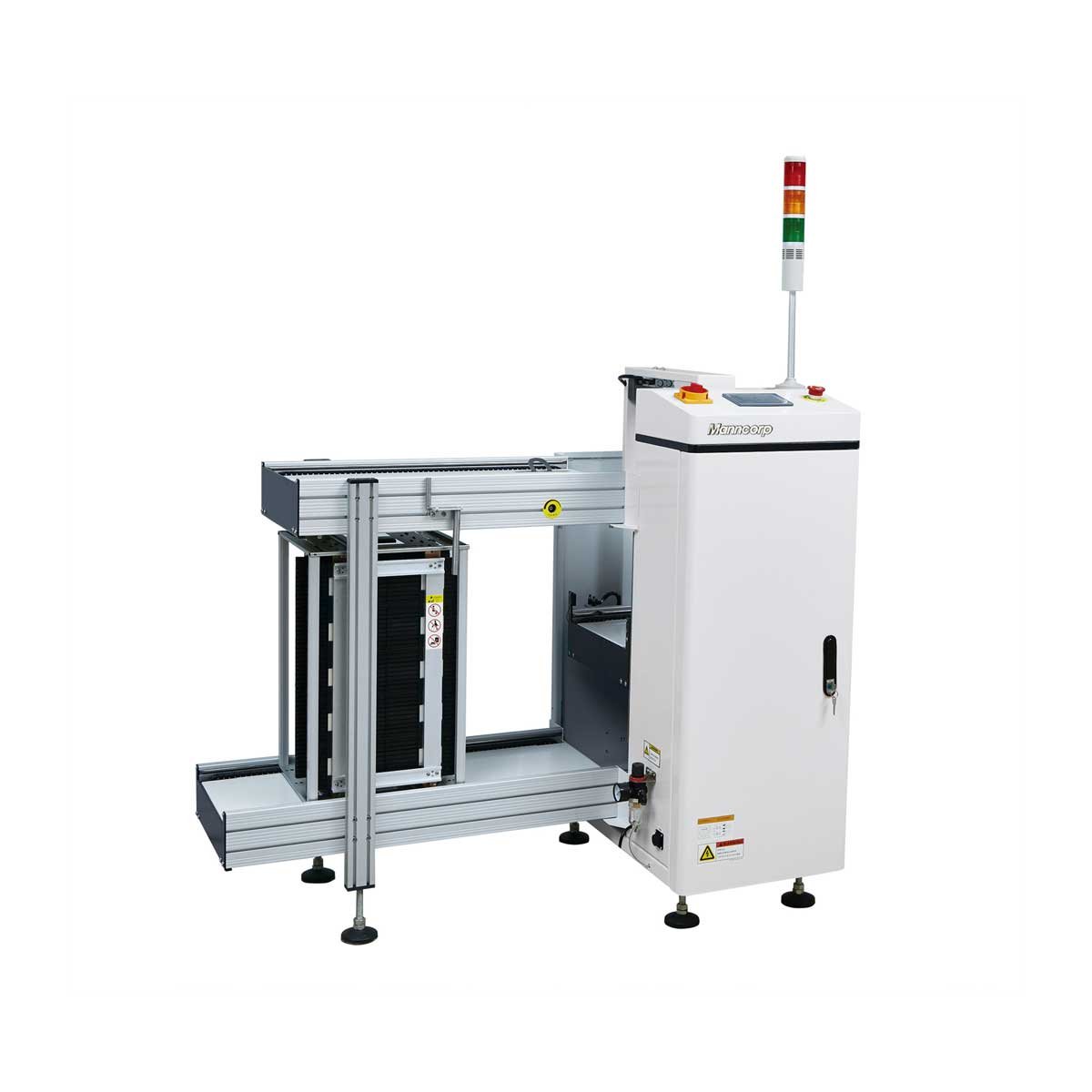

Multi-Magazine Loading for Consistent PCB Feeding

The BL Series automatically loads PCBs from magazines into SMT lines, providing a simple and reliable solution for operations using standardized magazine sizes.

Dedicated models: 250, 330, 390, and 460 mm
Optimized for uniform magazines for simplified operation
Automatic loading to reduce manual handling
Integrated conveyor transfer to downstream equipment

Efficient Automation & Reliable Handling

Designed for continuous production, the system features automatic magazine changeover, precise indexing, and controlled board transfer for consistent performance.

Automatic magazine changeover for uninterrupted operation
Selectable pitch settings: 10, 20, 30, 40 mm
Pneumatic pusher for smooth, controlled transfer
7" HMI interface for easy monitoring and control
Status light tower & alarm for operator awareness

MODEL	BL250W-ST BL250W-MT	BL330W-ST	BL390W-ST	BL460W-ST
PCB Size	50 x 50 mm to 350 x 250 mm (1.97" x 1.97" to 13.78" x 9.84")	50 x 50 mm to 460 x 330 mm (1.97" x 1.97" to 18.11" x 12.99")	50 x 50 mm to 535 x 390 mm (1.97" x 1.97" to 21.06" x 15.35")	120 x 120 mm to 535 x 460 mm (4.72" x 4.72" to 21.06" x 18.11")
Magazine Size	355 mm L x 320 mm W x 563 mm H (13.98" L x 12.60" W x 22.17" H)	460 mm L x 400 mm W x 563 mm H (18.11" L x 15.75" W x 22.17" H)	535 mm L x 460 mm W x 570 mm H (21.06" L x 18.11" W x 22.44" H)	535 mm L x 530 mm W x 570 mm H (21.06" L x 20.87" W x 22.44" H)
Machine Dimensions	BL250W-ST: 1350 mm L x 740 mm W x 1150 mm H (53" L x 29" W x 45" H) BL250W-MT: 900 mm L x 740 mm W x 1150 mm H (35" L x 29" W x 45" H)	1600 mm L x 820 mm W x 1150 mm H (63" L x 32" W x 45" H)	1700 mm L x 880 mm W x 1150 mm H (67" L x 35" W x 45" H)	1750 mm L x 960 mm W x 1150 mm H (69" L x 38" W x 45" H)
Net Weight	BL250W-ST: 140 kg (308 lbs.) BL250W-MT: 125 kg (275 lbs.)	200 kg (440 lbs.)	240 kg (530 lbs.)	300 kg (660 lbs.)
Shipping Weight	BL250W-ST: 180 kg (397 lbs.) BL250W-MT: 165 kg (364 lbs.)	240 kg (530 lbs.)	280 kg (617 lbs.)	340 kg (750 lbs.)
Selectable Pitch	10, 20, 30, 40 mm
Conveyor Direction	Left to right (standard) or right to left (optional)
PCB Thickness	0.4 mm min. (0.016" min.)
Air Supply Pressure	70-85 psi
Air Consumption	.35 CFM
Voltage	110 VAC
Power	300 VA max.
