Adjustable Magazine Loader

Adjustable PCB Magazine Loader from Manncorp
Adjustable PCB Loader Compatible with Most PCB Magazine Sizes

Adjustable Magazine Loader

A flexible PCB loader for electronics manufacturers who need to accommodate a wide variety of PCB magazine sizes.

Regular price $16,995.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

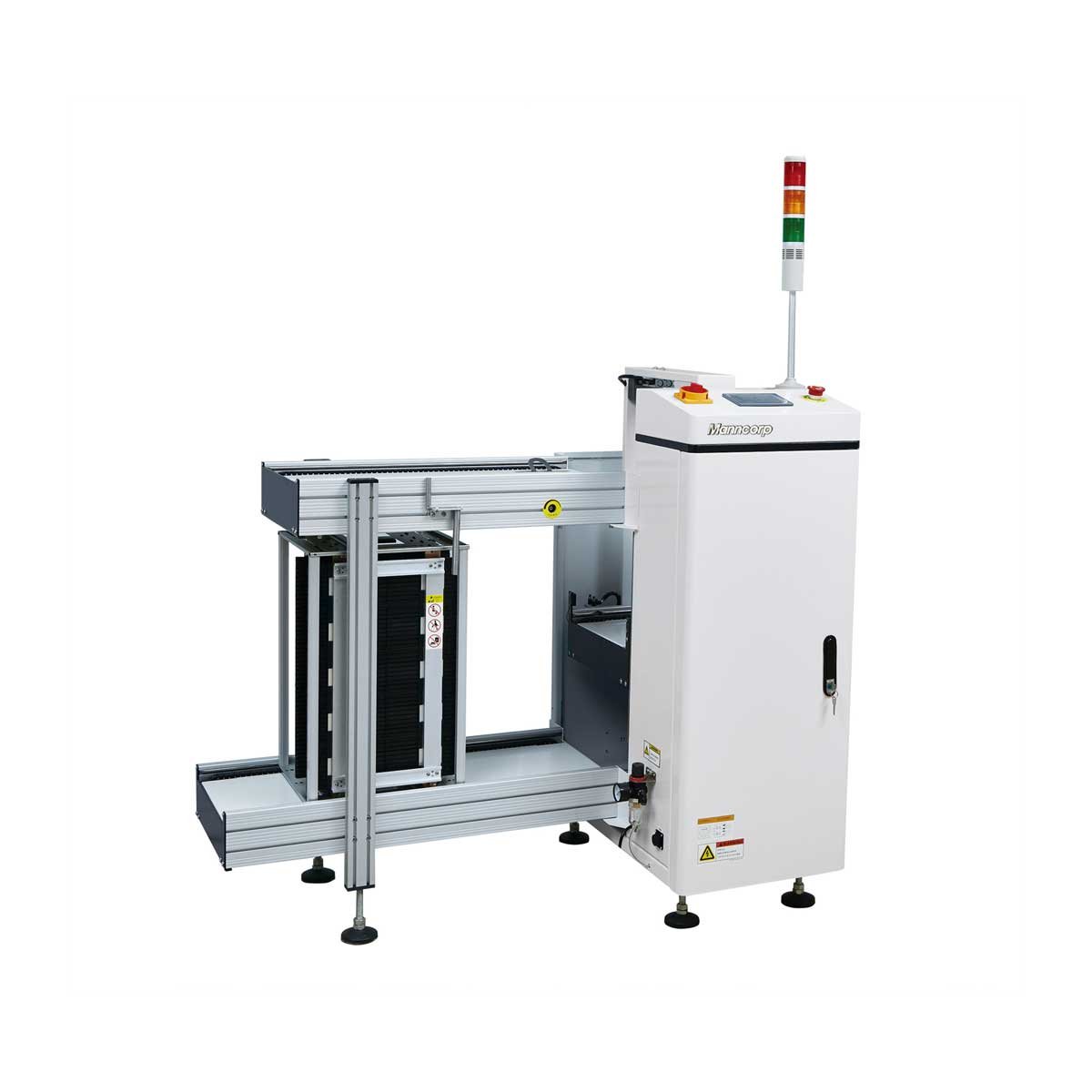

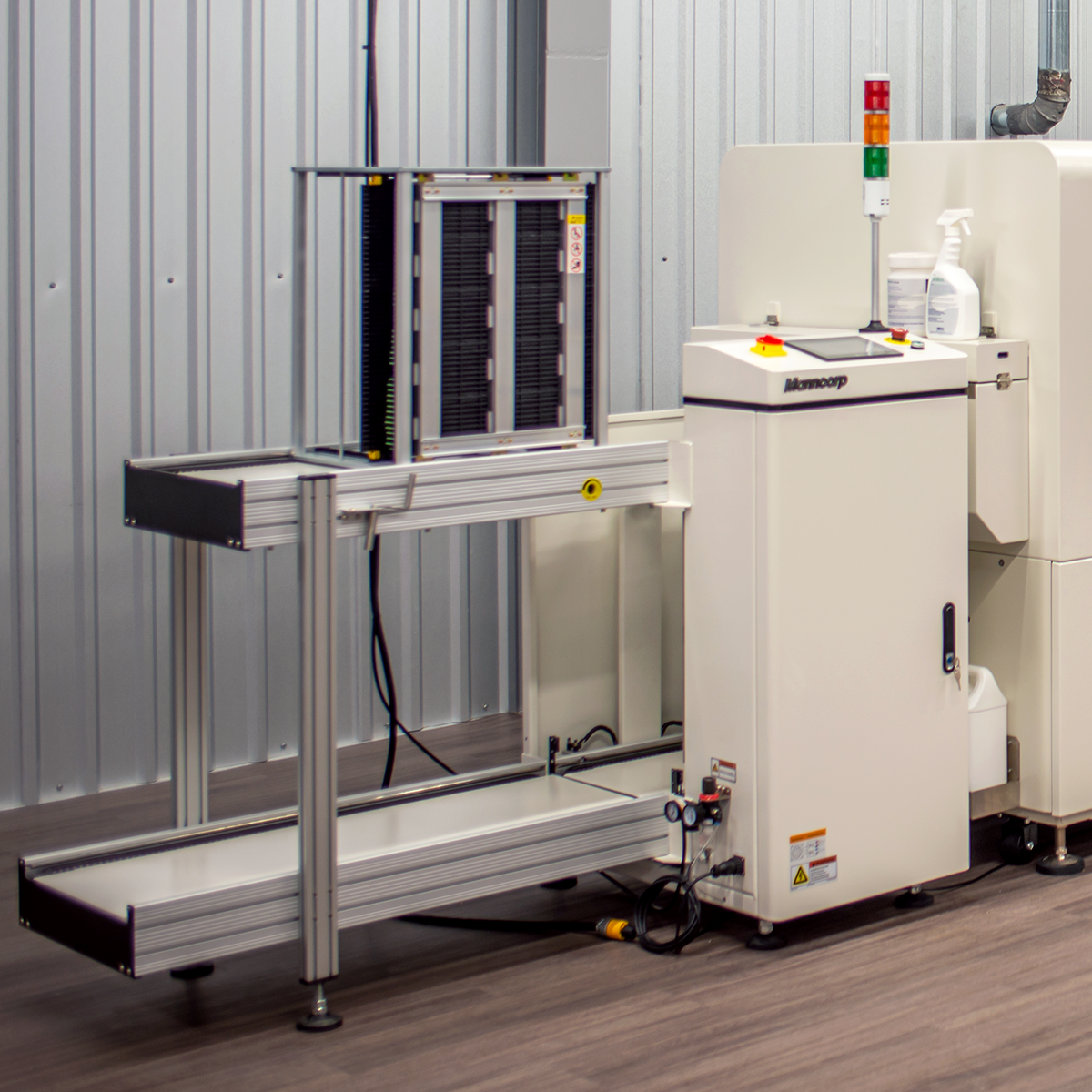

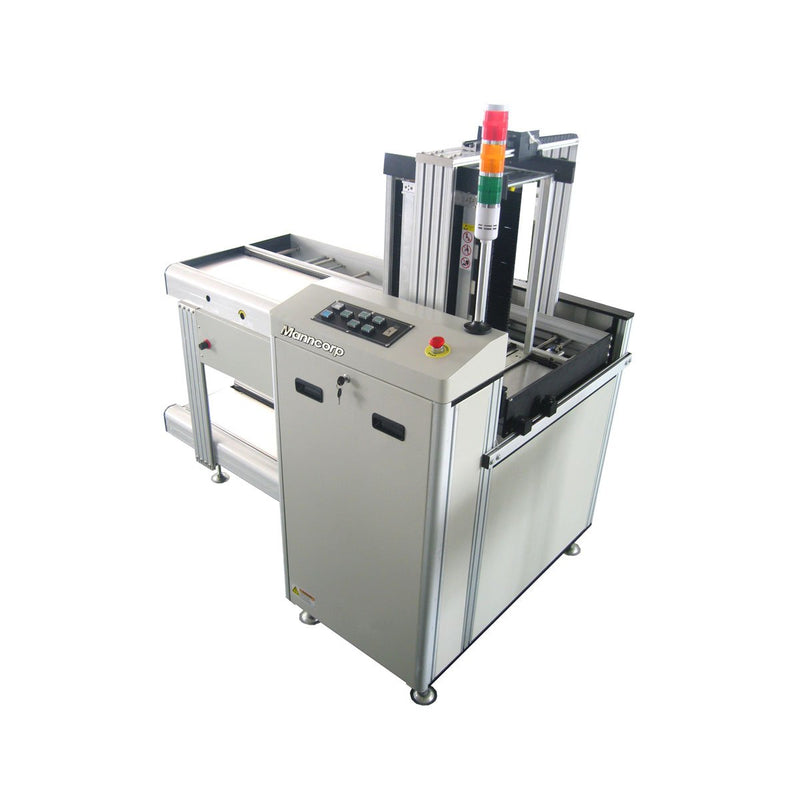

Designed for PCB assemblers who use a wide variety of PCB magazines, Manncorp's easily adjustable BL-460W-UT loader is used to load PCBs onto production lines. Full magazines are loaded onto the upper platform and automatically transferred to the indexing elevator which has selectable pitch settings of 10, 20, 30, and 40 mm. Empty magazines are transferred to the lower platform.

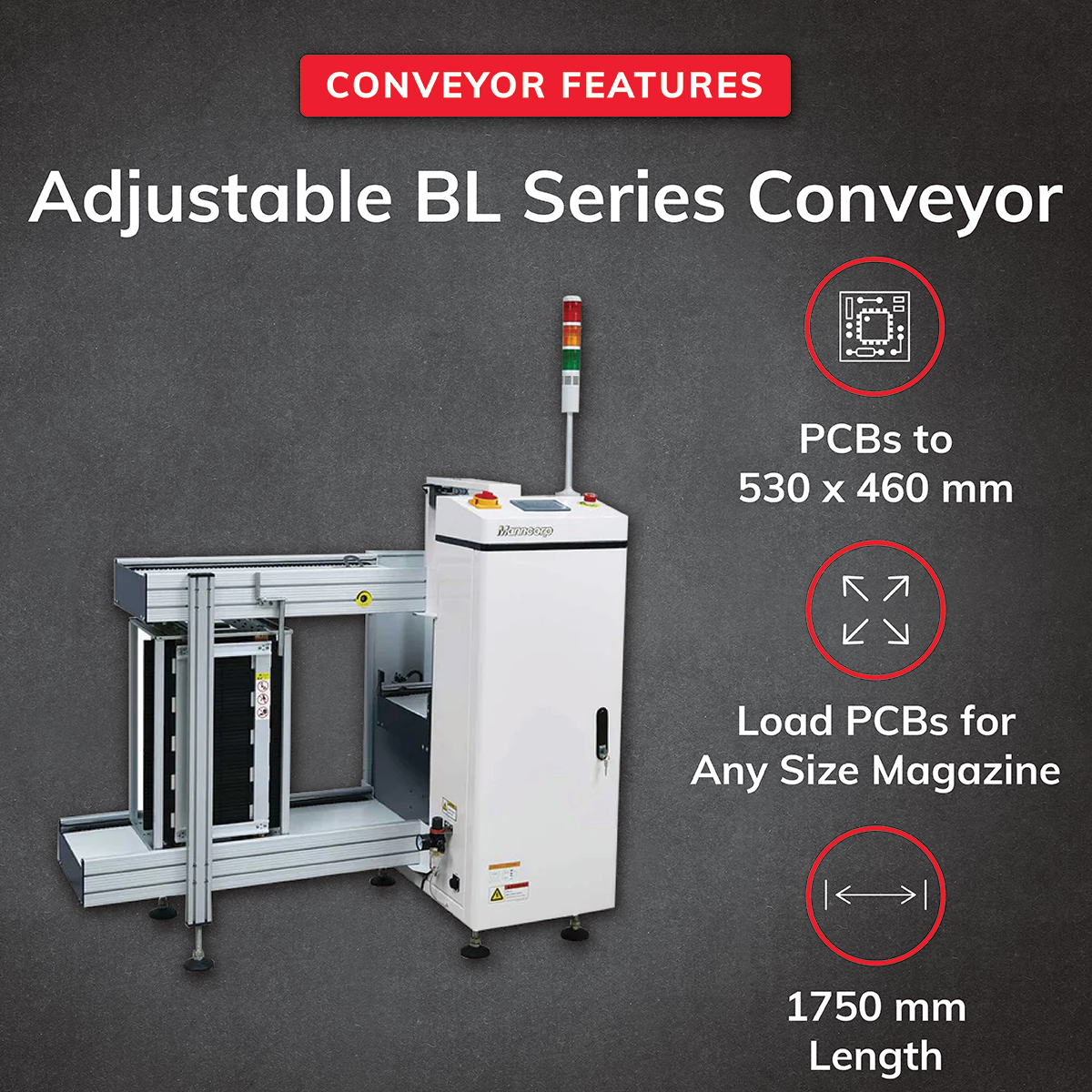

The Adjustable PCB Magazine Loader handles any magazine to 355 mm x 320 mm x 563 mm (13.98" x 12.60" x 22.17"), equivalent to the size of a CAB 601 and 701 or Nikko NKAJ 0525 Series magazine, through 535 mm x 530 mm x 570 mm (21.06" x 20.87" x 22.44"), the size of a CAB 707 or Nikko NKAJ 0546 Series magazine. Accordingly, the BL-460W-UT Adjustable PCB Magazine Loader can accommodate PCBs to 50-530 mm (1.97-20.87") long by 50-460 mm (1.97-18.11") wide.

ADJUSTABLE MAGAZINE LOADER SPECIFICATIONS
PCB Size 50-530 mm L x 50-460 mm W
(1.97-20.87" L x 1.97-18.11" W)
Magazine Size 355-535 mm L x 320-530 mm W x 563-570 mm H
(13.98-21.06" L x 12.60-20.87" W x 22.17-22.44" H)
Selectable Pitch 10, 20, 30, or 40 mm
Conveyor Direction Left to right (standard) or right to left (optional) operation
Air Supply Pressure 5-6 kg/cm2 (70-85 psi)
Air Consumption 10 l/min (0.35 CFM)
Voltage 110 VAC, 50/60 Hz
Power 300 VA max.
Machine Dimensions 1750 mm L x 740 mm W x 1150 mm H
(69" L x 29.13" W x 45" H)
Net Weight 265 kg (585 lbs.)
Shipping Weight 315 kg (695 lbs.)
