520N Motorized PCB Depaneler

520N Motorized PCB Depaneler

The 520N PCB Depaneler combines precision, efficiency, and durability in a robust, low-maintenance design. Its open-tunnel layout accommodates pre-scored/V-groove single- or double-sided PCBs with components up to 35 mm (1.4") tall and just 2 mm from the score line. Clean, accurate cuts minimize mechanical stress to prevent solder joint microcracks and substrate delamination. Suitable for nearly all PCB materials (except aluminum), the 520N supports boards of unlimited length, making it ideal for both small-batch and medium-volume production.

Share Product
Regular price

or for pricing

/

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

The 520N is engineered to deliver smooth, repeatable depaneling while protecting component and board integrity. During operation, panels are stablized to prevent wobble or shifting, ensuring clean separations—even on boards with sensitive components or irregular layouts. Its "open tunnel" design provides ample vertical clearance for tall components and streamlined board feeding.

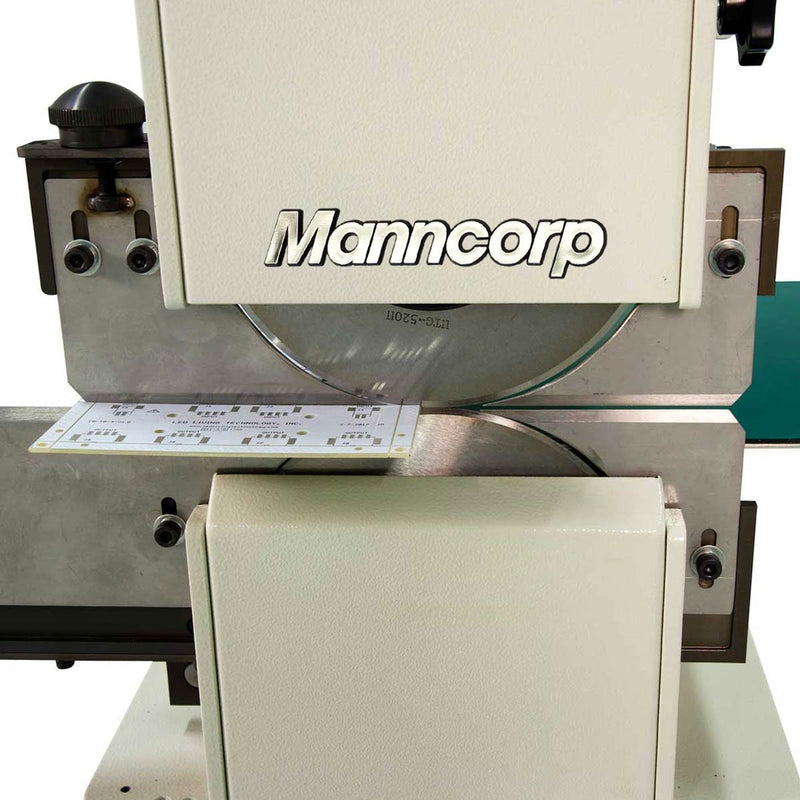

Twin rotary blades handle the separation process: the motorized upper blade performs the cutting, while the lower blade supports and guides the PCB along the score line. This controlled motion minimizes mechanical stress and eliminates common issues like cracked solder joints or delaminated substrates—problems often caused by manual or less sophisticated depaneling methods.

The 520N is compatible with virtually all PCB materials, excluding aluminum, and accommodates unlimited board lengths. Its heavy-duty construction provides long-term stability, while tool-less setup and minimal maintenance requirements ensure ease of use and dependable performance.

Ideal for a wide variety of production environments, the 520N delivers precision and flexibility manufacturers can rely on to increase throughput while preserving board quality.

520N SPECIFICATIONS
PCB Thickness 0.5 mm to 2.0 mm
Max PCB Width 6.3" (160 mm)
Max PCB Length Unlimited
Score Angle 30˚
Minimum Component
Distance to V-Groove
2 mm
Max Component Height 1.4" (35 mm)
PCB Materials Anything but Aluminum
Separating Speed 0-100 mm/sec
Depaneling Mode Motorized
Production Volume Low to Moderate
Blade Diameter 145 mm
Power 110V, 60Hz, 2A
Dimensions 17" x 17" x 20.5" (430 x 430 x 520 mm)
Net Weight 79.4 lbs (36 kg)
Shipping Weight 91 lbs (41 kg)
