Wave Soldering Loader

Wave Soldering Loader from Manncorp

Wave Soldering Loader

Automate your inline wave soldering system with an inlet conveyor that feeds PCB assemblies to your wave machine for soldering.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $5,995.00
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

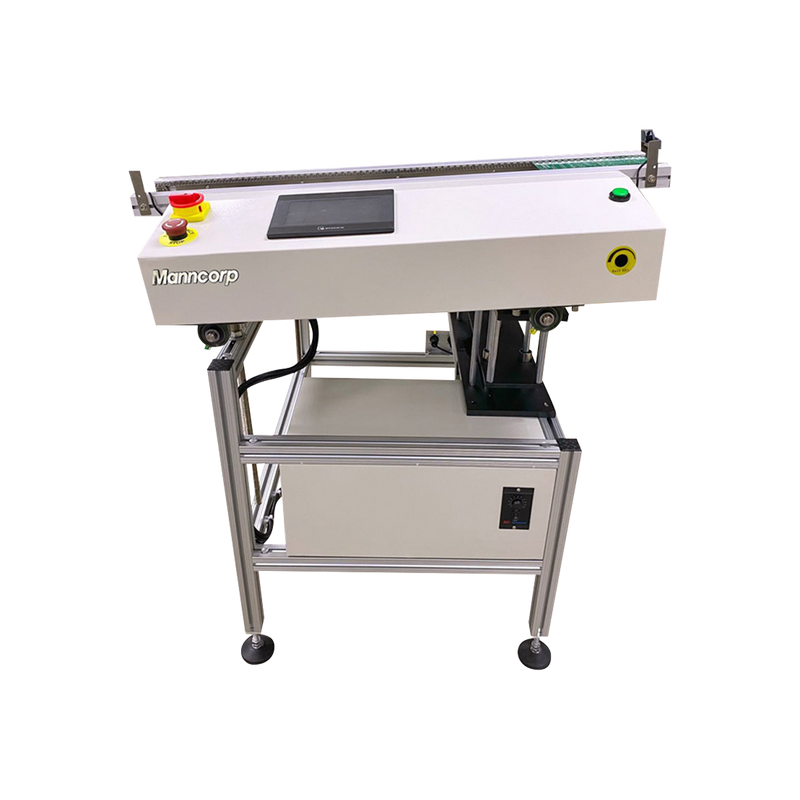

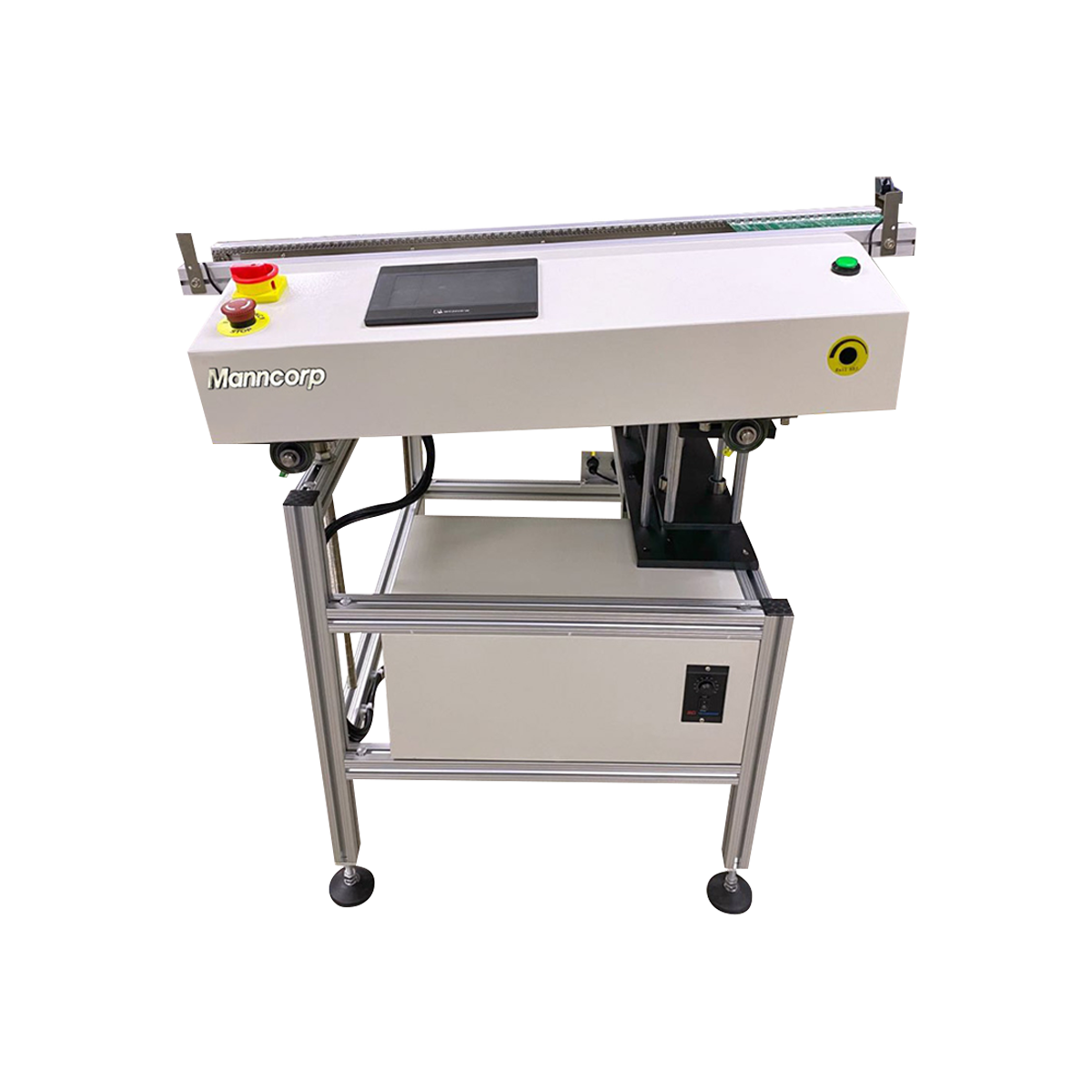

Manncorp's Wave Soldering Loader is a fully adjustable, chain-type, inlet conveyor, designed for feeding PCBs up to 350 mm (13.78") wide (wider widths available) directly into virtually any wave soldering system with a pin- or finger-type angled conveyor.

Travel speed of the combination steel/nylon transport chain is dial-adjustable from 0.5 - 8m/min (approx. 1.5 - 26.2 ft/min) and conveyor incline angle is adjustable through a range of 30 degrees for easy setup and alignment. Conveyor height is also adjustable.

Heavy-duty aluminum construction for stability and durability.

Wave Soldering Loader Specifications
PCB Size

50 mm L x 50 mm W to 530 mm L x 350 mm W
(1.97" L x 1.97" W to 20.87" L x 13.78" W)

Belt Speed 0.5 - 8 m/min (approx. 1.5 - 26.2 ft/min)
Voltage 110 VAC, 50/60 Hz
Power 100 VA max.
Machine Dimensions 1000 mm L x 650 mm W x 900 mm H
(39.4" L x 25.59" W x 35.43" H)
Net Weight 50 kg (110 lbs.)
Shipping Weight 80 kg (176 lbs.)
