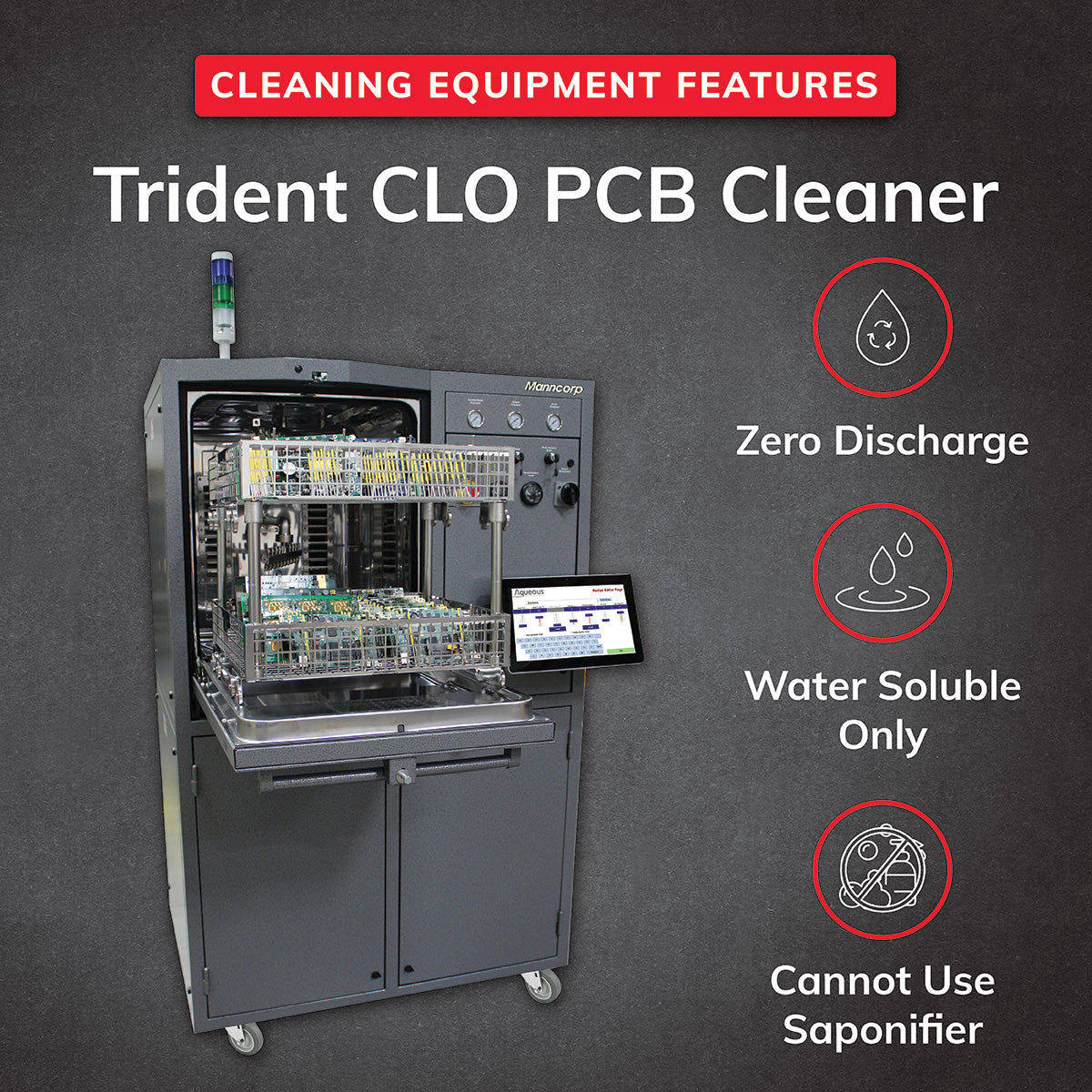

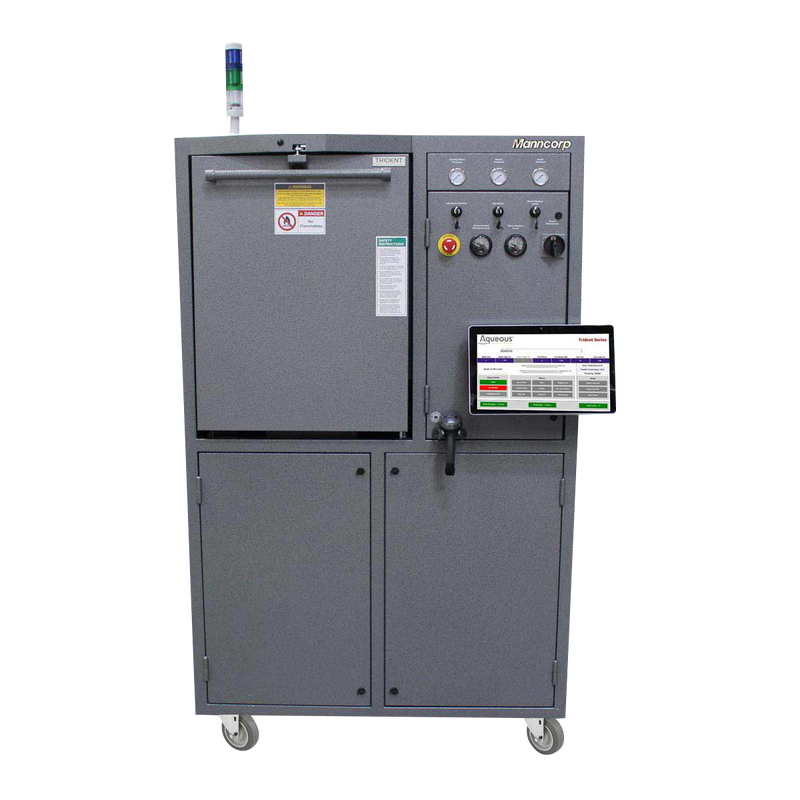

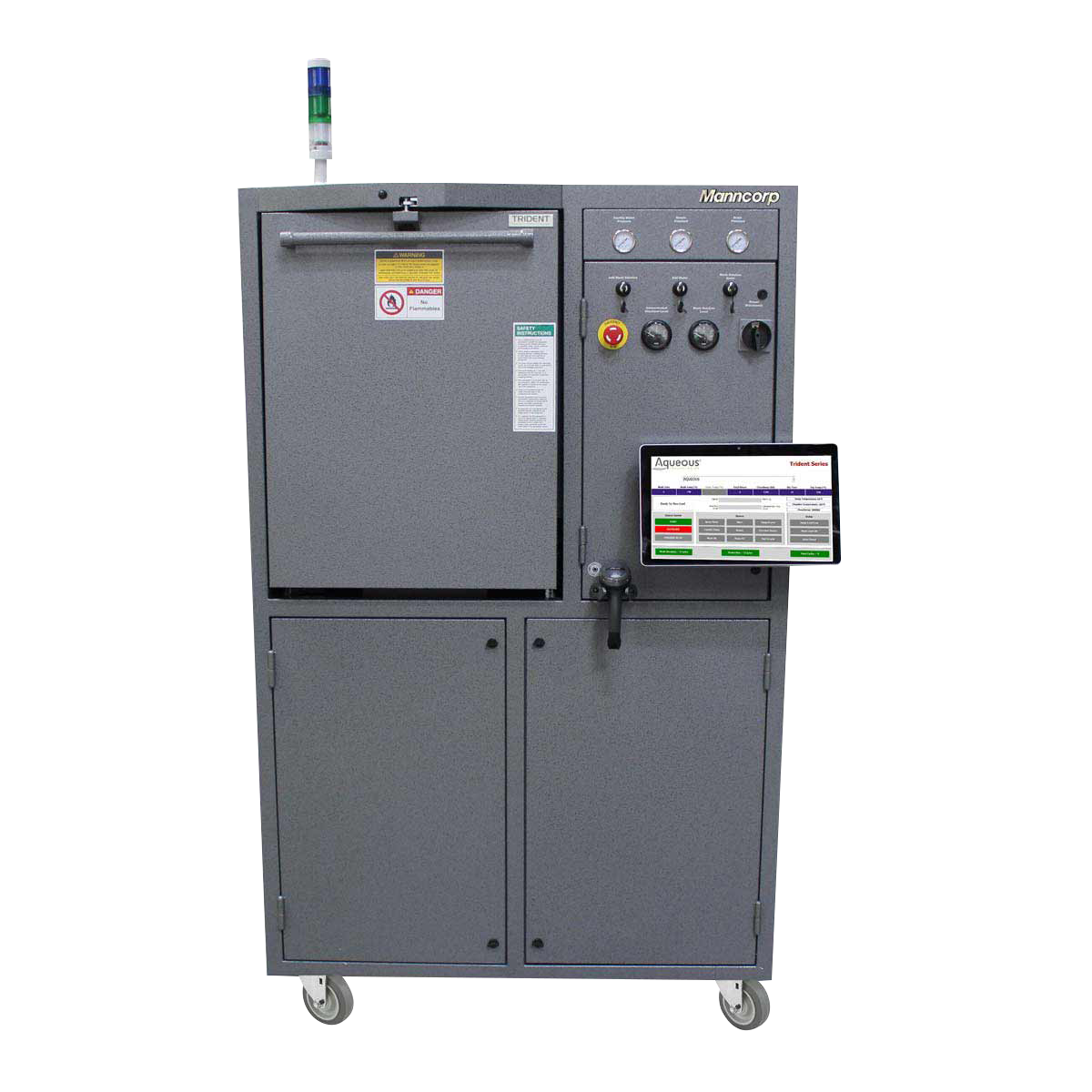

Trident CLO Zero-Discharge PCB Cleaner

Trident CLO Zero-Discharge PCB Cleaner from Manncorp
Trident CLO Zero-Discharge PCB Cleaner / Defluxer
Trident CLO Zero-Discharge PCB Cleaner / Defluxer
Trident CLO Zero-Discharge PCB Cleaner / Defluxer
Trident CLO Zero-Discharge PCB Cleaner / Defluxer

Trident CLO Zero-Discharge PCB Cleaner

For manufacturers using water soluble flux exclusively, Trident CLO offers affordable automatic PCB cleaning and cleanliness testing. The Trident CLO system captures, filters and completely de-ionizes ordinary tap water while completely eliminating the need for a drain line, permits or wastewater management, saving money, time and hassle. The system can be connected to a water line or refilled manually. With no drain required and water line connection optional, Trident CLO can be placed anywhere on the production floor. Trident CLO provides the same superior cleaning and drying power as the other machines in the Trident series and is capable of removing all water soluble fluxes in eutectic and lead-free applications. (For a closed-loop system that removes all flux types, including rosin and no clean, see Trident ZDO.)

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $65,950.00
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Thorough Cleaning of Assembles with Water Soluble Fluxes

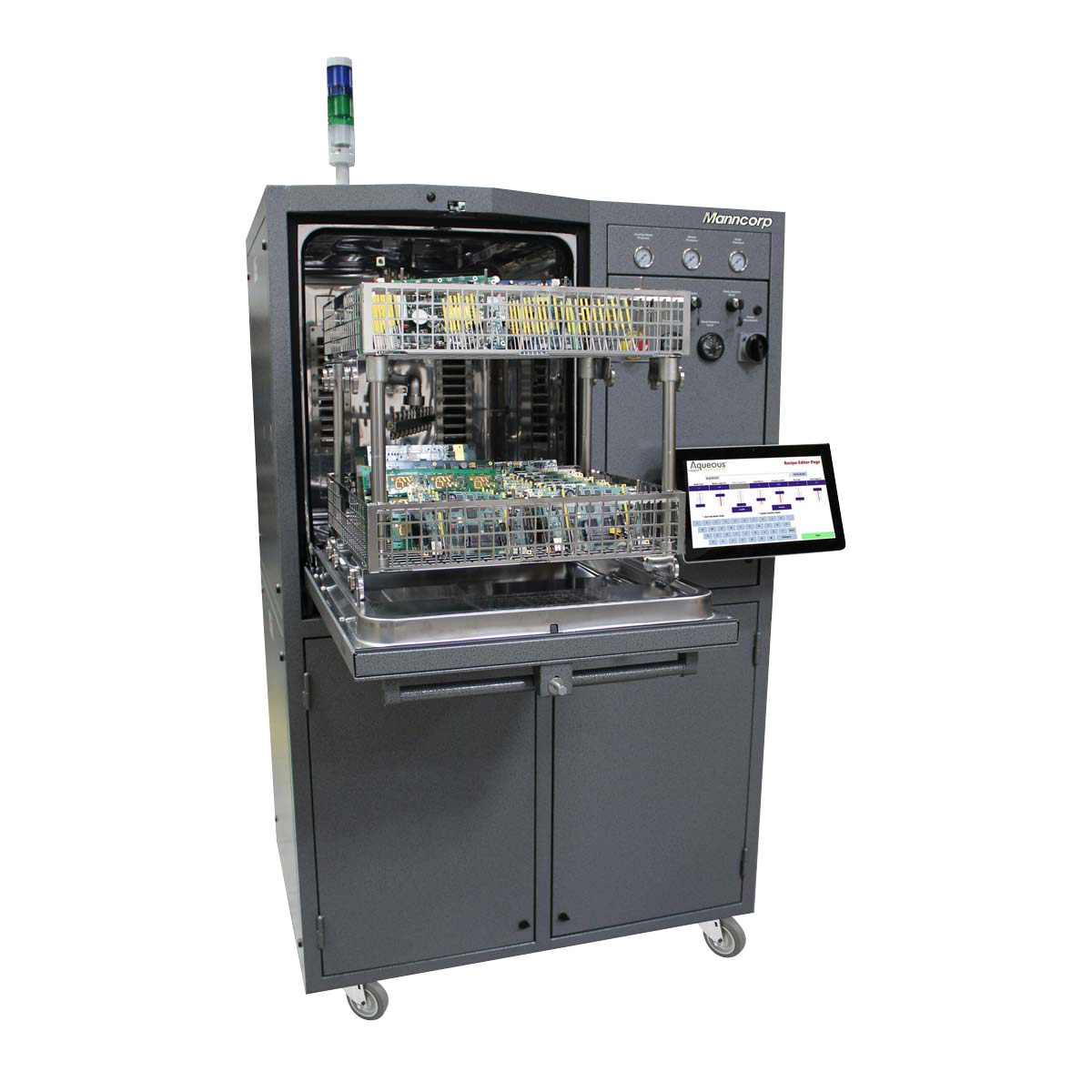

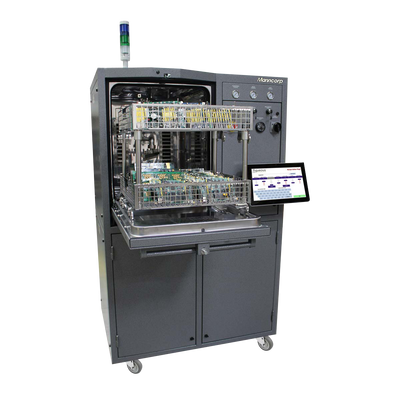

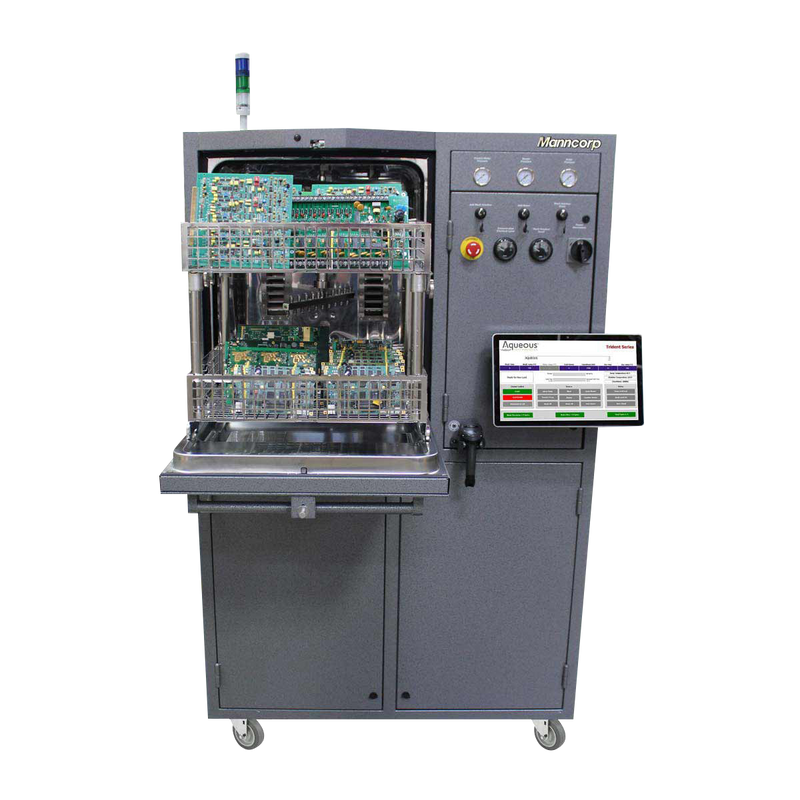

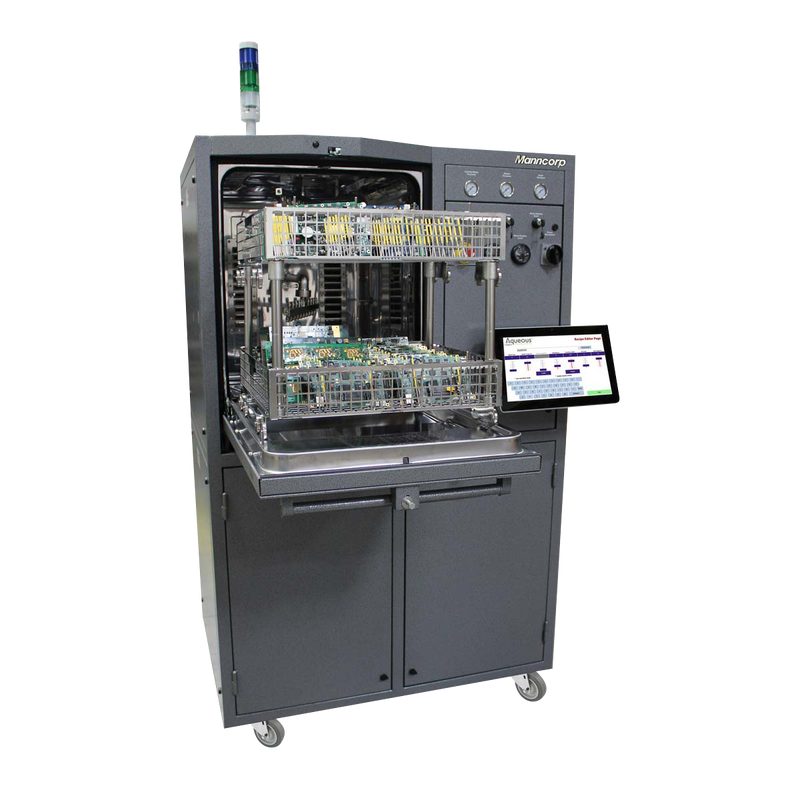

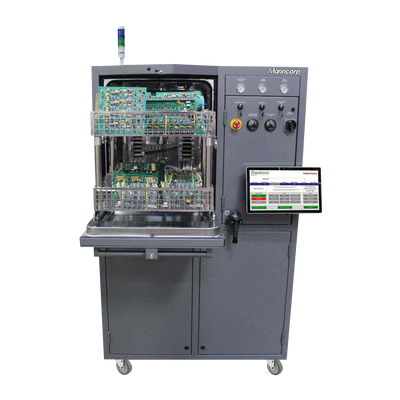

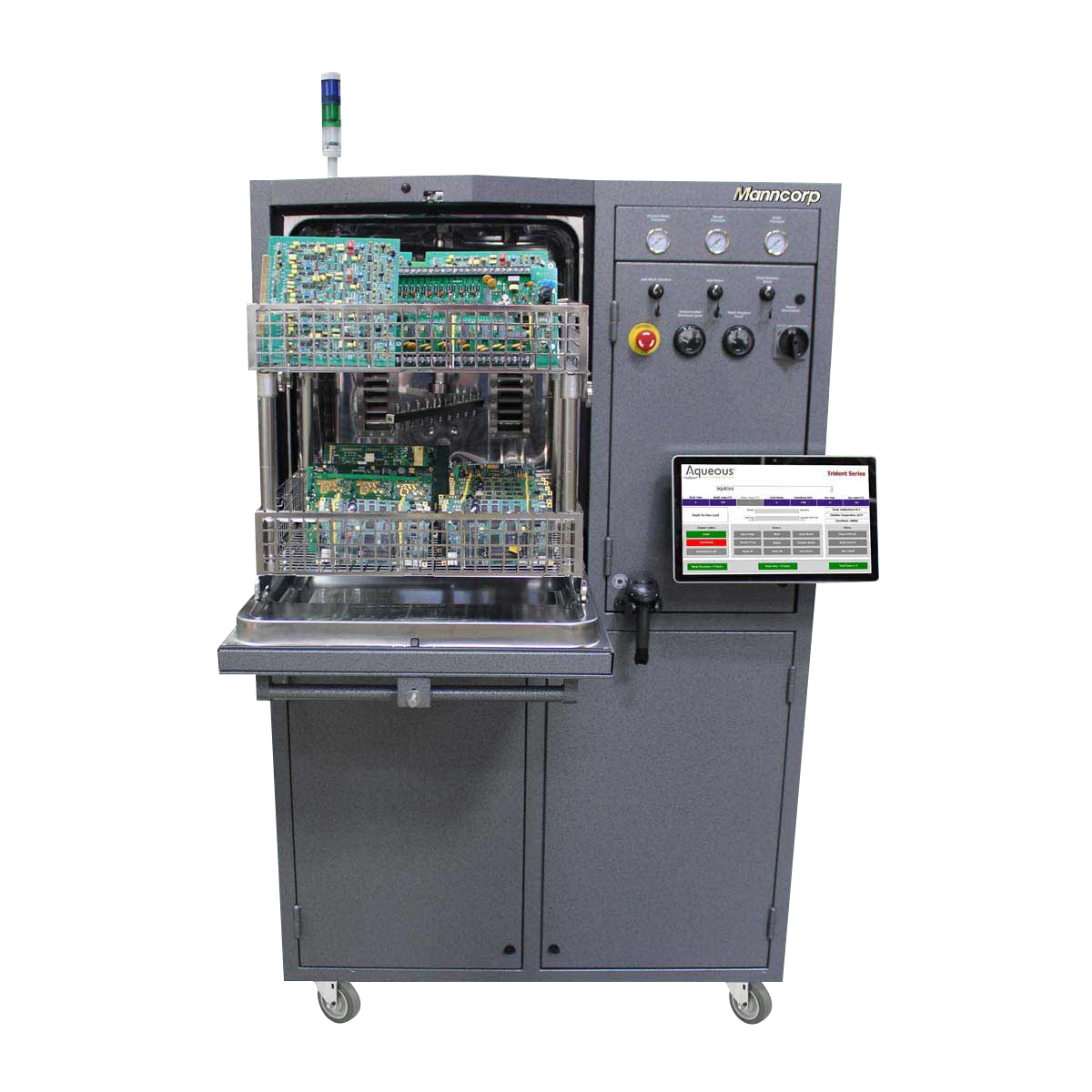

Trident CLO provides fully automatic washing, rinsing, drying and cleanliness testing of printed circuit boards assembled with eutectic (SnPb) or lead-free solders and water soluble fluxes. Trident's asymmetrical fan-jet spray system with twin counter-rotating spray bars and twenty fan-jet nozzles delivers precision-diffused washer solution and rinse water onto an oscillating board rack to ensure excellent under-component penetration and highly effective coverage on even high-density printed circuit boards populated with low-standoff surface mount (SMT) components.

Trident's fast cycle times allow more assemblies to be cleaned, tested and dried per shift than any other automated defluxing systems.

Cleans to Specified Levels

The on-board cleanliness tester continuously monitors cleanliness levels in real-time and controls the cleaning process automatically, ensuring cleaned circuit boards meet or exceed programmed settings, board after board, for the most consistent cleanliness levels possible.

Easy Operation & Maintenance

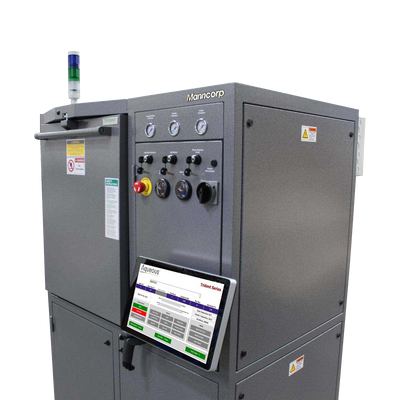

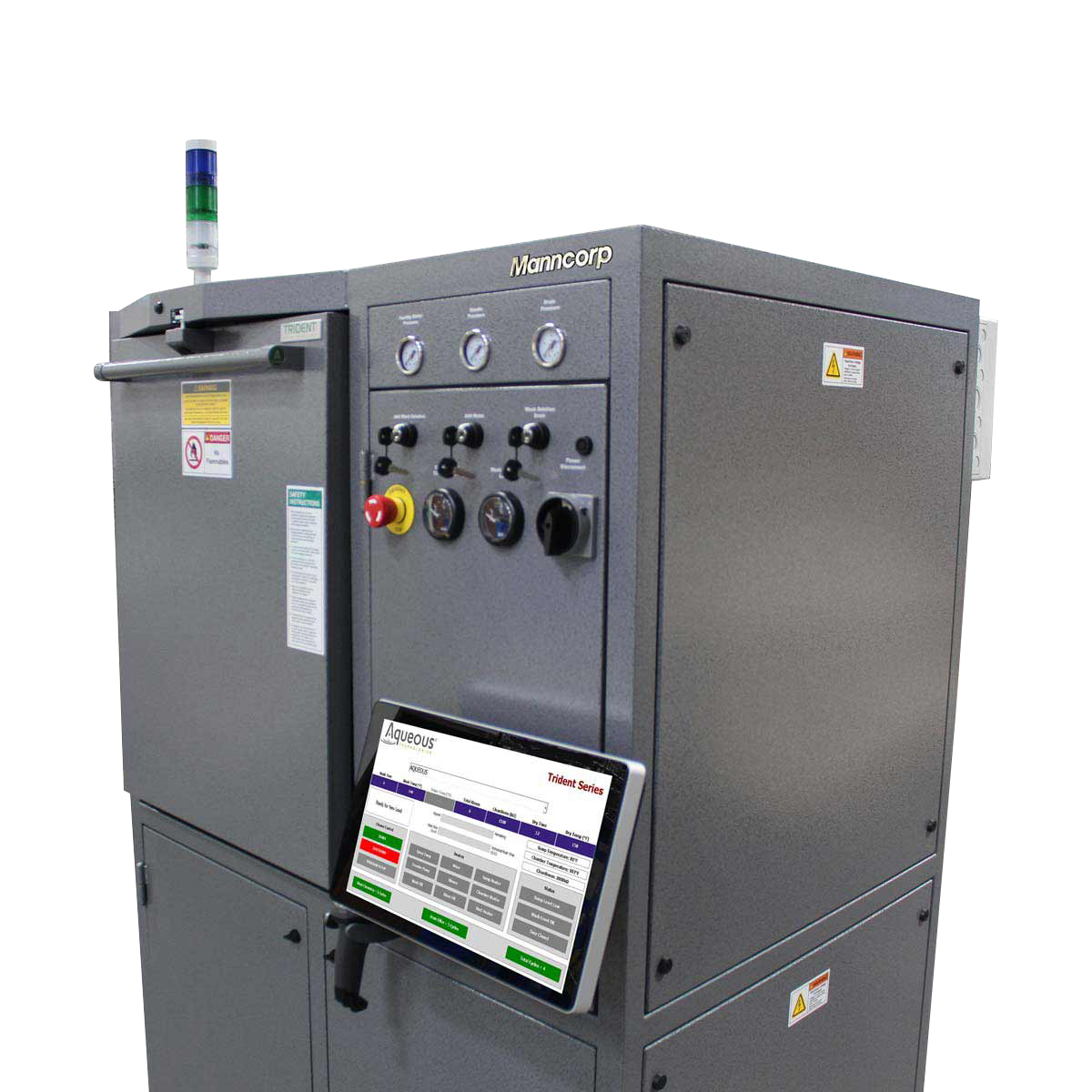

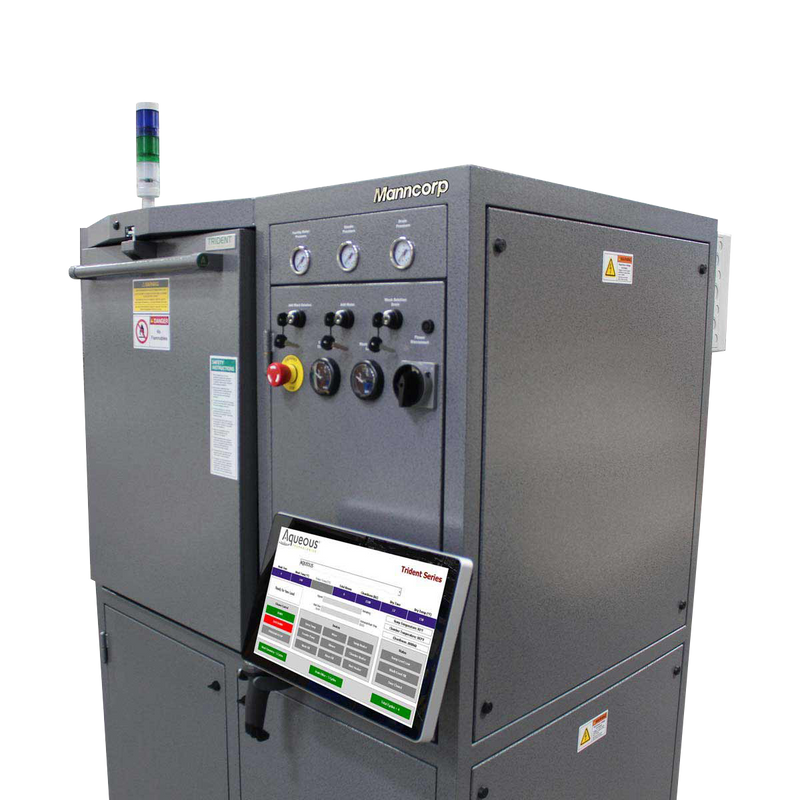

Estimated completion time, cleanliness values and operating temperatures are displayed in real time on screen. Gauges on the machine indicate water line, spray manifold and pre-drain filter pressures.

The machine may be connected to a water line, allowing the water storage tank to be refilled at the flip of a switch, or the tank can be filled manually, completely eliminating the requirement for a water connection.

Statistical Process Control (SPC) for Traceability and Tracking

Trident CLO's SPC data recording automatically tracks alpha-numeric cleaning program names, process times and temperatures, set and actual cleanliness levels, and other valuable data. The included bar code scanner makes it quick and easy to attach process data to a specific assembly. SPC data can be viewed on screen, sent to a networked printer, or exported to USB or another computer via network protocols.

Trident CLO Specifications
Dimensions 42 ¼" L x 47 ¾" D x 70" H
Weight 791 lbs
Power Requirements 208-240 VAC 40 amps 3Ø
400 VAC 31 amps 3Ø
Water Input ¾" NPT
Drain N/A
Air Exhaust 6" (static)
No-Clean Flux Removal No
Water Soluble Flux Removal Yes
Rosin Flux Removal No
Lead & Lead-Free Compatible Yes
Average Cycle Time 30 minutes
Estimated Assemblies Per Hour Per Chamber 3" x 10" - 144/hr
4" x 5" - 192/hr
8" x 10" - 44/hr
20" x 20" - 24/hr
Anti-Shadowing Technology Oscillating board rack and asymmetrical nozzles
Fluid-Delivery Technology Twenty 15° stainless steel adjustable nozzles
Built-In Cleanliness Testing Standard
Discharge Configuration Closed-loop (no drain)
Closed-Loop Wash Water Recycler Standard
SPC Data Logging with On-Screen Viewing Standard
SPC Data USB Export Standard
SPC Remote Viewing Standard
Heated Drying System Standard
Control System Windows® 10 computer
Operator Interface Touchscreen Interface
ESD Ground Point Standard
