Vertical LIFO/FIFO Buffer

Compact Vertical PCB Buffer Conveyor from Manncorp
Compact Vertical PCB Buffer Conveyor from Manncorp

Vertical LIFO/FIFO Buffer

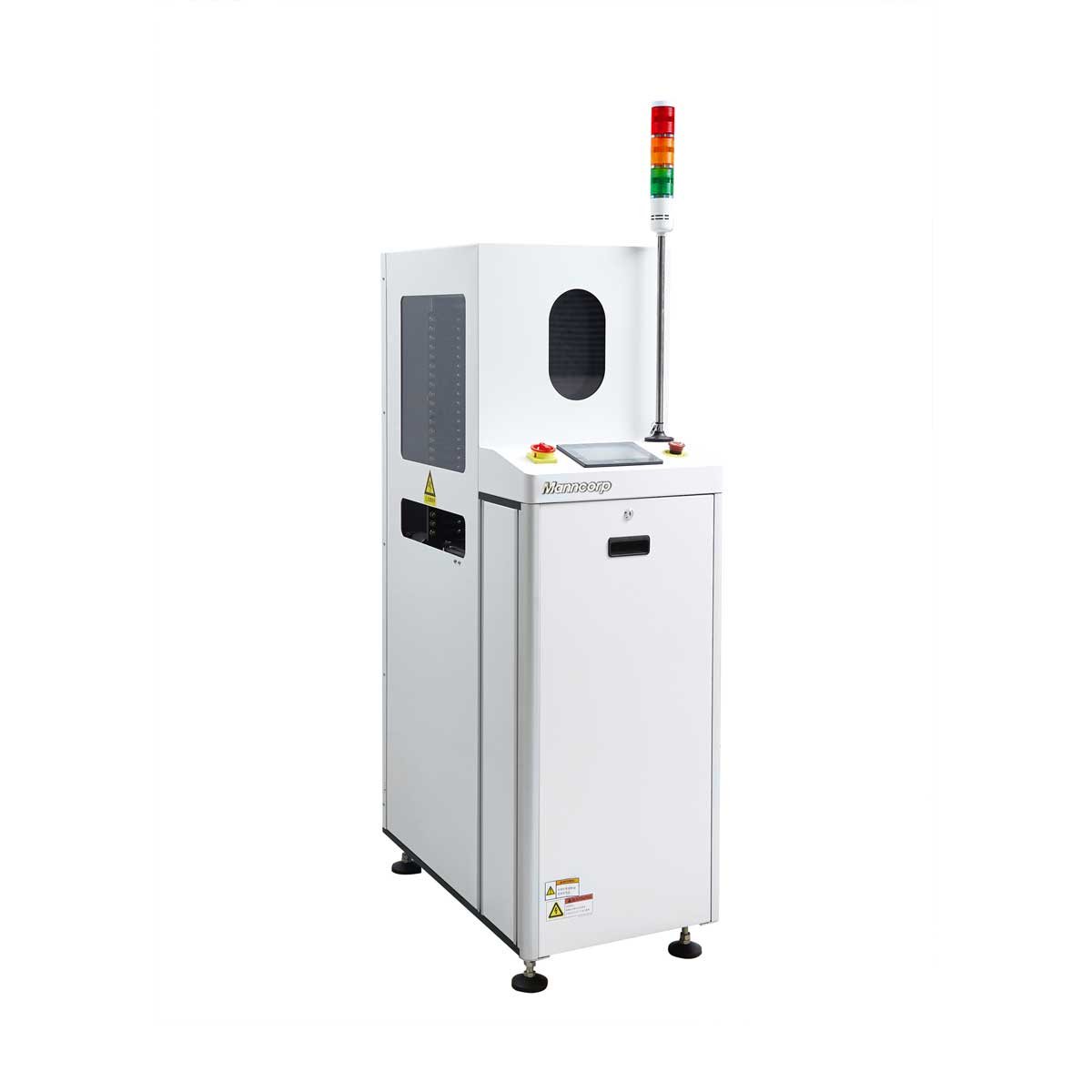

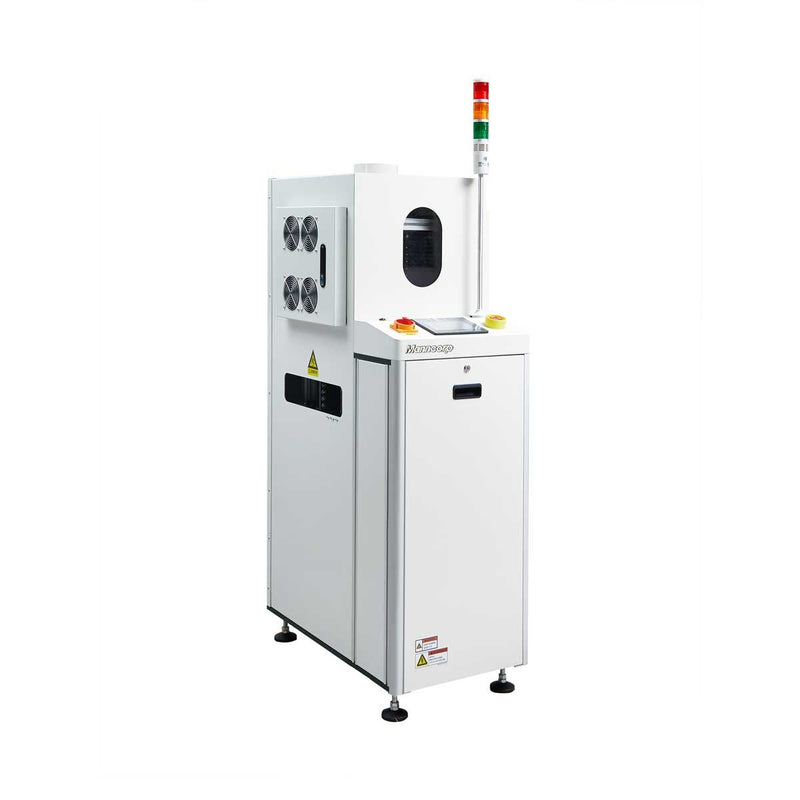

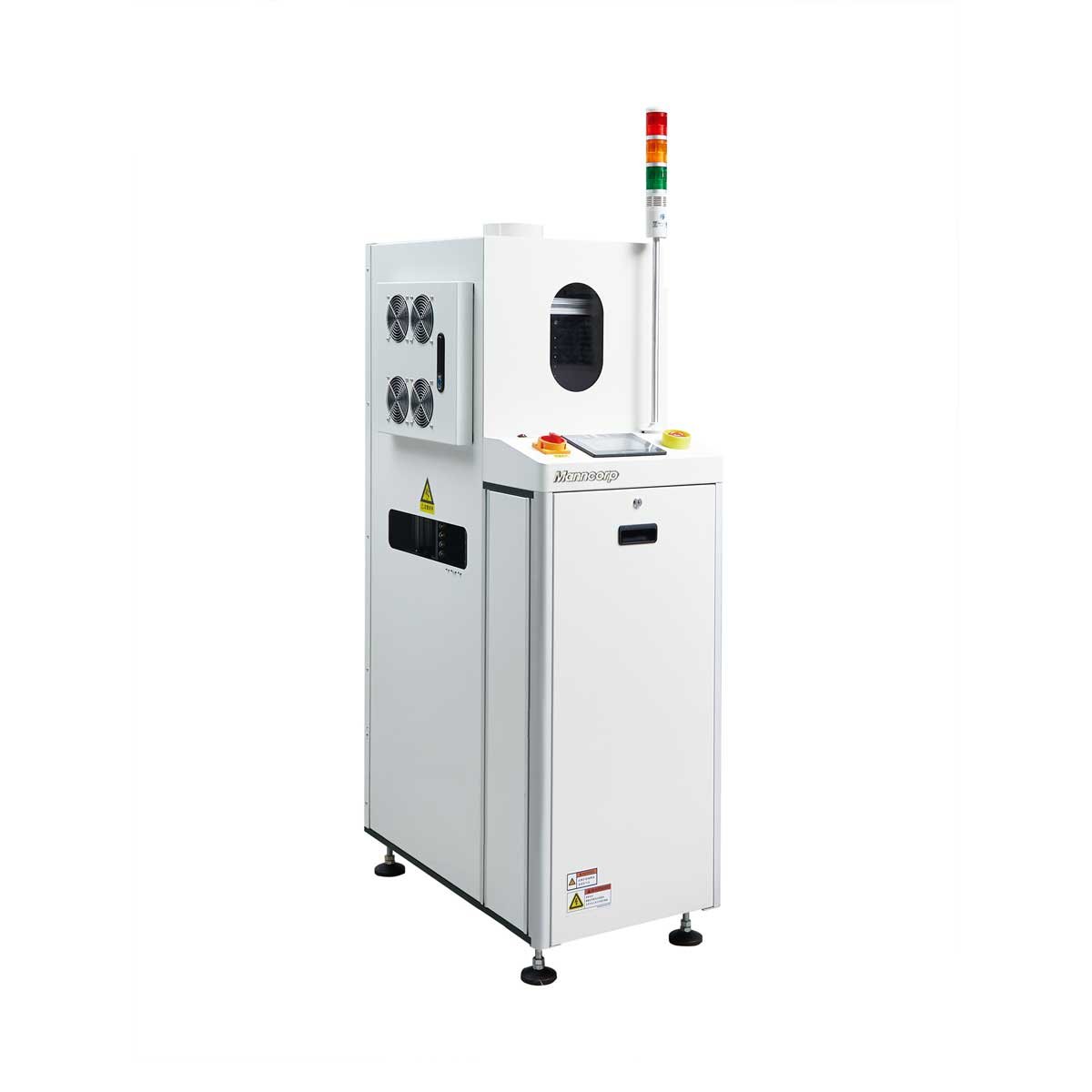

Manncorp's HB350W-ST vertical buffering system can hold up to 24 PCBs in only 600 mm (23.5") of floor space while you clear down-stream stoppages or perform routine maintenance.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $16,995.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Despite your best efforts at line-balancing, there will always be situations when even the fastest and most efficient processes require some operator intervention or attention. As these processes come back on-line and catch up, the HB-350W-ST accesses its built-in memory and releases stored PCBs in either FIFO (First-In First-Out) or LIFO (Last-In First-Out) modes.

The HB-350W-ST accepts boards from 50 mm L x 50 mm W to 400 mm L x 350 mm W (1.97" L x 1.97" W to 15.75" L x 13.78" W) and also includes a pass-through function.

PCB widths larger than 350 mm are also available upon special request. Please contact Manncorp for pricing.

Vertical LIFO/FIFO Buffer Specifications
PCB Size 50 mm L x 50 mm W to 400 mm L x 350 mm W
(1.97" L x 1.97" W to 15.75" L x 13.78" W)
PCB Thickness 0.6 mm min. (0.024" min.)
2.5 mm max. (0.098" max.)
Air Supply Pressure 5-6 kg/cm2 (70-85 psi)
Air Consumption 15 I/min (.53 CFM)
Voltage 110 VAC, 50/60 Hz
Power 200 VA max.
Machine Dimensions 600 mm L x 1000 mm W x 1600 mm H
(23.5" L x 39.5" W x 63" H)
Net Weight 200 kg (441 lbs.)
Shipping Weight 260 kg (574 lbs.)
