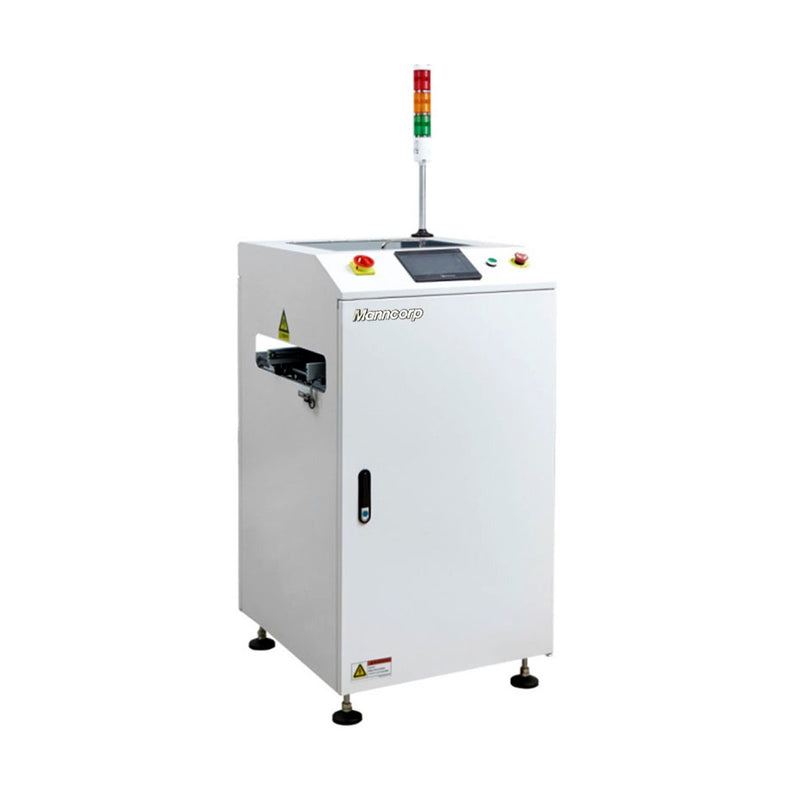

Flexible PCB Rotation for Any Line Layout
The BR460W-ST Turning Conveyor enables precise 90° and 180° PCB rotation for L- and T-shaped SMT configurations. With multiple entry points and a precision-driven turntable, it ensures accurate board orientation for downstream processes.
- 90° and 180° rotation for flexible line layouts
- Multiple entry points (left, right, rear) for easy placement
- Precision turntable with X, Y, and θ-axis control
- Seamless transfer to perpendicular conveyors
Smart Routing, Buffering & Flow Control
Designed to improve workflow efficiency, the BR460W-ST also supports buffering and intelligent routing. Boards can pass through, be redirected, or separated based on process needs—enhancing both throughput and quality control.
- NG/OK sorting for automated quality control
- Pass-through mode for continuous production flow
- Buffering capability between line segments
- Flexible routing to inspection or downstream equipment
| Turning Conveyor Specifications | |
|---|---|
| PCB Size |
50 mm x 50 mm (1.97" x 1.97") to 530 mm L x 460 mm W (20.87" L x 18.11" W) |
| Conveyor Direction | Configured at time of order. Turn 90 or 180. |
| Conveyor Type | Belt |
| Conveyor Height | 900 +50/-20mm (35.43” +1.96”/-.787”) |
| Control | Omron PLC, touchscreen, sensors |
| Power | 110 VAC, 50/60 Hz, 300W |
| Machine Dimensions | 800 mm L x 800 mm W x 1200 mm H (31.5" L x 31.5" W x 47.3" H) |
| Weight | 165 kg (365 lbs.) |
| Shipping Weight | 215 kg (475 lbs.) |
Note: All dimensions and weights subject to change. Custom conveyors available.
