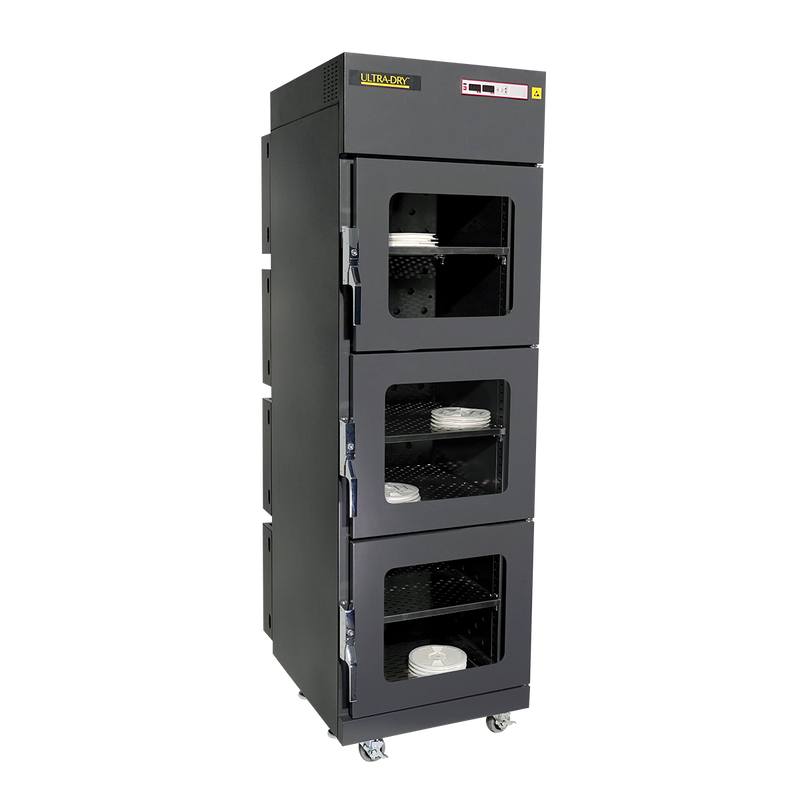

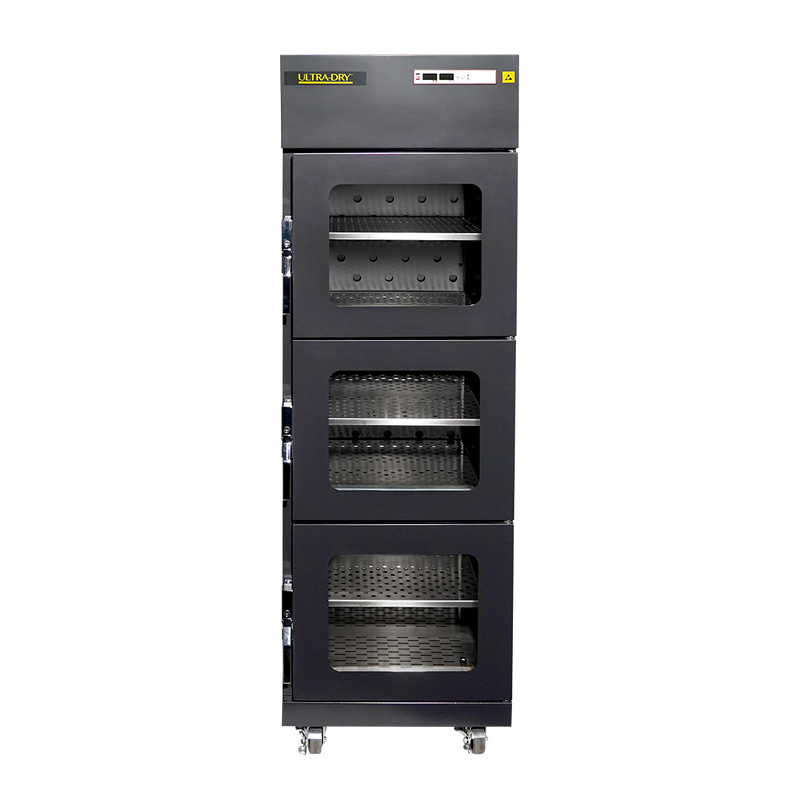

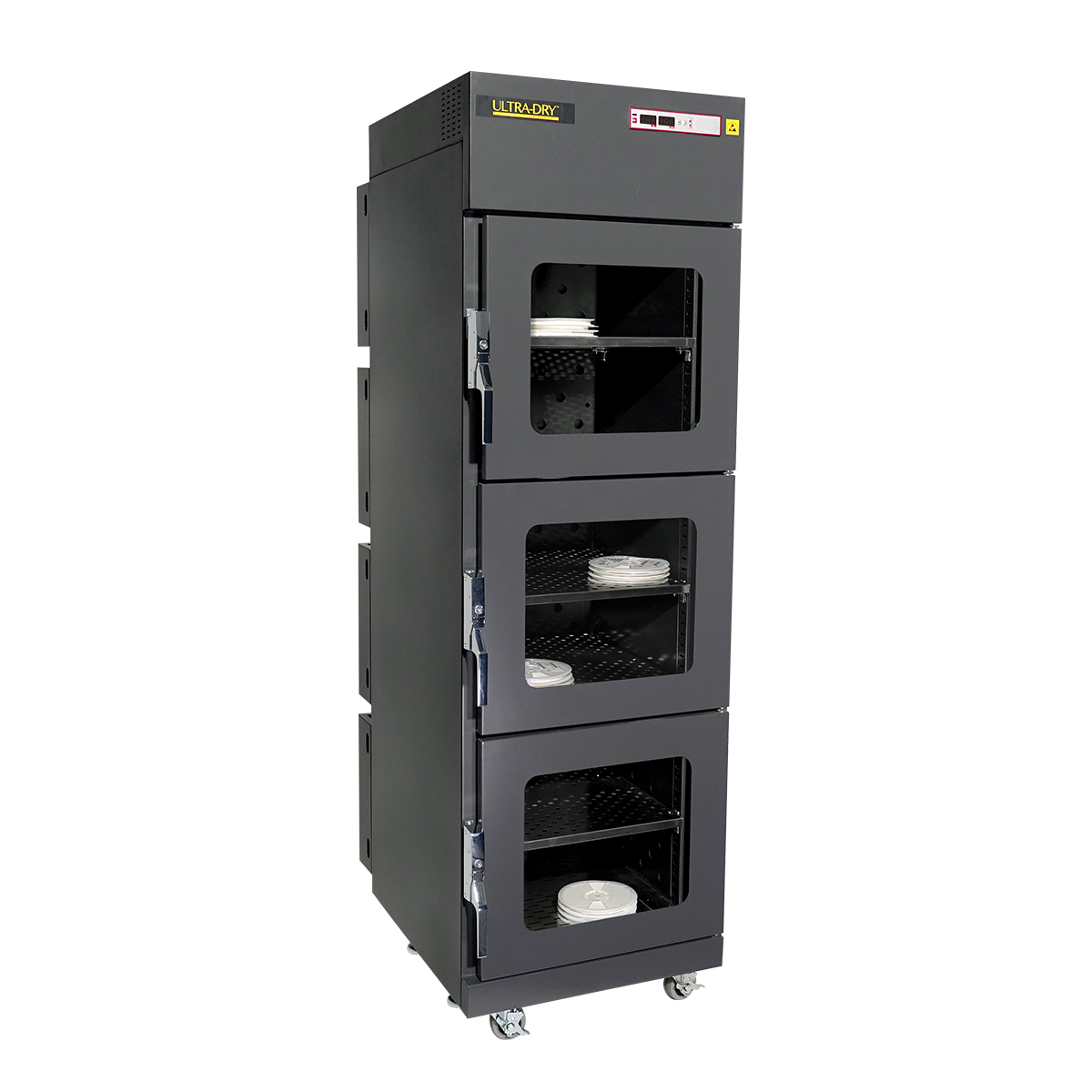

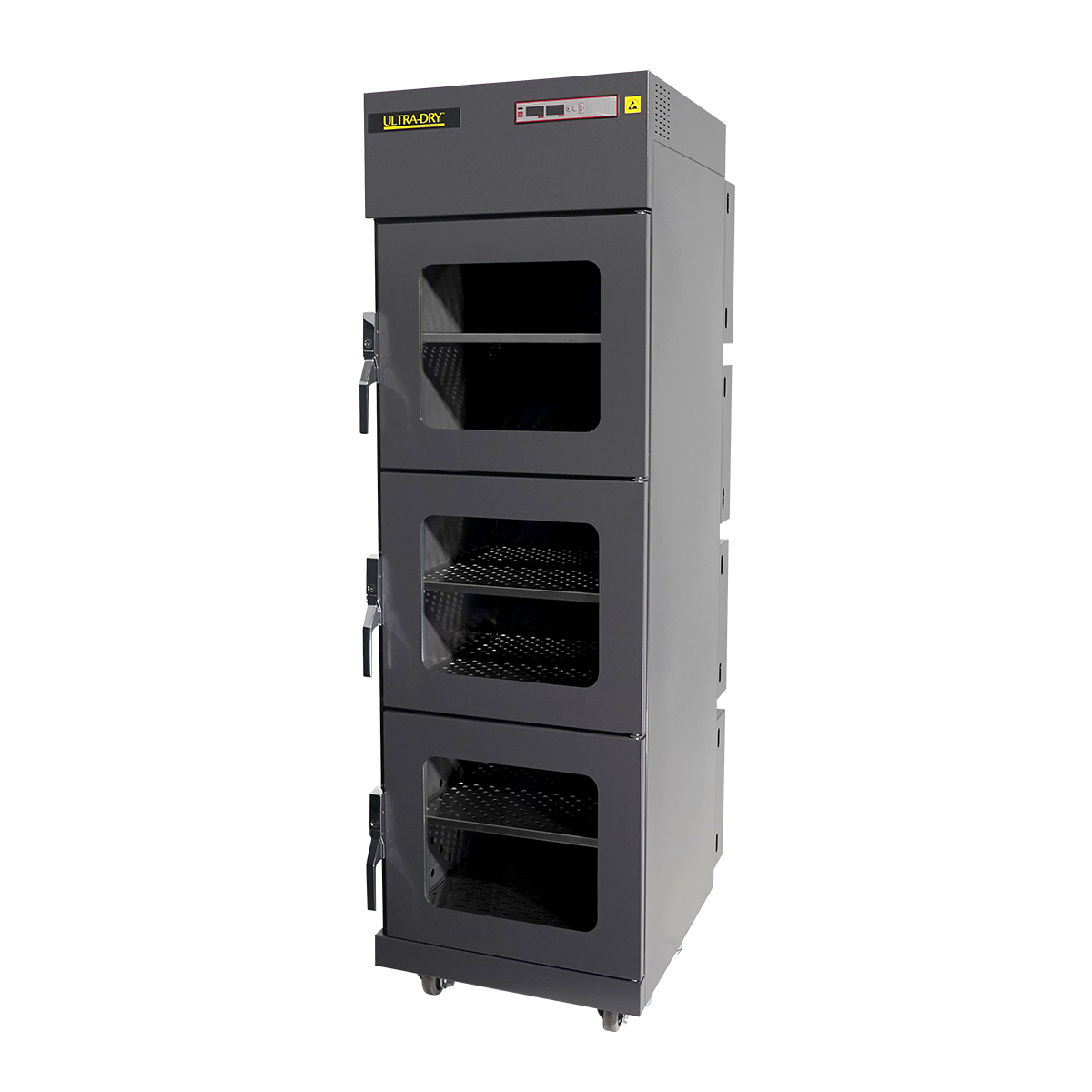

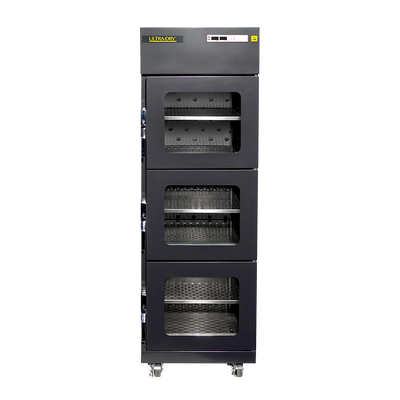

High-Capacity Baking and Dry Storage for Moisture-Sensitive Devices

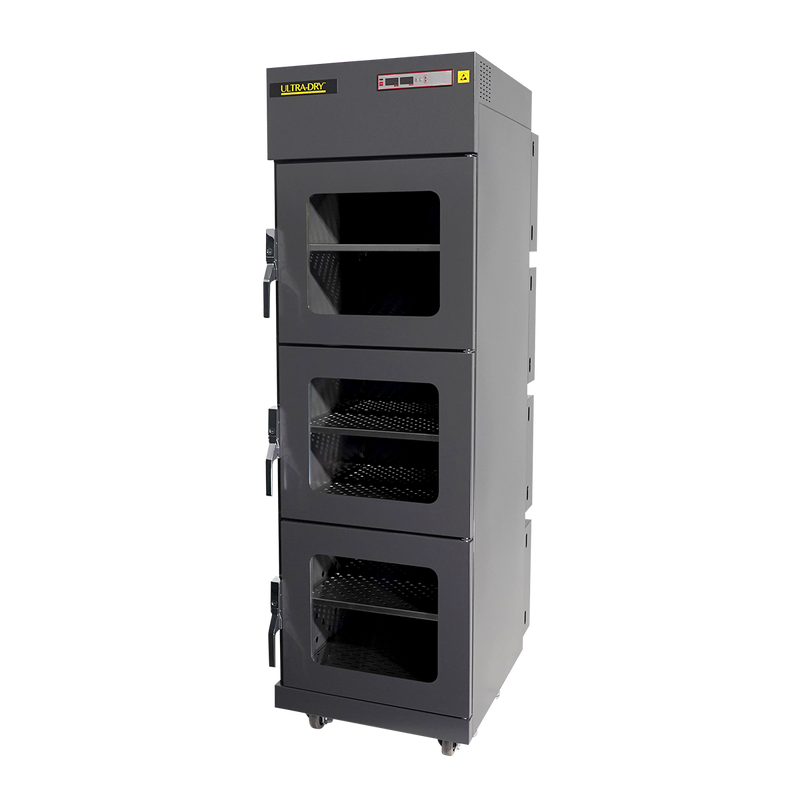

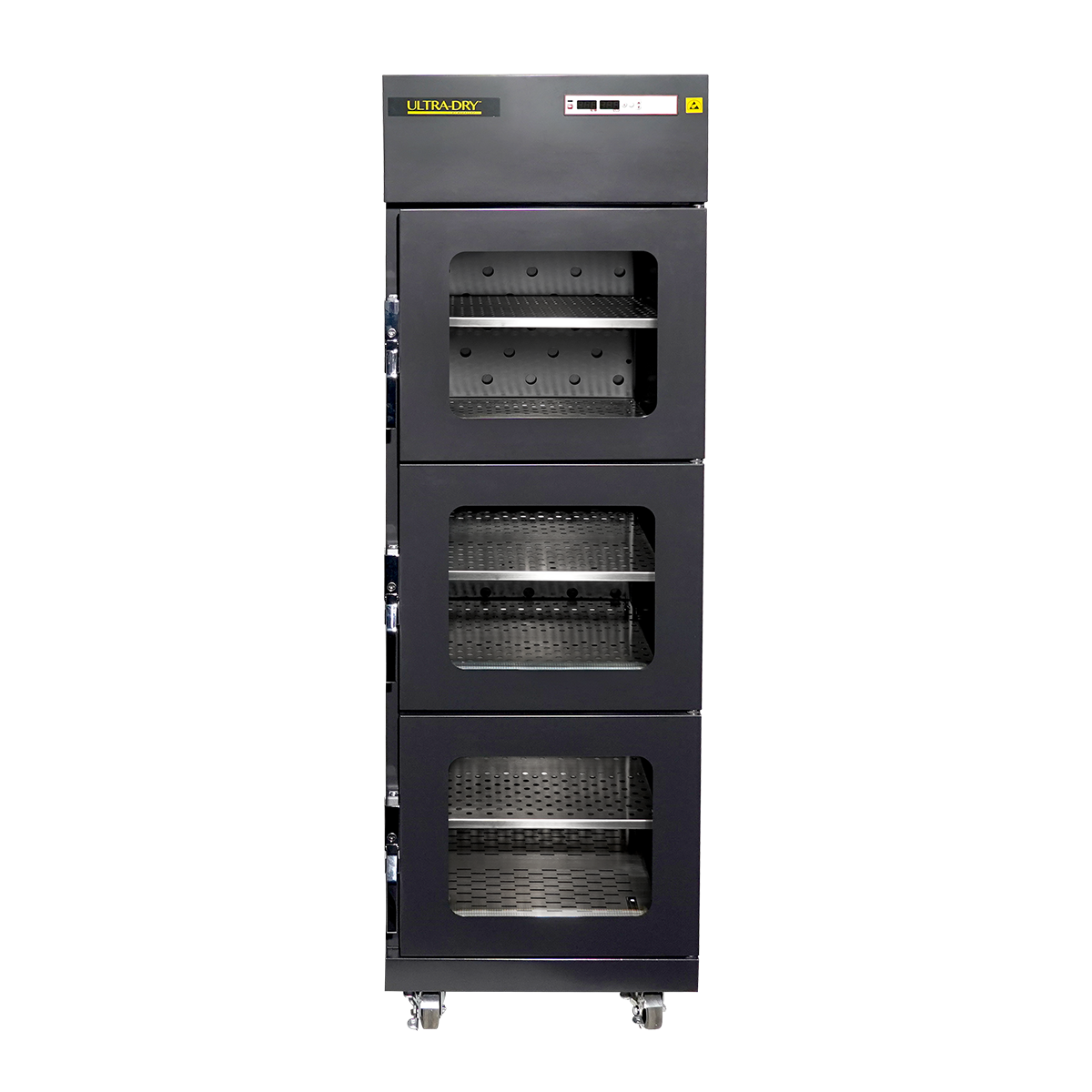

The Manncorp Ultra-Dry 790H-50 Baking Dry Cabinet provides controlled low-temperature moisture recovery and ultra-dry storage for moisture-sensitive devices (MSDs), electronic components, PCBs, and assemblies. Designed for mid- to high-volume electronics manufacturers, PCB producers, distributors, and fast-turnover inventory environments, the 790H-50 helps restore exposed components while protecting long-term product integrity.
- 15 cu. ft. / 426L storage capacity
- Ideal for mid- to high-volume production environments
- Designed for MSD recovery and controlled dry storage
- Protects components, PCBs, and electronic assemblies
Safe Low-Temperature Moisture Recovery
Adjustable temperature control from 40°C to 50°C safely removes absorbed moisture without the oxidation, discoloration, and solderability risks associated with traditional high-temperature baking methods. This controlled recovery process helps reduce unnecessary inventory scrap while maintaining component quality.
- Adjustable 40°C to 50°C baking temperature range
- Helps restore shelf life of exposed MSDs and assemblies
- Reduces oxidation and solderability issues
- Helps minimize unnecessary inventory waste

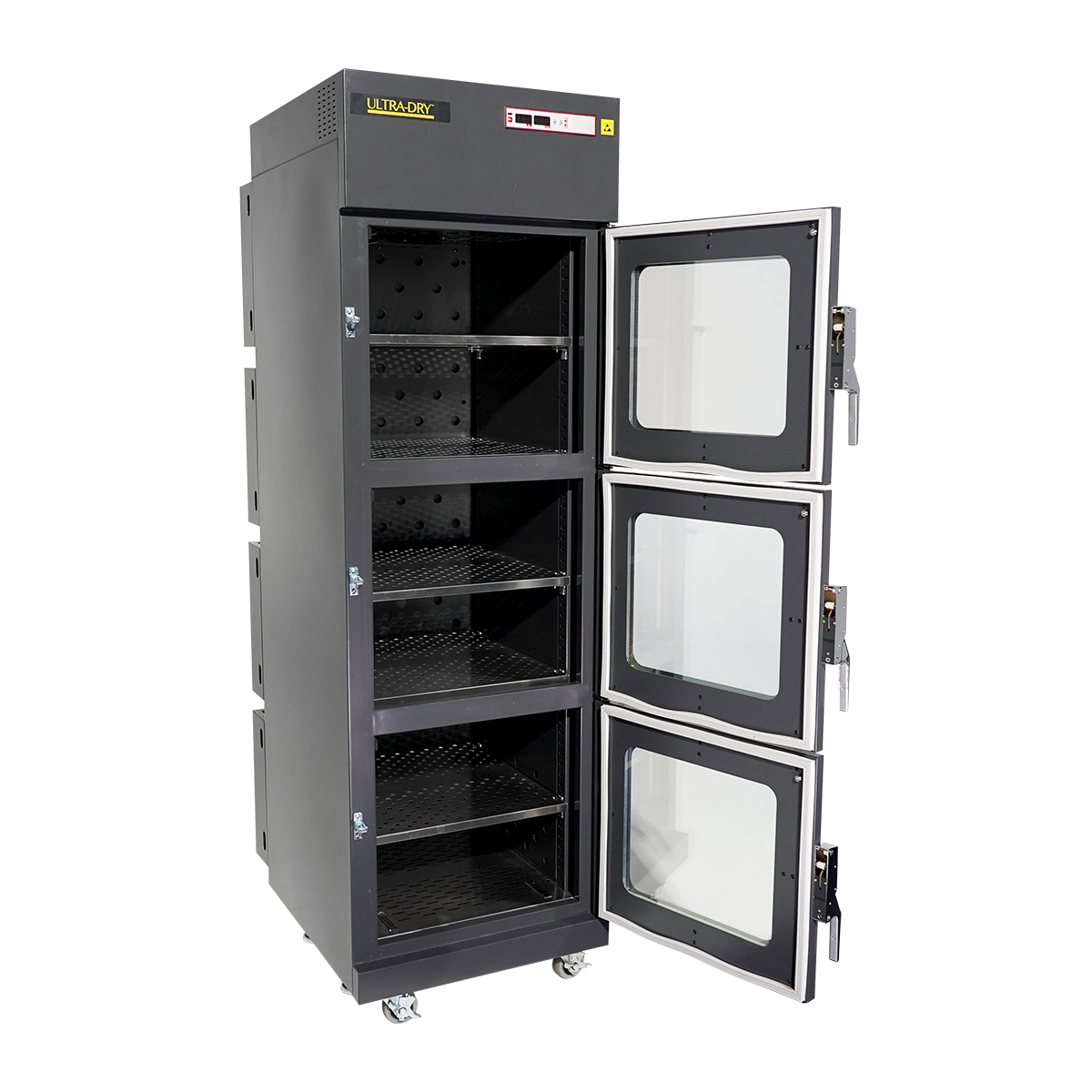

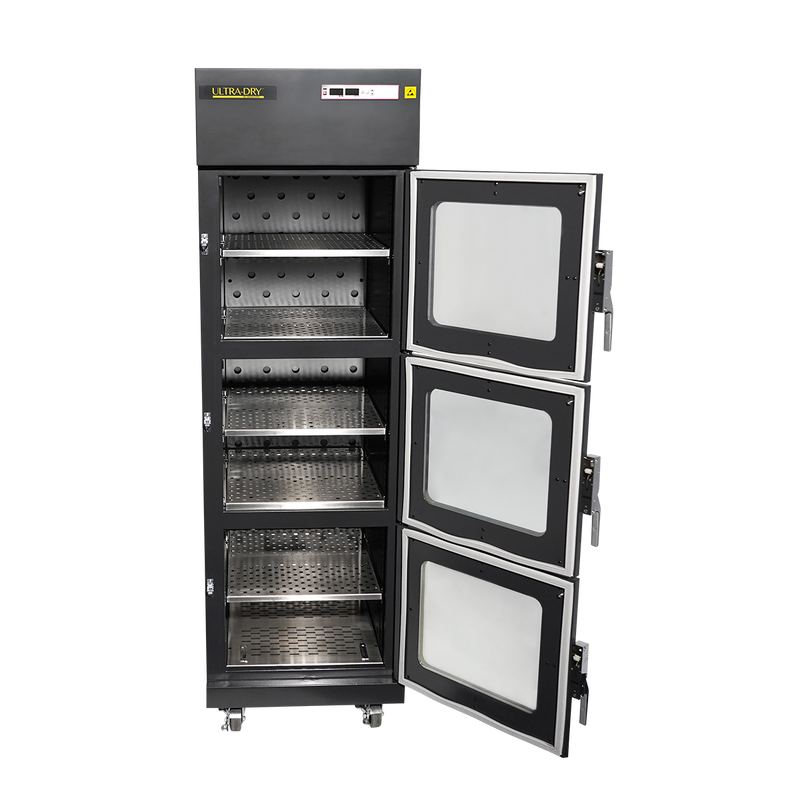

Large Interior Capacity with Flexible Organization

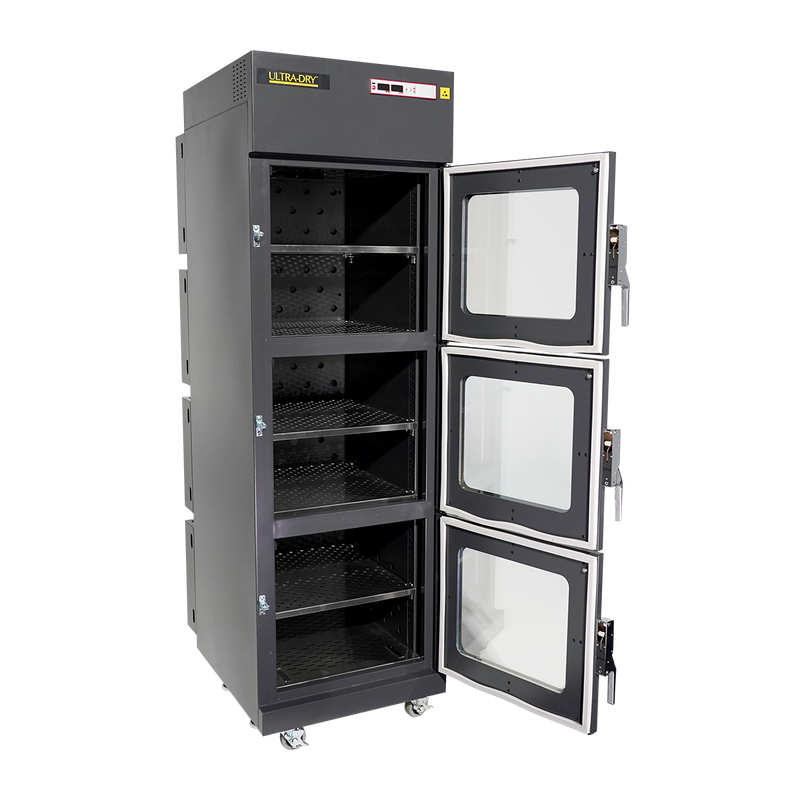

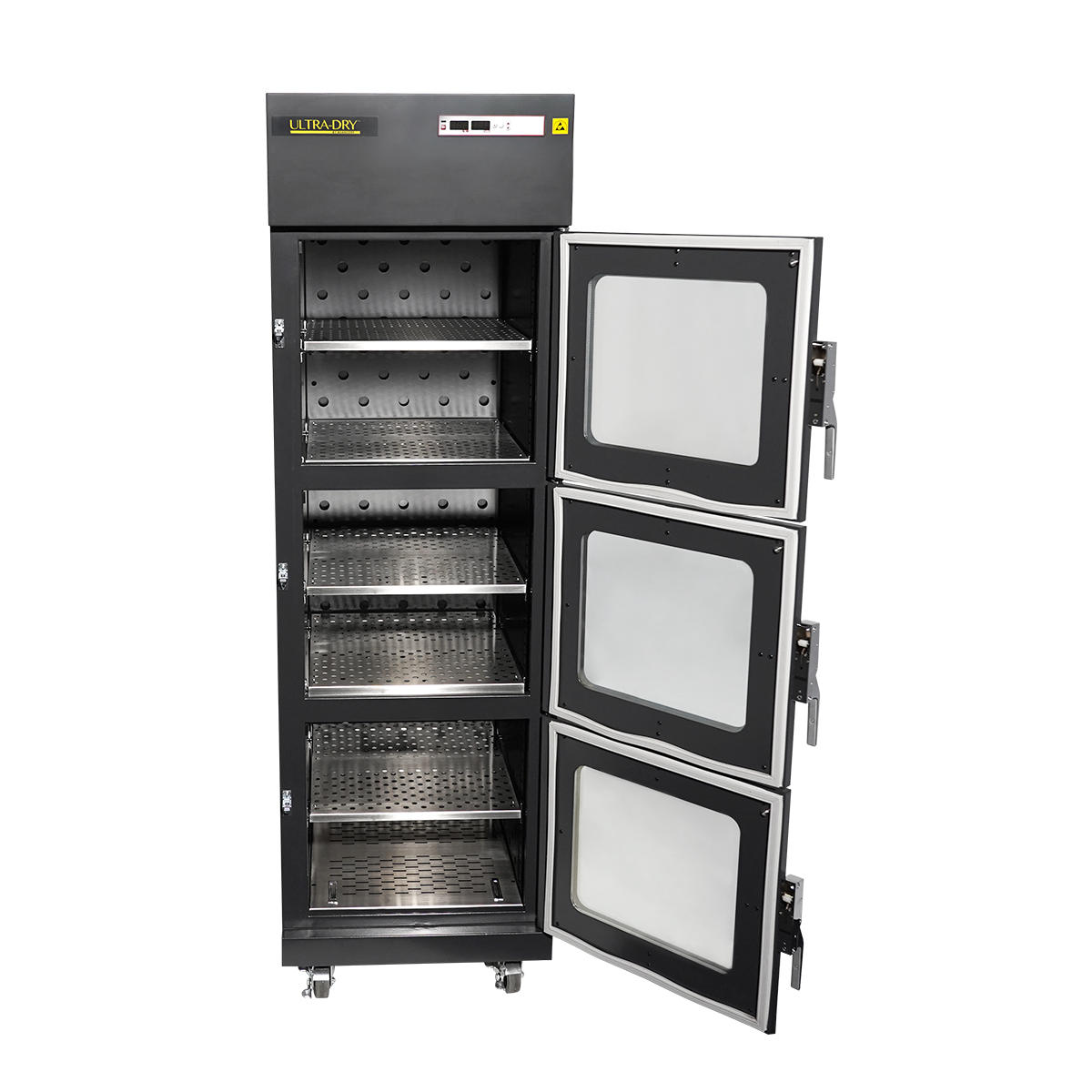

The 790H-50 combines generous storage capacity with a space-saving footprint. Interior dimensions of 19"W x 23"D x 59"H (486 x 587 x 1496 mm) and five adjustable shelves provide organized storage for reels, trays, assemblies, and production materials.
- Interior dimensions: 19"W x 23"D x 59"H (486 x 587 x 1496 mm)
- Includes five adjustable shelves
- Supports flexible storage organization and accessibility
Ultra-Dry Controlled Storage Environment
In addition to moisture recovery baking, the 790H-50 maintains ultra-low humidity storage conditions to help prevent future moisture absorption and keep sensitive electronic materials protected and production-ready during long-term storage.
- Maintains controlled ultra-dry storage conditions
- Supports long-term component reliability and shelf life
- Helps prevent future moisture-related damage
- Designed for dependable controlled-environment storage
Helps Prevent Moisture-Related Damage and Hidden Failures
The Manncorp Ultra-Dry 790H-50 helps protect moisture-sensitive electronic components, PCBs, and assemblies from humidity-related damage during storage and production. Exposure to ambient humidity can lead to popcorning, delamination, microcracking, tombstoning, and solder joint failures that may not appear until products are already in service.
- Helps reduce popcorning, delamination, and microcracking
- Protects moisture-sensitive devices (MSDs) and assemblies
- Supports long-term product reliability and shelf life
- Helps recover exposed inventory instead of scrapping components
Low-Temperature Baking for Safe Moisture Recovery
The H-50 Series uses adjustable low-temperature baking from 40°C to 50°C to safely remove absorbed moisture without the oxidation, discoloration, and solderability issues associated with traditional high-temperature baking methods. Components can often remain in trays, tapes, and sticks during treatment, reducing handling time and minimizing risk.
- Adjustable 40°C to 50°C baking temperature range
- Helps safely restore exposed MSDs and assemblies
- Reduces oxidation and solderability risks
- Supports recovery without removing components from carriers
Ultra-Dry Storage for Long-Term Protection
In addition to moisture recovery baking, the 790H-50 maintains ultra-low humidity storage conditions down to ≤1% RH to help prevent future moisture absorption and keep sensitive components protected and production-ready during long-term storage.
- Maintains humidity levels down to ≤1% RH
- Supports controlled long-term dry storage
- Protects components, bare boards, and partial assemblies
- Exceeds IPC/JEDEC J-STD-033 moisture storage requirements
Designed for High-Volume Manufacturing Environments
With a spacious 15 cu. ft. (426L) capacity, the 790H-50 is ideal for mid- to high-volume electronics manufacturers, PCB producers, distributors, and facilities managing fast-turnover inventories requiring dependable moisture recovery and controlled dry storage.
- 15 cu. ft. / 426L storage capacity
- Ideal for high-volume electronics manufacturing operations
- Supports fast-turnover inventory management
- Designed for dependable controlled-environment storage
| MODEL | 490H-50 | 790H-50 | 1490H-50 | |
|---|---|---|---|---|
 |
 |
 |
||
| External Size L/W/H | 24" x 33" x 57" 600 x 830 x 1455 mm |
24" x 33" x 77" 600 x 830 x 1966 mm |
48" x 33" x 77" 1200 x 830 x 1966 mm |
|
| Internal Size L/W/H | 19" x 23" x 39" 486 x 587 x 985 mm |
19" x 23" x 59" 486 x 587 x 1496 mm |
43" x 23" x 59" 1086 x 587 x 1496 mm |
|
| Capacity | 9.9 cu. ft. (281L) | 15 cu. ft. (426L) | 33.7 cu. ft. (954L) | |
| No. Of Doors | 2 | 3 | 6 | |
| No. Of Shelves | 3 full size shelves | 5 full size shelves | 5 full size shelves | |
| Wheels | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard | |
| Power Consumption | Max. 600W, Avg. 300Wh | Max. 600W, Avg. 300Wh | Max. 1200W, Avg. 600Wh | |
| Number of Heaters | 1 heater in one module | 2 heaters in one module | 4 heaters in two modules | |
| Heater Type | New Style Heater Module (installed on the top of the cabinet) | |||
| Humidity Level | Less than 1% RH @ 50°C | |||
| Temperature | 40~50°C | |||
| Color | Black | |||
| Voltage | 220V | |||
| Display Precision | At 40°C: RH% Below 2%, °C: ±1 At 50°C: RH% Below 1%, °C: ±1 |
|||
| Internal Light | Yes | |||
| Dryer Module | D12 | |||
| Number of Dryer Modules | 2 | |||
| Structure | 1mm thick carbon steel with antistatic paint | |||
| Door | Compression handles, airtight magnetic sealers and antistatic glass | |||
| Grounding Wire | 1M Ω. (940 mm long) | |||
| ESD Paint | 103~109 Ω. (surface resistance) | |||
Baking 40°C Dry Cabinet is suitable for ambient temperature >15°C.
Use Manncorp Ultra-Dry Baking Dry Cabinets to Restore:
- ICs and components that arrive from a vendor in compromised packaging.
- ICs and components that have been exposed to ambient humidity during storage due to improper storage practices, damaged moisture barrier bags, and improperly re-sealed moisture barrier bags.
- ICs and components on reels, trays and sticks, without having to remove them from their packaging.
Use Manncorp Ultra-Dry Baking Dry Cabinets to Protect and Store:
- ICs and components in reels, trays, sticks, feeders or loose in bins or bags prior to placement.
- Multilayer PCBs and bare boards meant for military and other class 3, high-reliability products.
- Double-sided boards that have been partially assembled.
- Moisture-absorbing materials, such as epoxy, resins, chemicals and adhesives.
- Films and plastics used in production.
Ultra-Dry 790H-50 Baking Dry Cabinet Includes
- 15 cu. ft. (426 L) capacity black baking desiccant dry cabinet
- Ultra-low humidity storage of ≤1%RH
- 2 Turbo dry modules for faster drying without need for compressed air
- Hot-bake function adjustable 40°C to 50°C ±2%
- LCD control panel
- Digital RH & temperature display
- 3 doors with compression handles and airtight magnetic sealers
- 2 antistatic wheels with brakes
- 2 standard wheels
- 5 adjustable shelves
- Antistatic paint and glass
- 1-year warranty
