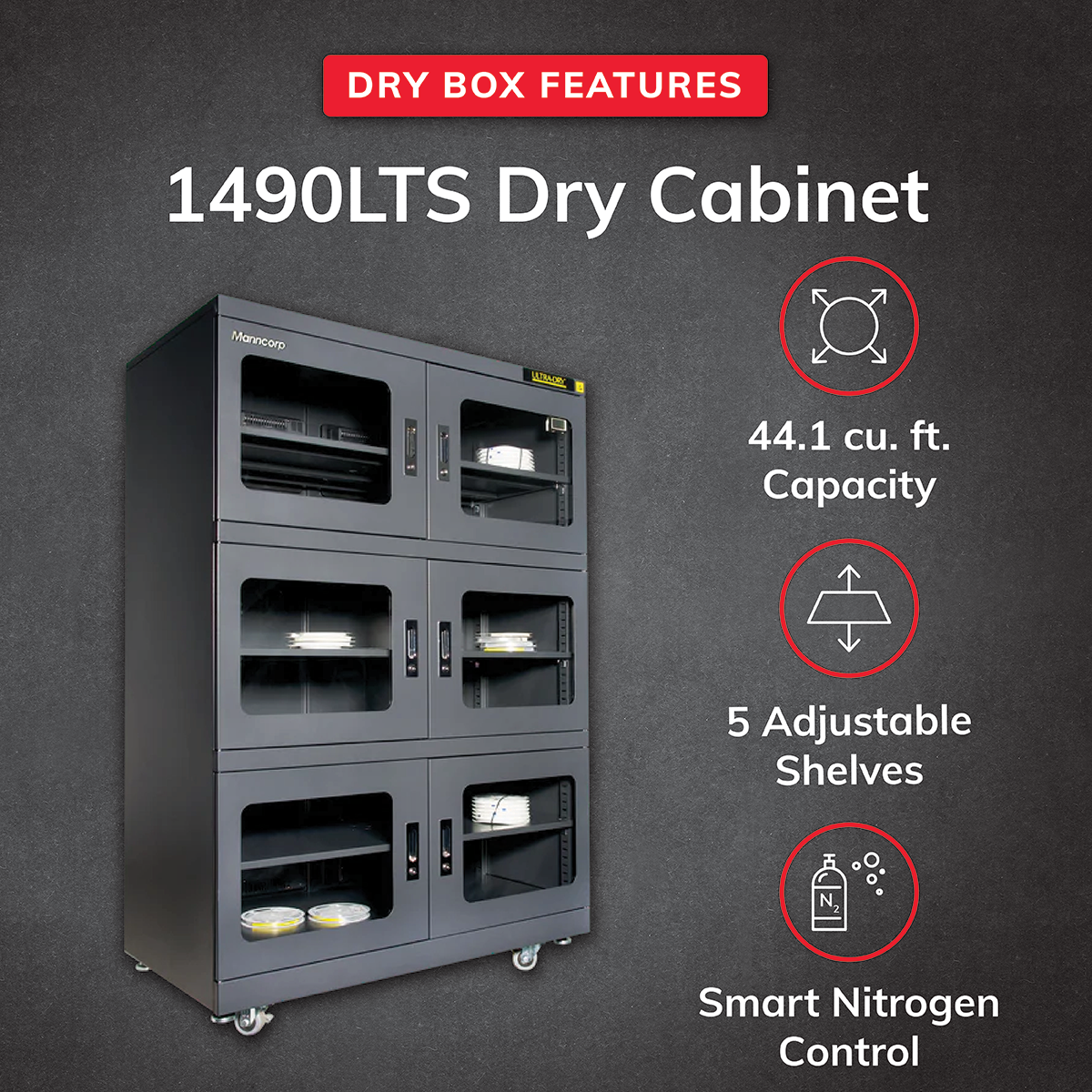

Manncorp 1490LTS Nitrogen-Controlled Storage Cabinet
The Manncorp 1490LTS is a high-capacity nitrogen-controlled storage cabinet designed for long-term protection of moisture-sensitive devices (MSDs), oxygen-sensitive components, PCBs, large-format boards, and bulky assemblies. With a spacious 44.1 cu. ft. / 1250-liter interior, it is built for manufacturers with high-reliability storage demands.
What Sets the 1490LTS Apart
- Smart Nitrogen Purge Control: Uses the NC-5R nitrogen controller with an optional O₂ sensor module to monitor internal oxygen levels and automatically purge nitrogen when concentrations exceed the set threshold.
- Dual-Mode Functionality: Switch between oxygen concentration or relative humidity (RH%) as the purge trigger based on your storage requirements.
- Fail-Safe Protection: Unlike the standard 1490V or NC-3T systems, the 1490LTS continues nitrogen purging during a power failure.
- Purpose-Built Reliability: Designed specifically for MSDs, oxygen-sensitive components, and demanding long-term storage applications.
NC-5R Nitrogen Controller with Optional O₂ Sensor Module
The 1490LTS introduces the NC-5R Nitrogen Controller, engineered for precise atmosphere control inside storage cabinets or enclosures. When equipped with the optional oxygen sensor module, the system provides smart automation for nitrogen purging based on real-time internal conditions.
- Monitors internal oxygen levels in real time
- Automatically activates nitrogen purging when oxygen exceeds the set threshold
- Maintains consistent low-oxygen storage conditions
- Supports nitrogen purging based on either O₂ concentration or RH%
- Helps protect sensitive materials from oxidation and moisture absorption
Fail-Safe Protection During Power Loss
Unlike standard dry cabinets or basic nitrogen storage systems, the 1490LTS continues nitrogen purging even during a power failure. This provides uninterrupted protection for sensitive materials and helps reduce the risk of oxidation, moisture absorption, and component degradation during unexpected downtime.
- Continues nitrogen purge operation during power failure
- Provides uninterrupted protection for sensitive materials
- Helps prevent oxidation and moisture absorption
- Supports long-term reliability for stored components
Large-Capacity Storage for Production Environments
Built for high-volume production facilities, the 1490LTS combines large-capacity storage with flexible organization. Its spacious interior and adjustable shelving make it suitable for large-format boards, bulky assemblies, PCBs, MSDs, and other sensitive production materials.
- Interior capacity: 44.1 cu. ft. / 1250 liters
- Interior dimensions: 47" W × 26.4" D × 72" H
- Metric dimensions: 1198 × 672 × 1820 mm
- Five height-adjustable shelves
- Anti-static locking wheels for mobility and stability
- Designed for large-format boards and bulky assemblies
Traceability and Process Control
For facilities that require environmental documentation and process traceability, the 1490LTS includes a digital control panel with integrated temperature and humidity data logging.
- Digital control panel
- Integrated temperature logging
- Integrated humidity logging
- Supports environmental traceability
- Continuously monitors critical storage conditions
Why Choose the Manncorp 1490LTS?
The Manncorp 1490LTS combines 1250L storage capacity, smart nitrogen purge automation, dual-mode O₂/RH% control, fail-safe purge protection during power loss, and integrated environmental monitoring in one production-ready cabinet.
- High-capacity nitrogen-controlled storage cabinet
- NC-5R nitrogen controller with optional O₂ sensor module
- Automatic nitrogen purging based on real-time internal conditions
- Dual-mode purge control using oxygen concentration or RH%
- Continues nitrogen purging during power failure
- Designed for MSDs, PCBs, oxygen-sensitive components, and large assemblies
- Includes temperature and humidity data logging for process control
Reliable Low-Humidity Storage for Sensitive Electronics
The Manncorp 1490LTS is engineered to maintain ultra-low humidity conditions below 5% RH, helping safeguard moisture-sensitive devices, PCBs, and electronic assemblies from moisture intrusion, oxidation, and long-term storage damage.
- Maintains ultra-low humidity below 5% RH
- Helps minimize oxidation and moisture exposure
- Protects sensitive components and electronic assemblies
- Well-suited for electronics production environments
High-Capacity Cabinet for Production Storage
Offering 44.1 cu. ft. (1250L) of internal storage space, the 1490LTS is designed to support organized storage of components, reels, PCBs, and assemblies in busy manufacturing operations.
- 44.1 cu. ft. / 1250L interior capacity
- Large cabinet footprint for bulk storage needs
- Supports organized inventory management
- Built for high-throughput manufacturing facilities
Dry Storage Performance Without Nitrogen
The V Series utilizes regenerative desiccant drying technology to create stable low-humidity storage conditions without relying on nitrogen gas, compressed air systems, or disposable desiccant materials.
- Advanced regenerative desiccant drying technology
- No nitrogen supply required
- No compressed air connection needed
- Eliminates disposable desiccant packs
Helps Reduce Moisture-Induced Defects
By maintaining controlled low-humidity conditions, the 1490V helps reduce manufacturing defects associated with moisture exposure, including popcorning, delamination, microcracking, and solder reliability issues.
- Helps reduce popcorning and delamination risks
- Supports improved solder joint reliability
- Helps minimize microcracking caused by moisture
- Promotes long-term component protection
Integrated Environmental Monitoring
Built-in temperature and humidity monitoring with datalogging functionality helps support process control, compliance requirements, and environmental traceability within electronics manufacturing workflows.
- Integrated temperature and humidity monitoring
- Built-in datalogging functionality
- Supports process tracking and traceability
- RS-232 communication available
| MODEL | 157V | 290V | 315V | 490V | 790V | 1490V/1490LTS |
|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
|
| Electrical Requirements | 110V | 110V | 110V | 110V | 110V | 110V |
| External Size L/W/H | 18" x 18" x 38" 450 x 452 x 960 mm |
24" x 27.4" x 25" 600 x 695 x 642 mm |
36" x 18" x 41" 905 x 452 x 1045 mm |
24" x 27.4" x 50" 600 x 695 x 1274 mm |
24" x 27.4" x 72" 600 x 695 x 1820 mm |
47" x 27.4" x 72" 1200 x 695 x 1820 mm |
| Internal Size L/W/H | 18" x 17" x 34" 448 x 425 x 870 mm |
24" x 25" x 21" 598 x 645 x 524 mm |
36" x 17" x 34" 903 x 425 x 870 mm |
24" x 25" x 42" 598 x 645 x 1071 mm |
24" x 25" x 64" 598 x 645 x 1618 mm |
47" x 25" x 64" 1198 x 645 x 1618 mm |
| Capacity | 5.8 cu. ft. (165L) | 7.1 cu. ft. (202L) | 11.8 cu. ft. (334L) | 14.5 cu. ft. (413L) | 22 cu. ft.(624L) | 44.1 cu. ft. (1250L) |
| No. Of Shelves | 3 Adjustable | 2 Adjustable | 3 Adjustable | 3 Adjustable | 5 Adjustable | 5 Adjustable |
| Wheels | N/A | N/A | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard |
| Power Consumption | Avg 55 w/hr.; Max. 295W | Avg 55 w/hr.; Max. 295W | Avg 105 w/hr.; Max. 585W | Avg 105 w/hr.; Max. 585W | Avg 105 w/hr.; Max. 585W | Avg 105 w/hr.; Max. 585W |
| Shipping Information | 23" L x 23" W x 49" H; 120 lbs | 32" L x 29" W x 34" H; 145 lbs | 23" L x 41" W x 48" H; 200 lbs | 32" L x 29" W x 57" H; 180 lbs | 29" L x 32" W x 79" H; 235 lbs | 32" L x 52" W x 79" H; 445 lbs |
| Smart Nitrogen Purge Control | None | None | None | None | None | 1490LTS Only |
| Humidity Range | ≤5% RH | |||||
| Color | Black | |||||
| Structure | 1 mm thick carbon steel with antistatic paint | |||||
| Door | Compression handles, airtight magnetic sealers and antistatic glass. | |||||
| Grounding Wire | 1MΩ. (940 mm long) | |||||
| ESD Paint | 103~109 Ω. (surface resistance) | |||||
The best performance of the dry cabinet is achieved under the ambient condition of temperature below 30°C and relative humidity below 60% RH.
Reliable Low-Humidity Storage for Sensitive Materials
The Manncorp 1490LTS Ultra-Dry Storage Cabinet provides dependable low-humidity protection for moisture-sensitive components, materials, and equipment. By maintaining a controlled storage environment, the cabinet helps reduce the risk of oxidation, corrosion, and other humidity-related damage that can impact product quality and performance.
- Maintains a stable low-humidity environment for sensitive materials
- Helps minimize moisture damage, oxidation, and corrosion
- Supports product quality, reliability, and shelf life
- Suitable for electronics manufacturing, industrial storage, and archival use
Designed for Electronics, Manufacturing, and Material Storage
The 1490LTS is ideal for storing electronic components, production materials, and other moisture-sensitive items that require consistent humidity control during storage.
- Electronic components stored in reels, trays, feeders, or containers
- PCBs, assemblies, and moisture-sensitive production materials
- Industrial adhesives, resins, and specialty chemicals
- Medical and laboratory instruments vulnerable to corrosion
- 3D printing materials, plastics, and technical filaments
- Documents, records, and archival storage applications
- Precision tools and humidity-sensitive equipment
Performance
A. Start Installation
B. Stable
C. Door Open and Close
Door Is Opened 30 Seconds and Closed
Ultra-Dry "V" series always reaches ≤5%Rh within 30 minutes after the door is opened and closed.
Ultra-Dry 1490LTS includes:
- One black dry cabinet measuring 47" x 27.4" x 72" (1200 mm x 695 mm x 1820 mm) LxWxH with 44.1 cu. ft. (1250 L) internal capacity
- Six doors with compression handles and airtight magnetic sealers
- Ultra-low humidity storage of ≤5%RH
- 4 Turbo dry modules for faster drying without compressed air
- 2 anti-static wheels with brakes
- 2 standard wheels
- Anti-static paint and glass
- 5 adjustable shelves with 200-lb capacity each
- 1-year warranty
- Digital RH & temperature display with data logging function and Windows-based PC software
- Intelligent nitrogen control and advanced environmental monitoring
Shipping Information
- Crated Dimensions: Approx. 32" L x 52" W x 79" H (800mm L x 1320mm W x 2000mm H)
- Gross Weight: Approx. 445 lbs. (200 kgs)
