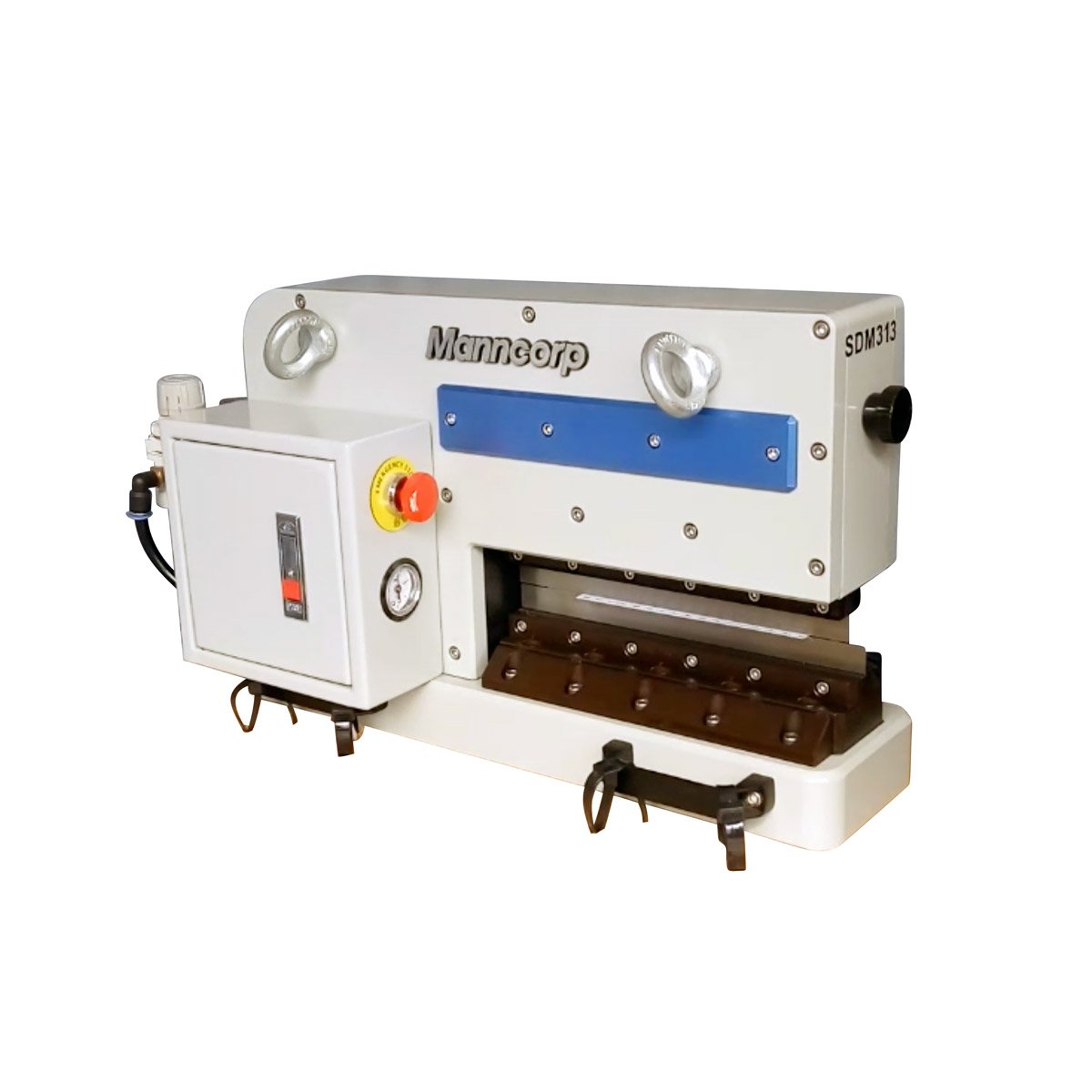

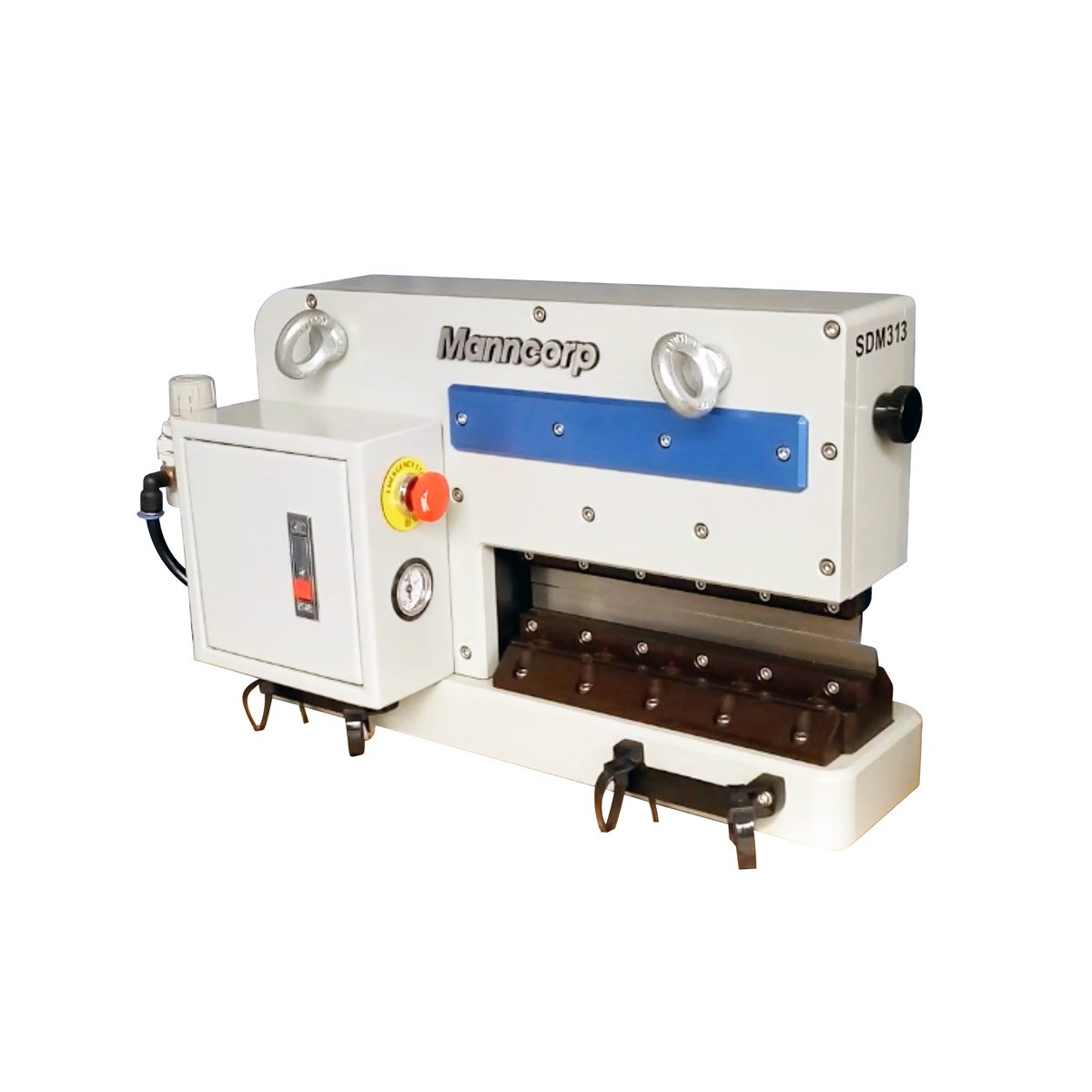

SDM313 PCB Depaneling Machine

PCB Depaneling Machine for FR4, Aluminum, and Thick Substrates from Manncorp
SDM313 PCB Depaneling Machine for FR4, Aluminum, and Thick Substrates

SDM313 PCB Depaneling Machine

PCBs are separated by the SDM313's dual wedge-shaped knives in one gentle rocking motion that shears the panel along the score line, without stress or damage to the PCBs or components. This machine is effective on standard circuit boards as well as metalized, flexible and ultra-thin PCBs.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $12,995.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Even when metalized circuit boards are processed – such as those populated with heat-generating LEDs that require heat-dissipating metal inner layers – this machine will easily make the cut.

SDM313 also cuts flexible and ultra-thin PCBs (down to 0.5 mm thick) clean, with no ripping or tearing, even when sensitive components such as delicate ceramic capacitors, are mounted within 0.5 mm of the score line. The linear, rather than circular, cutting surfaces allow for faster separations without added stress.

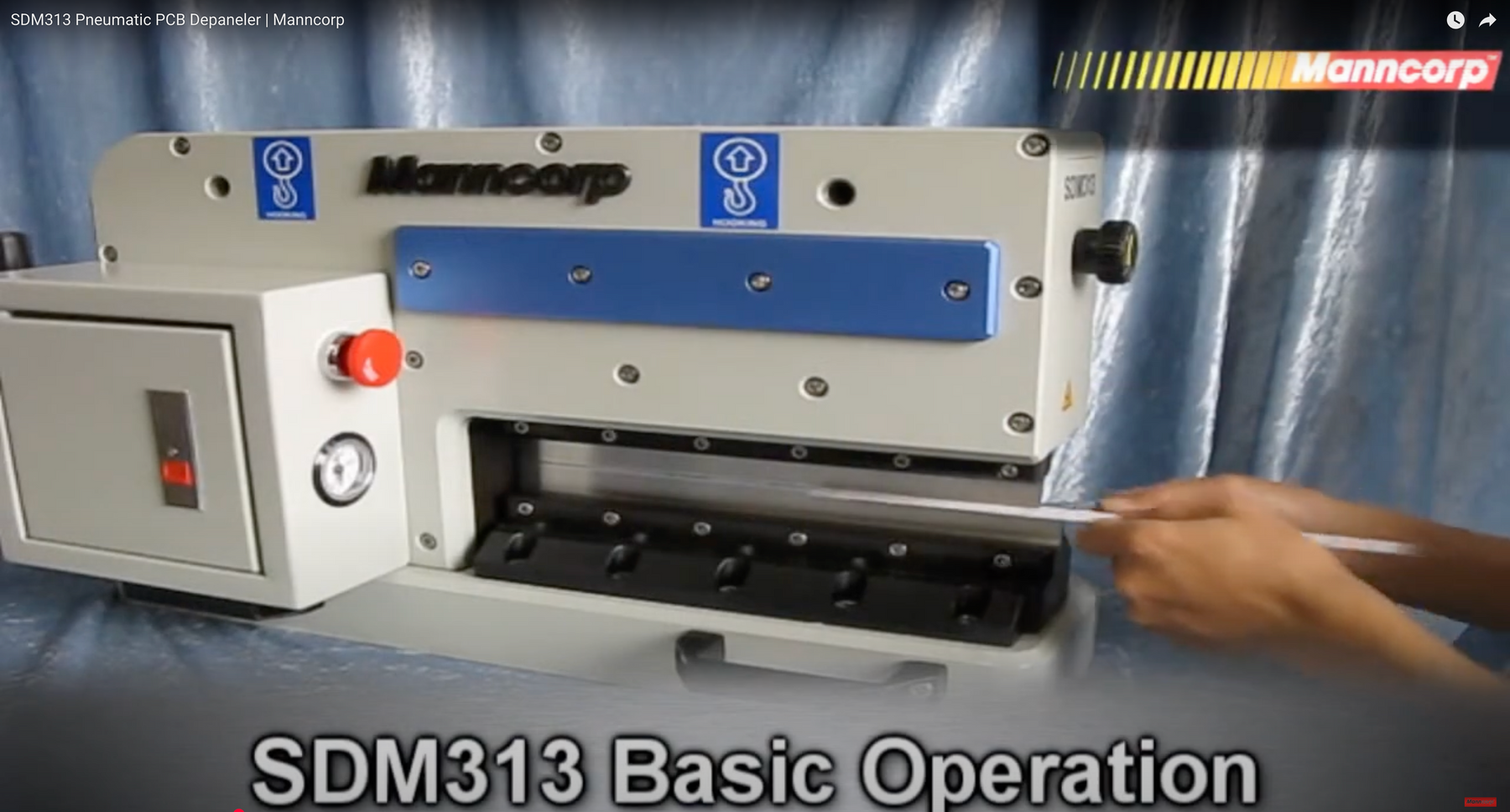

Alignment between the SDM313's linear cutting blades and the panel's score line is achieved using a knob at the top of the machine. The narrow separation between the upper and lower blades (a maximum of 4 mm) protects the operator from the blade edges.

SDM313 SPECIFICATIONS
PCB Thickness 0.5 mm to 1.2 mm (with minimum 0.15 mm scoring depth)
Up to 2.0 mm (with minimum 0.5 mm scoring depth)
Maximum Depaneling Length 300 mm (11.8") with 0.5 mm remaining PCB thickness
200 mm (7.9") with 1.0 mm remaining PCB thickness
V-Scoring Lines Specs:
  • Depth of scoring (A): ≥ 0.15 mm
  • Remaining PCB thickness (B): 1.0 mm max
  • Component from scoring (C): ≥ 0.5 mm*
  • Scoring angle θ: ≥ 20˚ (typical)*
  • Max. component height (D): 20 mm
    *Based on standard cutting blade
    Custom linear blade available; please contact us.
Depaneling Mode Pneumatic
Separating Speed N/A
Production Rate High volume
Scoring Angle 20˚
Minimum Component Distance from V-Groove 0.5 mm
Maximum Component Height 20 mm
PCB Materials Aluminum, FR4, CEM3, etc.
Air Requirement 4 to 6 bar

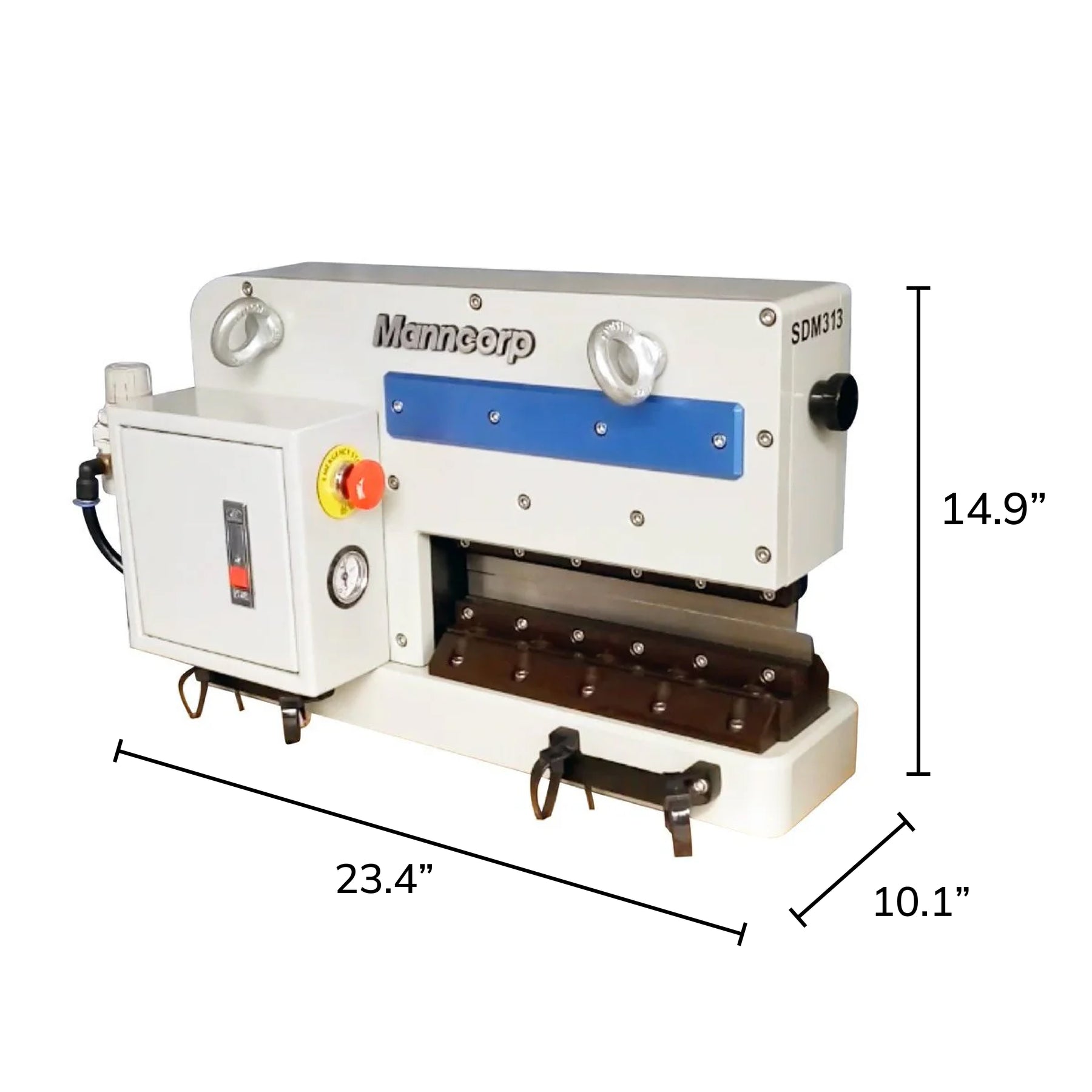

Dimensions (L x W x H) 259 mm x 595 mm x 380 mm
(10.1" x 23.4" x 14.9")
Net Weight 140 kg (309 lbs)
Shipping Weight 166 kg (366 lbs)
