Benchtop Selective Fluxing Machine

• High-Precision, Pressurized Air Atomization Nozzles and Programmable X-Y Drive Mechanism for Highly Controllable Selective Fluxing
• Utilize Selective Soldering Data From TRZ to Generate Selective Fluxing Programs; Easily Download Data to SP Fluxer Using Windows™-Based Software and USB Interface
• Flexible PCB Holder Handles Boards or Pallets Up to 330 mm x 250 mm (13" x 10")
• Support Three or More TRZ Selective Soldering Systems with a Single SSP Fluxer
• Keep Overspray and Sticky Flux Residue Away From Selective Soldering Equipment to Simplify Maintenance and Reduce Downtime
• Weight Less Than 45 kg (100 lbs.)
• Built-In Flux Reservoir with Hi-Level/Low-Level Alarms
• Integral, 97 mm Diameter (4") Port for Connection to Factory Exhaust

Separate Fluxing Station Provides Important Advantages

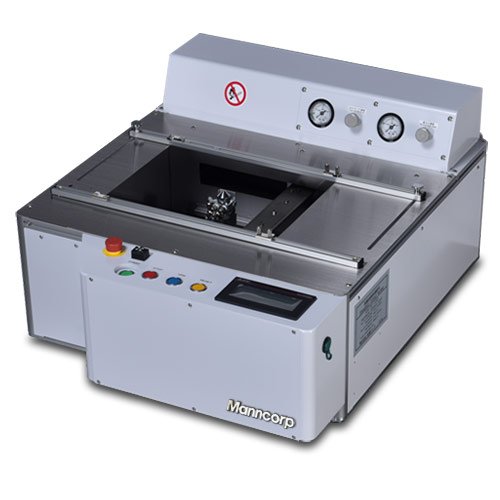

The ULTIMA SSP handles boards or pallets up to 330 x 250 mm (the same size as the TRZ) and utilizes a high-precision, pressurized air atomization nozzle and X-Y drive mechanism with programmable speed for highly controllable selective fluxing. Among the many advantages of separating soldering and fluxing operations into separate machines are 1) the ability to keep overspray and sticky flux residue away out of the soldering mechanism and PCB positioner, 2) simplified maintenance, and 3) increased throughput by allowing soldering and fluxing to be performed simultaneously (in fact, a single SSP can serve as many as three TRZ systems).

Precision Spray Nozzle Delivers Precise, Uniform, Flux Application

The precision spray nozzle used in the ULTIMA SSP is capable of delivering round or very thin linear spray patterns with a very small amount of liquid flux. Independent pressure controls for its integral flux reservoir and atomizer allow the user to regulate the volume and density of the spray jet.

Selective Fluxing Programs Easily Generated From Soldering Data

Soldering programs for the TRZ are easily converted to selective fluxing programs by the ULTIMA Series software application and downloaded to the SSP via USB connection.
