Standard PCB Magazine Unloader

Ideal for PCB assemblers who use only one size of magazine throughout their process, the Manncorp UL Series of in-line magazine unloaders is a lower-cost option for unloading PCBs from the production line and into either standard CAB or Nikko magazines.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Magazine Size
Footprint
Conveyor Direction
Regular price $12,995.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

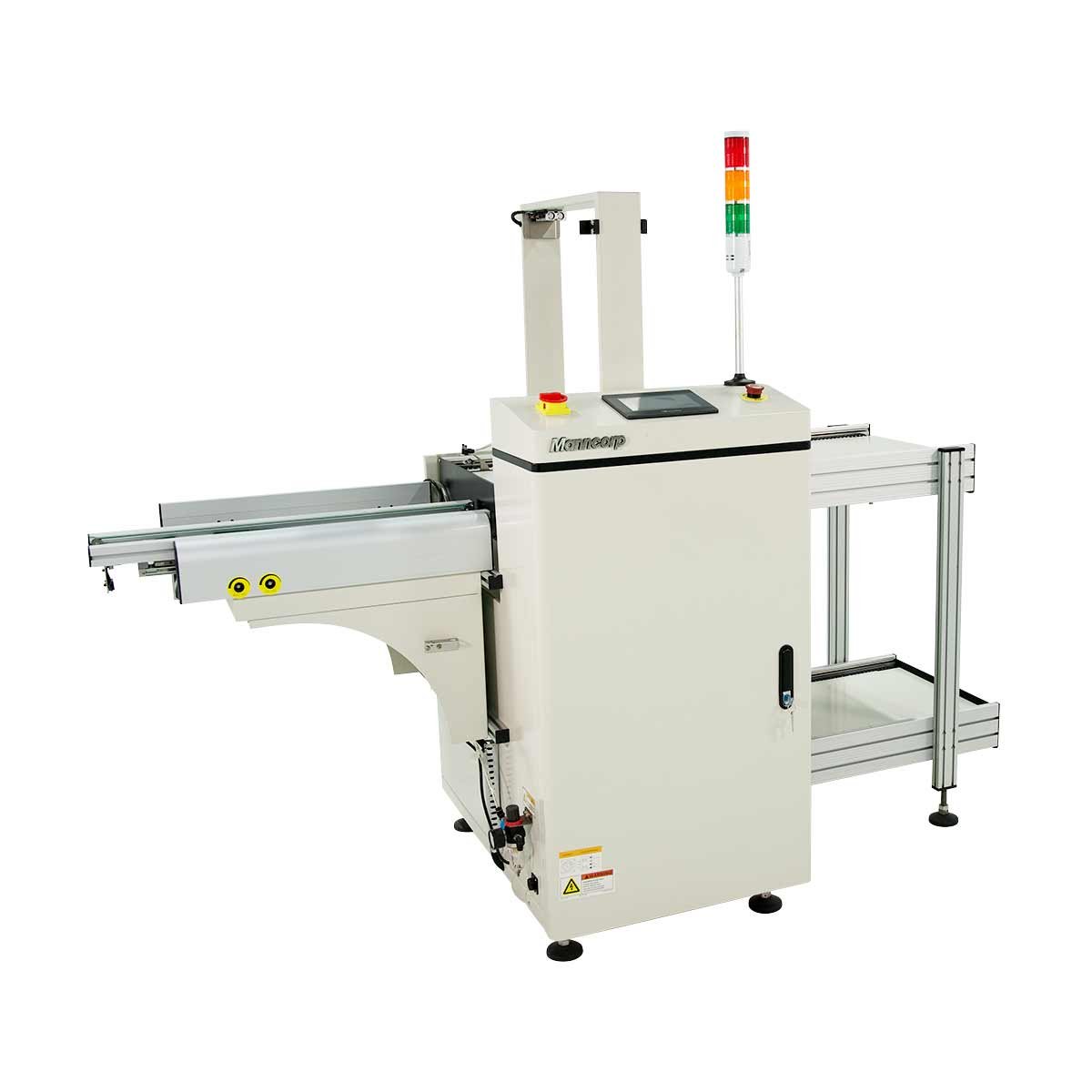

Automatic Full Magazine Loading / Empty Magazine Offloading

Available in four models, each dedicated to a standard magazine size (250, 330, 390, and 460 mm), the UL Series is ideal for PCB assemblers who use only one size magazine throughout their process.

Empty magazines are loaded onto the lower platform and are automatically transferred to the indexing elevator which has selectable pitch settings of 10, 20, 30, and 40 mm. Full magazines are transferred to the upper platform.

A small footprint version (UL-D250C) of the 250 mm in-line model is also available, for applications where floorspace is limited.

See the Specifications tab for a comparison of the models in the UL Series.

MODEL UL250WST
ULD250C
UL330WST UL390WST UL460WST
PCB Size 50 x 50 mm to 350 x 250 mm
(1.97" x 1.97" to 13.78" x 9.84")
50 x 50 mm to 460 x 330 mm
(1.97" x 1.97" to 18.11" x 12.99")
50 x 50 mm to 535 x 390 mm
(1.97" x 1.97" to 21.06" x 15.35")
120 x 120 mm to 535 x 460 mm
(4.72" x 4.72" to 21.06" x 18.11")
Magazine Size 355 mm L x 320 mm W x 563 mm H
(13.98" L x 12.60" W x 22.17" H)
460 mm L x 400 mm W x 563 mm H
(18.11" L x 15.75" W x 22.17" H)
535 mm L x 460 mm W x 570 mm H
(21.06" L x 18.11" W x 22.44" H)
535 mm L x 530 mm W x 570 mm H
(21.06" L x 20.87" W x 22.44" H)
Machine Dimensions

UL250WST: 1700 mm L x 740 mm W x 1150 mm H (67" x 29" x 45")

ULD250C: 1450 mm L x 740 mm W x 1150 mm H (57" x 29" x 45")

1800 mm L x 820 mm W x 1150 mm H (71" L x 32" W x 45" H) 2000 mm L x 880 mm W x 1150 mm H (79" L x 35" W x 45" H) 2100 mm L x 960 mm W x 1150 mm H (83" L x 38" W x 45" H)
Net Weight

UL250WST: 160 kg (353 lbs.)

UL250WMT: 145 kg (320 lbs.)

220 kg (485 lbs.) 280 kg (617 lbs.) 320 kg (705 lbs.)
Shipping Weight

UL250WST: 200 kg (440 lbs.)

UL250WMT: 185 kg (408 lbs.)

260 kg (573 lbs.) 320 kg (705 lbs.) 360 kg (794 lbs.)
Selectable Pitch 10, 20, 30, 40 mm
Conveyor Direction Left to right (standard) or right to left (optional)
PCB Thickness 0.4 mm min. (0.016" min.)
Air Supply Pressure 5-6 kg/cm2 (70-85 psi)
Air Consumption 10 I/min (.35 CFM)
Voltage 110 VAC
Power 300 VA max.
