Dual-Vision System for Broad Component Compatibility

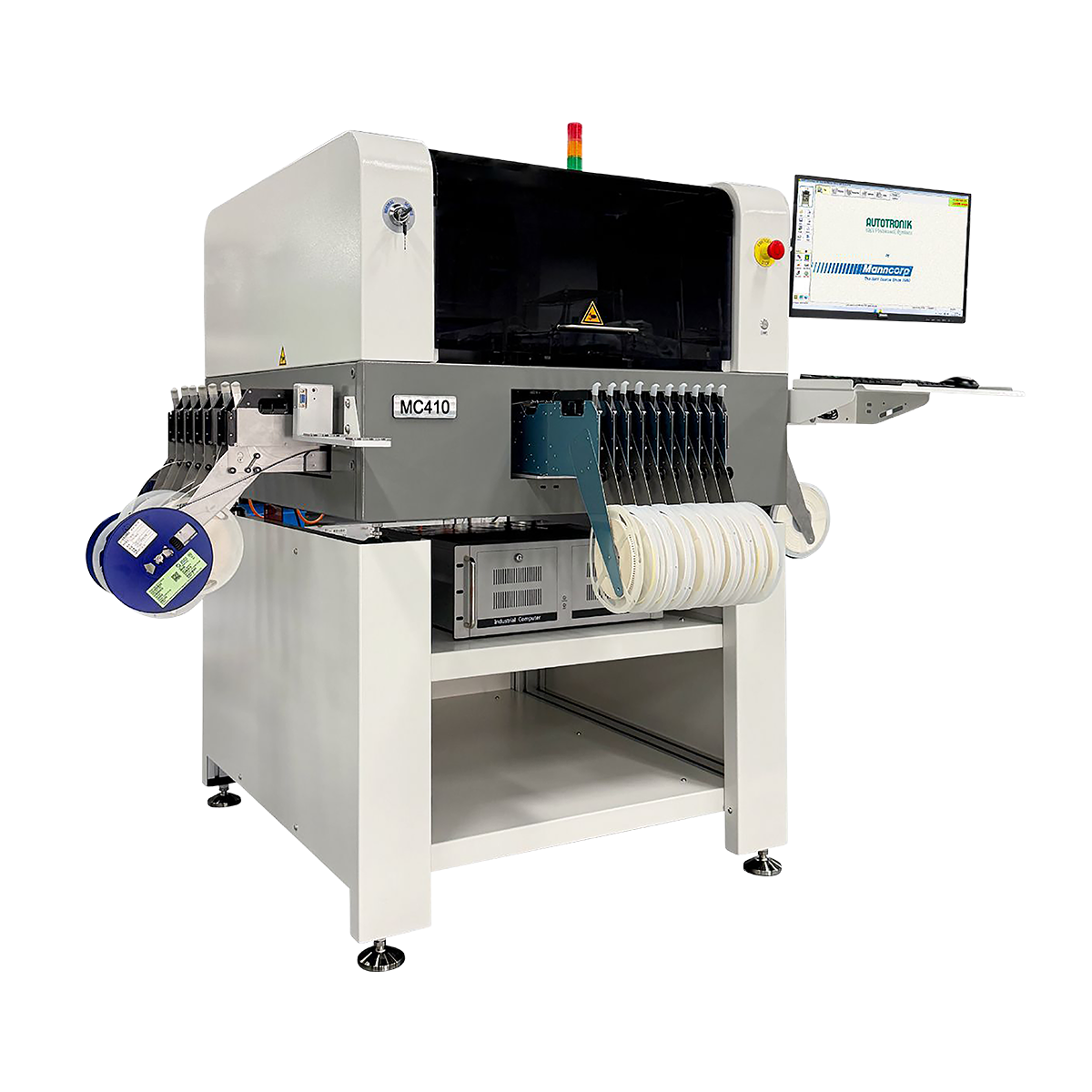

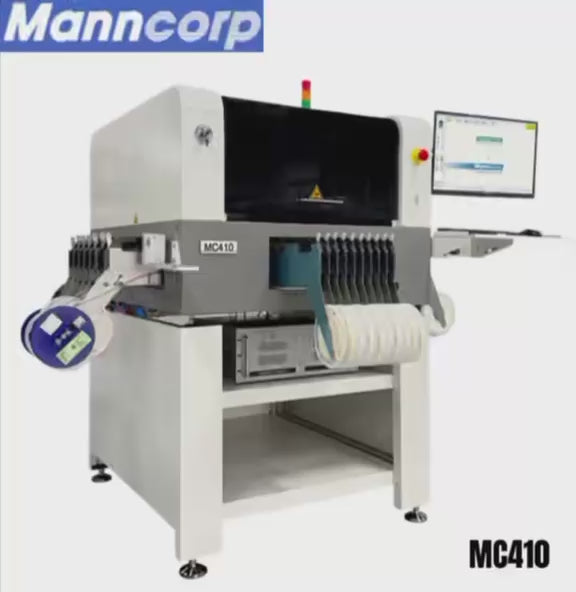

The MC410 combines two intelligent vision systems to deliver accurate, high-speed placement across an exceptionally wide range of SMD components—from ultra-miniature 01005s to large parts up to 100 x 150 mm. Smaller and fine-pitch components are aligned using a high-speed, head-mounted Cognex® on-the-fly vision system, while larger devices are processed with a base-mounted upward-looking camera for precise alignment and placement. This dual-camera approach helps optimize both speed and accuracy without compromising flexibility.
- Places components from 01005 up to 100 x 150 mm
- Head-mounted Cognex® vision system for fine-pitch and miniature components
- Upward-looking camera for larger component alignment
- Supports CSPs, µBGAs, and other precision packages
- Non-contact vision alignment improves placement accuracy
- Designed for fast, versatile handling across mixed assemblies
Production Software Designed for Speed and Simplicity
The MC410 runs on the same proven Windows®-based software platform used across the entire MC Series, refined through years of customer-driven development. Flexible programming options—including CAD import, manual teaching, and direct entry—allow operators to create jobs quickly while reducing setup complexity. A built-in virtual PCB simulator verifies placement data before production begins, helping minimize errors and speed up first-board validation.
During operation, the software provides real-time visibility into production performance, including pick camera images, machine status, placement progress, and throughput. Operators can make adjustments directly from the production screen without interrupting workflow, helping maintain uptime and productivity.
- Windows®-based MC Series software platform
- Programming via CAD import, manual teaching, or direct entry
- Virtual PCB simulator for pre-production verification
- Integrated Smart Feeder component data management
- Real-time production monitoring and machine status updates
- Resume production automatically after interruptions
- Adjust feeder settings, placement data, and speed during operation
Built to Scale from Prototyping to Production
The MC410 is engineered to support both prototype assembly and full production workflows without requiring separate systems or retraining. With placement rates up to 2,500 CPH (IPC-9850), support for up to 84 feeder slots, and precision mechanical components such as X-Y ballscrews and Smart Feeders, the system delivers reliable performance for growing production demands. Intelligent software optimization automatically improves feeder placement and assembly sequencing to maximize throughput.
Because the MC410 shares the same software environment, feeders, and operational structure as all MC-Series machines, scaling production is straightforward. Programs transfer seamlessly between systems, feeders remain interchangeable, and operators can continue working within the same familiar interface.

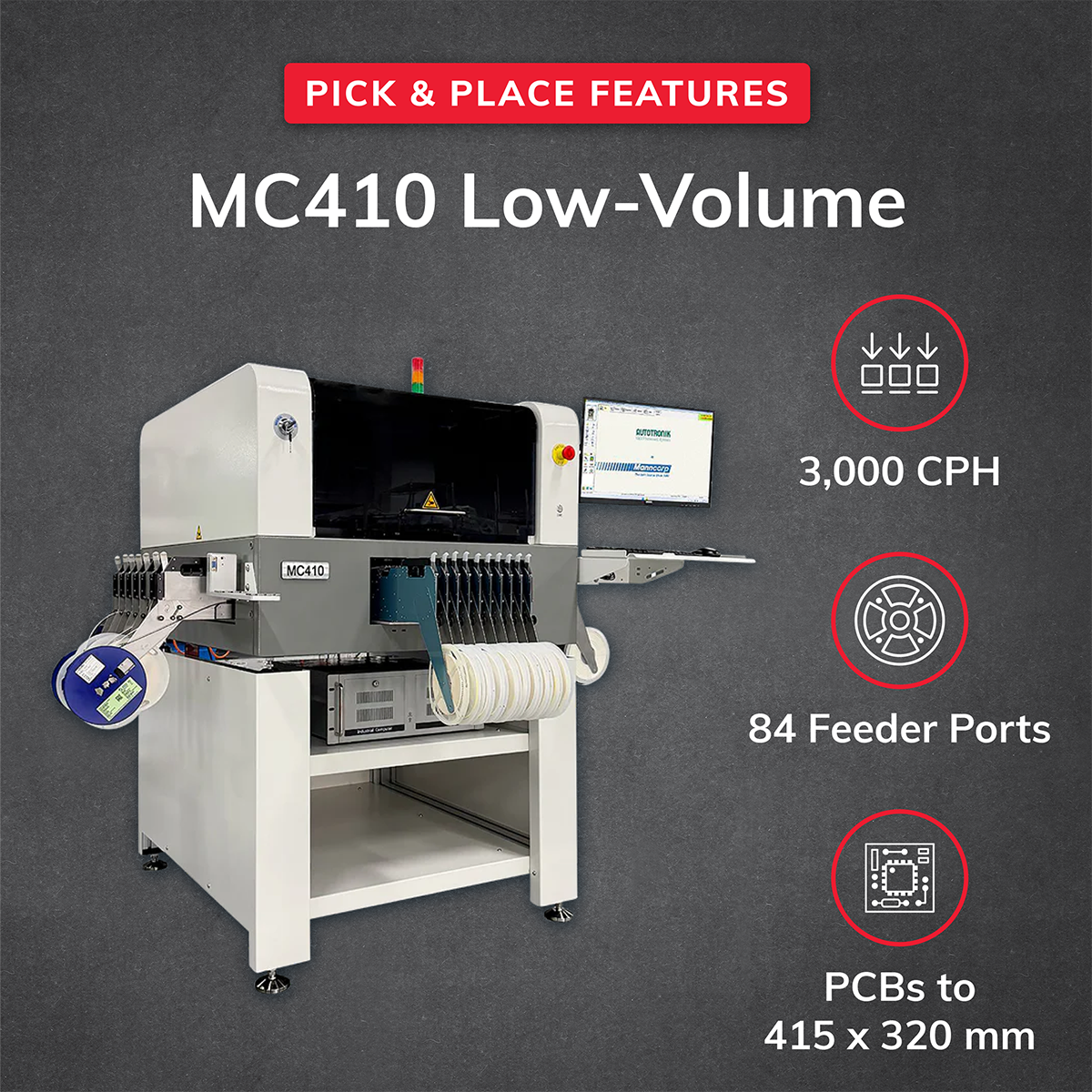

- Placement speed up to 2,500 CPH (IPC-9850)
- Supports up to 84 feeder slots
- X-Y ballscrew motion system for precise positioning
- Automatic feeder and placement sequence optimization
- Shared software and feeder platform across all MC-Series systems
- Transfer programs between compatible MC-Series machines
- Ideal for both prototyping and scalable production environments
Flexible Configuration Options for Any Workflow
The MC410 can be configured to support a wide range of production requirements, making it well suited for prototyping, low-volume production, and mixed assembly environments. The system supports waffle trays, cut strip holders, reel feeders, and bulk component handling, allowing users to work efficiently without committing to full reels for every job.
Its Semi-Automatic mode provides additional flexibility for loose or specialty components by enabling manual pickup, orientation, and placement directly from bulk trays. With multiple feeder formats and extensive slot capacity, the MC410 adapts easily to changing assembly needs.
- Compatible with reel feeders, cut strips, waffle trays, and bulk trays
- Cost-effective for prototyping and short production runs
- Supports cut strip holders for 8 mm, 12 mm, 16 mm, and 24 mm tape
- 84 feeder positions available (32 per side, 20 front slots)
- Semi-Automatic mode for loose component placement
- Flexible feeder configurations to match production requirements
| Placement Specifications | |
|---|---|
| Number of Placement Heads | 1 |
| Placement Rate (IPC-9850) | 2,500 CPH |
| Placement Rate (Max.) | 3,000 CPH |
| Placement/Positioning Accuracy | ±0.05 mm |
| Feeder Capacity (8mm/12mm) | 84 |
| IC Tray Capacity (Waffle Trays) | 3 |
| Placement Area w/o Waffle Tray with No Conveyor | 320 x 415 mm |
| Placement Area with Waffle Tray with No Conveyor | 320 x 270 mm |
| Placement Area w/o Waffle Tray with Conveyor | N/A |
| Placement Area with Waffle Tray with Conveyor | N/A |
| BGA/CSP Placement Capability | Yes |
| Alignment Method | Cognex Vision on the Fly |
| Nozzle Change Capacity | 7 |
| Integral Vacuum | Yes |
| Min. Component Size | 01005 |
| Max. Component (Using head camera) | 16 x 14 mm |
| Max. Component (Using bottom camera) | 150 x 100 mm |
| Max. Component Lead Pitch | 0.3 mm |
| Mechanical Specifications | |
| X/Y Axis Resolution | 0.005 mm |
| X/Y Drive Mechanism | Ballscrew |
| X/Y Drive Motor | AC Servo |
| X/Y Encoding | High Precision Rotary Encoder |
| X/Y Resolution | 0.005 mm |
| X/Y Repeatability | ±0.01 mm |
| Z Drive Motor | DC Servo |
| Z Encoding | Rotary |
| Z Axis Resolution | 0.01 mm |
| R Drive Motor | DC Servo |
| R Encoding | Rotary |
| R Resolution | 0.045° |
| Rotation 0-360° | 0.09°/step |
| PCB Specifications | |
| PCB Loading | Manual Batch Mode |
| Fiducial Recognition/Coordinate Correction | Yes |
| Bad Mark Detection | Yes |
| Programming | |
| Operating System | Industrial PC with Windows® 11 |
| PC, Keyboard, Mouse | Yes |
| Monitor | Flat LCD |
| Direct Input | Yes |
| Teaching Camera | Yes |
| CAD Download | Yes |
| Step & Repeat for Matrix Boards | Yes |
| Bar Code Reader for Feeders & Packaging | Option |
| MIS & Optimization Functions | Yes |
| Off-line Programming | Option |
| Dispenser Specifications | |
| Dispensing Head | Option 1 Head |
| Dispense Method | Time/Pressure |
| Dot Size | Down to 0.5 mm |
| Placement Speed | 6,000 dph |
| Power Sources | |
| Power Supply | 200-230 VAC |
| Power | 700W |
| Air Supply | 75psi, 4cfm |
| Physical Specifications | |
| Machine Dimensions (Approx. L x W x H) | 950 mm L x 980 mm W x 1448 mm H (37" x 38 1/2" x 57") |
| Weight | 364 lbs (165kg) 900 lbs (408kg) with Stand |
| Service and Support | |
| Remote Diagnostics | Yes - TeamViewer via Internet |
| Warranty (Major Components) | 1 Year - Extended Available |
Jet Dispenser Ready
The integration of the Vermes MDV1560 jet dispenser transforms your pick-and-place system into a complete "all-in-one" solution. By combining high-speed dispensing with precision placement, you can streamline your entire assembly process without the need for additional specialized equipment.
With any purchase of a T6 or T7 Jet Dispenser, we will provide a complimentary sample of our high-reliability solder paste, optimized specifically for your machine.
- Eliminate Stencils & Printers: Avoid the high cost and lead times associated with custom stencils and the footprint of a dedicated stencil printer.
- Print & Place in One Machine: Consolidate your production line by handling solder paste or glue application and component placement on a single platform.
- Perfect for Prototyping & High-Mix: Rapidly switch between different board designs without retooling, making it the ideal choice for R&D, small batches, and high-mix production environments.
| Inventec Solder Paste | Dispenser | Tappet Rod | Nozzle | Mode | Min Dot Size | Speed |
|---|---|---|---|---|---|---|
| ECOREL FREE JP32/6 80.0T6 | Vermes MDV1560 | ZZ74 | N64-90 | High Speed | 380-390 µm | 225 dots / 21 sec (640 dpm) |
| ECOREL FREE JP32/6 80.0T6 | Vermes MDV1560 | ZZ73 | N25-100 | Low Speed | 280-290 µm | 225 dots / 56 sec (240 dpm) |
| ECOREL FREE JP32/6 80.0T7 | Vermes MDV1560 | ZZ73 | N64-60 | High Speed | 270-280 µm | 225 dots / 21 sec (640 dpm) |
| ECOREL FREE JP32/6 80.0T7 | Vermes MDV1560 | ZZ73 | N11-50 | Low Speed | 200-210 µm | 225 dots / 56 sec (240 dpm) |
T6, 390 µm
T6, 290 µm
T7, 280 µm
T7, 210 µm
Integrated Smart Feeder Management for Reliable Production
Every MC Series pick and place machine includes fully integrated smart feeder software designed to simplify setup, improve traceability, and reduce production errors. Each smart feeder communicates directly with the machine through a DB-9 interface, allowing feeder data and component information to sync automatically with the assembly program.
Built-in feeder memory stores essential production data such as feeder ID, assigned slot, component type, lot and date codes, starting quantities, and indexing parameters. Optional barcode scanning further accelerates setup by importing reel information automatically, reducing manual entry and helping ensure the correct components are loaded before production begins.
- Integrated smart feeder software included with all MC Series machines
- DB-9 interface enables direct feeder-to-machine communication
- Stores feeder ID, slot assignment, lot codes, quantities, and component data
- Optional barcode reader automates reel data entry
- Reduces setup errors and manual programming time
- Improves assembly accuracy and production traceability
KFTA3D Smart Feeders with Integrated OLED Display
The KFTA3D Series smart feeder features a built-in OLED display and onboard memory that provide instant access to critical component information directly at the feeder. Operators can quickly verify reel quantities, feeder slot locations, part numbers, and component values whether the feeder is connected to the machine or offline.
By moving key production data directly to the point of use, the feeder helps reduce setup mistakes, improve visibility during changeovers, and simplify component tracking throughout production. An internal battery preserves stored data even when disconnected, supporting flexible off-line preparation and staging.
- Integrated OLED display for real-time feeder information
- Displays reel quantity, slot location, part number, and component value
- Internal memory and battery retain data while offline
- Supports faster setup and reduced operator errors
- 12 mm feeder occupies only one feeder slot for higher feeder density
- Designed for high-mix SMT production environments
Universal Smart Stick Feeders for Flexible Component Handling
Manncorp’s smart stick feeders integrate directly with MC Series pick and place systems and can be installed alongside smart tape feeders for efficient use of feeder rack space. Available in 5-, 10-, and 20-lane configurations, they provide flexible handling for a wide range of component types and production requirements.
Each feeder communicates with the machine through the smart feeder base and stores lane-specific component data in onboard memory. This allows the system to maintain accurate indexing, vibratory timing, and feeder positioning while reducing setup complexity and minimizing operator error.
- Available in 5-, 10-, and 20-lane feeder configurations
- Compatible with MC Series smart feeder systems
- Installs alongside smart tape feeders for efficient rack usage
- Stores feeder IDs and lane-specific component data
- Supports accurate vibratory timing and indexing control
- Helps reduce setup errors and improve consistency
Flexible Tray and Cut Tape Component Handling
MC Series machines are designed with open work areas that support multiple component presentation methods, including waffle trays, JEDEC trays, and cut tape strips. This flexibility makes the system well suited for prototyping, mixed assemblies, and low-volume production environments.
The TS-1 Waffle Tray Holder securely accommodates standard JEDEC matrix trays or multiple cut strip holders while supporting a variety of custom tray configurations. For short tape lengths or specialty components, CST Cut Strip Tape holders allow efficient handling without requiring full reels, helping reduce waste and setup costs.
- Supports waffle trays, JEDEC trays, and cut tape strips
- TS-1 holder fits standard 12.4" x 5.35" JEDEC trays
- Accommodates up to two cut strip holders simultaneously
- Compatible with custom tray and waffle pack configurations
- Cut strip holders available for 8 mm, 12 mm, 16 mm, and 24 mm tape
- Ideal for prototyping and low-volume assembly work
Smart Feeder Software for Faster Setup and Changeover
Manncorp’s smart feeder software is included standard with all MC Series machines and is designed to simplify production setup, feeder verification, and inventory tracking. The system automatically monitors component usage during production and stores remaining quantities directly within each feeder’s onboard memory.
When feeders are reloaded for future jobs, the software automatically recognizes the feeder and restores the stored quantity information without requiring manual recalibration. Additional features such as feeder position verification, automatic slot scanning, and optional barcode integration help accelerate changeovers while reducing setup errors.
- Automatic component quantity tracking during production
- Stores remaining reel quantities in feeder memory
- Automatic feeder recognition during reloads and job changes
- Feeder position verification reduces placement errors
- Automatic slot scanning simplifies changeovers
- Optional barcode reader imports lot codes and component data
- Minimizes manual data entry and setup time
Smart Tape Feeder Carts for Off-Line Kitting and Storage
Manncorp’s Smart Tape Feeder Storage Cart provides a secure and organized solution for transporting, storing, and staging smart feeders off-line. The FR-ST64 model supports up to 64 individual 8 mm feeders, allowing operators to prepare jobs in advance for faster machine setup and changeovers.
Constructed from heavy-duty tubular steel, the cart protects feeders during transport while helping maintain an organized production environment. Its mobile design allows feeders to move easily between kitting areas and production lines, improving workflow efficiency in high-mix SMT operations.
- FR-ST64 cart holds up to 64 individual 8 mm feeders
- Designed for off-line feeder kitting and staging
- Heavy-duty tubular steel construction for durability
- Protects feeders during transport and storage
- Mobile design supports fast setup and changeover
- Helps organize feeders for high-mix production environments
Automatic Index Adjustment for Accurate Component Pickup
MC Series machines use automatic index adjustment with vision-based alignment to maintain accurate component pickup when reels are loaded or replaced. The system detects slight tape pocket offsets and automatically advances or reverses feeder positioning to correct alignment before placement begins.
For reels with wider manufacturing tolerances, the machine can verify alignment during every pickup cycle to help prevent recurring pickup and placement errors. This automatic correction process improves consistency while reducing downtime caused by tape misalignment issues.
- Automatic tape index correction using vision alignment
- Detects and compensates for reel pocket offset variations
- Automatically advances or reverses feeder position as needed
- Improves pickup accuracy after reel changes
- Optional verification on every pickup cycle for loose-tolerance reels
- Helps prevent recurring placement and pickup errors
