RT86 Motorized Axial Lead Former

Motorized Axial Lead Former RT86 for Taped & Loose Parts from Manncorp

Motorized Radial Lead Cutter for Taped Parts RT70

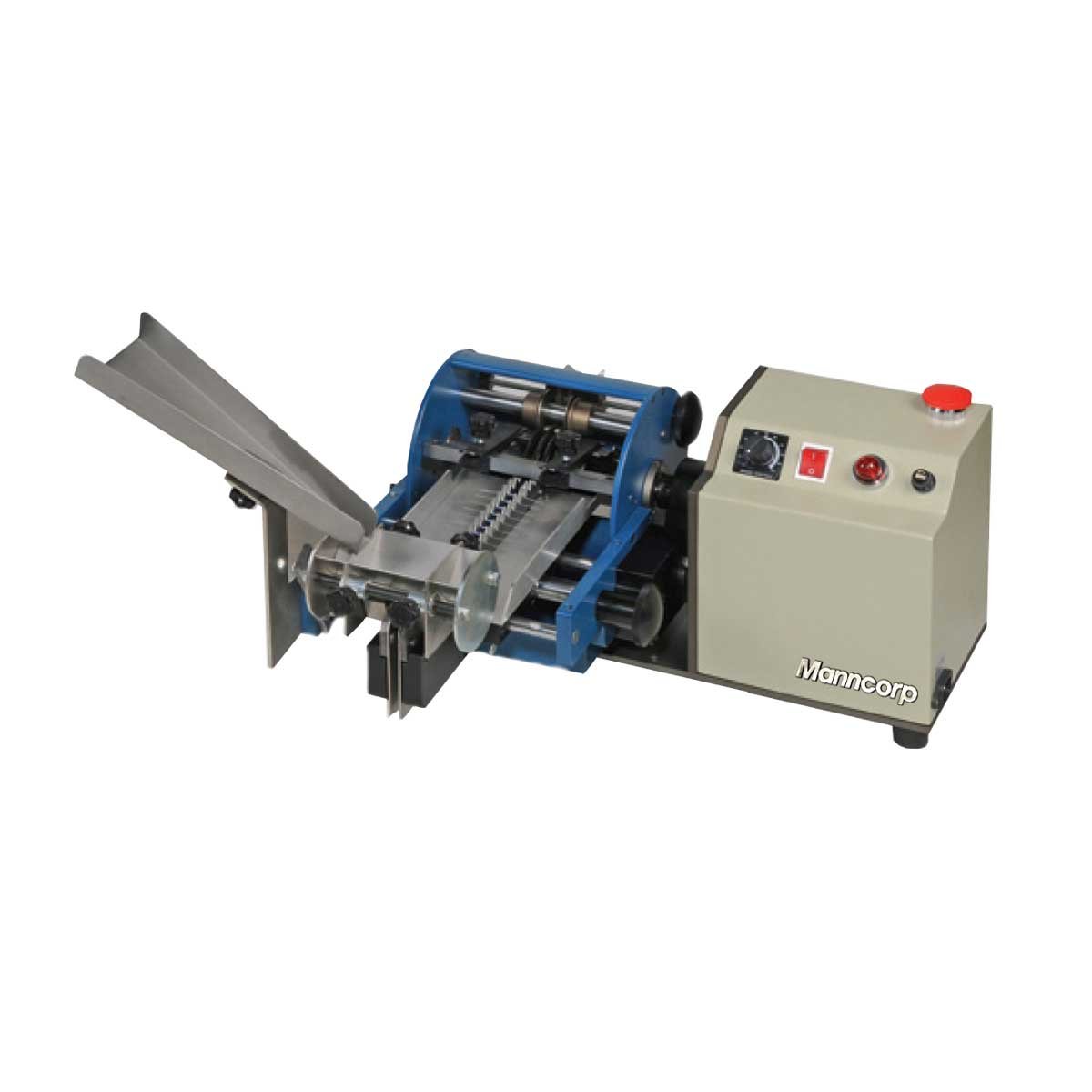

The RT86 Motorized Lead Former is designed for efficiency and ease of use, offering fully adjustable pitch and lead length without the need for any tooling. Ideal for small contractors, this versatile machine delivers high-speed processing—up to 35,000 taped or 2,500 loose components per hour.

Built for long-term accuracy, the RT86 features sealed ball bearing bushings in the crank mechanism to maintain precision throughout the life of the machine. Its independent rotary disc cutters minimize stress on components, are easy to replace, and extend the cutting life significantly.

Model

RT86U

RT86S

RT86W

RT86F

or to view pricing

[{"id":40317000351883,"title":"RT86U","option1":"RT86U","option2":null,"option3":null,"sku":"RT86U","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86U","public_title":"RT86U","options":["RT86U"],"price":599500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000319115,"title":"RT86S","option1":"RT86S","option2":null,"option3":null,"sku":"RT86S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86S","public_title":"RT86S","options":["RT86S"],"price":609500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000384651,"title":"RT86W","option1":"RT86W","option2":null,"option3":null,"sku":"RT86W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86W","public_title":"RT86W","options":["RT86W"],"price":639500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40317000417419,"title":"RT86F","option1":"RT86F","option2":null,"option3":null,"sku":"RT86F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RT86 Motorized Axial Lead Former - RT86F","public_title":"RT86F","options":["RT86F"],"price":649500,"weight":29484,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Questions? Reach Out Directly:

Chris Ellis - East Coast

Sales & Operations Manager

215.869.8374

Ed Stone - West Coast

Sales Manager

215.808.6266

Description Protect_msd Restore_and_store Specifications Features Feeders Machine_configurations Applications Profile_predictions Performance_charts Video Navigator_software Process_window Add_ons Temperature_tolerance Includes Add_fluxing Contact

Available in Four Models

RT86 motorized lead former with loose parts feeder meets most lead forming requirements. For lead widths 0.35 - 1.0mm diameter.

RT86S motorized lead former for finer diameter wires or smaller components that can be bent closer to the body. For lead widths 0.35 - 0.8mm diameter.

RT86W motorized lead former for heavy gauge wires. For lead widths 0.3 - 1.5mm diameter.

RT86F motorized lead former for vertical lead forming. For lead widths 0.35 - 0.8mm diameter.

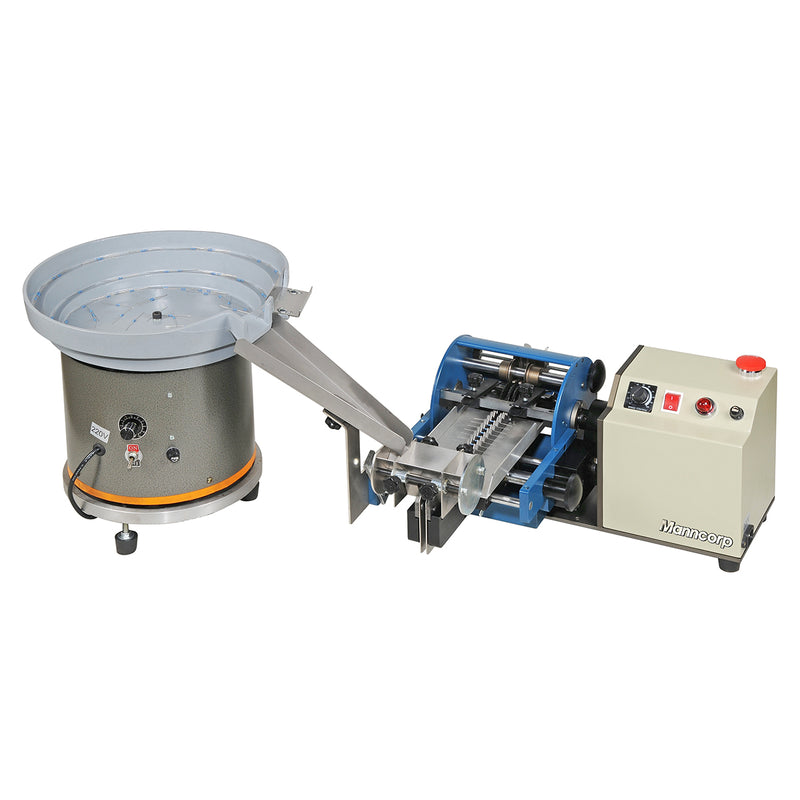

Each unit includes a tape reel holder and a walking beam for loose components, making it a reliable solution for both taped and bulk part handling. Whether you're streamlining your production line or upgrading from manual processing, the RT86 is your go-to for fast, flexible lead forming.

Specifications	RT86S	RT86	RT86W	RT86F
	Motorized Taped and Loose Axial Lead Bender with Hopper	Motorized Taped and Loose Axial Lead Bender with Hopper	Motorized Taped and Loose Axial Lead Bender - Smaller diameter/components with Hopper	Motorized Taped and Loose Axial Lead Bender with Hopper
A Body Length	3.5-37.6 mm	3.5-37.6 mm	3.5-37.6 mm	3.6-18 mm
B Lead Length	3.5-15 mm	3.5-15 mm	3.5-15 mm	2-12 mm
C Shoulder Min	0.6 mm	1.2 mm	1.2 mm	3.5 mm
D Body Diameter	1.5-8 mm	1.5-8 mm	1.5-8 mm	1.5-6 mm
ɸW Wire Diameter	0.35-0.8 mm	0.35-0.8 mm	0.35-1.2 mm	0.35-0.8 mm
H Support Lead Max	N/A	N/A	N/A	25 mm
P (Pitch)	5-40 mm	6-40 mm	6-40 mm	2.5-13.5 mm (The lower C=3 mm, the wider P=40 mm)
R (Radius)	N/A	N/A	N/A	1-3°
Production Rates - Taped	43,000 pcs/hr	43,000 pcs/hr	43,000 pcs/hr	43,000 pcs/hr
Production Rates - Loose	7,200 pcs/hr	7,200 pcs/hr	7,200 pcs/hr	7,200 pcs/hr
Power	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz	110/220V 50/60 Hz
Dimensions	470 x 500 x 235 mm	470 x 500 x 235 mm	470 x 500 x 235 mm	470 x 500 x 235 mm
Weight	25 kgs	25 kgs	26 kgs	25 kgs
Shipping Weight	27 kgs	27 kgs	28 kgs	27 kgs
Tape Pitch	N/A	N/A	N/A	N/A

Options	RT86S	RT86	RT86W	RT86F
Pitch Gauge	Yes	Yes	Yes	Yes
Foot Pedal	N/A	N/A	N/A	N/A
Component Counter	Yes	Yes	Yes	Yes
Bowl Feeder	Yes (RT90)	Yes (RT90)	Yes (RT90)	Yes (RT90)
