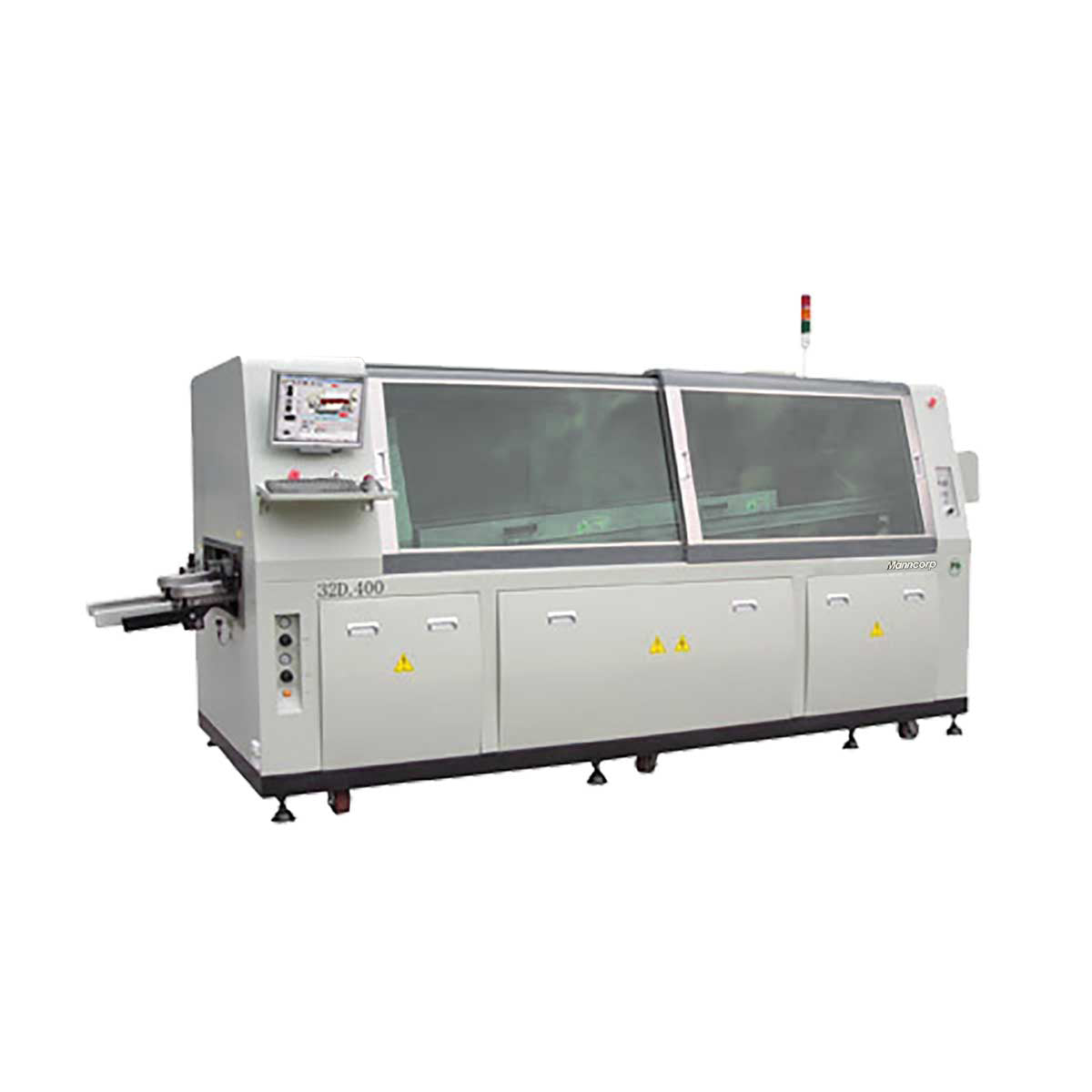

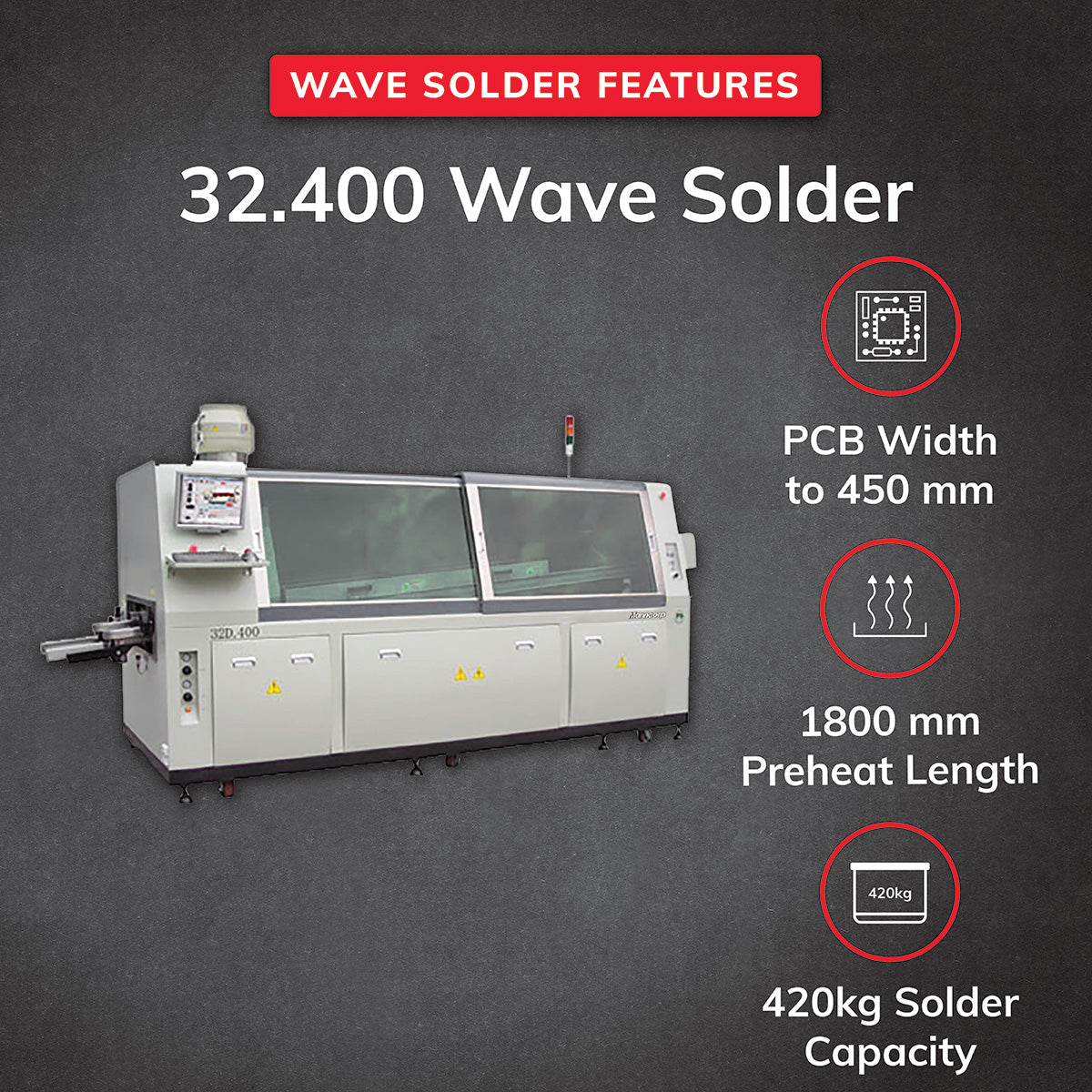

Advanced Fluxing & 3-Zone Convection Preheating
The 32.400 combines precision fluxing with extended convection preheating for optimal soldering performance.
- 3-zone convection preheat (1800 mm): precise thermal profiling
- Independent zone control: optimized flux activation and wetting
- Optional top-side preheat: improved control for sensitive assemblies
- Y-axis spray fluxer: consistent, even application
- Low-pressure atomizer: thorough coverage with minimal waste
- Auto width adjustment: adapts to PCB size
- Optional dual fluxer: instant switching between flux types
- Separate tanks & lines: eliminates cross-contamination
Versatile Dual-Wave Soldering
The dual-wave system delivers consistent, high-quality soldering across all assembly types.
- Chip wave: turbulent flow eliminates skips
- Main wave: smooth drainage reduces bridging
- Single-wave mode: disable chip wave for through-hole only
- Oscillating wave (optional): improved hole fill on complex boards
- 410 mm wave width: supports large PCBs
- Wave reducer (optional): minimizes dross
- Transducer-controlled motors: stable, consistent wave height
- Board sensing + standby mode: reduced dross and energy use
High-Capacity Solder Pot with Rapid Changeover
The 32.400 is built for high-volume production with a large-capacity, easy-maintenance solder system.
- 420 kg (925 lb) capacity: supports continuous production
- Titanium-alloy pot: durable and lead-free compatible
- Roll-out carriage: easy access for maintenance
- Motorized positioning (Y/Z): simplified handling
- Optional dual pot system: fast lead/lead-free switching
- Full pot swap design: minimizes downtime
This system is ideal for high-mix or transitioning production environments.
Optional Inlet & Unload Conveyors
Optional loader and unloader systems streamline board handling and improve production flow.

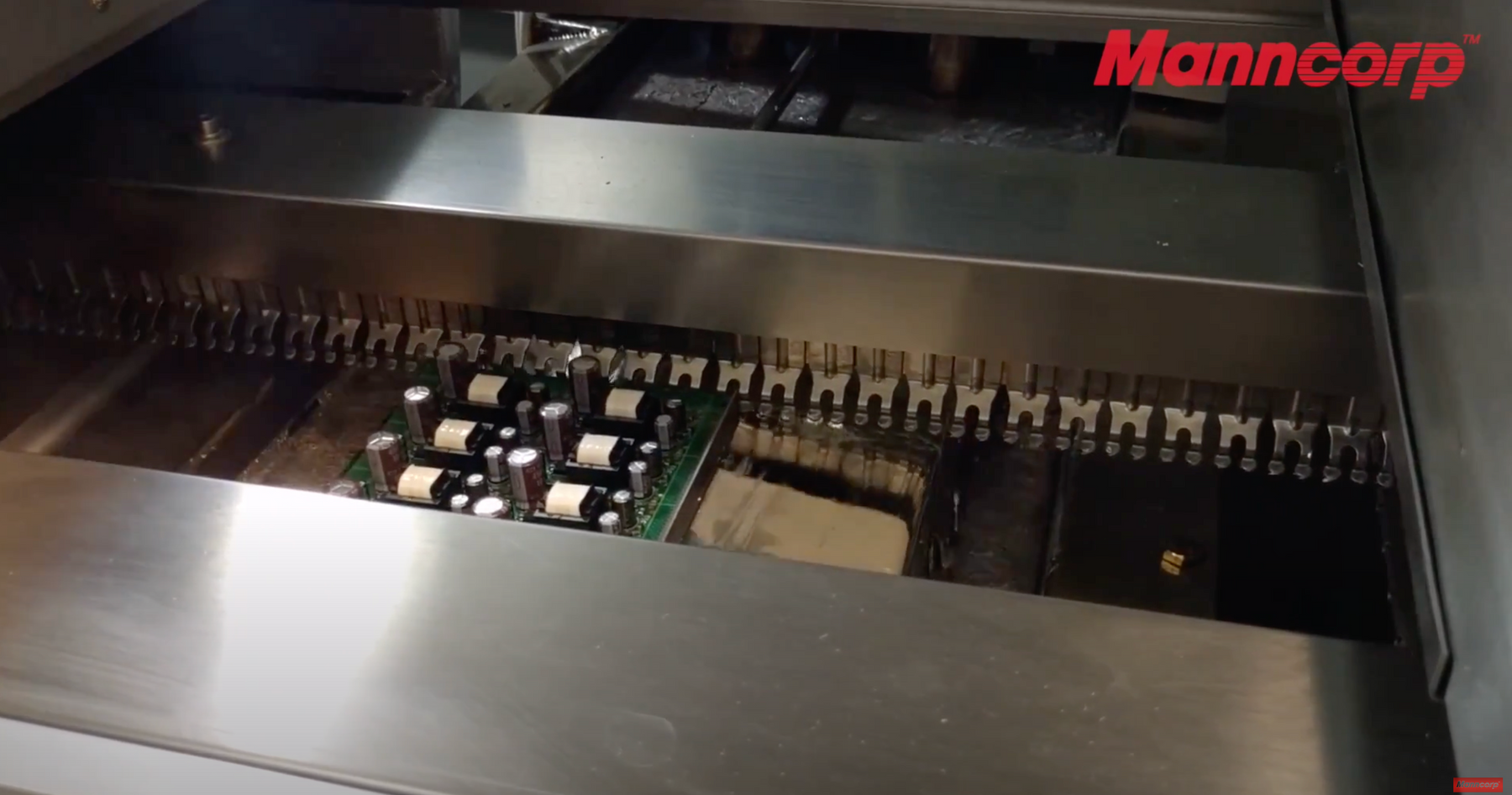

- Inlet conveyor: smooth, controlled PCB feeding
- Adjustable speed, angle, height: flexible integration
- Durable aluminum construction: long-term reliability
- Unload conveyor: safe post-solder transfer
- Heat-resistant belt: secure handling
- Variable speed: 500–800 mm/min output control
These systems enable efficient transitions to operators or downstream processes.
| 32.400 Wave Solder Specifications | |
|---|---|
| Power Supply* | 220V 3-Phase 50/60 Hz |
| Total Power | 30.5 Kw |
| Working Power | 7-9 Kw |
| Air Pressure | 60 psi (4 bar) |
| Pin Conveyor Adjust Range | 2" - 15.7" (50-400 mm) |
| PCB Size Max | 15.75" x 15.75" (400 x 400 mm) |
| Conveyor Width | 2" x 15.75" (50 -400 mm) |
| Conveyor Speed | 500-2200 mm/min |
| Soldering Angle (Adjustable) | 4° - 7° |
| Solder Capacity | 925 lbs (420 kg) Lead-free Weight |
| Solder Pot Temp | Ambient - 300° C |
| Solder Pot Startup Time | Approx. 60 min |
| Solder Wave Width | 16.2" (410 mm) |
| Wave Height | .4" (10 mm) |
| Max Lead Protusion | 10 mm |
| Wave | Dual Wave |
| Preheat Length | 70.8" (1800 mm) |
| Preheating Section | 3 sections each 600 mm with individual control |
| Preheat Method | Forced Hot-Air Convection |
| Preheat Control Method | PID Temperature Controller |
| Preheat Temperature Range | 85 - 110° C |
| Flux Atomization Spray Gun | Auto Timing Cleaning |
| Spray Gun Movement | Step Motor |
| Controls | Windows Based PC, PLC and SSR |
| Exhaust Requirements | 250 cfm (Solder Pot Exhaust) 10" diameter Additional 4' Exhaust over conveyor entrance Spray fluxer exhaust fan built into machine |

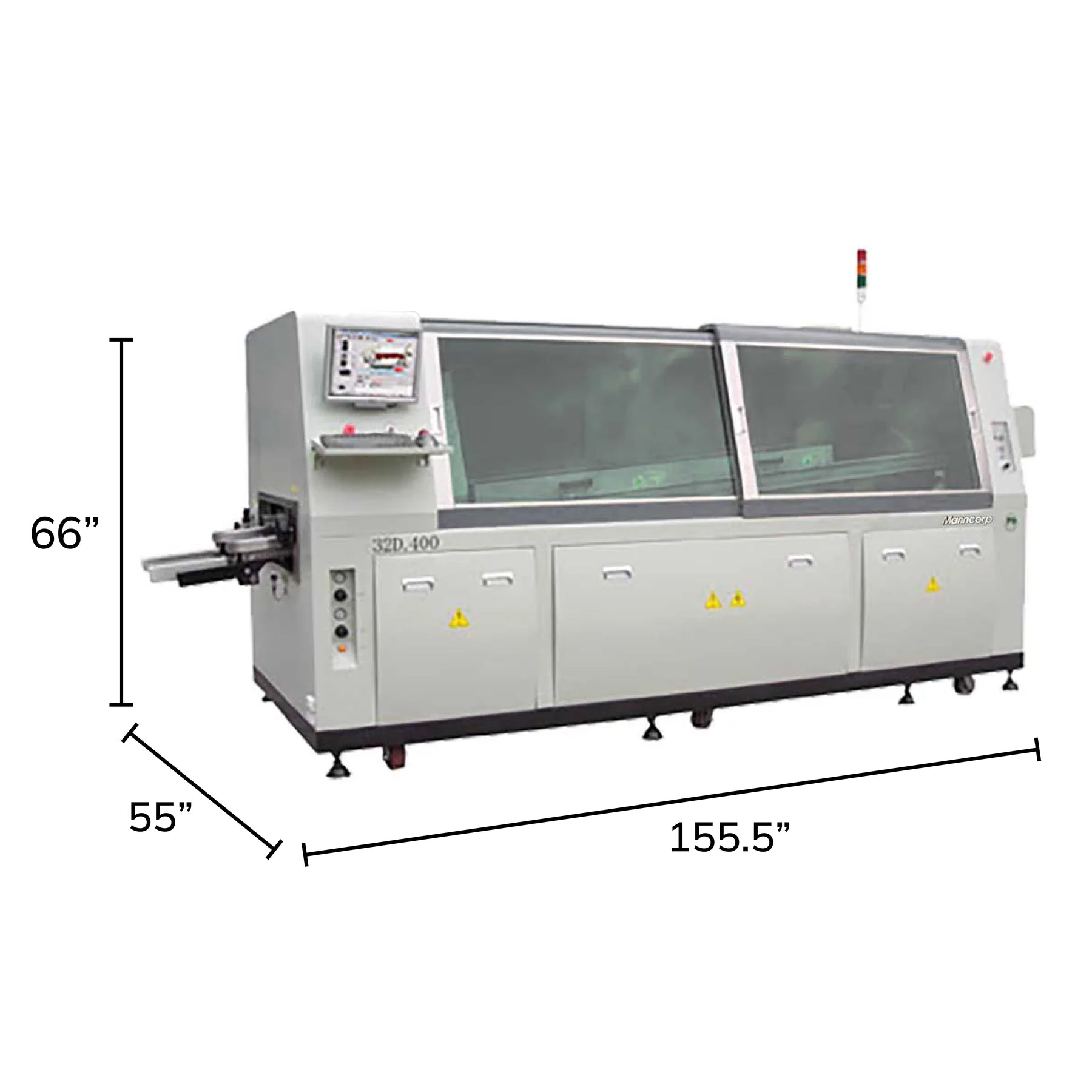

| Machine Dimensions | 155.5" L x 55" W x 66" H (3950 mm L x 1400 mm W x 1680 mm H) |
| Crate Dimensions | 174.4" L x 66" W x 81" H (4430 mm L x 1680 mm W x 2060 mm H) |
| Net Weight | 1850 kg |
| Gross Weight | 2059 kg |
| Auto Solder Pot In/Out, Up/Down | Included |
| Top Preheating | Optional |
| Selective Spray Fluxer | Optional |
| Second Titanium Solder Pot Set | Optional |
| Second Stainless Solder Pot Set | Optional |
| Second Spray Fluxer | Optional |
| Smaller Solder Pot >370 kilos lead-free solder for 400 mm wide 300 kilos lead-free solder for 350 mm wide Solder Pot Dimension: 1024 x 450 x 203 mm |
Optional |
| 350, 450, & 500 mm Width | Optional |
| Dual Nozzle Spray System | N/A |
| Nitrogen Soldering | N/A |
*If the local power supply voltage of the end user is three-phase 380V, the power connection method is three-phase give wire system, which means three power lines, one neutral line, and one grounding wire.
