StencilWasher ZDO Stencil Cleaner

Stencilwasher ZDO Ultrasonic Stencil Cleaner - Zero Discharge from Manncorp

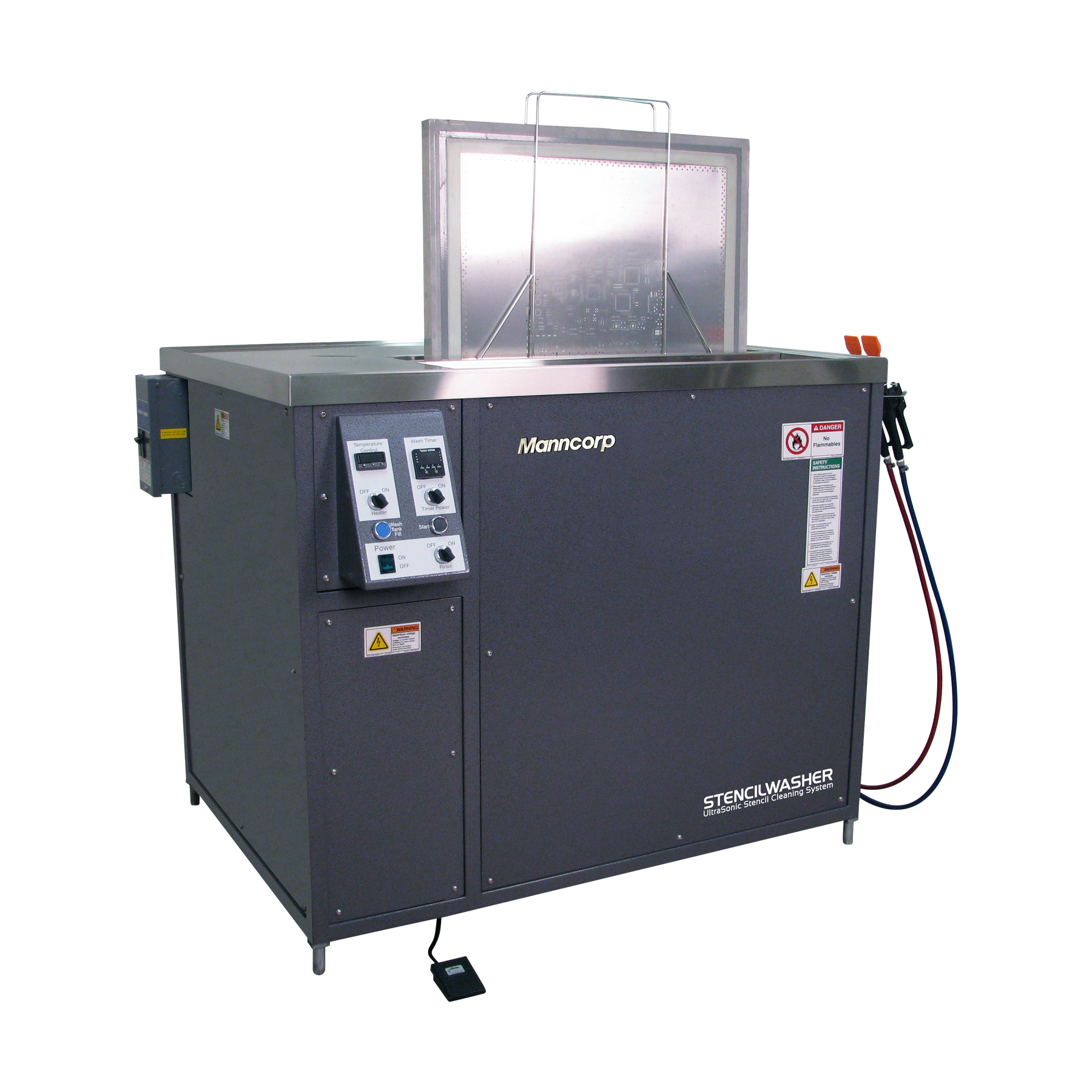

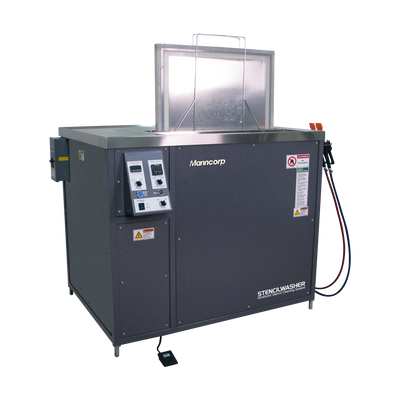

Front View: StencilWasher ZDO Stencil Cleaner
StencilWasher ZDO Stencil Cleaner
StencilWasher ZDO Stencil Cleaner
StencilWasher ZDO Stencil Cleaner
StencilWasher ZDO Stencil Cleaner
StencilWasher ZDO Stencil Cleaner
StencilWasher ZDO Stencil Cleaner

StencilWasher ZDO Stencil Cleaner

Ultrasonic StencilWasher ZDO combines a wash solution filtration and recirculation system with a rinse water recycler to eliminate the need to send any wastewater to drain.

This item ships by freight. If you purchase it through our online store, our sales team will send you a quote for the freight costs after purchase.

Regular price $36,500.00
/
QUESTIONS? TEXT OR CALL:
Chris Ellis  215-869-8374 | East Coast
Ed Stone 215-808-6266 | West Coast

Uses Ultrasonic Technology

StencilWasher ZDO uses ultrasonic technology to remove both un-reflowed solder paste—including dried-on pastes—and uncured adhesives from stencils, screens and misprints, gently and without risk of damage. StencilWasher ZDO is effective even on fine-pitch stencils.

Complete Wash, Rinse and Dry Functions

Complete wash, rinse and dry functions are included, along with a programmable wash cycle timer, wash solution heater, wash and rinse solution filtration, powered drain/filtration pumps, rinse and dry wants, stainless steel wash and rinse tanks, drip-proof stainless steel decks and more. StencilWasher ZDO's ultrasonics are generated by 100-watt side-mounted transducers.

Accommodates Large PCBs

StencilWasher ZDO accommodates stencils, screens and misprinted PCBs to 29" x 29" (736 x 736 mm).

StencilWasher ZDO Specifications
Application Solder paste & uncured adhesive removal
Dimensions 48" L x 34" W x 40" H
Weight 550 lbs
Construction Welded tube steel frame and 16-gauge steel panels
Finish Power-coat epoxy
Internal Plumbing Stainless steel polypropylene
Electrical Requirements 208-240 VAC 1 Ø 50 amps
Wash Tank Capacity 35 gallons (132 liters)
Maximum Stencil Size 29" x 29" (74 cm x 74 cm)
Full immersion
Drain Requirements 3/4" NPT (service use only)
Wash Cycle Timer Digital 1-99 minutes
Ultrasonics 1000-watt side-mounted transducers
Hand-Held Rinse Wand Standard
Hand-Held Airknife Standard
Wash Solution Heating Standard
Wash Solution Filtration Standard
